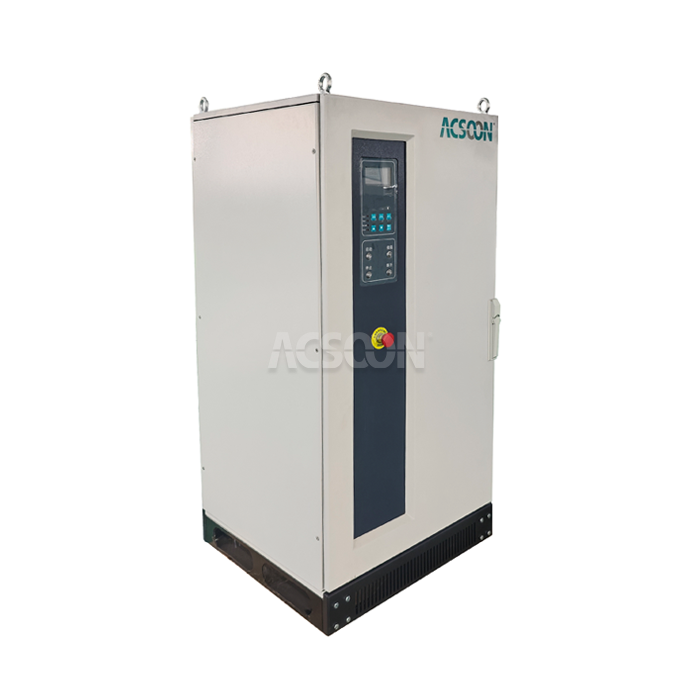

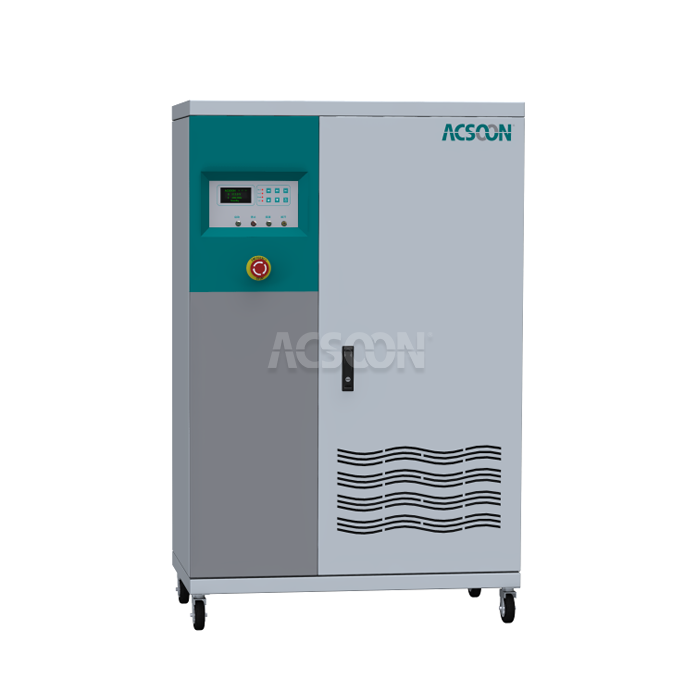

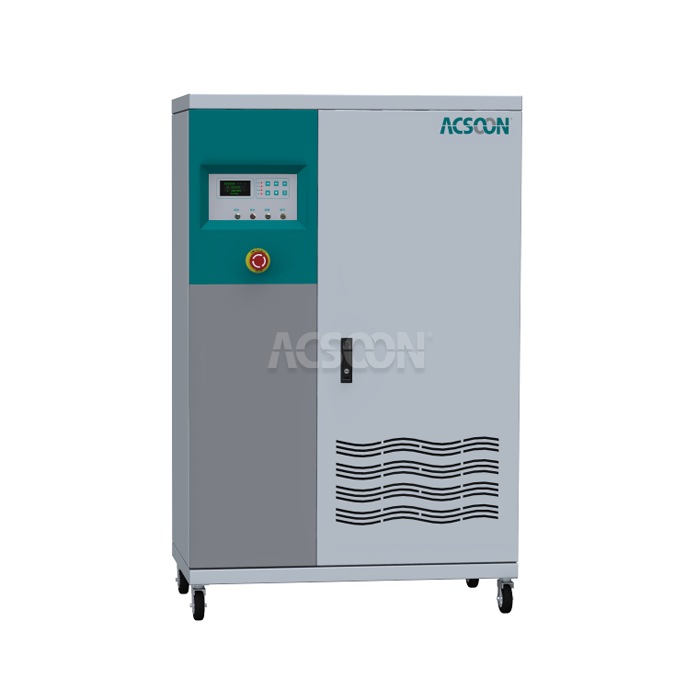

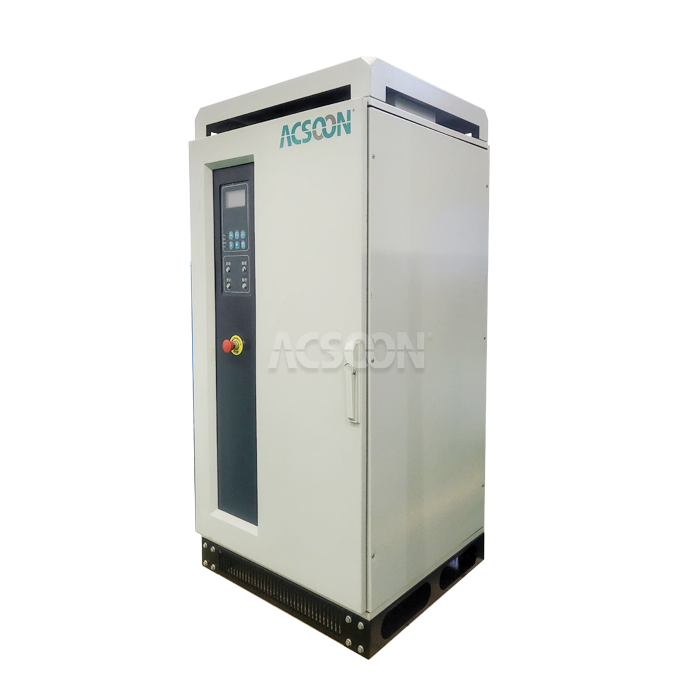

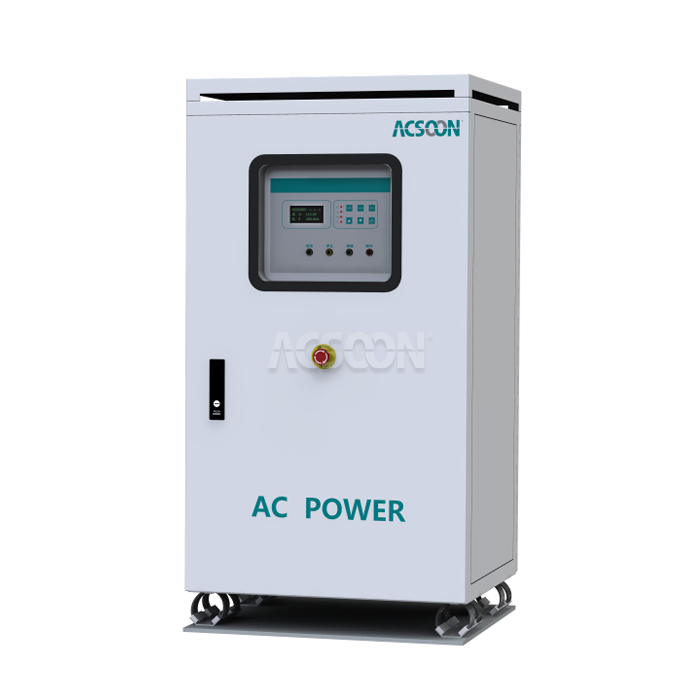

Rapid Deployment Ground Power Unit
2.Technology: Quick-setup solid-state frequency conversion
3.Input: 3-phase 400VAC ±15%, 50/60Hz auto-sensing
4.Deployment: Ready for operation within 5 minutes
5.Key Applications: Emergency operations, temporary airports, disaster response
6.Key Features: Rapid deployment; quick setup; portable design; instant operation
7.Brand: ACSOON (rapid deployment configurations available).
- Product Description
XI'AN JERRYSTAR INSTRUMENT CO., LTD manufactures specialized rapid deployment ground power units for emergency and temporary operations. Our systems are designed for quick setup and immediate operation, providing reliable 400Hz power within minutes for emergency response scenarios, temporary airport setups, and other situations requiring fast power availability.
Technical Specifications
| Feature | Specification |
|---|---|
| Capacity (Three Phase Output) | 30kVA, 45kVA, 60kVA, 90kVA, 100kVA, 120kVA, 150kVA, 180kVA |
| Input Voltage (Three Phase) | 200Vac, 208Vac, 380Vac, 400Vac, 415Vac, 440VAC (L-L) ±20% |
| Input Frequency | 40 - 70HZ |
| Output Voltage (Three Phase) | 200VAC / 208VAC rated, 0-260Vac, 0-520VAC (L-L) |
| Output Frequency | 400HZ rated, 300HZ - 500HZ adjustable |
| Voltage Regulation | ±1% |
| Frequency Stability | ≤0.1% |
| VTHD | <2% |
| Power Factor | ≥0.8 (Standard), ≥0.9 (12 Pulse Optional) |
| Overall Efficiency | ≥85% |
| Overload Capacity | 125% for 10 mins, 150% for 60s, 200% for 30s, 400% for 1s |
| MTBF | 30,000 hours |
| Noise Level | <65dB at 1 meter |
Rapid Deployment Ground Power Unit Main Features
- Auto voltage compensation system, ideal voltage at aircraft connector
- Self diagnose system which would show error code on digital display
- 10 events memory stores
- Pure sine wave, sinusoidal output
- Completely protection and alarm for over voltage, over current and overheating, etc
- Eco-friendly, lower power consumption with high efficiency
- With 28VDC military interlock
Why Choose ACSOON Rapid Deployment Ground Power Units?
ACSOON delivers immediate power availability when time is critical:
Quick Setup: Operational within 5 minutes of arrival
Rapid Deployment: Fast positioning and connection
Instant Operation: Immediate power availability
Portable Design: Easy transport to required locations
Reliable Performance: Dependable power in emergency situations
Application Areas
Our rapid deployment ground power units are essential for:
Emergency Operations: Disaster response scenarios
Temporary Airports: Temporary flight operations
Disaster Relief: Emergency relief operations
Military Deployment: Rapid military deployments
Emergency Services: Quick response requirements
Temporary Facilities: Short-term operational needs
Field Operations: Remote field deployments
Event Support: Temporary aviation events
Our Services
Quality Assurance
Each rapid deployment ground power unit undergoes rigorous testing:
- Quick deployment validation
- Setup time verification
- Rapid operation testing
- Reliability under time pressure
- Performance certification
Technical Features
Our rapid deployment ground power unit incorporates:
Quick-connect systems
Simplified setup procedures
Portable design features
Rapid cooling initiation
Instant start capability
Packaging and Delivery
We ensure rapid deployment packaging:
Quick-access packaging design
Easy unpacking features
Worldwide emergency shipping
Rapid installation support
After-Sales Service
Rapid deployment support includes:
Emergency technical support
Quick response maintenance
Rapid parts dispatch
Emergency training programs
24/7 support availability
Certifications
FAQ |
|---|
| Q1: What are the main benefits of rapid deployment ground power units? |
| A: Quick setup, immediate operation, and reliable performance in time-critical situations. |
| Q2: How quickly can the unit be operational? |
| A: Ready for operation within 5 minutes of arrival on site. |
| Q3: What makes setup so fast? |
| A: Simplified connection systems and automated startup procedures. |
| Q4: What emergency applications are supported? |
| A: Disaster response, temporary airports, and emergency relief operations. |
| Q5: Can units be quickly moved between locations? |
| A: Yes, designed for easy transport and rapid redeployment. |
