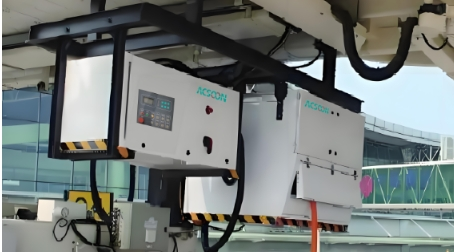

Can a 400hz Ground Power Supply Improve Airport Efficiency?
A 400 Hz ground power supply significantly improves airport efficiency by reducing aircraft turnaround time and operational costs. These specialized units eliminate the need to run auxiliary power units (APUs) during ground operations, cutting fuel consumption and noise pollution while accelerating servicing schedules. The 400Hz frequency standard allows for more compact and lightweight electrical components compared to standard 50Hz or 60Hz systems, enabling faster connection and disconnection cycles. Modern solid-state frequency converters deliver stable voltage regulation and phase accuracy, ensuring sensitive avionics receive clean power without interruption, which directly contributes to streamlined ground support operations across commercial and military aviation facilities.
Understanding 400Hz Ground Power Supply and Its Role in Airports
Aviation ground support requires precision electrical systems that differ fundamentally from commercial power infrastructure. The shift to 400Hz frequency emerged from the need to reduce weight in aircraft electrical systems, where every kilogram matters for fuel efficiency and payload capacity.
Technical Principles Behind Frequency Conversion
A 400Hz ground power supply converts standard utility power (typically 50Hz or 60Hz at 208-480V three-phase) into the specialized 400Hz output required by aircraft systems. The higher frequency allows transformers, motors, and electromagnetic components within aircraft to operate with significantly smaller magnetic cores. This frequency conversion relies on solid-state technology that rectifies incoming AC power to DC, then inverts it back to AC at precisely 400Hz through advanced switching circuits. The ACSOON GPU400-330075 model exemplifies this technology, accepting three-phase input across a wide voltage range (208-480V) and delivering stable three-phase output at 200V or 208V, 400Hz, with 75kVA power capacity. This solid-state architecture ensures voltage stability within ±1%, meeting stringent MIL-STD-704F requirements that govern aircraft electric power characteristics.
Key Specifications for Aviation Ground Support
Power quality parameters define the effectiveness of ground power units in airport environments. Critical specifications include frequency stability (maintaining 400 Hz ±0.1% under varying loads), low Total Harmonic Distortion (THD below 3%), and rapid transient response. The GPU400-330075 features an automatic output voltage compensation system that corrects for voltage drops across lengthy ground cables, a common challenge when servicing aircraft parked far from terminal buildings. Its IP54 ingress protection grade ensures reliable operation despite exposure to jet fuel vapors, hydraulic fluids, and weather conditions typical of airport ramps. The digital LCD provides real-time monitoring of output parameters, allowing ground crews to verify power quality before connecting to aircraft systems that include flight computers, navigation equipment, and environmental controls valued at millions of dollars.
Primary Applications in Airport Ground Operations
Ground power units serve multiple critical functions beyond simply replacing APU operation. During pre-flight preparation, they energize cockpit systems for crew briefings and flight management computer programming. Throughout passenger boarding, they maintain cabin lighting and climate control without engine operation, enhancing passenger comfort while reducing ambient noise around terminal gates. Maintenance facilities depend on these units for troubleshooting avionics faults, running system checks, and conducting repairs that require aircraft power in hangars where APU operation creates ventilation challenges. The transport trolley mounting of the GPU400-330075 provides flexibility for positioning near aircraft access panels, reducing cable length requirements and associated voltage drop issues that compromise power quality.
How Do 400 Hz Ground Power Supplies Enhance Airport Efficiency?
Legacy ground power infrastructure creates operational friction that cascades throughout airport schedules. Older systems require extended warm-up periods, lack automated voltage regulation, and demand frequent maintenance that reduces equipment availability during peak traffic periods.
Accelerating Aircraft Turnaround Time
Modern 400Hz ground power units connect and energize aircraft systems in minutes rather than the extended periods required by older equipment. The GPU400-330075's automatic voltage compensation system eliminates manual adjustment procedures that previously consumed valuable turnaround time. Ground crews simply connect the aircraft interface cable, verify parameters on the digital display, and transition to other servicing tasks. This streamlined process becomes particularly valuable during tight connection windows where delays propagate through airline networks. Airlines operating hub-and-spoke systems experience compounding efficiency gains when ground power reliability prevents departure delays that affect downstream flights across multiple airports.
Reducing Auxiliary Power Unit Operating Costs
APU operation consumes substantial fuel quantities—typically 200-400 pounds per hour depending on aircraft type—while generating maintenance requirements that increase direct operating costs. Each hour of APU operation accrues wear on components designed for backup and in-flight emergency power rather than routine ground use. Airports that deploy reliable ground power infrastructure enable airlines to implement APU shutdown protocols that yield measurable fuel savings and extended APU overhaul intervals. Environmental benefits extend beyond fuel conservation to include dramatic noise reduction around terminal areas, improving working conditions for ground personnel and reducing noise complaints from surrounding communities. The 75kVA capacity of the GPU400-330075 adequately serves narrow-body aircraft types that constitute the majority of commercial operations, delivering optimal cost-efficiency for airport authorities and airline operators.
Improving System Reliability Through Advanced Safety Features
Solid-state frequency converter technology inherently provides superior reliability compared to older rotary converter designs that incorporate mechanical components subject to bearing wear and brush maintenance. The GPU400-330075 incorporates comprehensive protection circuitry that monitors output parameters continuously, disconnecting automatically if voltage, frequency, or phase imbalance exceeds safe thresholds. This fail-safe architecture prevents damage to aircraft electrical systems that would result in costly repairs and extended aircraft out-of-service periods. Maintenance strategies benefit from diagnostic capabilities built into modern ground power units, where fault codes displayed on the LCD interface guide technicians to specific components requiring attention, reducing troubleshooting time and parts inventory requirements.
Comparing 400Hz Ground Power Supply with Alternative Solutions
Airport managers and airline ground operations directors evaluate multiple approaches to aircraft ground power, each presenting distinct advantages and limitations across different operational contexts.
Cost-Benefit Analysis: Ground Power Units Versus APU Operation
Direct cost comparisons reveal compelling economics favoring external ground power deployment. APU fuel consumption during a typical one-hour ground period costs $150-300 at current jet fuel prices, while the electricity consumed by ground power units runs $15-25 for the same period. Airports handling 200 daily departures achieve annual savings exceeding $2 million through comprehensive ground power utilization, even after accounting for equipment acquisition, installation, and maintenance expenses. Indirect benefits include extended APU component life and reduced unscheduled maintenance events that disrupt flight schedules. The analysis becomes more nuanced for regional airports with lower traffic volumes where fixed infrastructure costs represent larger per-operation expenses, making mobile ground power units like the trolley-mounted GPU400-330075 particularly attractive.
Environmental Impact and Sustainability Goals
Aviation industry sustainability initiatives increasingly focus on reducing ground operations emissions that constitute significant portions of airport carbon footprints. APU operation produces direct emissions quantified at approximately 14-20 pounds of CO₂ per operating hour, multiplied across thousands of daily aircraft movements at major airports. Ground power supplied from utility grids—even those incorporating fossil fuel generation—delivers substantial emissions reduction through centralized generation efficiency and renewable energy integration. Airports pursuing LEED certification or carbon neutrality commitments leverage ground power deployment as measurable progress toward environmental targets. Noise pollution reduction carries additional weight in urban airport environments where community relations depend on minimizing disturbances during early morning and late evening operations.
Technical Compatibility Across Aircraft Types
Modern commercial aircraft universally standardize on 115V AC, 400 Hz electrical systems, ensuring broad compatibility with ground power infrastructure. Wide-body long-haul aircraft require higher power capacity (90-120kVA) than the 75kVA provided by the GPU400-330075, which optimally serves narrow-body types including Boeing 737, Airbus A320 families, and regional jets. Military aviation introduces additional complexity through 28V DC systems and specialized connector standards, though many military transport and patrol aircraft maintain 400Hz AC compatibility. Procurement managers serving mixed fleets benefit from suppliers offering customization capabilities and multiple model variants, ensuring comprehensive coverage across operational requirements. The ACSOON brand's OEM support enables configuration matching specific aircraft types and operational scenarios encountered by military airbases and MRO facilities.
Procurement Considerations for 400Hz Ground Power Supplies
Selecting appropriate ground power equipment requires systematic evaluation of technical specifications, supplier capabilities, and total ownership costs that extend beyond initial purchase prices.
Critical Specifications and Performance Parameters
Power capacity represents the primary specification, matched to the electrical load imposed by specific aircraft types during various operational phases. The GPU400-330075's 75kVA rating suits narrow-body commercial aircraft and most business aviation applications, providing an adequate margin above typical loads ranging from 40 to 60kVA. Output voltage options (200V or 208V) accommodate international aircraft variants, while the three-phase configuration maintains balanced loads across all phases. Input voltage flexibility (208-480V, 50/60Hz) ensures compatibility with diverse airport electrical infrastructure worldwide, simplifying deployment across international operations. Frequency stability specifications directly impact equipment longevity and repair costs, as poor power quality damages aircraft rectifiers, inverters, and computer power supplies through harmonic heating and voltage stress.
Evaluating Manufacturers and Supplier Capabilities
The 400 Hz ground power supply market includes established multinational corporations and specialized manufacturers serving niche aviation requirements. XI'AN JERRYSTAR INSTRUMENT CO., LTD brings 15 years of manufacturing experience specifically focused on aviation, military, marine, and industrial power conversion applications. Their ACSOON brand competes effectively through customization capabilities that address unique operational requirements often inadequately served by standardized product lines from larger competitors. ISO 9001 certification demonstrates commitment to quality management systems that ensure consistent manufacturing processes and comprehensive documentation valued by government and military procurement organizations. Geographic considerations affect supplier selection, particularly regarding after-sales support availability, spare parts inventory proximity, and emergency replacement capabilities that minimize equipment downtime costs.
Pricing Trends and Flexible Procurement Options
Capital budget constraints drive many organizations toward creative procurement approaches beyond outright equipment purchase. The GPU400-330075 pricing reflects its solid-state technology and industrial-grade construction suitable for demanding aviation environments, typically ranging from $28,000 to $42,000 depending on customization requirements and order quantities. Rental agreements serve temporary capacity requirements during seasonal traffic peaks, special events, or while permanent infrastructure undergoes upgrades. Military organizations frequently negotiate government pricing structures incorporating volume commitments and multi-year service agreements that reduce total ownership costs. Lead time management becomes critical for projects with fixed commissioning deadlines, where Xi'an Jerrystar's adequate inventory positioning supports rapid delivery that prevents schedule delays impacting airport expansion projects and airline base establishment timelines.
Maintenance and Troubleshooting for 400Hz Ground Power Supplies
Sustained reliability of ground power infrastructure depends on proactive maintenance programs and rapid fault resolution capabilities that minimize operational disruptions.
Routine Maintenance Tasks and Inspection Schedules
Solid-state frequency converters require less intensive maintenance than legacy rotary converter designs, though systematic inspection protocols remain essential. Quarterly inspections address cooling system functionality, verifying that intake filters remain clean and ventilation fans operate within specified RPM ranges. Electrical connections undergo thermal imaging surveys detecting high-resistance joints that generate excessive heat under load conditions. Annual procedures include dielectric strength testing (hi-pot testing) that validates insulation integrity between power circuits and ground, preventing shock hazards to ground crew personnel. The digital LCD diagnostic capabilities of the GPU400-330075 simplify preventive maintenance by logging operating hours, fault events, and performance trends that guide condition-based maintenance decisions. Documentation practices ensure traceability required by aviation quality management systems and government auditing requirements.
Common Technical Issues and Corrective Actions
Frequency instability represents the most critical fault condition, typically traced to failed oscillator circuits or degraded capacitors in the power conversion stages. Voltage fluctuations outside the ±1% specification indicate failing voltage regulation circuits or inadequate compensation for long cable runs, addressable through recalibration or cable upgrades. Phase imbalance exceeding 2% suggests asymmetric component aging or unbalanced aircraft loads that require investigation. The automatic voltage compensation system in the GPU400-330075 reduces troubleshooting complexity by continuously adjusting output to maintain specifications despite varying input conditions and cable impedances. Ground crew training emphasizes proper cable handling procedures and connector maintenance, as damaged aircraft interface connectors account for substantial percentages of reported power quality problems incorrectly attributed to ground power unit faults.
Technical Support and After-Sales Service Value
Supplier-provided technical training programs enhance operational reliability by developing in-house troubleshooting capabilities that reduce dependency on external service providers. Xi'an Jerrystar offers comprehensive training covering operational procedures, preventive maintenance execution, and systematic fault diagnosis methodologies aligned with aviation maintenance practices. After-sales support responsiveness directly affects equipment uptime, particularly for organizations operating single units without backup capacity. Email support through acpower@acsoonpower.com provides technical consultation for complex issues requiring factory engineering expertise. Spare parts availability distinguishes suppliers, and strategic inventory positioning enables next-day delivery of critical components, including power modules, control boards, and display assemblies, which minimize repair duration.
Conclusion
Airport operational efficiency depends fundamentally on reliable ground support infrastructure that enables rapid aircraft turnaround while controlling costs and environmental impacts. Modern 400Hz ground power supplies deliver measurable improvements through faster servicing cycles, substantial fuel savings from reduced APU operation, and enhanced system reliability enabled by solid-state technology. The GPU400-330075 from ACSOON exemplifies current-generation capabilities with automatic voltage compensation, comprehensive diagnostic features, and mobile deployment flexibility suited to diverse aviation applications. Procurement decisions benefit from systematic evaluation of technical specifications, supplier expertise, and total ownership costs that extend beyond initial equipment pricing to encompass maintenance requirements and after-sales support quality.
FAQ
Can standard 60Hz aircraft systems operate on 400Hz ground power?
Aircraft electrical systems are specifically designed for 400Hz operation and cannot function properly with standard 60Hz power. The higher frequency fundamentally determines the sizing of transformers, alternators, and motor-driven accessories throughout aircraft electrical architectures. Attempting to operate 400Hz equipment on 60Hz power will cause motors to overheat due to excessive magnetic saturation while producing inadequate output power.
What differentiates solid-state ground power units from rotary converters?
Solid-state units like the GPU400-330075 use electronic switching circuits without mechanical moving parts, delivering superior reliability and reduced maintenance requirements. Rotary converters physically spin motor-generator sets that convert frequency through mechanical rotation, incorporating bearings, brushes, and slip rings requiring periodic replacement. Solid-state technology provides faster startup, quieter operation, and better voltage regulation across varying loads.
How do you address voltage drops in long cable runs at a 400 Hz frequency?
Higher frequency increases cable impedance through the skin effect, where current concentrates near conductor surfaces rather than utilizing the full cross-section. The automatic voltage compensation system in advanced units like the GPU400-330075 measures voltage at the output terminals and adjusts internally to compensate for cable losses, maintaining proper voltage at the aircraft connection point. Specialized low-impedance cables designed for 400Hz applications minimize this challenge.
Why Choose JERRYSTAR as Your 400 Hz Ground Power Supply Manufacturer
Xi'an Jerrystar Instrument Co., Ltd. stands ready to support your aviation ground power requirements with proven expertise spanning 15 years of specialized manufacturing. Our ACSOON brand 400 Hz ground power supply units deliver the technical reliability demanded by commercial airports, military airbases, and MRO facilities worldwide. We maintain adequate inventory for rapid deployment, addressing urgent operational needs that cannot accommodate extended lead times. Customization capabilities ensure optimal matching to your specific aircraft fleet composition and operational scenarios, from standard commercial applications to specialized military and naval requirements. Our 5,000-10,000 square meter manufacturing facility in Xi'an implements rigorous quality control procedures validated through ISO 9001 certification, ensuring every unit meets exacting performance standards before shipment. Contact our technical team at acpower@acsoonpower.com to discuss your ground power needs and receive detailed specifications tailored to your procurement requirements. Visit us at upcoming exhibitions, including Inter Airport Europe in Munich, MRO Americas in Dallas, and the Dubai Airshow, to experience our products directly.
