How Does 60hz to 50Hz Frequency Converter Improve Equipment Compatibility?

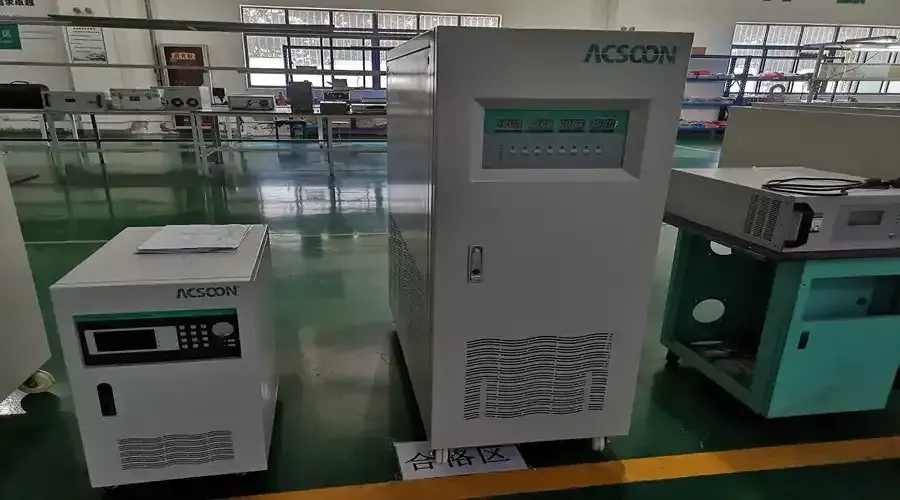

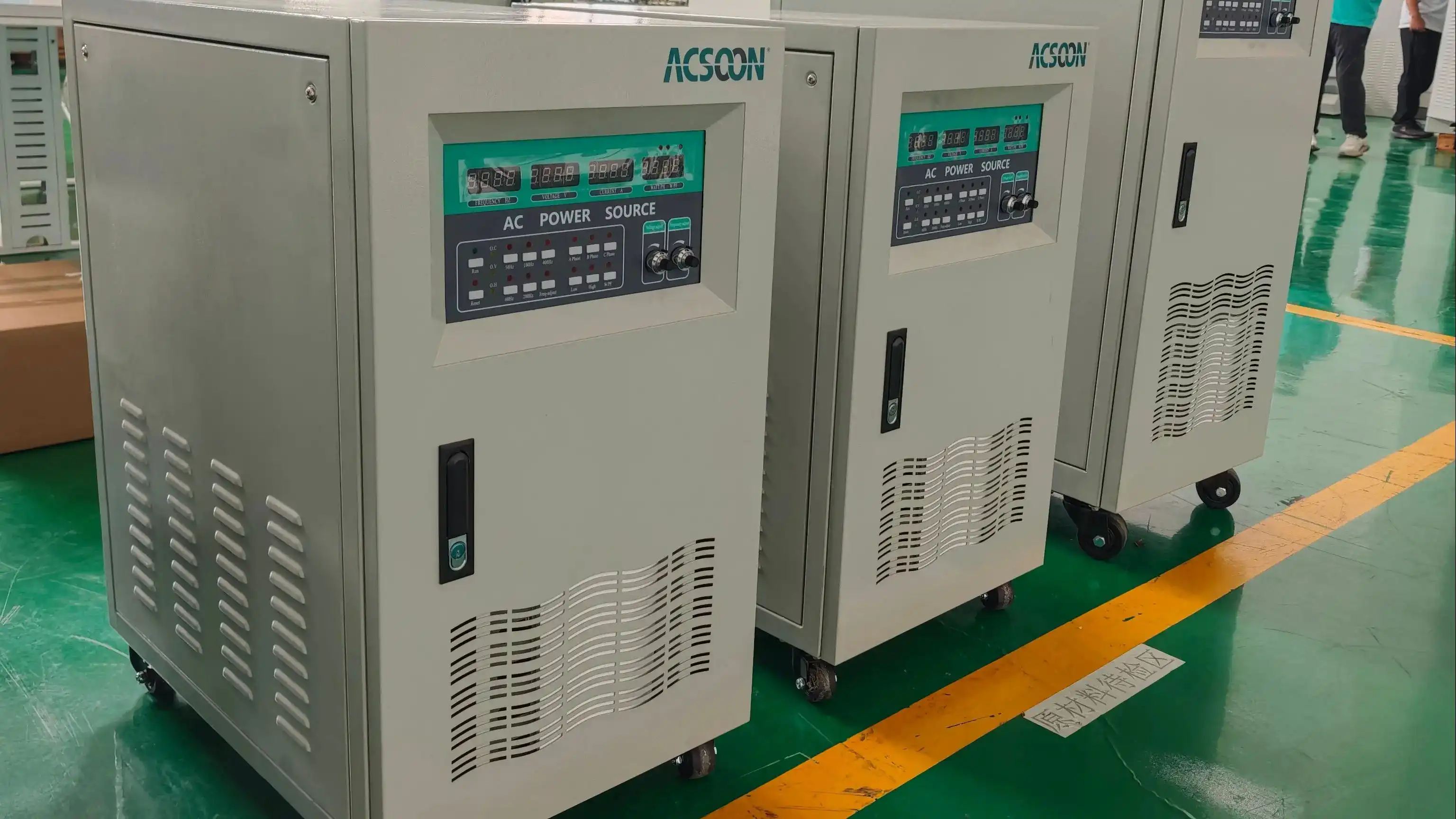

60Hz to 50Hz Frequency Converter: Power Your Global Equipment with Confidence
Protect Your Machinery from Costly Frequency Mismatch
When you bring equipment from North America to Europe, Asia, or Africa, the frequency difference becomes your biggest headache. 60Hz equipment running on 50Hz supply doesn't just run slower – it overheats, fails early, and violates warranty terms. Our 60Hz to 50Hz frequency converter solves this problem at the source, not the symptoms.
How It Works: Clean, Reliable Conversion
The converter uses AC-DC-AC double-conversion technology – the same approach found in high-end industrial power systems. It rectifies your 60Hz input to DC, then rebuilds a pure 50Hz sine wave from scratch. This isolates your equipment from grid noise, voltage sags, and frequency drift, delivering only what your machinery needs.
For industrial buyers and plant managers, this means:
No motor overheating from improper V/Hz ratio
No speed errors on CNC and automated lines
No production rejects from inconsistent frequency
No warranty voidance from operating outside spec
Technical Specifications That Matter
| Parameter | Specification |
|---|---|
| Input Voltage | 208-480VAC, 60Hz |
| Output Voltage | 208-480VAC, 50Hz |
| Power Rating | 15kVA standard (customizable) |
| Efficiency | ≥85% |
| Voltage THD | <3% @ linear load |
| Overload Capacity | 125% for 60s, 150% for 30s |
| Response Time | ≤2ms |
| Frequency Stability | ≤0.1% |
Applications Across Industries
Manufacturing – Run European CNC machines on North American power without derating. Railway – Power European signaling equipment on US infrastructure. Testing Labs – Simulate 50Hz grids for certification without traveling. Marine – Connect ships built to one standard to shore power of another.
Why Procurement Teams Choose Us
19 Years in the Industry – We've been building frequency converters since before most competitors started. Our ISO 9001:2015 certification isn't just paper – it's backed by decades of real-world performance.
Built to Last – IGBT-based design with digital control. No belts, no brushes, no bearings to wear out. The 60Hz to 50Hz frequency converter runs maintenance-free for years.
Customization Without Compromise – Need a specific voltage? A different enclosure rating? A custom control interface? We handle it. Our engineering team works directly with your project requirements.
Global Support – We ship worldwide, provide 24/7 technical assistance, and offer extended warranties on critical projects. You're not buying a box – you're getting a partner.
Quality You Can Verify
Every 60Hz to 50Hz frequency converter undergoes 8-stage testing before shipping:
Component traceability
Assembly inspection
Full-load burn-in (8 hours)
Harmonic distortion analysis
Voltage regulation verification
Protection circuit validation
Environmental stress screening
Final QA sign-off
FAQ
Q: Will this converter work with inductive loads like motors?
A: Yes. It's specifically designed for inductive loads. The 125% overload capacity handles motor starting surges without tripping.
Q: Can I adjust output voltage and frequency?
A: Yes. The unit offers adjustable output to match your specific equipment requirements.
Q: How does this compare to a rotary converter?
A: Static converters are quieter, more efficient, and require far less maintenance. No brushes to replace, no bearings to service.
Q: What's your lead time?
A: Standard models ship within 2-3 weeks. Custom configurations take 4-5 weeks.
Q: Do you offer onsite commissioning?
A: Yes, in select regions. We can provide installation supervision and startup support.
Ready to Solve Your Frequency Problem?
Contact our technical team today. We'll help you select the right 60Hz to 50Hz frequency converter for your specific application and provide a detailed quotation.
“The ACSOON frequency converter has been a critical component in our manufacturing process. Reliable, efficient, and exactly as specified.” – Customer review
