How Does a Solid State Ground Power Unit Improve Airport Efficiency?

A Solid State Ground Power Unit dramatically improves airport efficiency by eliminating diesel emissions, reducing maintenance downtime by up to 80%, and delivering ultra-clean, stable 400Hz power with over 93% energy efficiency. Unlike traditional diesel or rotary converter systems, solid state technology utilizes IGBT power semiconductors and PWM control to convert standard grid power into aircraft-grade electricity without moving mechanical parts. This means quieter operations below 65 dBA, zero fuel costs, and the ability to provide uninterrupted power for extended aircraft servicing periods—directly supporting faster turnaround times, lower operating expenses, and compliance with green airport initiatives that modern aviation facilities demand.

Understanding Solid State Ground Power Units: Technology and Operation

Modern ground support equipment has changed a lot, and solid-state power transfer is at the center of this change. At JERRYSTAR, we've witnessed how knowing about the core technology behind these units helps buying managers make smart choices.

The Core Architecture of Semiconductor-Based Power Conversion

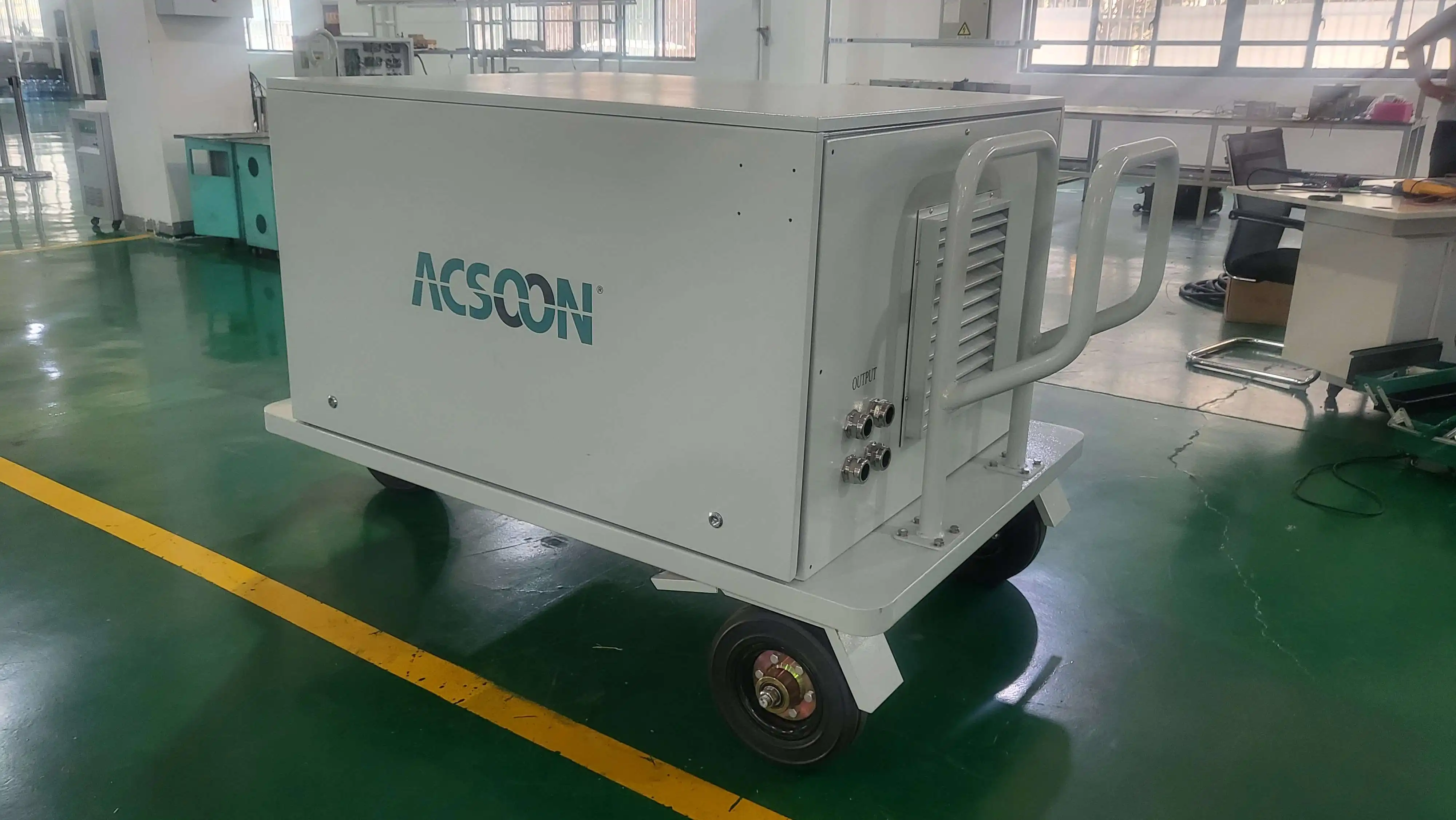

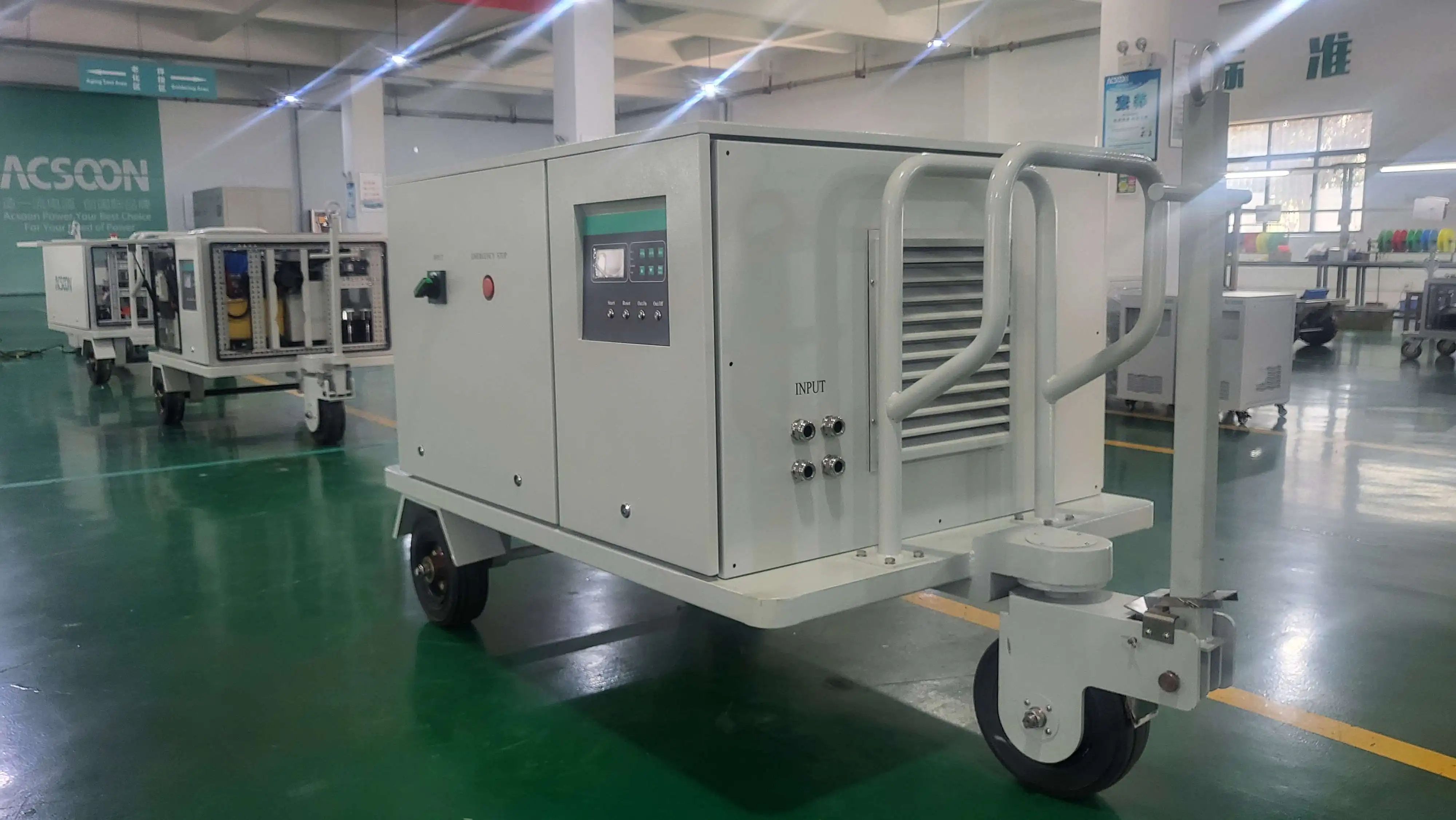

To achieve accurate frequency and voltage conversion, Solid state ground power units use Insulated Gate Bipolar Transistor (IGBT) technology in conjunction with Pulse Width Modulation (PWM). The ACSOON GPU-33050 model is a good example of this method because it can take normal 3-phase 380V, 50Hz input power and change it smoothly to 3-phase 115V/200V at 400Hz, which is exactly what business and military aircraft systems need. The mechanical flaws that come with motor-generator sets are gone with this straight electronic conversion. The digital control design checks the quality of the output in real time, adapting instantly to changes in load and voltage drops that happen along long wire runs. This Line Drop Compensation (LDC) feature makes sure that planes get perfectly controlled power no matter how far away they are from the GPU connection point. When linear loads are applied, the units get Total Harmonic Distortion (THD) values below 2%. This keeps sensitive electronics safe from power quality problems that could cause fault codes or damage costly flight computers.

Operational Advantages Through Advanced Electronics

The way ground power equipment works is completely different when there is no moving machinery present. Diesel engines usually make between 85 and 95 decibels of noise, but our solid state units make less than 65 decibels of noise. This improvement to the sound quality makes the ramp safer by letting ground workers talk clearly without earplugs. This lowers the chance of misunderstandings during important airplane maintenance tasks. The GPU-33050 manages its temperature by using forced air cooling and clever fan speed control to change how much cooling is done based on the real load and the temperature of the room. The IP54-rated housing keeps dust and water spray from getting into the electronics inside, so it can be used outside reliably in temperatures ranging from -40°C to +55°C. Because it can handle harsh environments, this technology can be used both permanently at passenger boarding bridges and on the go in MRO hangars.

Digital Interface and Monitoring Capabilities

These days, procurement teams for Solid state ground power units look for tech that works well with airport control systems. Solid state units have digital interfaces that work with Building Management Systems (BMS) and SCADA systems. This lets power use be tracked centrally, problems be diagnosed, and energy bills be sent out for each plane servicing event. This clear data helps with planning preventative repair and helps airports make the best use of energy across all of their ground support vehicles. The automatic safety interlock system stops power from going to the airplane socket until it is fully mated. This stops dangerous arcing conditions from happening. Built-in overload safety handles the high inrush currents that happen when the auxiliary power unit (APU) is replaced and when the engine starts up. It can handle up to 300% of its rated overload for 600 seconds and 125% of its rated overload for 600 seconds. Engineers can choose equipment that meets their needs without buying too much capacity when they know about these technological skills.

Limitations of Traditional GPUs and How Solid State Technology Addresses Them

Aviation facilities still have to deal with a lot of problems because of old ground power systems. This is especially true as environmental rules get stricter and airports try to lower their carbon footprint.

The High Cost of Diesel-Powered Ground Support

In order to work, diesel ground power units need a lot of fuel. Depending on the load, they usually use 15 to 25 liters per hour. Besides the direct cost of fuel, these systems need to have their oil changed, filters replaced, and engines overhauled regularly. These are all maintenance tasks that require work and equipment downtime. Because internal combustion engines are more complicated, there are more places where they could fail. This means that they have a shorter mean time between failures (MTBF) than solid-state options. Following environmental rules adds another layer of cost. Diesel units directly release Scope 1 carbon emissions at the airport, which makes carbon accounting more difficult and could lead to fines for owners as governments tighten climate policies. Ground workers have to wear hearing protection because of the noise pollution, which also makes people in urban airport areas unhappy.

Rotary Converter Inefficiencies and Bulk

Even though motor-generator type ground power units are driven by electricity, the moving parts, like bearings, brushes, and drive belts, wear out over time. Most of the time, these units are only 70–85% efficient because of losses in the motor, mechanical coupling, and generator steps. Because they are big and heavy, rotor converters make operations more difficult. Moving them between gates or hangars takes time and special tools. Maintenance windows for rotor systems need to allow for lubricating bearings, analyzing vibrations, and rewinding motor or generator coils on a regular basis. Because spinning alternators are reactive, they are less able to adapt to quick changes in load. This could lead to voltage transients that put stress on aircraft electrical systems.

How Semiconductor Technology Resolves Legacy Limitations

Solid state ground power unit conversion gets power from the current electricity grid at steady, manageable rates, so it doesn't use any fuel at all. The GPU-33050's 50kVA rate gives stable power output with over 93% conversion efficiency, which means less waste heat and less cooling needs. Since the unit doesn't have any pistons, crankshafts, or moving armatures, it has a lot fewer parts that are likely to wear out. Regular upkeep is limited to cleaning the filter and checking the electrical connections visually. The small module layout of solid state designs makes them 40% to 60% smaller than diesel or rotor units of the same capacity. This is especially important at crowded airports in cities, where real estate is very expensive. It's easier to place units that are lighter and smaller, whether you're putting them on passenger boarding bridges, in repair hangars, or on mobile carts for parking in remote areas.

Key Ways Solid State Ground Power Units Improve Airport Efficiency

Implementing semiconductor-based ground power technology has many useful advantages in various areas of airport operations, providing measured value for buildings of all kinds.

Substantial Energy Cost Reduction

Saving energy has a direct effect on running costs. Because the GPU-33050 is more than 93% efficient at converting power, more than 0.93 kWh of power from the grid gets to the plane for every kWh that is taken from the grid. The cost of energy for each airplane service event is 60–75% less than with diesel engines that burn fossil fuels and are only 30–40% thermally efficient. Over the 15 to 20 years that a normal unit is used, these savings add up to many times the cost of buying the equipment in the first place. The ACSOON units can exactly match the power needs of the airplane without oversupplying because they can change the frequency. Setting the voltage and frequency to any value you want stops the equipment from wasting energy when it's only partially loaded and not working well. The unit gives each airplane type and service case the exact power profile they need.

Enhanced Reliability Minimizes Operational Disruptions

Airport ground operations need a lot of tools to be available at all times. Service windows for aircraft are limited by their turnaround plans, and power breakdowns on the ground can cause costly flying delays. MTBF for Solid state ground power units is more than 50,000 hours, while the average for gas engines is between 8,000 and 15,000 hours. This dependability comes from the fact that semiconductor devices are naturally strong as long as they stay within their electrical and heat limits. Maintenance times that can be predicted make planning easier. Technicians can schedule filter changes and connection torque checks for times when there isn't much action overnight, when there is less chance of something breaking down. Eliminating consumables like engine oil, fuel filters, and spark plugs lowers the cost of keeping parts in stock and the work needed to keep track of different repair plans for a fleet of ground support equipment.

Improved Safety and Noise Reduction

It is measurable that ground crew safety improves when diesel engines are taken out of the ramp setting. Getting rid of burning fumes lowers the risk to your lungs and eliminates the fire risk that comes with handling and storing fuel. Crews can clearly hear flight warnings, car backup alarms, and radio conversations because solid state units don't make noise. This is very important for safety on the complicated, high-traffic ramp. When you replace noisy diesel engines with almost silent electrical equipment, it's easier to meet noise standards in the neighborhood. This is especially important for airports that are close to homes or that are open at night, when noise levels are high. Following the rules for increasingly strict noise laws keeps you out of trouble and keeps good relationships with other people in the neighborhood.

Streamlined Workflow and Regulatory Compliance

The digital displays on current solid state units are easy for anyone to use, so operators don't need to be trained as much. Clear progress displays, easy-to-use controls, and automatic startup steps make it less likely that an operator will make a mistake when connecting an airplane. Supervisors can check that everything is working right from a central control room using remote tracking. This way, problems can be found before they affect airplane maintenance. Standards for flight power quality are automatically met. The GPU-33050 is approved by ISO 6858 for power supplies used on the ground for airplanes and by MIL-STD-704F for military aircraft. The built-in power quality management keeps the voltage stable within ±2%, the frequency stable within ±0.5%, and the total harmonic distortion (THD) below the highest allowed levels. This is done automatically, without the need for technician changes or field calibration.

Procurement Considerations for Solid State Ground Power Units

When buying tools strategically, you need to look at more than just the technical specs. Understanding the full ownership process is helpful for procurement managers who have to balance performance needs with budget limits.

Supplier Evaluation and Certification Requirements

To choose a skilled manufacturer, you need to make sure that they follow the aviation standards and quality control systems that are needed. JERRYSTAR keeps its ISO certification and makes sure that every ACSOON Solid state ground power unit goes through a series of strict tests, such as component-level checks, full-load performance tests, environmental stress screens, EMC verification, and thermal imaging for finding hotspots. This thorough quality control keeps buyers safe from failures in the field and early equipment wear and tear.

Financial Structures and Volume Procurement

A lot of sellers offer flexible payment plans, such as rental programs, that keep cash on hand for other business needs while minimizing up-front capital costs. Optional warranties that cover more than the basic coverage can help reduce risk in important projects where downtime costs a lot. Facilities that upgrade multiple roles at the same time or coordinate buying across airport networks are rewarded with volume purchase discounts.

Installation and Maintenance Network Access

Professional fitting guarantees the best performance and the longest life. When you use the right wire sizes, circuit security, ventilation, and grounding techniques, you can avoid problems that could lower the quality of the power or put people in danger. Authorized installation partners who know about the needs of flight ground support bring important knowledge to rollout projects.

Customization for Specialized Applications

Facilities that take care of airplanes often need power setups that go beyond what is normal. The GPU-33050's voltage and frequency settings can be changed to fit a wide range of needs, such as those for odd aircraft types, ground test tools, or lab use. Testing can be done across the full range of electrical system tolerances for airplanes with variable frequency operation, which is helpful for MRO centers that do full electronics troubleshooting.

Real-World Applications and Case Studies Demonstrating Efficiency Gains

The benefits of Solid state ground power unit technology in different operating settings have been proven by real-world application experience.

Commercial Passenger Terminal Implementations

At North American major hub airports, diesel ground power carts are slowly being replaced with fixed, solid state units that are set up at the boarding bridges for passengers. Based on how much diesel these sites used before, operational data shows that the average cost of energy has gone down by 65% per plane turn. Maintenance work hours went down by 82%, and regular service times went from once a week for diesel equipment to once every three months for solid state equipment.

MRO Hangar and Military Base Deployments

For long periods of time, stable power is needed in aircraft repair centers for thorough electronics testing and system troubleshooting. Maintenance companies say that the better power quality from solid state units—specifically, the low THD and tight voltage regulation—stops false problem signals that used to make diagnosis more difficult. Technicians no longer have to tell the difference between real problems with the plane and glitches in the power quality caused by tools on the ground.

Scalability Across Facility Sizes

Solid state technology is easy to use at both big international airports and smaller regional sites because it can be put together in different ways. A regional airport might put in a single 50kVA unit that powers several remote parking spots through a distribution system. On the other hand, big hubs put in dozens of units spread out over huge terminal buildings. The uniform design makes it easier to keep track of spare parts and train repair staff in different areas, no matter how big or small the installation is.

Conclusion

Solid state ground power units have clear benefits that directly meet the most important operating needs of modern airports. The technology gets rid of the pollution and upkeep problems that come with diesel systems and makes power quality and dependability better than rotary converters. Gains in energy efficiency, less downtime, quiet operation, and following the rules all add up to high total cost of ownership benefits. The JERRYSTAR GPU-33050 is a great example of how modern semiconductor technology, strict quality control, and the ability to be customized can meet the needs of commercial flight, military operations, and MRO sites. When procurement teams look at upgrades for ground support equipment, they find that solid state conversion technology helps them reach their goals of lowering costs, making the equipment more environmentally friendly, and improving working quality all at the same time.

FAQ

How does the lifecycle cost compare to diesel units?

A good Solid state ground power unit usually costs about the same as or less than a current Tier 4 diesel unit when it comes to the original investment. When it comes to running costs, solid state technology is clearly the clear winner. It eliminates the need for fuel and cuts upkeep costs by 70 to 90%. Over the course of 15 to 20 years, facilities save a lot of money on things like oil changes, filter refills, engine overhauls, and unplanned downtime. Energy efficiency above 93% keeps the cost of power per airplane service event to a minimum. Total cost of ownership estimates always favor solid state technology, especially when carbon compliance costs and community noise control requirements are taken into account, which affect diesel operations more and more.

Can solid state units handle aircraft engine starting loads?

Professional-grade units are designed to have enough extra capacity to handle the high currents that come in when the engine starts up and the compressor starts up. The GPU-33050 can handle short bursts of up to 300% of its maximum capacity and 125% overload for 600 seconds. Soft-start control methods smartly handle the first power surge, keeping the ground power unit and the plane's electrical systems safe. This feature is as good as or better than gasoline engines' performance, and it keeps the voltage more stable during the starting process. Meeting the standards of MIL-STD-704F makes sure that it can work with the toughest military airplane starting systems.

What maintenance does a solid state unit require?

Regular maintenance checks the electrical connections for rust and strength every three to six months, cleans or replaces the air filter every three to six months, and makes sure the cooling system works. Every year, full checkups are done to check the state of the capacitors, make sure that the voltage and frequency regulators are calibrated correctly, and make sure that the safety interlocks work properly. Most of the upkeep jobs that are usually needed for a generator can be skipped because there are no fluids, belts, spark plugs, or engine parts that are wearing out. Most places don't need expert diesel mechanics for regular maintenance because they have electricians on staff.

Partner with JERRYSTAR for Advanced Ground Power Solutions

JERRYSTAR can help airport owners, maintenance repair shops, and military procurement teams that are looking for reliable Solid state ground power unit providers in a lot of ways. We offer the ACSOON GPU-33050 type, which gives you 50kVA of clean, stable 400Hz power with voltage and frequency sets that can be changed to fit your needs. Before it is sent out, every unit goes through component-level checks, full-load performance tests, external stress screening, EMC verification, and thermal imaging. This makes sure that it will work reliably for your important operations. Get in touch with our engineering team at acpower@acsoonpower.com to talk about custom setups, choices for buying in bulk, and fast delivery from our stock. Come see us at MRO Americas, Dubai Airshow, Inter Airport Europe in Munich, or the Singapore Airshow or Inter Airport Europe to try out our technology for yourself and learn more about how solid state switching can help your business run more smoothly.

References

1. International Air Transport Association (IATA), "Airport Handling Manual: Ground Support Equipment Standards," 35th Edition, 2021.

2. Federal Aviation Administration, "Advisory Circular AC 150/5220-27: Electric Ground Support Equipment Operations at U.S. Airports," U.S. Department of Transportation, 2019.

3. Society of Automotive Engineers (SAE), "Aerospace Standard AS6858: Aircraft Ground Support Electrical Power Supply Requirements," SAE International, 2020.

4. International Civil Aviation Organization (ICAO), "Airport Air Quality Manual: Ground Service Equipment Emission Reduction," Doc 9889, 2nd Edition, 2020.

5. Military Standard MIL-STD-704F, "Aircraft Electric Power Characteristics," U.S. Department of Defense, 2016.

6. European Civil Aviation Conference (ECAC), "Sustainable Ground Operations: Best Practices for Airport Energy Management," ECAC Technical Report 43, 2022.
