How to Choose a High-Performance 115VAC 400Hz Power Supply?

When looking for important power conversion gear for military, industrial, or aerospace uses, picking the right 115VAC 400Hz power supply requires paying close attention to technical details, reliability measures, and the supplier's abilities. Standard grid power is changed by these specialist units into the exact 115 volts at 400 hertz frequency that aircraft systems, military equipment, and lab test rigs need. It is important to think about the choice in terms of practical safety, equipment longevity, and mission success. To do this, you should look at things like power capacity, output stability, efficiency ratings, and environmental resilience, as well as the trustworthiness of the maker and their after-sales support.

Understanding 115VAC 400Hz Power Supplies: Key Concepts and Specifications

Why 400Hz Frequency Matters in Critical Applications

For strong technical reasons, the military and aircraft industries agreed on 400Hz power many years ago. Transformers, motors, and other magnetic parts can become much smaller and lighter when the frequency is raised. This is a huge benefit when every kilogram affects an airplane's speed and fuel economy. By choosing this frequency, equipment can be about seven times smaller than standard 60Hz equipment. This lets engineers make aircraft rooms and weapon systems that are smaller. Ground power units that supply this frequency make sure that the power conditions that aircraft systems experience during maintenance and pre-flight tests are the same as those they experience during flight operations.

Core Technical Specifications to Understand

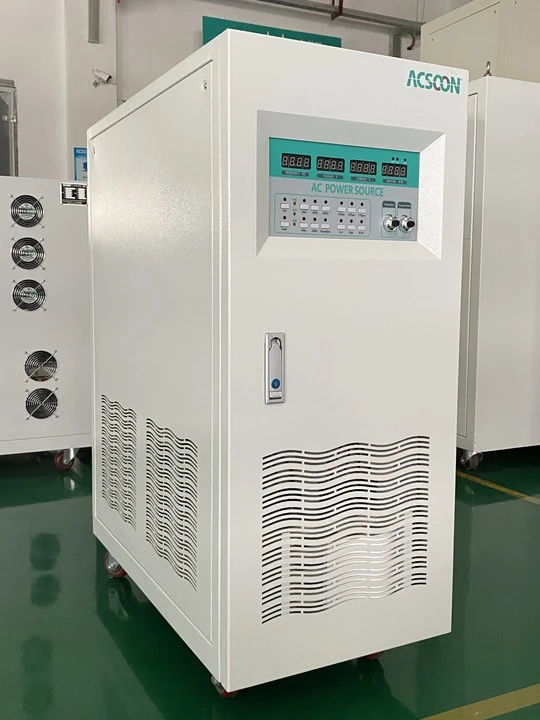

The main feature is the power-generating ability, which is usually given in kilovolt-amperes (kVA). The ACSOON GPU-330030 model has a 30kVA capacity, which means it can run many aircraft parts at the same time or big test benches in the lab. It doesn't matter what kind of input it gets—this unit can take three-phase 380V at 60Hz and change it to three-phase 115V at 400Hz output, which is an important ability for ground support operations. Solid-state design is better than older rotary converter technology in terms of current best practices. Solid-state units get rid of places where mechanical parts wear out, lower noise and shaking, and respond faster to changes in load. The floor-mounted design works well in hangars and aprons where portability and support are needed. IP21 entry protection keeps solid items bigger than 12.5 mm, and water drops falling vertically from getting into internal electronics. It's good for industrial settings inside and covered outdoor areas.

Operational Advantages Beyond Size Reduction

400Hz power systems have better electromagnetic interaction than other power systems of the same size. Higher frequency limits electromagnetic interference to smaller spectral bands, which makes filtering easier and lowers noise between systems that are close to each other. This comes in very handy in aircraft setups with a lot of sensitive systems working close to each other. The thermal performance also gets better. At full loads, higher-frequency transformers have better efficiency curves, which means they produce less waste heat that would need extra cooling systems.

Criteria for Selecting a High-Performance 115VAC 400Hz Power Supply

Power Capacity and Load Requirements Assessment

To match the power supply's ability to the load's real needs, you need to know about both steady-state consumption and transient peaks. In aircraft ground power uses, motor starts, avionics initialization spikes, and environmental control system loads that quickly use three to five times as much power as usual are common. If you specify the unit correctly, it should have enough headroom above its continuous limit to handle these spikes in voltage without voltage sag or safe shutdowns. Engineers should make complete lists of all the loads they are responsible for, including starting currents for inductive loads and capacitive inrush for power sources. The 30kVA rating of units like the GPU-330030 meets the needs of medium to big airplanes or allows testing of multiple equipment assemblies at the same time in a lab. When multiple loads work intermittently instead of all at once, procurement teams should ask equipment makers for specific load profiles and use diversity factors.

Efficiency, Stability, and Reliability Metrics

Output voltage control tells you how tightly the source keeps a 115VAC 400Hz power supply, even when the load changes. High-performance units achieve control of ±1% or better, which stops undervoltage problems that could cause false alarms or make equipment stop working. Both frequency stability and timing accuracy are important. For example, airplane equipment and digital systems need timing accuracy of 400Hz, with most requirements calling for ±0.1Hz. Mean Time Between Failures (MTBF) forecasts show how reliable something is likely to be over its entire operating life. Most solid-state units have MTBF values higher than 50,000 hours, which means they can work for years without any problems. These numbers come from component stress analysis and data collected in the field. They show that it is okay to spend more on the original purchase when the long-term costs are better for reliability. Automatic voltage adjustment features keep the output quality fixed even when the input voltage changes. This is very important when using a generator or when the power grid is unstable. Self-diagnostic systems constantly check internal factors, letting workers know about problems before they happen and making it easier to plan maintenance.

Environmental and Compliance Considerations

The operating setting has a big impact on the choice of tools. Apron activities put equipment at risk of extreme temperatures, rain, dust, and jet blast, while hangar sites have clean conditions and climate control. For most closet uses, IP21 protection is enough, but for apron use, you may need higher grades or more protective barriers. Temperature ratings should meet the actual temperature, with the right amount of de-rating. For example, devices rated for 40°C operation may need fan help or less power when the actual temperature gets close to the limits. Regulatory compliance is important and can't be ignored. When the military needs to buy things, they often use MIL-STD-461 for electromagnetic compatibility testing, MIL-STD-810 for environmental testing, and flight standards like DO-160 for aircraft equipment connections. Maintenance for commercial aircraft must follow FAA or EASA rules that require tracking and paperwork. Manufacturers that serve these areas keep safety certifications that make the approval process for purchases easier.

Evaluating Market Options: Trusted Brands and Solutions

Manufacturer Reputation and Product Heritage

Established makers have decades of knowledge in the field, which helps them come up with new products. ACSOON focuses on power systems for aircraft and the military. They use what they've learned from operational tools to make improvements all the time. This specialization makes sure that engineering teams understand the problems that come up in specific situations, such as when the load on an aircraft system changes quickly during tests or when complex repair processes need longer run times. OEM support lets you add special connections, monitoring interfaces, or control methods that work with the customer's system. Procurement experts should look into a supplier's manufacturing sites, quality management certifications, and infrastructure for after-sales support when analyzing them. The production space at Xi'an Jerrystar Instrument Co., Ltd. is between 5,000 and 10,000 square meters, which means that the company can make both standard products and special orders. Combined manufacturer-trader business models are flexible because standard goods can be shipped from existing stock to meet pressing needs, and custom versions can be made to fit specific needs.

Performance Comparison and Real-World Validation

Comparative research should look at more than just the specs on a data sheet; it should also look at how well something works in real life. Efficiency graphs show how well units keep up their stated performance across a range of loads. For example, premium units stay highly efficient from 25% to 100% load, while economy models may lose a lot of efficiency at low loads, wasting energy when they are not in use or only partially loaded. Transient reaction testing shows how quickly voltage and frequency return to normal after a sudden load is added or removed. This directly affects the stability of linked equipment. Case studies from similar applications can teach you a lot. Aviation repair companies that use ground power tools in busy places can give you an idea of what you need in terms of durability and support. Long-term stable and failure modes can be found in labs that run tests over long periods of time. When they are available, procurement teams should ask for references and look into independent performance reviews. The fact that the ACSOON name is used in aircraft, industry, the marine industry, and laboratories shows how versatile and widely useful it is.

Custom Solutions and Bulk Procurement Benefits

Standard store items work well for most needs, but customizing them is often necessary for unique situations. You can make the base platform do exactly what you want it to do by adding custom frequency outputs, voltage combinations, tracking ports, or ruggedized enclosures. Manufacturers like ACSOON that support OEM agreements can put customer names on equipment. This is helpful for businesses that want to add power sources to bigger systems or keep their branding uniform across all of their products. There are benefits to bulk purchasing that go beyond lower unit prices. With committed volume orders, manufacturers can make the best use of their production schedules, keep an eye on their stock of parts, and focus their technical resources on meeting the particular needs of each customer. Delivery logistics get better when packages are combined, and attention is given during times of high demand. Technical support agreements, longer warranties, and training programs that make operations more ready and lower the total cost of ownership are common parts of strategic supplier relationships.

Practical Applications and Industry Use Cases of 115VAC 400Hz Power Supplies

Avionics and Aerospace Ground Support

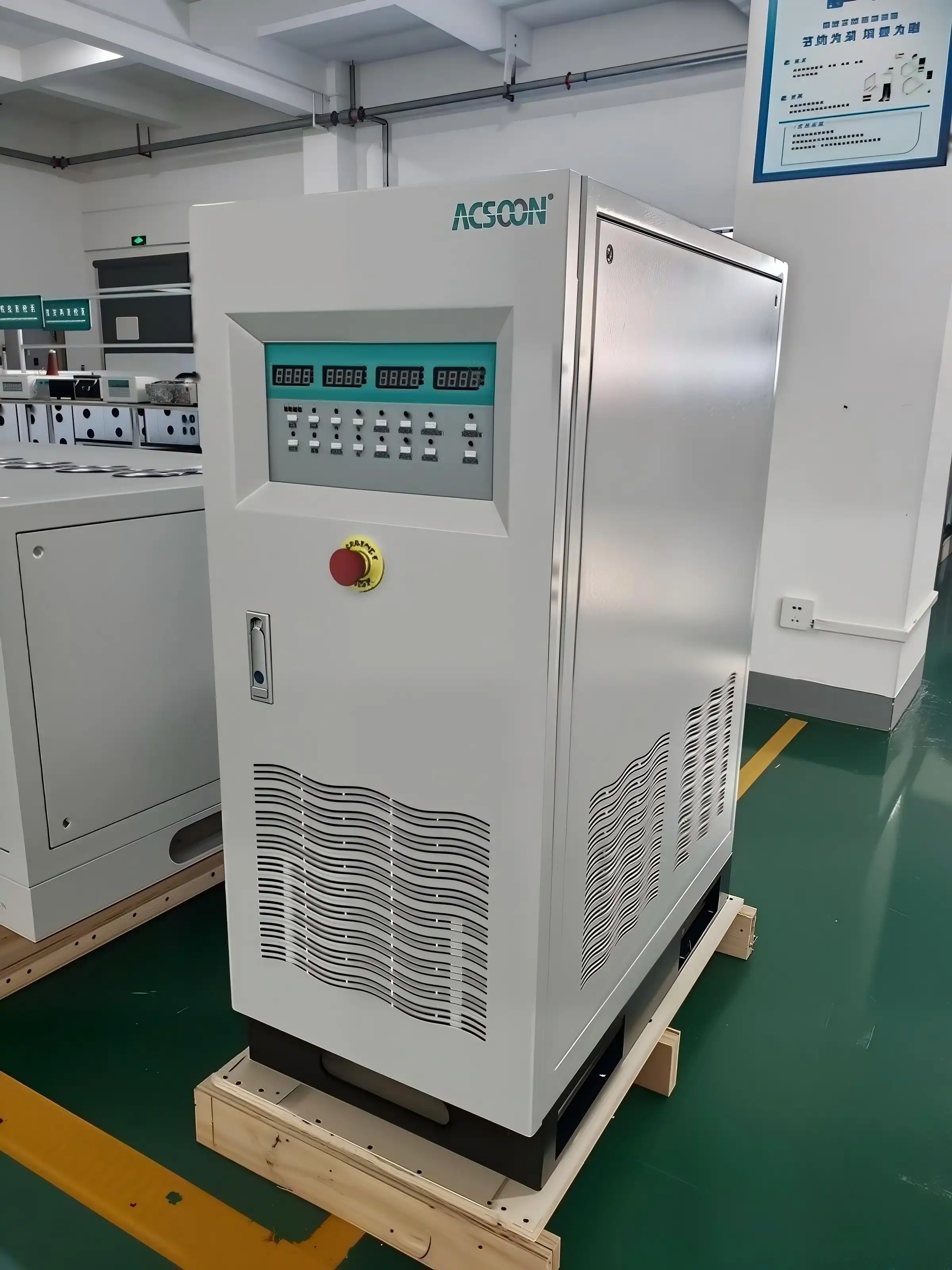

115VAC 400Hz power supply units are an important part of maintaining airplanes. Planes need stable electricity while they are undergoing routine repair, troubleshooting, or pre-flight system checks. This is because they can't start their main engines or backup power units. The GPU-330030's 30kVA capacity and floor-mounted design make it perfect for these situations. It gives enough power to cockpit systems, weather controls, diagnostic tools, and hydraulic test rigs all at the same time. Technicians in hangars like that the equipment is both mobile and stable. Wheeled bases make it easy to move between planes, and the heavy weight keeps it from tipping over when the cables are pulled. Commercial flight repair shops often run more than one ground power unit at the same time, for a variety of aircraft kinds. Standardizing on stable 400Hz power sources cuts down on training needs, makes it easier to keep track of spare parts, and makes sure that the power quality is the same in every work bay. Military aviation is more complicated because of the need for secret systems, electromagnetic signatures, and operating security that requires equipment to be made in the United States and have safe supply lines.

Military and Defense Critical Systems

Defense uses go beyond aircraft and include systems on ships, mobile command posts, and test sites for weapon systems. For radar systems, fire control computers, and communications gear that have to fit into small spaces and weigh little, naval ships use 400Hz power distribution. For test sites on land to validate these systems, they need ground power equipment that exactly copies the electrical traits of a ship. This makes sure that test results can accurately predict how the systems will work in real life. Power sources that are ruggedized and used by deployed military operations must be able to handle rough circumstances and still work reliably. Extreme temperatures from the Arctic to the desert, shock and pressure during travel, and long periods of use without being able to do maintenance all call for strong construction and conservative component ratings. When technical help isn't available, self-diagnostic features are very important. Automatic fault detection and multiple safety circuits keep small problems from becoming failures that threaten the mission.

Industrial Manufacturing and Laboratory Testing

In setups with limited room, industrial uses take advantage of the fact that 400Hz power transformers are small. When high-frequency power systems are used in manufacturing equipment, it has a smaller footprint and more power density, which is useful on busy production lines or for mobile equipment. When original equipment makers put these power sources into their goods, the shipping weight is lower, and installation is more flexible. Research and development labs that test aircraft parts, look at new designs, or make sure production units are ready need electrical conditions that are very carefully controlled. Engineers can test how well equipment works across a wide range of frequencies, make sure it works when things aren't supposed to, and figure out how it reacts to changes in the power quality. Automatic voltage correction and stable frequency output of units like the GPU-330030 make it possible to run tests in a controlled way, which is needed for consistent results and to show that the unit meets regulatory requirements.

Making the Final Decision: Best Practices for Procurement Managers and Engineers

Aligning Technical Requirements with Organizational Needs

A thorough description of needs is the first step to a successful procurement. Cross-functional teams made up of engineers, support workers, and people with financial interests should write down what power is needed, what the environment is like, what the interface needs, and how much money is available. This collaborative approach brings up issues that different departments might miss. For example, maintenance teams focus on serviceability and the availability of spare parts, engineers on technical specifications and compliance, and financial stakeholders weigh the initial costs against the costs that will come up over the course of the product's life.Time constraints often make decisions more important right away. For emergency replacements of broken equipment, sellers must keep enough stock on hand to ship right away. Planned upgrades, on the other hand, give time for custom setups and bids. With a large enough stockpile, Xi'an Jerrystar can meet urgent operational needs for quick delivery without sacrificing quality or specs. Knowing the difference between standard and custom lead times helps procurement plan orders correctly, so there aren't any production delays or expensive processing fees.

Shortlisting and Supplier Evaluation

Technical rating grids make it easy to compare different products based on a set of weighted factors. The base is made up of power output, efficiency, regulation, dependability forecasts, compliance certifications, and warranty terms. Other things that set otherwise similar goods apart include the manufacturer's experience in related industries, the use of domestic content for military procurement, and the infrastructure for after-sales support. Using scoring systems that measure subjective evaluations makes it possible to compare things objectively and keep track of why certain choices were made. Evaluation of suppliers goes beyond product specs and includes figuring out if the business relationship will work. Financial stability signs show if a company will be able to stay in business throughout the lifetime of a product, upholding warranties and offering spare parts years after the product was bought. Quality management standards, such as ISO 9001, show that you are dedicated to following processes and making improvements all the time. Being close to a factory can speed up the coordination of custom orders and the response time for technical help, but current communication tools have made this benefit less useful for everyday transactions.

Negotiation Strategies and Contract Considerations

A good deal strikes a balance between getting the best price and keeping the connection. When you commit to a certain amount of a product, you can often get a better price, longer payment terms, or priority production spaces during times of high demand. With multi-year deals and planned deliveries, you can plan your budget and make sure that enough capacity is available. Technical support packages that include help with installation, training for operators, and longer guarantees are worth more than the price of the equipment itself. The contract terms should make it clear what the warranty covers and how long it lasts, how to fix or replace parts, where to get them and how much they cost, and when expert help will respond. Performance guarantees that list efficiency, regulation, and reliability measures, along with punishments for not following through, protect buyers from goods that don't work as promised. Punitive delivery plans make sure sellers keep their promises, and reasonable grace times allow for real problems in the supply chain.

Post-Purchase Integration and Relationship Management

A successful operation starts before the equipment gets there. Preparing the site for placement includes making sure there is electrical infrastructure, wire routing, air flow, and access for operators. Coordinating shipping times with assembly resources and working plans keeps things running as smoothly as possible. Before delivery, checks make sure that the configurations meet the requirements. This keeps expensive returns or changes from being made in the field. Long-term agreements with suppliers are good for both parties. Giving comments on how well a product works, problems with applications, and requests for new features helps manufacturers decide what features to add next. Becoming a part of beta testing programs for new goods gives you early access to new ideas and shows how to meet new needs. Communication on a regular basis keeps people up to date on issues like component failure, new technologies, and industry trends that could affect future purchasing plans. By emailing acpower@acsoonpower.com, you can get in touch with technology experts who can help you quickly solve problems and understand the needs of your unique application.

Conclusion

To choose a high-performance 115VAC 400Hz power supply, you have to think about a lot of things, like technical specs, stability needs, provider skills, and the total cost of ownership. Because these systems are so specialized, engineers and procurement workers have to work closely with experienced makers who know what the application needs and are committed to quality. Modern best practices include solid-state designs like the ACSOON GPU-330030, which are small, work efficiently, and have features like automatic voltage adjustment and self-diagnostics that make them more reliable. A careful look at the power capacity, environmental suitability, safety certifications, and maker support infrastructure helps people make choices that are safe and meet the needs of their organizations for a long time.

FAQ

What advantages does 400Hz power offer over standard 60Hz systems?

Higher frequency makes the generator and motor much smaller—about seven times smaller for the same amount of power. This saving of weight and room is very important in military and aviation uses. In densely packed electrical systems, better electromagnetic compatibility and higher efficiency at rated loads are two more benefits.

How can I verify power supply reliability before purchase?

Ask for MTBF estimates that include the method used and failure data from similar uses in the field. Performance confirmation is done by independent test reports from well-known labs. Reference links from current users in similar settings can give you useful information about reliability. The terms of a warranty often show how confident the maker is in the reliability predictions.

Are custom solutions available for unique application requirements?

Manufacturers with a good reputation usually can meet special requests like providing different voltage combinations, special connectors, built-in tracking systems, and toughened casings. Because ACSOON can help OEMs, it can make products that are exactly what an application needs. Standard wait times are usually longer when custom setups are used, but they can unlock the best performance for specific needs.

Partner with JERRYSTAR for Reliable 115VAC 400Hz Power Supply Solutions

JERRYSTAR specializes in providing tested power transfer systems designed especially for testing in the military, on ships, in the air, and in factories. Our ACSOON brand product line is the result of decades of experience designing and building high-reliability power systems. It can be made in both standard designs and unique solutions. The GPU-330030 and similar models show our dedication to technical excellence with features like self-diagnostic systems and automatic voltage compensation that cut down on upkeep needs while increasing performance. We meet urgent business needs without sacrificing quality or specification compliance as a 115VAC 400Hz power supply maker with enough stock for quick delivery. You can email our expert team at acpower@acsoonpower.com to get unique advice, full specs, and competitive quotes that will help you solve your power conversion problems.
