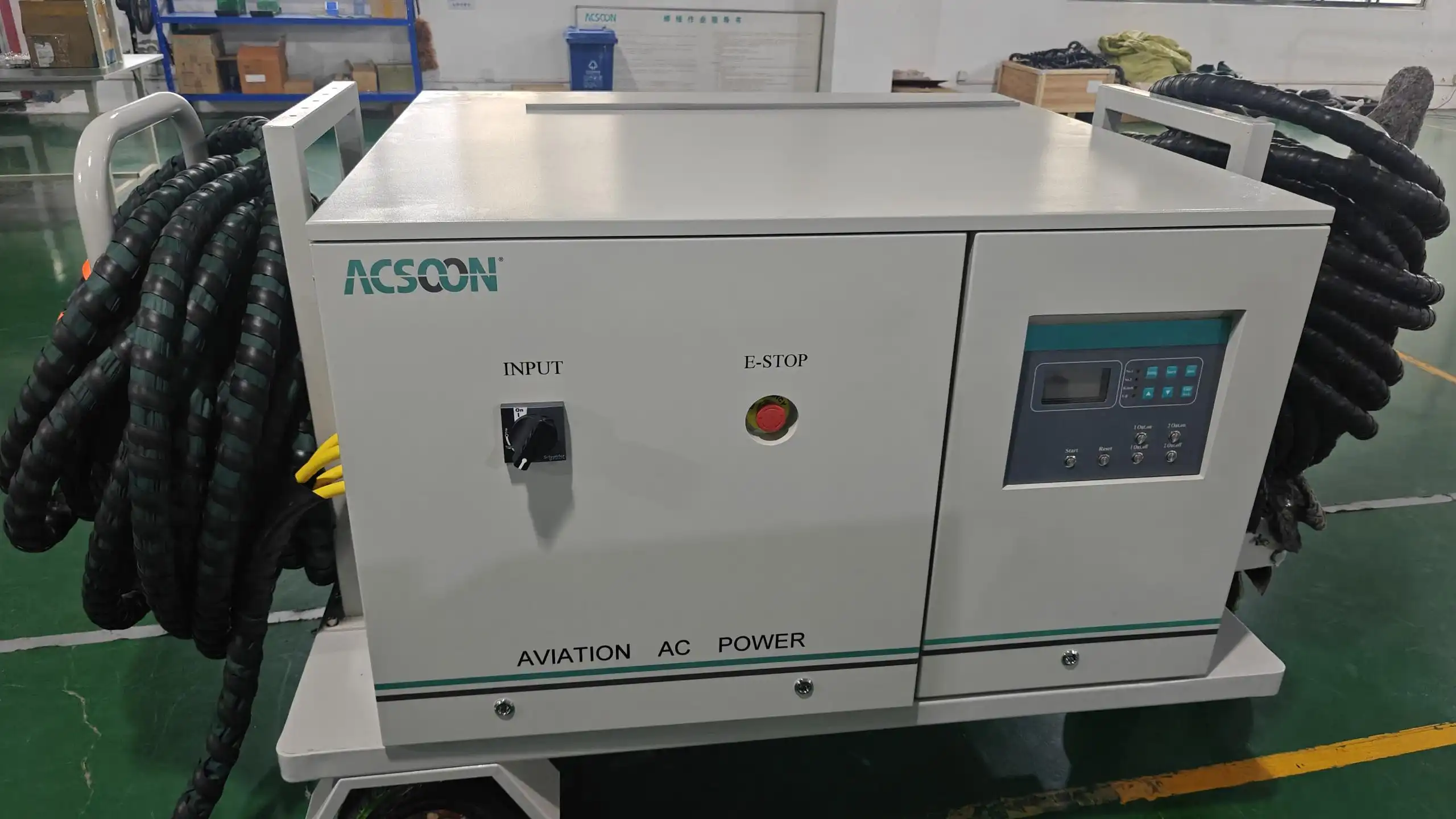

Why Choose a Solid State Ground Power Unit Over Diesel GPUs?

Choosing between power solutions matters deeply when aircraft reliability and operational costs converge on the ramp. A solid state ground power unit represents a paradigm shift from traditional diesel-driven alternatives, leveraging advanced semiconductor technology—specifically Insulated Gate Bipolar Transistors (IGBT) and Pulse Width Modulation (PWM)—to deliver precise 400Hz electrical power directly from the commercial grid. This eliminates combustion engines, addressing critical concerns around emissions, noise pollution, maintenance burdens, and power quality that procurement managers at military bases, MRO facilities, and commercial airports face daily. The technology delivers cleaner, quieter, and more reliable energy to parked aircraft without compromising operational readiness.
​​​​​​​

Understanding Solid State Ground Power Units (GPUs)

Core Technology and Operational Principles

In its most basic form, a solid-state ground power unit is a high-tech static frequency converter. In contrast to diesel GPUs, which use internal combustion engines to power alternators, this equipment takes normal grid power—usually three-phase 380V at 50Hz—and changes it into the specific 115V/200V at 400Hz three-phase output that commercial and military flight systems need. With its 50kVA power level and IP54-rated enclosure, the ACSOON GPU-33050 model is a great example of this ability. It was made specifically for airplane repair without turning on the auxiliary power unit (APU). The process of conversion is made up of several steps: filtering the input, active rectification into DC, storing energy in capacitor banks, and exact IGBT-based inversion back to AC at the frequency set by the airplane. This design keeps Total Harmonic Distortion (THD) below 2% when linear loads are applied. This keeps expensive, sensitive electronics safe from voltage fluctuations that happen with diesel-generated power.

Technical Specifications That Matter

When professional buyers look at ground power tools, they put a lot of weight on a few important factors. Voltage control within ±1% makes sure that the flight computers and devices in the cockpit always get power during pre-flight checks. During engine start processes, overload capacity is very important. Good units can handle 125% overload for 600 seconds and short-term peaks of up to 300-400%. Line Drop Compensation (LDC) changes the output voltage automatically to make up for cable resistance losses. This makes sure that the right voltage is always present at the plane plug, even when the cables are 50 meters long. Industrial-grade technology is different from consumer goods because it can handle harsh environments. Temperature ranges of -40°C to +55°C allow them to work in both icy airbases and hot airfields. The IP54 ingress protection grade keeps dust and water spray from getting into the electronics inside, and the conformal coating on the printed circuit boards keeps them resistant to the humidity and salty air that are common in military aviation settings. It's not a choice—meeting the requirements of ISO 6858, MIL-STD-704F, and EN 62040-1 is necessary for government purchases and airport authority approvals.

Advantages Driving Market Adoption

The energy efficiency of a solid state ground power unit is usually higher than 93%, compared to 70–75% for diesel generators. This means that significantly less energy is used during each plane service cycle. Scope 1 carbon emissions are eliminated when there is no combustion. This supports "Green Airport" programs and helps companies meet stricter environmental rules. Noise levels go down a lot—solid state units work at less than 65 dBA, compared to 85–95 dBA for diesel versions. This makes the ramp safer and lowers the hearing hazards for ground workers.

Making maintenance easier changes the business of operations. Since there are no pistons, crankshafts, fuel injectors, or alternator brushes, regular maintenance only includes cleaning the filter, checking the link torque, and visually inspecting the capacitor. These chores can be done in hours instead of days. Diesel GPUs need to have their oil changed every 250 hours, their fuel filters replaced, their cooling systems serviced, and eventually, their engines need to be completely rebuilt, which can cost tens of thousands of dollars. Over the course of 15 to 20 years, these differences add up, making solid state solutions much more cost-effective, even though they require the same amount of starting cash.

Comparing Solid State GPUs and Diesel GPUs: Making an Informed Decision

Performance and Reliability Metrics

Power quality is what really sets these systems apart. Diesel generators have voltage and frequency changes because the motors are turning mechanically, and the load on the engine causes the speed to change. Instantaneous voltage regulation isn't as accurate as solid state regulation, even with the most advanced governors. Power needs to be cleaner for planes with glass cockpits and fly-by-wire systems, because voltage spikes or harmonic distortion can mess up software for electronics or hurt radar parts that are sensitive during diagnostic tests in MRO hangars. Another important difference is the response time to changes in load. When the load steps from 0% to 100%, solid state units change the output within 10 milliseconds and keep the voltage within ISO 6858 limits during the whole transient. Diesel systems need seconds to change the engine's speed and stabilize the voltage. This can lead to short brownouts that stop computer boot processes in the cockpit or force technicians to start test procedures over.

Total Cost of Ownership Analysis

Lifecycle economics goes beyond the purchase price and must be looked at by procurement pros. A 50kVA solid state unit usually costs between $25,000 and $40,000 to buy for the first time. This is about the same as buying a Tier 4 Final diesel version that meets today's emission guidelines. When business costs are taken into account, the financial picture changes very dramatically. Solid state technology uses power from the grid, which costs about $0.12 per kWh on average. At 80% power and 93% efficiency, a 50kVA unit uses about 43kW, which means that it costs about $10,000 a year to run on electricity for 2,000 hours. Maintenance costs usually range from $1,000 to $2,000 a year, and they mostly include replacing filters and paying people to do inspections. There is no need for overhauls. Over the course of 15 years, operating savings often hit $150,000 to $200,000 per unit, which changes the economic equation in a big way.

Safety and Regulatory Compliance

Built-in safety features make both tools last longer and keep people safe. Grid input and airplane output are kept separate by galvanic isolation transformers. This stops ground fault currents from moving between electrical systems. Aviation standards require the EF interlock circuit to stop the power supply if the connection does not fully mate with the airplane receptacle. This eliminates the risk of arcing, which could hurt flight crews or damage composite airframe structures. Because of noise and pollution rules, airport rules are making it harder for diesel tools to be used near main buildings. In controlled areas of some big international airports, electric ground support equipment is now required. This means that diesel GPUs are not ideal, no matter how good they are technically. Solid state units automatically follow these changing rules, which keep infrastructure investments from becoming outdated too soon.

Practical Applications and Use Cases of Solid State GPUs

Airport Ground Support and Commercial Aviation

The most-used application setting is commercial traffic gates. When put under passenger boarding bridges or on remote stands, these units provide instant power for cleaning the cabin, restocking the kitchen, getting the pilot ready, and boarding passengers, all while the APU is off. By not using the APU during ground stops, airlines save a lot of money on fuel and keep the engines from wearing out as quickly. The ACSOON GPU-33050's voltage and frequency output can be changed to work with a wide range of aircraft types, from narrow-body Boeing 737s to wide-body Airbus A380s. This means that a fleet doesn't need to have different equipment models.

MRO Facilities and Military Applications

Maintenance hangars need power steadiness for Solid state ground power unit that goes beyond what is needed for regular maintenance. To fix problems with avionics, you need to use pricey test tools and flight computer tuning methods that are sensitive to changes in power. One bad power event can damage the software in a radar system, requiring a complete update and recalibration, which takes days of work. This risk is taken away by solid state units, which have better voltage control and harmonic reduction. This protects both flight systems and diagnostic equipment investments.

ROI Documentation and Performance Data

Top ground handling companies say that changing diesel trucks with solid state options pays for itself in 18 to 24 months. 60% of the savings come from lower maintenance costs, 30% come from not having to use fuel, and the last 10% come from less downtime. After switching to solid state equipment for flight deck aircraft service, Navy ship air operations saw a 40% drop in maintenance delays caused by power issues. These measurable gains show that the technology is mature and can work reliably in harsh real-world settings.

Installation, Maintenance, and Troubleshooting Guide

Site Preparation and Installation Requirements

A good assessment of the electrical infrastructure is the first step to a successful rollout. For the GPU-33050, the installation spot needs a three-phase grid link that matches the input specs of 380V/50Hz and circuit breakers that can handle a constant 80A draw. Cable routing has to be able to handle output cable lengths of up to 50 meters while still being able to adapt to changes in where the airplane is positioned. Concrete pads should provide level mounting areas with good drainage so that water doesn't build up around the bases of enclosures.

Connecting monitoring ports, which are usually Modbus RTU or TCP protocols, to centralized SCADA platforms is what integration with current ramp management systems is all about. This allows status monitoring from afar, fault alarm notice, and tracking energy use for accurate bills. Checking the right size of the grounding wire according to local electrical codes, making sure the output connector works with aircraft plugs, and doing initial load bank testing to make sure it works well across the whole power rating range are all things that are on the installation routine.

Preventive Maintenance and Equipment Longevity

Protecting the air and controlling temperature are important parts of routine maintenance for solid state equipment. In dusty places, air entry screens need to be cleaned or replaced every three months; in cleaner places, they only need to be cleaned every six months. When garbage builds up, it makes it harder for cooling air to flow, which raises the temperature at the IGBT joint and could cause thermal protection to shut down during peak load conditions. Visual inspection of capacitor banks shows bulging or leaking, which means they are about to fail, allowing replacement before a major failure happens.

Checking the torque of an electrical link stops high-resistance joints that cause heat and speed up terminal degradation. Every year, thermal imaging scans find hotspots that can't be seen during regular inspections. This lets you know about loose connections or stressed-out parts before they break down and stop operations. These simple jobs make equipment last longer than 20 years while keeping it performing at its best. This is in direct contrast to diesel units, which need major overhauls every ten years.

Common Issues and Diagnostic Solutions

Most operational troubles are caused by outside causes, not by broken equipment. Output voltage changes are often caused by wrong Line Drop Compensation settings, which can be quickly fixed by entering the real wire length and gauge through the front panel controls or the remote interface. If the power goes out and on at random, it could mean that the grid power isn't very good and the voltage sags or rises too much. Adding upstream voltage protectors fixes this problem. When newer aircraft introduce changed connector pinouts, compatibility problems with aircraft receptacles can happen. Manufacturers offer adapter harnesses that solve these problems without requiring equipment changes.

Thermal shutdowns of Solid state ground power unit during hot weather operation could mean that air openings are blocked or that the cooling fan isn't working. Both of these problems can be fixed by cleaning the filter and checking the bearings in the fan motor. Moisture entering output cables can cause unwanted ground-fault trips. Megohmmeter testing shows insulation breakdown, which means the cable needs to be replaced. Maintenance workers who are skilled can find and fix most problems within hours, limiting unexpected downtime that impacts flight plans.

Procurement Considerations for B2B Buyers

Selection Criteria for Mission-Critical Applications

By matching equipment specs to practical needs, you can avoid both buying too much and not having enough of something. The choice of power rating should be based on the biggest type of airplane that can be handled with 20% spare capacity, taking into account the need to cool the cabin, load the galley, and run the avionics at the same time. The 50kVA GPU-33050 works with narrow-body commercial planes and most military jets. Wide-body planes, on the other hand, may need 90kVA or 120kVA units, depending on their design. Customizable voltage and frequency output protects investments as airplane companies change, keeping equipment from becoming useless too soon. Reputation and help after the sale are just as important as technical specs when it comes to choosing a supplier. The ACSOON brand is made by Xi'an Jerrystar Instrument Co., Ltd., which has a 5,000–10,000 square meter plant in Shaanxi Province that is dedicated to frequency conversion equipment. The company has a lot of experience with military and flight power systems. Their attendance at industry events like Inter Airport Europe Munich, Dubai Airshow, Singapore Airshow, and MRO Americas shows that they are dedicated to the airline ground support sector and gives people a chance to try out products before they decide to buy them.

Quality Assurance and Testing Protocols

Before being sent out, every unit from a reputable maker goes through a thorough certification process. Parts are inspected at the component level to make sure they meet aerospace-grade standards for temperature tolerance and shock resistance. Full-load performance tests put the equipment through its full workload for 4 to 8 hours, making sure that the thermal management is good and that the IGBT heat absorption stays stable under long-term use. Environmental stress screening puts units through changes in temperature and humidity, which find hidden problems that could lead to field failures. Making sure that equipment doesn't interact with flight systems or give in to electromagnetic fields in airports is called Electromagnetic Compatibility (EMC) verification. During testing, thermal imaging finds hotspots that mean the layout of a component isn't ideal or that it's not getting enough cooling. These problems are fixed before the final units reach buyers. Professional aviation equipment is different from consumer-grade goods because it has to follow strict rules. The higher prices are worth it because they guarantee reliability, which is important for safety-sensitive uses.

Ordering Process and Delivery Logistics

Timelines for procurement depend on how complicated the order is. Standard versions like the GPU-33050 can be shipped from stock within two to three weeks, which is great for jobs that need to be completed quickly, like replacing something broken or adding on. Custom solutions that need different voltage outputs, special connections, or better environmental protection make wait times 6 to 8 weeks long while engineering confirms the specs and production finishes making the product to order. Orders of more than ten units may be eligible for bulk discounts and faster shipping times. Full pre-sale support includes site assessment meetings, application engineering help, and setup suggestions that fit specific operating profiles. Post-delivery services include overseeing the installation, helping with the start-up process, teaching operators, and providing warranties that usually last between 24 and 36 months. Keeping enough spare parts on hand, especially wear items like filters and cooling fans, ensures quick service restoration if parts need to be replaced. This cuts down on working delays that could affect flight plans and income.

Conclusion

The change from diesel to solid state ground power units is part of a larger trend in the aircraft business toward sustainability, operational efficiency, and higher reliability. Semiconductor-based power conversion has a lot of benefits that can be measured. It provides better power quality, which protects sensitive electronics, huge savings on repair costs, no emissions or noise pollution, and compliance with stricter environmental rules. While the original capital investment is about the same as diesel options, solid state technology is clearly more cost-effective over its lifetime, saving more than $150,000 per unit in running costs over a normal 15-year service life. When procurement professionals are thinking about updating ground support infrastructure, they should focus on equipment that has been used successfully in harsh military, commercial flight, and MRO settings and is backed by makers who are dedicated to quality assurance and full after-sales support.

FAQ

How do the costs over the whole life of solid state and gasoline ground power units compare?

The initial buy prices are still about the same, with good units costing between $25,000 and $40,000 for 50kVA. Diesel units cost more than $15,000 a year in fuel and between $8,000 and $12,000 a year for maintenance, while solid state equipment costs about $10,000 a year in energy and between $1,000 and $2,000 a year for maintenance. Solid state technology saves between $150,000 and $200,000 per unit over 15 years because it doesn't need any fuel, little upkeep, or engine overhauls.

Can solid-state units handle peak currents that come from starting an airplane engine?

For this reason, high overload capacities are built into high-quality solid state ground power units. The units can handle 125% of their rated load for 600 seconds and 300–400% transient spikes when the engine starting motor engages. The ability to soft-start and the speed with which it responds keep the voltage stable during the load change, which protects both flight systems and ground equipment from stress.

What kind of upkeep does solid-state equipment need?

In dusty places, routine maintenance includes cleaning the air filter every three months, checking the torque on the electrical connections once a year, and visually inspecting the capacitors. With thermal imaging scans, problems can be found before they become failures. Diesel engines need oil changes, fuel system service, and engine overhauls. Solid state maintenance, on the other hand, can be done in hours instead of days with a few parts needed and no fluids to be handled.

Partner With a Trusted Solid State Ground Power Unit Manufacturer

Xi'an JERRYSTAR is ready to help you with your Solid state ground power unit ground power infrastructure needs because they have a lot of experience with military and flight power transfer systems. The ACSOON GPU-33050 produces 50kVA at 400Hz and lets you change the voltage and frequency output. It has also been through a lot of quality tests, such as component-level checks, full-load performance validation, external stress screens, EMC verification, and thermal imaging analysis. We keep enough inventory on hand to be able to launch quickly, and we also offer custom solutions that are made to fit the needs of each business.

Email our engineering team at acpower@acsoonpower.com to talk about your unique application needs, get full technical specifications, or set up product demonstrations at upcoming industry shows. As both a manufacturer and a trade partner, we offer full support from the initial meeting through installation, control, and long-term service. This makes sure that your critical power infrastructure works perfectly when flight operations require complete dependability.
