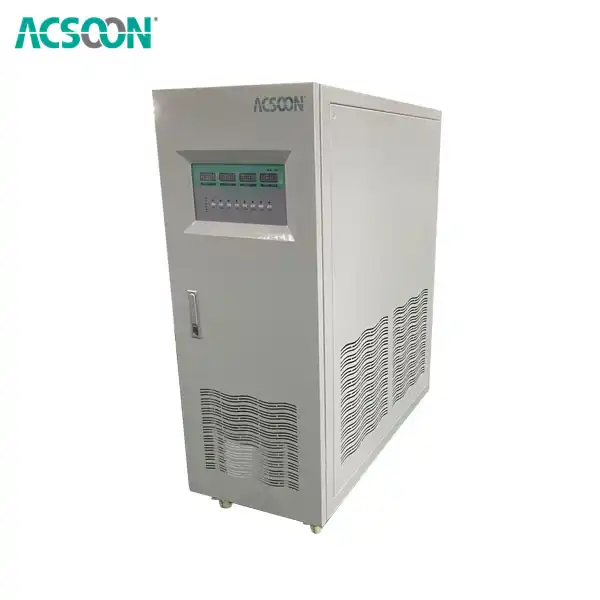

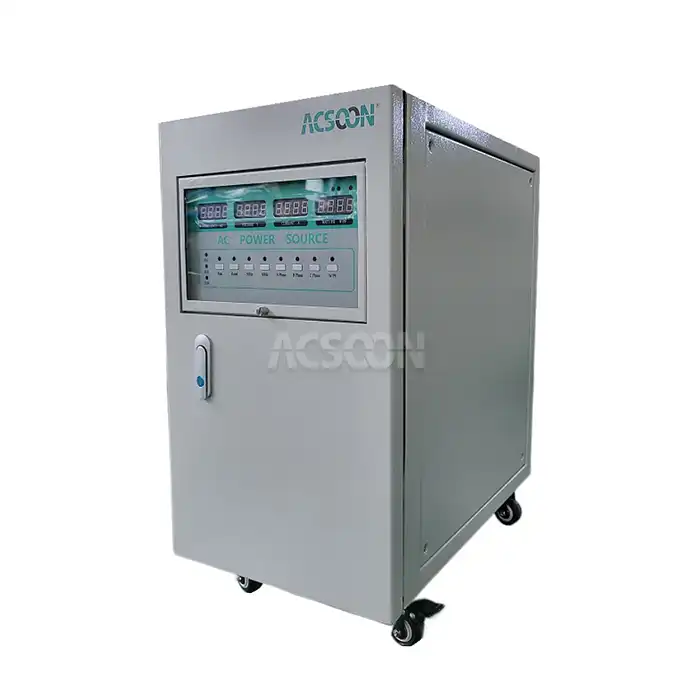

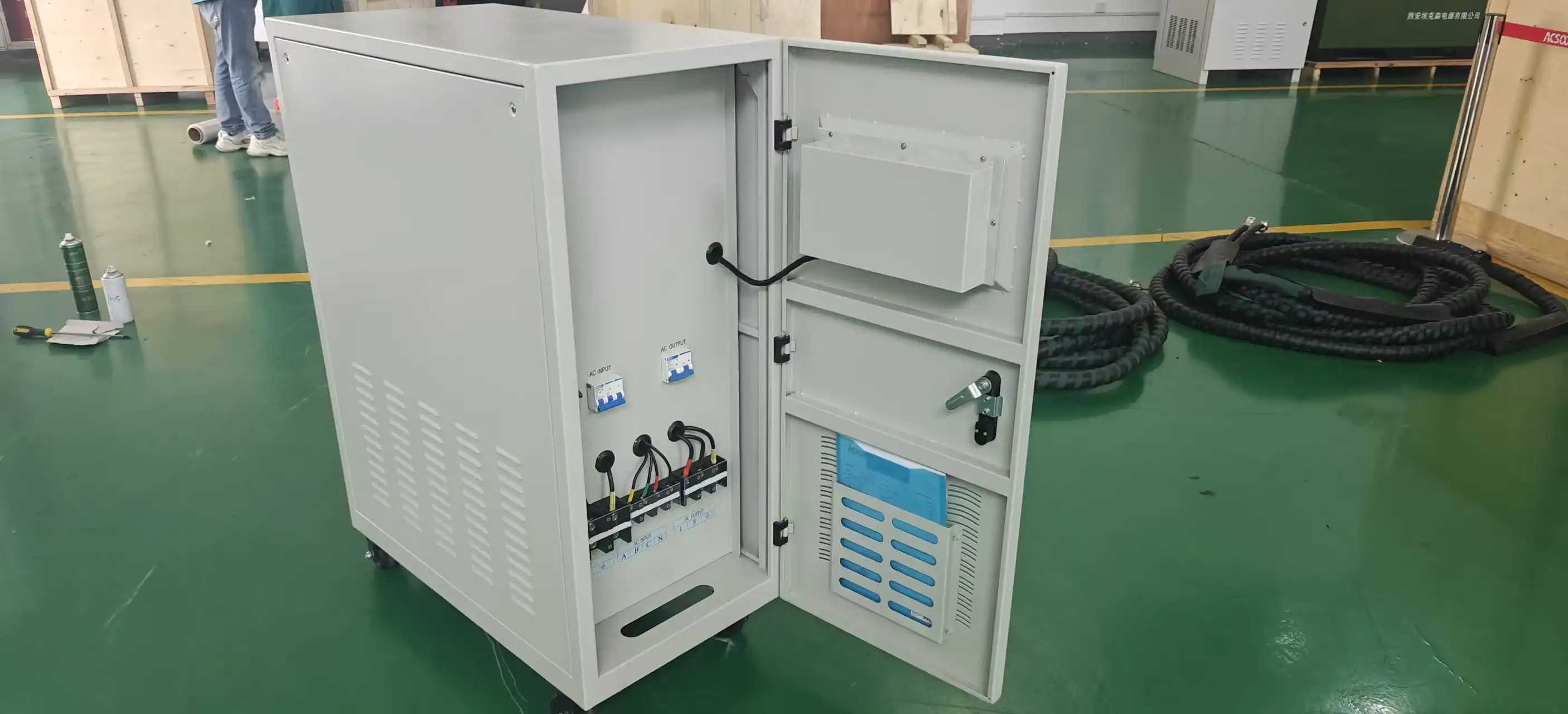

ACSOON ANDW Series Industrial DC to AC Inverter for Telecom and Substation Power
2. DC Input: Selected by model and project
3. AC Output: Pure sine wave; phase and voltage configuration by model
4. Frequency: Nominal 50Hz / 60Hz
5. Design: Isolated output transformer; electrical operating data display
6. Applications: Telecom, substation and industrial backup power projects
7. Selection: Capacity, bypass, transfer behavior and interfaces confirmed per unit
- Product Description

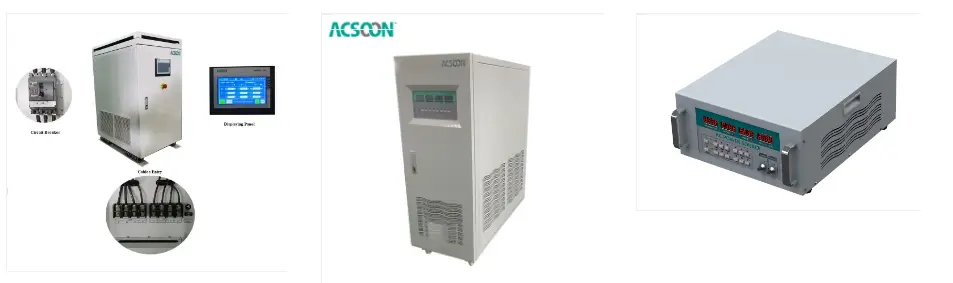

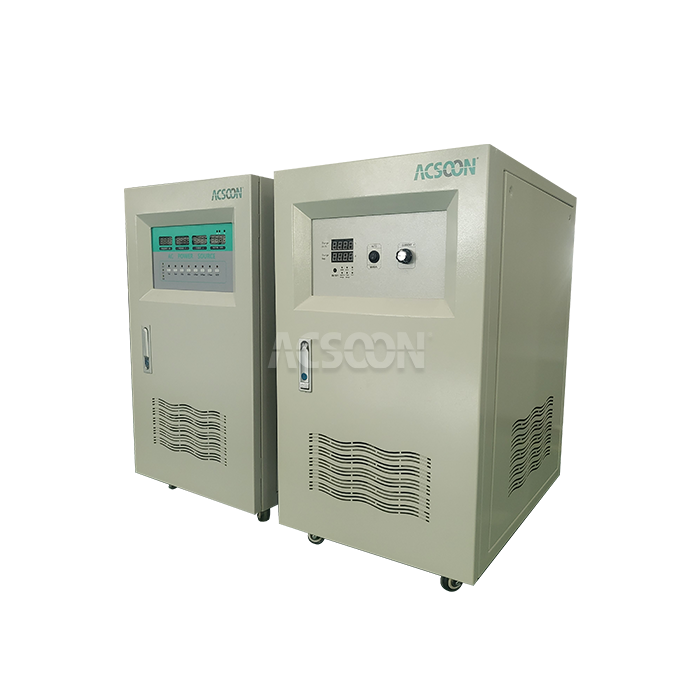

ACSOON ANDW Series Industrial DC to AC Inverter for Telecom and Substation Power
The ACSOON ANDW Series converts a battery supply or another DC source into sine wave AC power. For communication, substation and industrial backup projects, select the DC input, AC phase arrangement and continuous rating together. Bypass and transfer behavior depend on the chosen configuration.
Key Features
- DC to AC conversion for industrial systems: Match the inverter input to the actual DC source voltage and operating range.
- Pure sine wave output: The series datasheet specifies THD below 3% with linear loads; confirm performance for the intended load.
- Isolated output transformer: Galvanic isolation and phase arrangement are specified with the selected unit.
- Electrical operating data: Monitor voltage, current, frequency and power or power factor on the configured display.

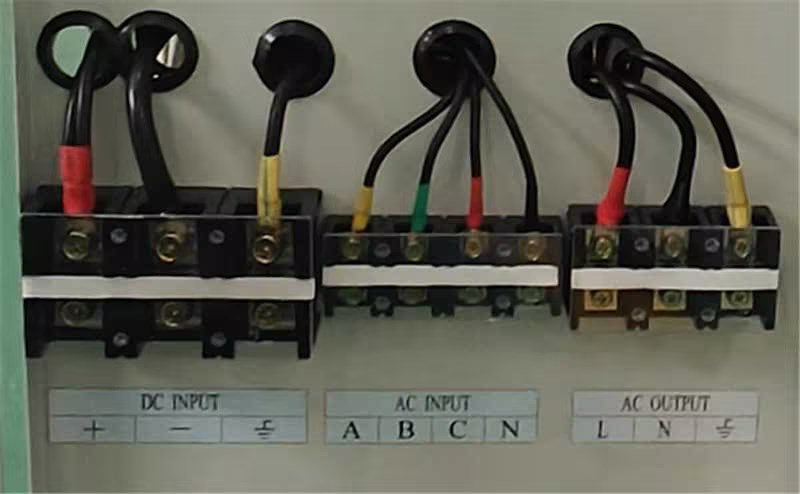

- Project-specific bypass: Online and offline configurations differ. Confirm bypass wiring and transfer behavior for the actual model.
Technical Specifications
| Item | Specification / Selection |
|---|---|
| Series | ANDW DC to AC Inverter |
| DC input choices | 48, 60, 110, 220, 380, 520 or 600 V DC; select the applicable model |
| AC output phase | Single phase, split phase or three phase, by configuration |
| Nominal AC voltage choices | 110/120/220/230/240 V single phase; 208/380/400/415/440/480 V three phase |
| Capacity choices | Selected single phase ratings up to 100 kVA; selected three phase ratings up to 300 kVA |
| Nominal output frequency | 50 Hz or 60 Hz, by configuration |
| Output waveform | Pure sine wave; THD <3% at linear loads |
| Voltage regulation / frequency stability | ±1% FS / ±0.1% FS, per series datasheet |
| Bypass and interfaces | Confirm the exact arrangement in the selected model documentation |
Application Areas
- Communication and telecom power systems
- Substation DC systems supplying AC loads
- Industrial backup power projects
- Special vehicle and railway projects after application review
Explore related ac power supply solutions or view the Jerrystar product range.
About Us
XI'AN JERRYSTAR INSTRUMENT CO., LTD supplies ACSOON power conversion equipment. Share the load, input supply, operating environment and required output so the appropriate model and technical scope can be reviewed.
Quality Control
Define the inspection and acceptance scope with the selected model. Request the applicable specifications and test records covering the agreed output, load conditions and protection checks.
Configuration and Technical Support
Confirm ratings, control interface, installation dimensions, cooling and accessories before the order is finalized. Include any special function in the agreed technical specification.
Packaging and Transportation
Packaging, shipment method and installation accessories are confirmed for the final unit. Include the destination and any handling or site access requirements with the enquiry.
After-Sales Service
For support, provide the model, serial number, operating conditions and issue description. Request the applicable warranty terms, maintenance guidance and spare parts information with the quotation.
FAQ
Q1: Does one inverter accept every listed DC voltage?
No. These are model choices. Select the input rating and confirm its permissible operating range.
Q2: Is transfer time the same on all ANDW models?
No. Online and offline arrangements differ. Confirm transfer behavior, bypass and AC input requirements for the quoted configuration.
Q3: How should I choose capacity?
Provide the AC load, power factor, continuous demand and inrush current together with the DC source details.
Custom Solution & Quotation
Send the required voltage, current or capacity, load, input supply and installation conditions for model selection and the applicable datasheet.
Get Price / Technical Datasheet Discuss Your Application
