Industrial DC Power System

1.Power Output: 0-600VDC / 0-500A (wide-range adjustable)
2. Technology: High-frequency IGBT switching with active PFC
3. Input: 3-phase 380VAC ±10%, 50/60Hz
4. Regulation: Voltage stability ≤±0.5% FS, Current stability ≤±0.5% FS
5. Key Applications: Industrial automation, motor testing, electrolysis, OEM integration
6. Ingress Protection Grade: IP21
7. Key Features: Robust industrial design; wide input voltage range; forced air cooling; MODBUS/RS485 communication
8. Brand: ACSOON (OEM/ODM services available).

Send Inquiry Download

Product Description

Industrial DC Power System | Robust Power for Industrial Applications

XI'AN JERRYSTAR INSTRUMENT CO., LTD manufactures reliable industrial DC power systems for demanding industrial environments. Built with robust components and advanced control technology, our systems provide stable and efficient DC power for a wide range of industrial applications. These power systems are designed for continuous operation in tough industrial conditions.

Technical Specifications

Feature	Specification
Input	Single Phase or Three Phase + N +PE
	220VAC (L-N)±10%; 380Vac(L-L)±10%, or customized
	Frequency: 50HZ/60HZ
Output Voltage	0- Nominal Voltage adjustable
	DC 12V, 15V, 24V, 30V, 50V, 60V, 100V, 150V, 300V, 600V or customized
Current	0- Nominal Current adjustable, with current limiting control
	1A to 1000A or customized
Voltage Stability	Line regulation ≤ 0.5% Nominal
	Load regulation ≤ 0.5% Nominal
Ripple (rms)	RMS ≤ 0.5% Nominal Value
Power Control	Potentiometer switch knobs, 1-byte resolution adjustment
Interface	Modbus Protocol RS232 (RS485), PC control for voltage/current setting and on/off
Display Accuracy	Voltage: Four and a half VFD, Resolution > 0.1V
	Current: Four and a half VFD, Resolution > 0.1A
Protection	Input phase loss, Output overvoltage, Overload current limiting, Short circuit, Over temperature
Cooling	Air forced fan
IP Rating	IP20 (Customizable)
Color	RAL7035
Working Temp.	-10℃ to 45℃
Standards	EN61000-6-3 & EN60204-1

ACSOON Industrial DC Power System Performance feature

Output display:LCD digital display, displaying voltage, current and power meters
Pulse operation: DC pulse power supply with time controller (optional)
Interface: It can be communicated with PC through RS232, RS485,support SCPI protocol
Analog inputs/Optional: The user can use 0 ~ 5V, 0 ~ 10V or 4 ~ 20mA signal to control output current and output voltage of the units via analog inputs, the output of the units can be turned on / off remotely via analog inputs (See below image of analog inputs)

Why Choose ACSOON Industrial DC Power Systems?

ACSOON delivers industrial-grade reliability and performance:

Industrial Durability: Designed for 24/7 operation in harsh environments

Wide Operating Range: Broad voltage and current adjustment capability

High Efficiency: ≥93% efficiency with active power factor correction

Advanced Control: Digital interface with MODBUS communication

Comprehensive Protection: Multiple protection features for safe operation

Application Areas

Our industrial DC power systems are essential for:

Industrial Automation: PLC systems and control circuitry

Motor Testing: DC motor drive and testing applications

Electrolysis Processes: Industrial electrolysis and plating

OEM Equipment: Integrated power for industrial machinery

Battery Charging: Industrial battery charging systems

Research Facilities: Industrial research and development

Water Treatment: Electrochemical water treatment systems

Manufacturing Lines: Production equipment power supply

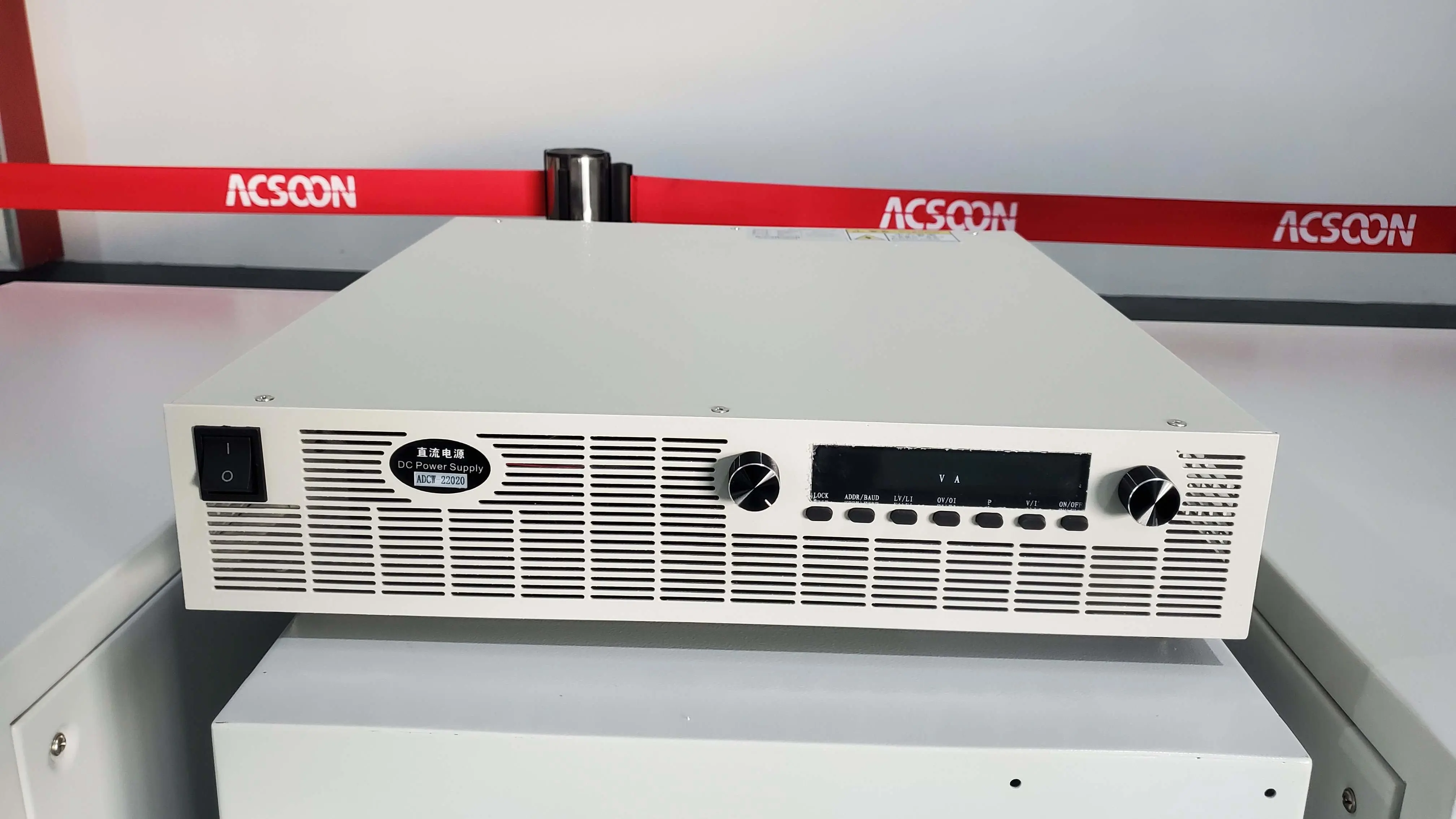

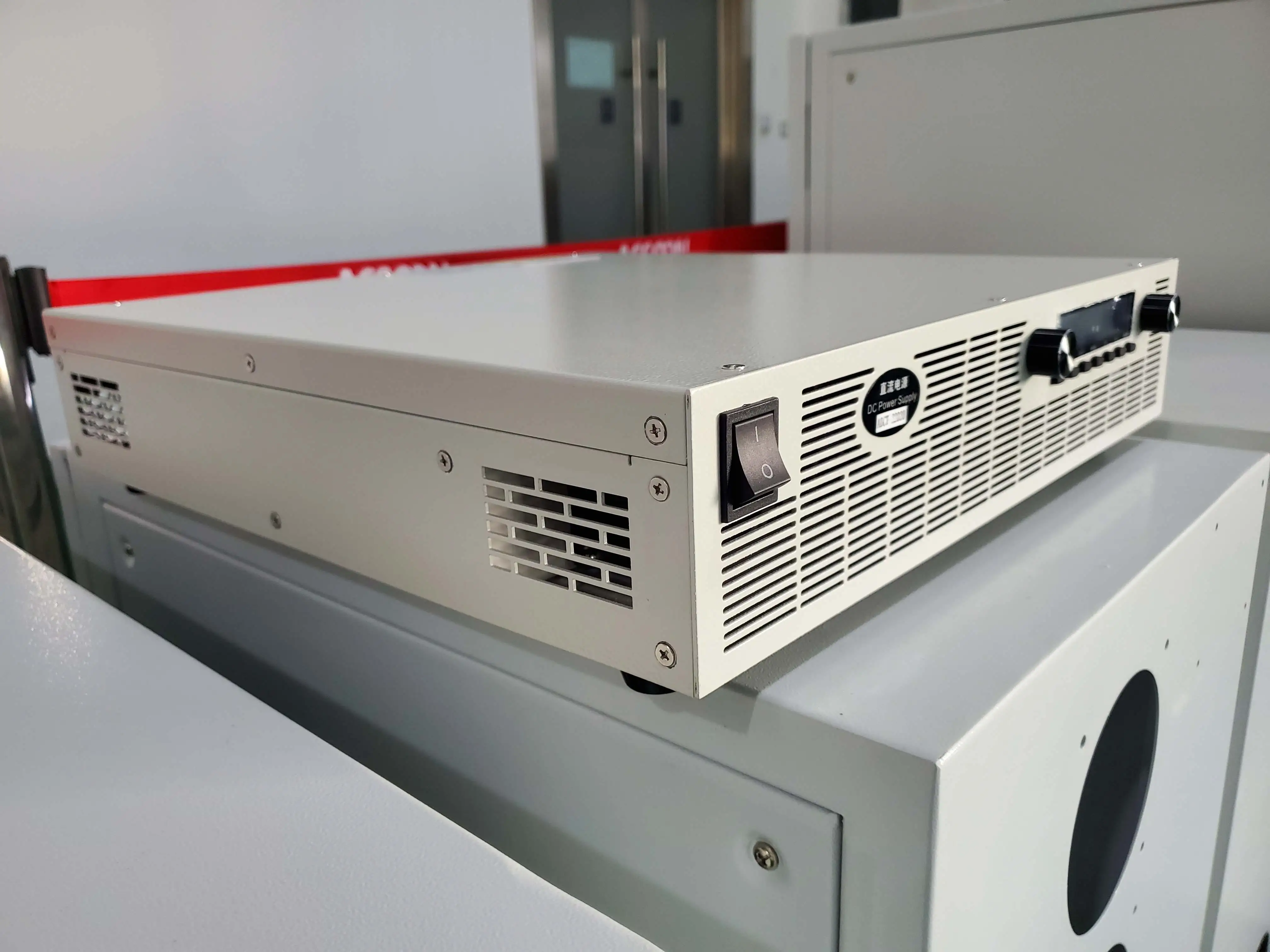

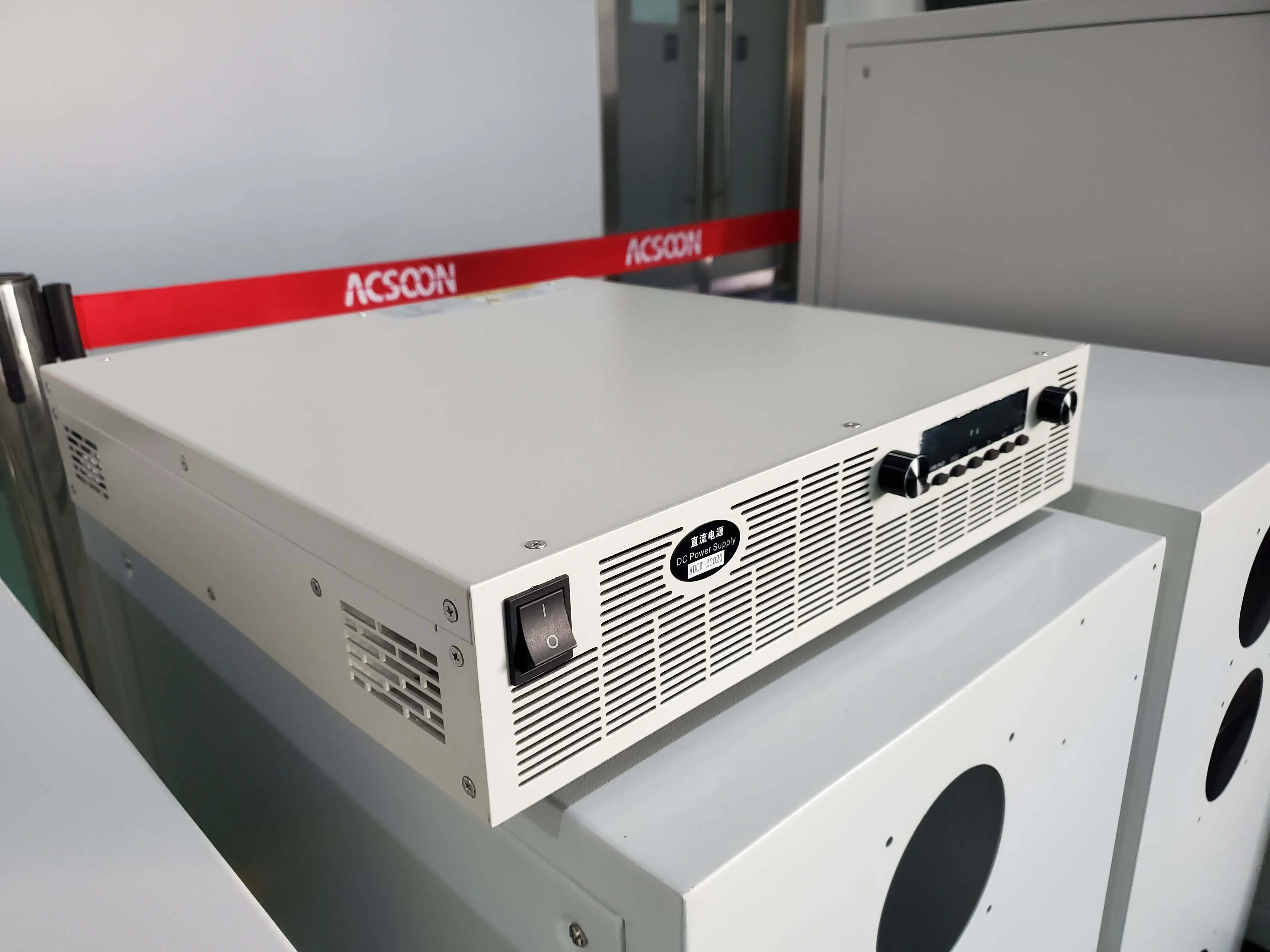

Details display

Quality Assurance

Each industrial DC power system undergoes rigorous validation:

Continuous full-load testing (72+ hours)

Thermal performance verification

Environmental stress testing

Safety standard compliance testing

Final calibration and performance certification

Technical Features

Our industrial DC power system incorporates:

Industrial-grade components

Advanced thermal management

MODBUS communication protocol

Comprehensive protection circuitry

User-friendly control interface

Packaging and Delivery

We ensure secure industrial packaging:

Heavy-duty protective packaging

Environmental monitoring during shipping

Global logistics coordination

Professional installation support

After-Sales Service

Comprehensive industrial support includes:

24/7 technical support

Preventive maintenance programs

Emergency repair services

Operator training programs

Global spare parts availability

Certifications

CE Certifications

ISO Certification

FAQ
Q1: What makes industrial DC power systems suitable for harsh environments?
A: Our systems feature industrial-grade components, robust construction, and advanced cooling for reliable operation in demanding conditions.
Q2: Can the system communicate with industrial PLCs?
A: Yes, with MODBUS/RS485 interfaces for seamless integration with industrial control systems.
Q3: What protection features are included?
A: Over voltage, over current, short circuit, and thermal protection with automatic shutdown.
Q4: How is cooling managed in industrial environments?
A: Advanced forced air cooling with temperature-controlled fans for optimal thermal management.
Q5: Do you provide custom solutions for specific industrial applications?
A: Yes, we offer customized designs to meet specific industrial requirements.
