Industrial DC Power Supply

1.Power Range: 10-60kW (modular expandable design)
2.Topology: High-frequency switching with active PFC
3. Input: 3-phase 400VAC ±15%, 45-65Hz auto-ranging
4.Output: 0-1000VDC / 0-600A (fully adjustable)
5. Key Applications: Industrial process control, electroplating, anodizing, communication systems
6. Ingress Protection Grade: IP21
7.Key Features: 0.1% regulation accuracy; constant voltage/current mode; remote sensing; temperature-controlled cooling
8. Brand: ACSOON (support OEM)

Send Inquiry Download

Product Description

Industrial DC Power Supply | Reliable DC Power for Industrial Processes

XI'AN JERRYSTAR INSTRUMENT CO., LTD specializes in manufacturing robust industrial DC Power Supply for demanding industrial applications. With years of experience in power electronics, we provide dependable solutions that deliver stable and precise DC power for critical industrial processes. Our products are engineered for durability and performance, serving customers across various industrial sectors worldwide.

Industrial DC Power Supply

Industrial DC Power Supply Performance feature

Short circuit protection: Allowing long-term short-circuit or short-circuit start-up in any state
Short circuit alarm: when the output short circuit, the unit sound and light alarm
Output display:LCD digital display, displaying voltage, current and power meters
Pulse operation: DC pulse power supply with time controller (optional)
Interface: It can be communicated with PC through RS232, RS485,support SCPI protocol
Analog inputs/Optional: The user can use 0 ~ 5V, 0 ~ 10V or 4 ~ 20mA signal to control output current and output voltage of the units via analog inputs, the output of the units can be turned on /off remotely via analog inputs (See below image of analog inputs)

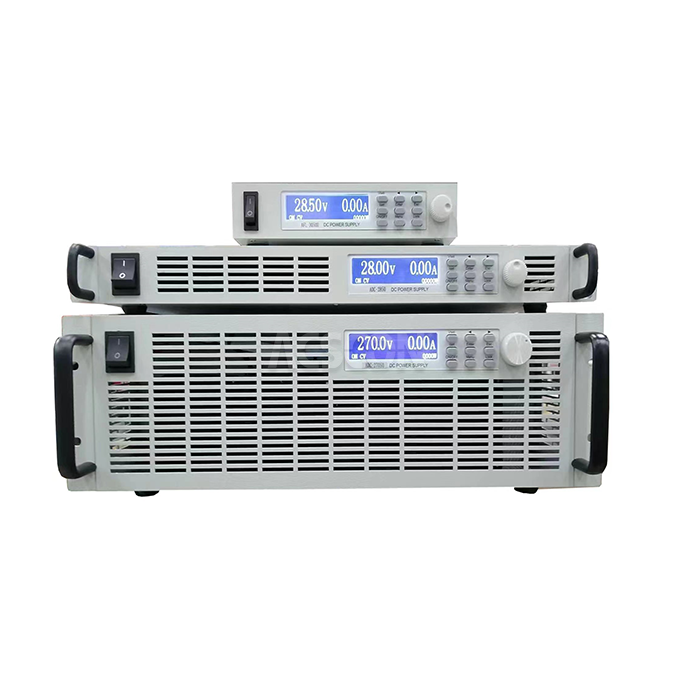

Industrial DC Power Supply Performance Feature

Technical Specifications

Feature	Specification
Input	Single Phase or Three Phase + N + PE
Input Voltage	220VAC (L-N) ±10%; 380VAC (L-L) ±10%, or customized
Input Frequency	50HZ/60HZ
Output Voltage	0 - Nominal Voltage adjustable
DC Output Options	12V, 15V, 24V, 30V, 50V, 60V, 100V, 150V, 300V, 600V, or customized
Current	0 - Nominal Current adjustable, with current limiting control
Current Range	1A to 1000A, or customized
Voltage Stability	≤ 0.5% Nominal (line and load regulation)
Ripple (RMS)	≤ 0.5% Nominal Value
Control Interface	Modbus Protocol RS232 (RS485)
Display Accuracy	Voltage: Four and a half VFD, Resolution > 0.1V Current: Four and a half VFD, Resolution > 0.1A
Protection Features	Input phase loss, Output overvoltage, Overload current limiting, Short circuit, Over temperature
Cooling Method	Air forced fan
IP Rating	IP20 (Customizable)
Working Temperature	-10°C to 45°C
Standards Compliance	EN61000-6-3 & EN60204-1

Industrial DC Power Supply

Why Choose ACSOON Industrial DC Power Supply?

ACSOON delivers reliable power solutions for industrial applications. Our systems offer:

Excellent Stability: <0.1% voltage/current regulation for consistent performance
Wide Operating Range: Broad voltage and current coverage for diverse applications
Rugged Construction: Industrial-grade components for reliable operation
Easy Integration: Standard interfaces and control options
Global Safety Standards: Complies with international electrical safety requirements

Application Areas

Our industrial DC Power Supply are widely used in:

Electroplating Industry: Precision plating power for metal finishing
Anodizing Processes: DC power for aluminum surface treatment
Industrial Heating: Power for resistance heating systems
Communication Systems: Base station power and backup systems
Laboratory Testing: R&D and product validation
Educational Institutions: Engineering training and research
Automotive Industry: Component testing and validation
Renewable Energy: System testing and maintenance

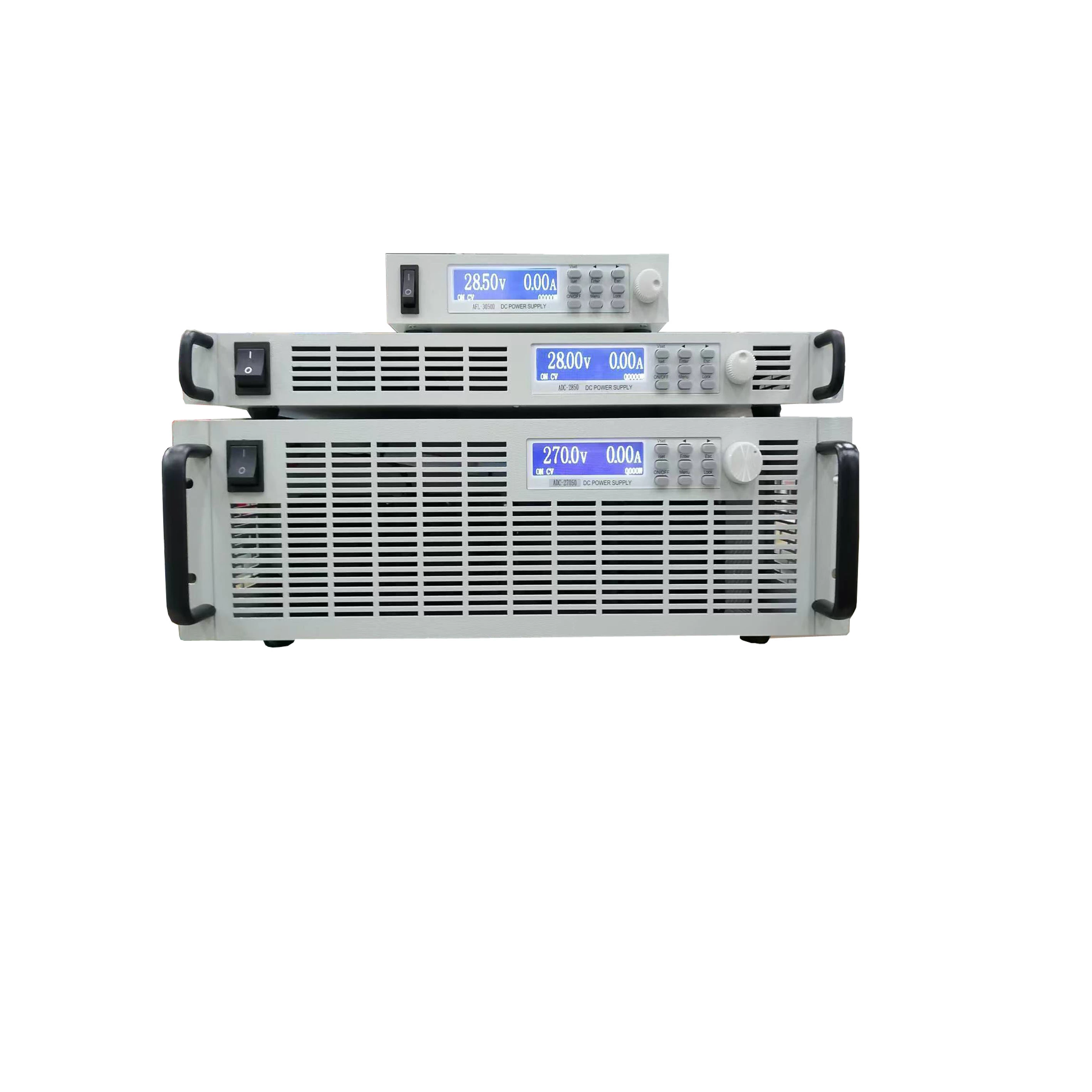

Industrial DC Power Supply Application Areas

Details display

Technical Features

Technical Features

Our industrial DC Power Supply incorporates advanced technologies:

High-efficiency power conversion design
Intelligent thermal management
Multiple protection mechanisms
User-friendly control interface

Quality Assurance

Each industrial DC power source undergoes strict quality verification:

Component-level testing and screening
48-hour continuous full-load testing
Thermal performance validation
Safety standard compliance testing
Final calibration and performance verification

Quality Assurance

After-Sales Service

After-Sales Service

Comprehensive customer support includes:

Technical support services
Maintenance and repair services
Software updates
Operational training
Spare parts availability

Certifications

Our products meet:

ISO 9001:2015 Quality Management System
CE safety standards
RoHS environmental compliance

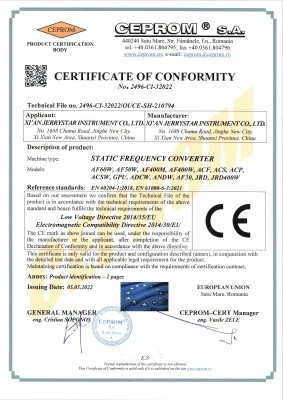

CE Certifications

FAQ
Q1: What are typical applications for an industrial DC Power Supply?
A: These systems are commonly used in electroplating, anodizing, industrial heating, and other processes requiring stable DC power.
Q2: Can the output voltage and current be adjusted remotely?
A: Yes, our systems support remote control through standard interfaces.
Q3: What protection features are included?
A: Standard protections include overvoltage, overcurrent, overtemperature, and short-circuit protection.
Q4: How is cooling managed in these systems?
A: Temperature-controlled fans provide efficient cooling while maintaining quiet operation.
Q5: Do you provide custom solutions?
A: Yes, we offer customized designs to meet specific application requirements.
