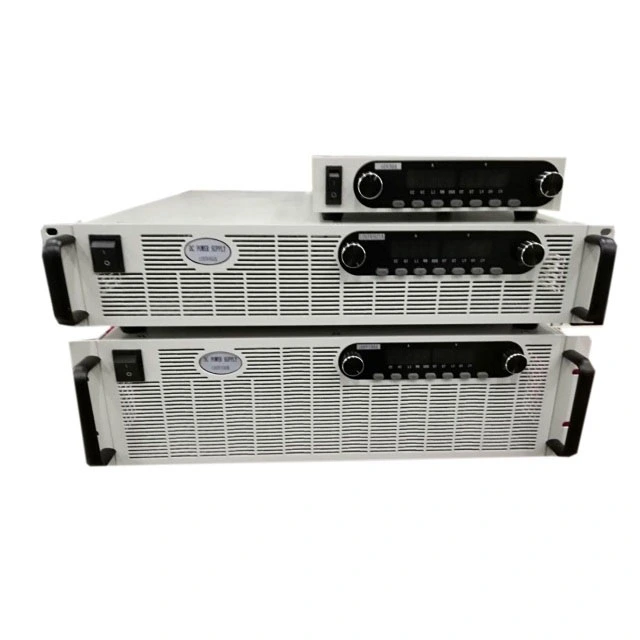

High-Efficiency Programmable DC Power System

1.Power Output: 20-100kW (modular parallel operation supported)
2.Topology: Silicon Carbide (SiC) based high-frequency design
3.Input: 3-phase 480VAC ±15%, 47-63Hz auto-sensing
4.Output Range: 0-600VDC / 0-1000A (Customized)
5. Key Applications: EV charging systems, battery testing, industrial process control
6. Ingress Protection Grade: IP21
7. Key Features: 96% peak efficiency; regenerative energy recovery; 0.02% voltage/current accuracy; Ethernet/PROFINET connectivity
8. Brand: ACSOON (support OEM)

Send Inquiry Download

Product Description

High-Efficiency Programmable DC Power System | Advanced DC Solutions for Industrial Applications

XI'AN JERRYSTAR INSTRUMENT CO., LTD manufactures cutting-edge high-efficiency programmable DC power systems for demanding industrial applications. With extensive expertise in power conversion technology, we deliver solutions that combine exceptional efficiency with precise control capabilities. Our systems are designed for reliability and performance, serving global customers in automotive, energy, and industrial sectors.

High-Efficiency Programmable DC Power System

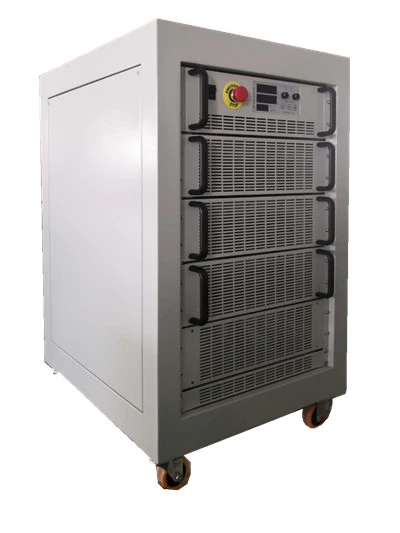

High-Efficiency Programmable DC Power System Performance feature

Performance feature

Voltage and current preset: the displaying panel has preset buttons, which can preset the voltage and current values
Voltage and current in stabilized: the voltage and current value can be continuously adjusted from zero to Nominal value, and the stabilized voltage and current can be automatically converted
Over voltage protection: The unit will be self locked after protection and automatically unlocked after restart
Over current protection: Output nominal current overload protection
Short circuit protection: Allowing long-term short-circuit or short-circuit start-up in any state
Short circuit alarm: when the output short circuit, the unit sound and light alarm
Output display:LCD digital display, displaying voltage, current and power meters
Pulse operation: DC pulse power supply with time controller (optional)

Products Description

Feature	Specification
Input	Single Phase or Three Phase + N + PE
	220VAC (L-N) ±10%; 380VAC (L-L) ±10%, or customized
	Frequency: 50HZ/60HZ
Output Voltage	0 - Nominal Voltage adjustable
	DC 12V, 15V, 24V, 30V, 50V, 60V, 100V, 150V, 300V, 600V or customized
Output Current	0 - Nominal Current adjustable, with current limiting control
	1A to 1000A or customized
Voltage Stability	Line regulation ≤ 0.5% Nominal
	Load regulation ≤ 0.5% Nominal
Ripple (RMS)	≤ 0.5% Nominal Value
Interface	Modbus Protocol RS232 (RS485)
Display Accuracy	Voltage: Four and a half VFD, Resolution > 0.1V
	Current: Four and a half VFD, Resolution > 0.1A
Cooling Mode	Air forced fan
IP Rating	IP20 (Customizable)
Working Temperature	-10°C to 45°C

High-Efficiency Programmable DC Power System

Why Choose ACSOON High-Efficiency Programmable DC Power Systems?

ACSOON represents the forefront of DC power technology. Our systems offer:

Industry-Leading Efficiency: Up to 96% efficiency reduces operating costs and cooling requirements

Ultra-High Precision: 16-bit resolution programming and measurement

Advanced Regenerative Technology: Energy recovery system returns power to grid

Smart Control Features: Programmable sequences and transient response testing

Global Compliance: Meets international safety and EMC standards

Application Areas

Our high-efficiency programmable DC power systems are essential for:

Electric Vehicle Infrastructure: DC fast charger testing and validation

Battery Technology: Cell formation, pack testing, and characterization

Industrial Automation: Motor drive testing, PLC system validation

Renewable Energy: Solar inverter testing, energy storage systems

Research & Development: Power electronics development and testing

Telecommunications: Data center power system testing

Aerospace: Avionics power supply and testing

Medical Equipment: Diagnostic and therapeutic device testing

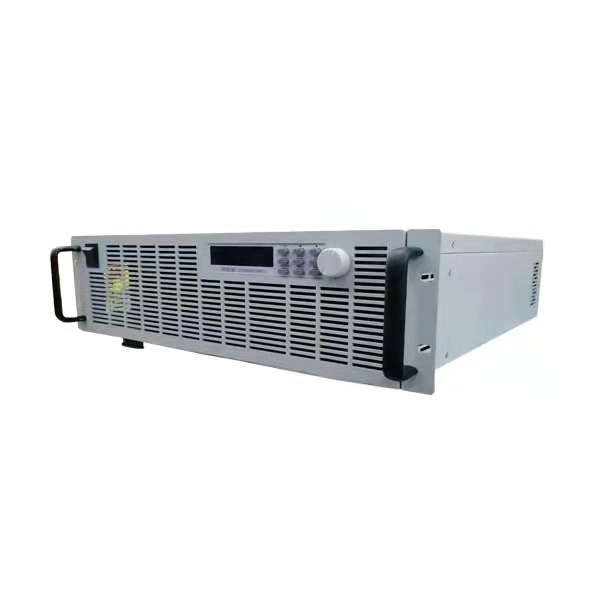

High-Efficiency Programmable DC Power System Application Areas

Details display

Quality Assurance

Quality Assurance

Each high-efficiency programmable DC power system undergoes rigorous validation:

Component-level testing and qualification
96-hour continuous full-power burn-in testing
Thermal cycling and environmental stress testing
Safety certification compliance verification
Performance calibration and validation

Technical Innovation

Our R&D advancements in high-efficiency programmable DC power system technology include:

Next-generation SiC power semiconductor technology

Advanced digital control algorithms

Intelligent thermal management systems

Cloud connectivity and IoT capabilities

Technical Innovation

After-Sales Support

After-Sales Support

Comprehensive service package includes:

24/7 remote technical support
Predictive maintenance services
Firmware and software updates
On-site training programs
Global spare parts network

Certifications

Our systems comply with:

ISO 9001:2015 Quality Management System

ISO 14001 Environmental Management

CE, UL, and RoHS standards

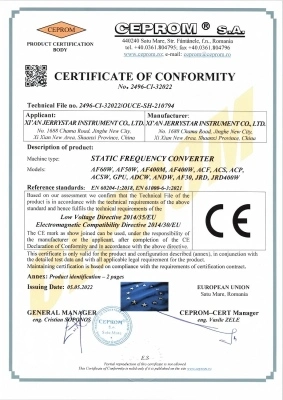

CE Certifications

FAQ
Q1: What are the primary benefits of a high-efficiency programmable DC power system?
A: These systems offer exceptional efficiency, precise control, and advanced features for demanding industrial and research applications.
Q2: Can multiple units be paralleled for higher power requirements?
A: Yes, our systems support seamless parallel operation with automatic current sharing for power scaling.
Q3: What communication interfaces are supported?
A: Standard interfaces include Ethernet, USB, RS485, PROFINET, and optional GPIB or wireless modules.
Q4: How does the regenerative energy recovery work?
A: The system converts excess energy back to the input power grid with high efficiency, reducing energy consumption and heat generation.
Q5: Do you provide custom voltage and current ratings?
A: Yes, we offer customized designs to meet specific application requirements and standards.
