Programmable AC Power Supply 1–400kVA | ACSOON ACSW Series
2. Input: Single-phase / three-phase; 110-240VAC single-phase, 208-480VAC three-phase; 50/60Hz
3. Output: Single-phase / split-phase / three-phase; multiple output voltage configurations available
4. Frequency Range: 45-400Hz adjustable; up to 800Hz customized
5. Regulation: Voltage stability ±1% FS; frequency stability ±0.1% FS; THD <3% at linear loads
6. Key Applications: R&D laboratories, electrical equipment testing, production testing, avionics testing, transformers, motors and pumps
7. Key Features: 10 programmable voltage/frequency/time settings; fault record storage; clean sine wave output; LCD display
8. Communication & Protection: RS232/RS485 Modbus; IP20/IP21 standard; IP32/IP54 optional
9. Brand: ACSOON (capacity, voltage, frequency, phase, LOGO, cabinet color and OEM customization available)
- Product Description
Programmable AC Power Supply for Testing and Industrial Equipment
Different countries, production lines and electrical systems do not always operate at the same voltage or frequency.
For manufacturers, laboratories and engineering teams, this creates a practical problem: how can equipment designed for one power standard be tested or operated under another?
The ACSOON ACSW Series Programmable AC Power Supply is designed to provide a controlled AC source with configurable voltage, frequency and phase options.
It can reproduce common international AC power conditions and provides an adjustable frequency range of 45Hz to 400Hz, with wider frequency configurations up to 800Hz available as a customized option. This makes the system suitable for product testing, R&D, industrial equipment evaluation and avionics-related applications.
Need help selecting voltage, frequency and kVA?
Key Advantages of the ACSW Series
Wide frequency adjustment
Standard adjustable frequency:
45Hz–400Hz
Customized configurations can extend the range to:
up to 800Hz
Frequency stability is specified at ±0.1% FS. ASOON ACSW Series Static Freque…
This allows one AC source to support conventional 50/60Hz equipment as well as applications requiring higher-frequency AC power.
Clean sine wave output
For linear loads, the ACSW Series specifies:
THD <3%
Voltage regulation and stability are specified at:
±1% FS
A stable, low-distortion output is particularly useful where the purpose of the power supply is testing rather than simply energizing the load. ASOON ACSW Series Static Freque…
Single-phase and three-phase configurations
Different projects require different input/output combinations.
The ACSW platform supports:
Input: Single Phase / Three Phase
Output: Single Phase / Split Phase / Three Phase
Nominal voltage configurations include common international voltages such as 110V, 120V, 220V, 230V and 240V for single-phase systems, as well as 208V, 380V, 400V, 415V, 440V and 480V for three-phase systems. ASOON ACSW Series Static Freque…
Power Capacity Options
One advantage for project buyers is that the ACSW Series covers both relatively small laboratory systems and larger industrial power requirements.
| Output configuration | Available capacity |
|---|---|
| Single-phase output | 1, 2, 3, 5, 10, 15, 20, 30, 45, 60, 75, 100kVA |
| Three-phase output | 1, 3, 6, 10, 15, 20, 30, 45, 60, 75, 100, 150, 200, 300, 400kVA |
These are the capacity options listed in the current ACSW technical specification.
Technical Specifications
| Parameter | ACSW Series |
|---|---|
| Input Phase | Single Phase / Three Phase |
| Input Frequency | 50Hz / 60Hz |
| Input Frequency Tolerance | 40–70Hz |
| Output Phase | Single Phase / Split Phase / Three Phase |
| Output Frequency | 50Hz / 60Hz nominal |
| Adjustable Frequency | 45–400Hz; up to 800Hz customized |
| Voltage Regulation & Stability | ±1% FS |
| Frequency Stability | ±0.1% FS |
| Waveform | Clean sine wave |
| THD | <3% at linear loads |
| Communication | RS232 / RS485 |
| Efficiency | ≥85% |
| Input Power Factor | ≥0.8 |
| Overload | 120% for 10 min; 150% for 1 min |
| Standard IP Class | IP20/IP21 indoor |
| Optional IP Class | IP32 / IP54 |
| Operating Temperature | -10°C to 45°C |
| Noise | <65dB within 1m |
| MTBF | 50,000 hours |
| MTTR | <30 min |
Custom Configuration
For project procurement, ACSOON can configure the system according to the required electrical specification.
Customization can include:
Power capacity · Input voltage · Output voltage · Input/output phase · Frequency range · IP protection option · Cabinet configuration · Product color · Customer logo
Tell Us Your Power Requirement
Not sure whether you need 30kVA, 45kVA, 100kVA or a larger three-phase system?
Input voltage / Output voltage / Frequency / Phase / Required kVA / Load type / Application / Destination country
Our team can use these details to recommend a suitable configuration.
Warranty and After-Sales Support
Standard Warranty: 1 Year
For project orders, buyers can provide the required voltage, frequency, phase, capacity and load information before quotation. This allows the configuration to be checked before manufacturing.
Technical documentation and after-sales support can be provided for equipment operation and troubleshooting.
What Problems Can This AC Power Supply Solve?
Testing equipment for different countries
An appliance or industrial product manufactured in one country may eventually operate in a market using a different voltage or frequency.
Instead of changing the facility power system, the ACSW power supply can provide the required AC conditions for testing.
Typical requirements include:
50Hz → 60Hz
60Hz → 50Hz
50/60Hz → 400Hz
as well as different output-voltage configurations.
Creating a controlled AC source for product testing
Ordinary utility power is not always suitable for repeatable electrical testing.
ACSW allows engineers to configure voltage, frequency and operating time. The system can store 10 sets of voltage, frequency and operating-time settings, allowing multiple-cycle testing to be performed without repeatedly entering the same parameters. ASOON ACSW Series Static Freque…
This is useful for:
- production-line testing;
- R&D validation;
- electrical equipment testing;
- laboratory power simulation;
- repetitive test procedures.
Programmable Test Functions
For applications involving repeated testing, the power source can store 10 sets of voltage, frequency and operation-time parameters.
The system also supports fault-event storage and reading. The product specification states that up to 9 groups of fault records can be stored to assist with checking fault occurrence time and fault type. ASOON ACSW Series Static Freque…

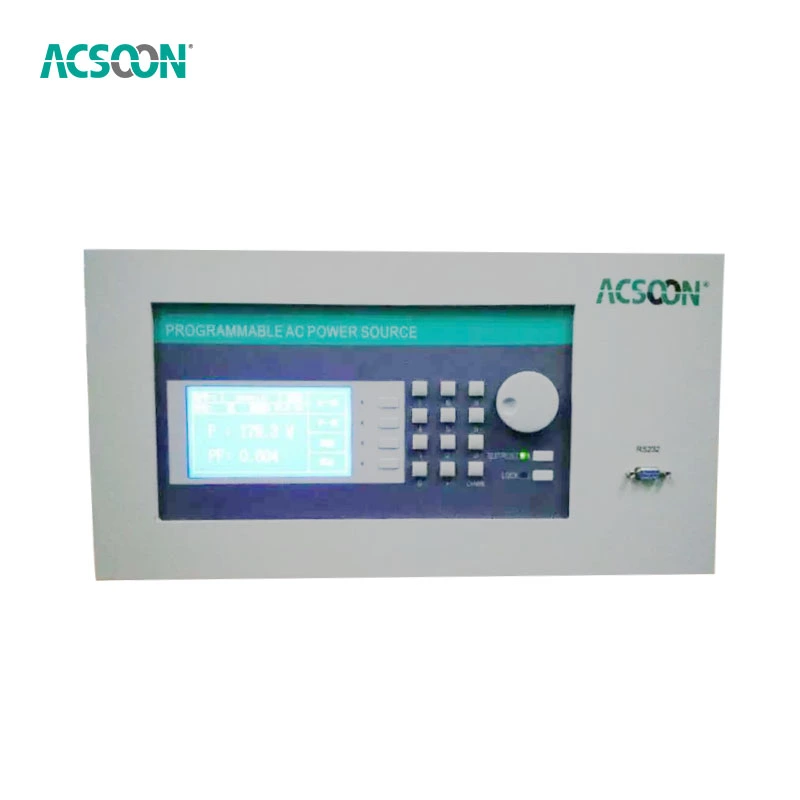

The LCD interface displays parameters including:
Frequency · Voltage · Current · Power Factor · Power · Time
RS232 and RS485 communication are provided for monitoring and system integration.
Application Areas
The ACSW Series can be considered for:
Electrical Equipment Testing
Reproduce different voltage and frequency conditions during product development or production testing.
Laboratories and R&D
Provide an adjustable AC source for validation and experimental setups.
Avionics Testing
Higher-frequency output supports applications where 400Hz AC power is required.
Motors, Pumps and Transformers
Provide controlled AC power for equipment testing and evaluation.
Railway and Marine Electrical Systems
Suitable where a controlled AC source is required for electrical equipment or system testing.
These applications correspond to those specified for the ACSW Series in the manufacturer technical document.
-
Details display
Quality Assurance
Each programmable DC source undergoes rigorous validation:
Precision calibration verification
72-hour continuous operation testing
Thermal performance validation
Safety standard compliance testing
Final performance certification
Technical Features
- Our programmable DC source incorporates:
Advanced DSP control technology
High-resolution programming capability
Isolated remote sensing terminals
Multi-layer protection circuitry
Intelligent cooling system
Packaging and Delivery
We ensure secure delivery:
Anti-static protective packaging
Environmental monitoring during shipping
Calibration certification included
Professional installation support
After-Sales Service
Comprehensive support package includes:
24/7 technical support
Software/firmware updates
Calibration services
Operational training
Maintenance programs
Certifications
FAQ |
|---|
| Q1: What is the main advantage of a programmable DC source? |
| A: Our sources offer high precision, programmable sequences, and remote control capability for automated testing applications. |
| Q2: Can the system simulate complex test sequences? |
| A: Yes, with multi-step programming for voltage/current profiles and timing control. |
| Q3: What communication interfaces are supported? |
| A: Standard LAN and RS485 interfaces with SCPI protocol support. |
| Q4: How is measurement accuracy maintained? |
| A: Through high-precision ADC/DAC systems and regular calibration. |
| Q5: Do you provide custom programming services? |
| A: Yes, we offer customized programming and integration services. |
