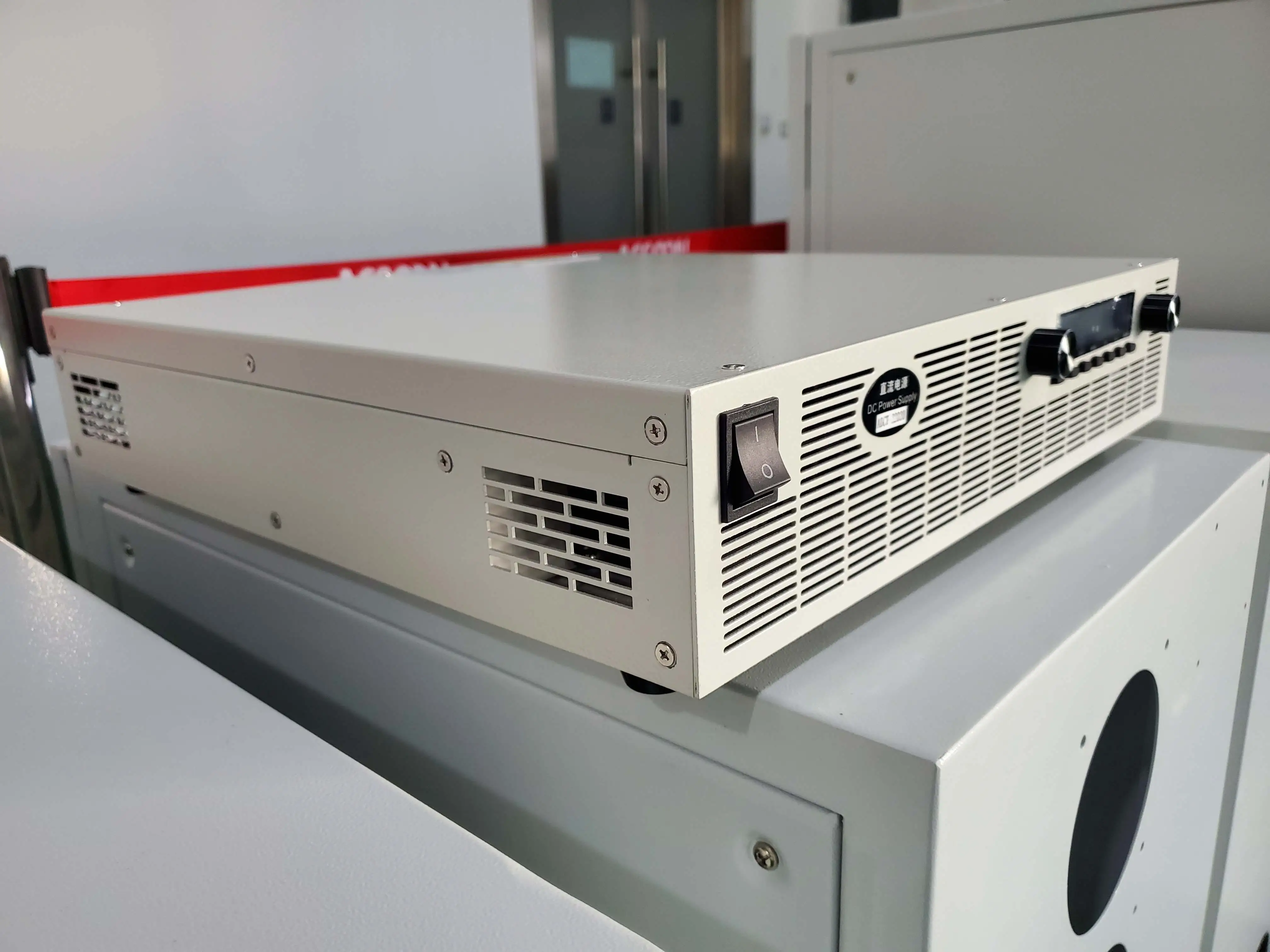

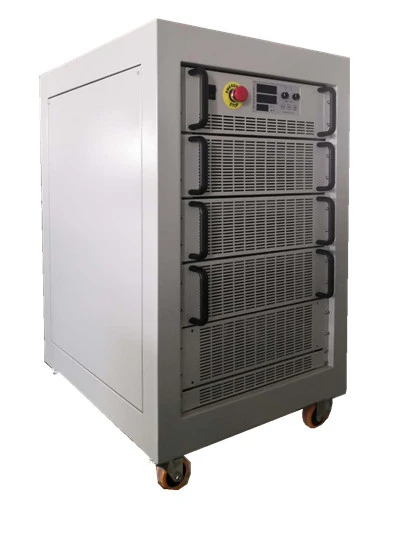

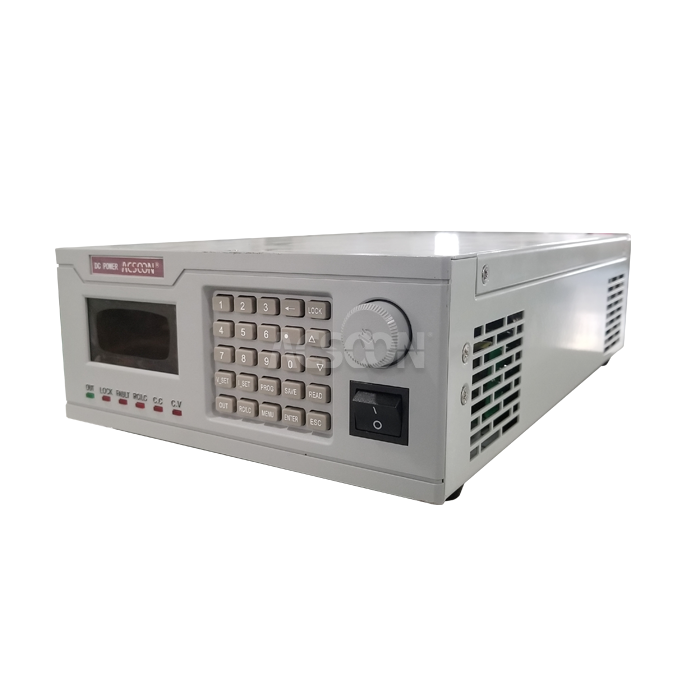

Programmable DC Source

1.Power Output: 0-1000VDC / 0-500A (fully programmable)
2. Technology: High-frequency switching with DSP control
3. Input: 3-phase 380VAC ±10%, 50/60Hz
4. Regulation: Voltage/current stability ≤±0.2% FS
5.Key Applications: R&D laboratories, product testing, quality assurance
6.Key Features: High precision control; programmable sequences; remote sensing; LAN/RS485 connectivity
7. Brand: ACSOON (custom programming available)
8. Ingress Protection Grade: IP21/54
9. Brand: ACSOON (custom programming available).

Send Inquiry Download

Product Description

Programmable DC Source | Precision DC Power for Testing

XI'AN JERRYSTAR INSTRUMENT CO., LTD manufactures advanced programmable DC power sources for sophisticated testing and research applications. Featuring precise digital control and programmable operation, our power sources deliver accurate and stable DC power for laboratory testing, product development, and quality verification processes.

Technical Specifications

Feature	Specification
Input	Single Phase or Three Phase + N +PE
	220VAC (L-N)±10%; 380Vac(L-L)±10%, or customized
	Frequency: 50HZ/60HZ
Output Voltage	0- Nominal Voltage adjustable
	DC 12V, 15V, 24V, 30V, 50V, 60V, 100V, 150V, 300V, 600V or customized
Current	0- Nominal Current adjustable, with current limiting control
	1A to 1000A or customized
Voltage Stability	Line regulation ≤ 0.5% Nominal
	Load regulation ≤ 0.5% Nominal
Ripple (rms)	RMS ≤ 0.5% Nominal Value
Power Control	Potentiometer switch knobs, 1-byte resolution adjustment
Interface	Modbus Protocol RS232 (RS485), PC control for voltage/current setting and on/off
Display Accuracy	Voltage: Four and a half VFD, Resolution > 0.1V
	Current: Four and a half VFD, Resolution > 0.1A
Protection	Input phase loss, Output overvoltage, Overload current limiting, Short circuit, Over temperature
Cooling	Air forced fan
IP Rating	IP20 (Customizable)
Color	RAL7035
Working Temp.	-10℃ to 45℃
Standards	EN61000-6-3 & EN60204-1

ACSOON Programmable DC Source Performance feature

Output display:LCD digital display, displaying voltage, current and power meters
Pulse operation: DC pulse power supply with time controller (optional)
Interface: It can be communicated with PC through RS232, RS485,support SCPI protocol
Analog inputs/Optional: The user can use 0 ~ 5V,0~ 10V or 4~ 20mA signal to control output
current and output voltage of the units via analog inputs, the output of the units can be turned on /
off remotely via analog inputs (See below image of analog inputs)

Why Choose ACSOON Programmable DC Sources?

ACSOON delivers exceptional precision and flexibility:

High Accuracy: ±0.2% regulation accuracy for precise testing
Programmable Control: Multi-step sequence programming capability
Remote Operation: LAN and RS485 communication interfaces
Advanced Monitoring: Real-time voltage/current/power display
Comprehensive Protection: Full protection with automatic recovery

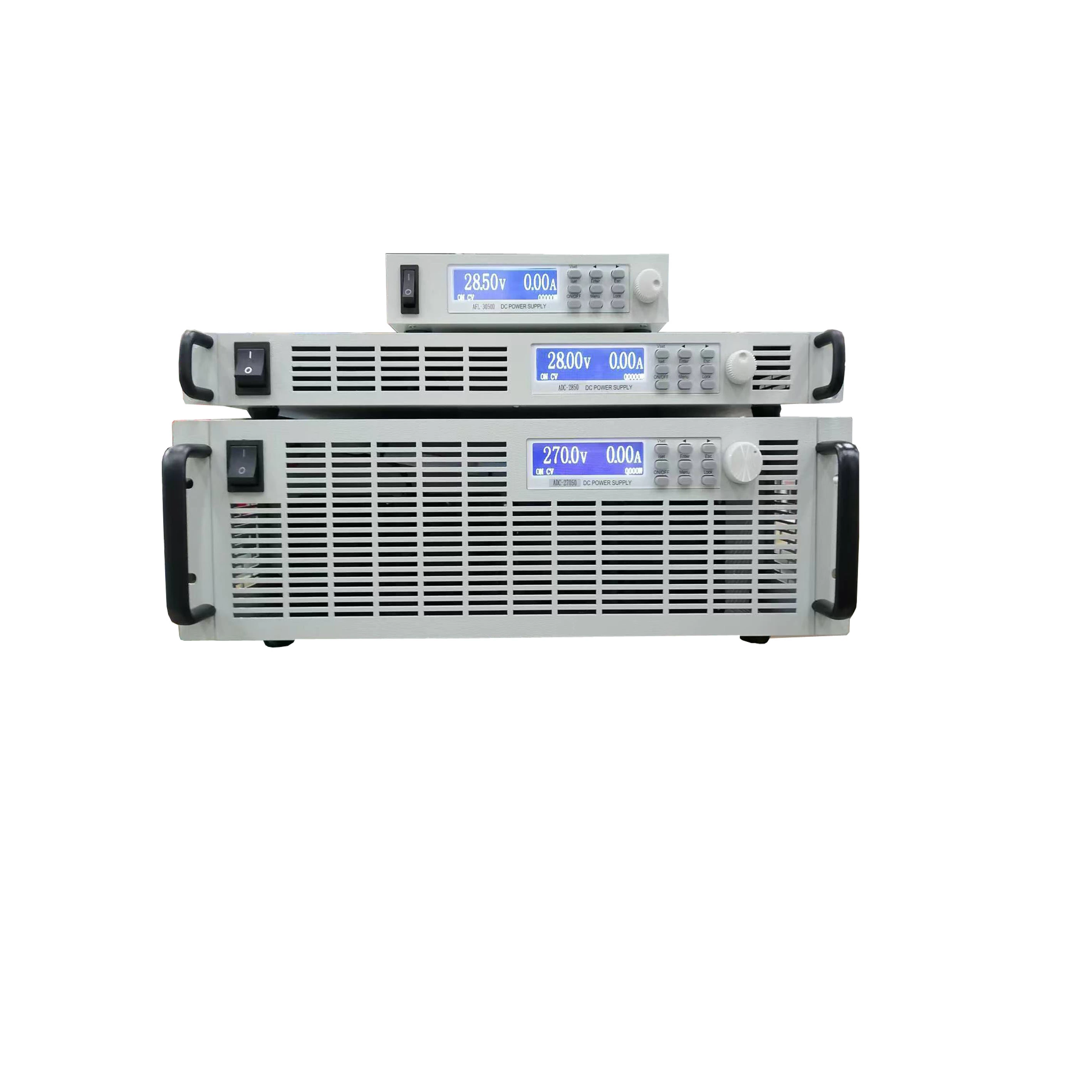

Application Areas

Our programmable DC power sources are essential for:

Research Laboratories: Scientific experiments and testing
Electronics Manufacturing: Product development and validation
Automotive Electronics: Component testing and qualification
Battery Testing: Charge/discharge cycle testing
Semiconductor Testing: Device characterization and validation
Telecommunications: Equipment testing and maintenance
Educational Institutions: Engineering education and research
Quality Assurance: Production line testing and verification

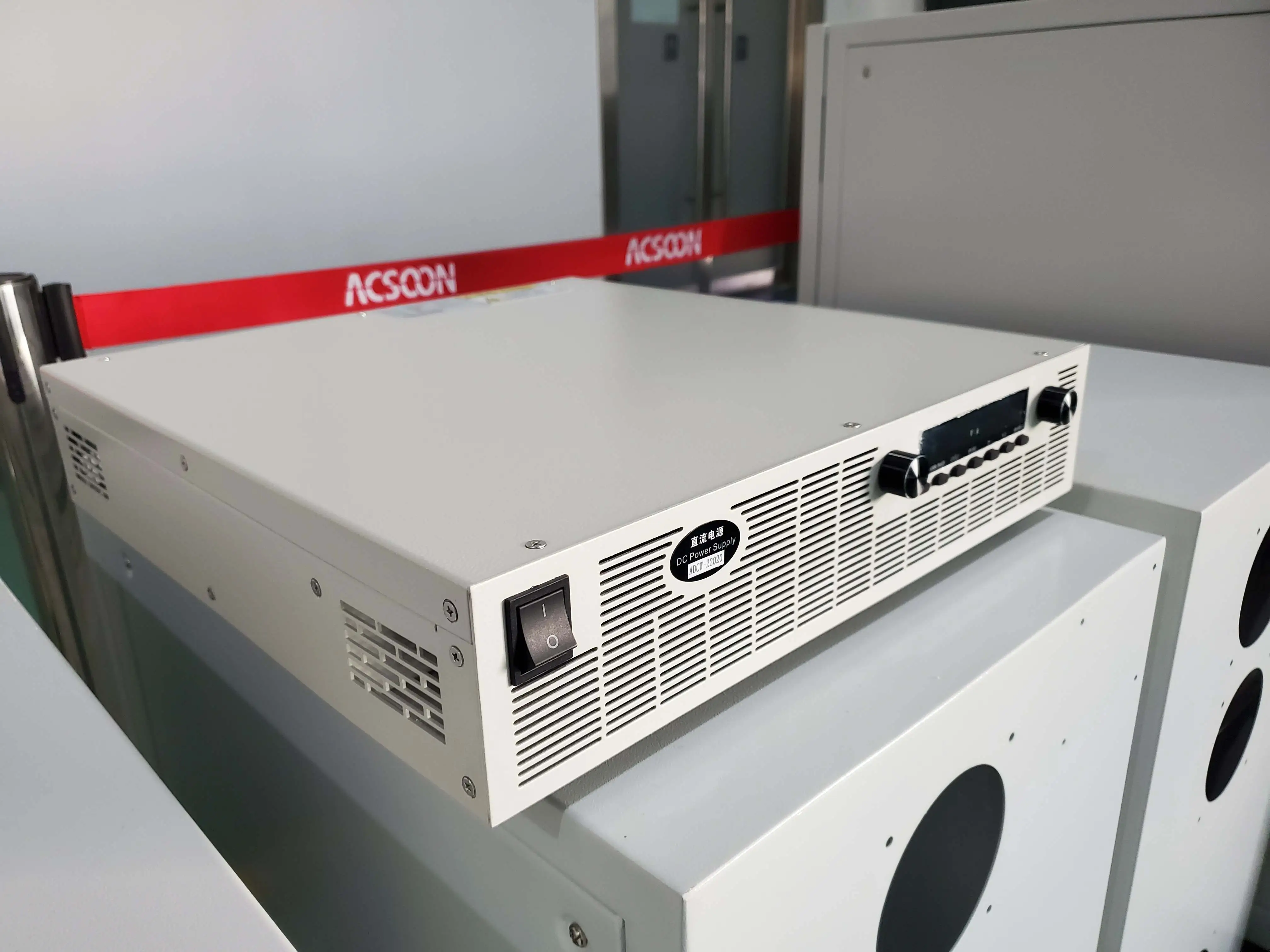

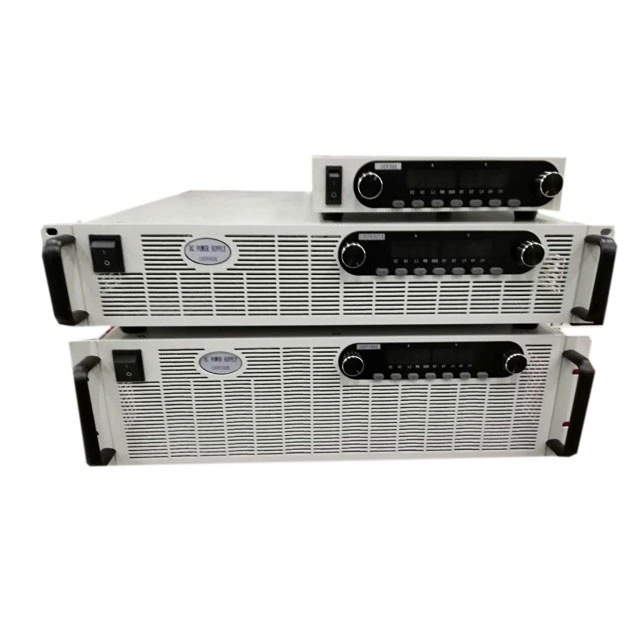

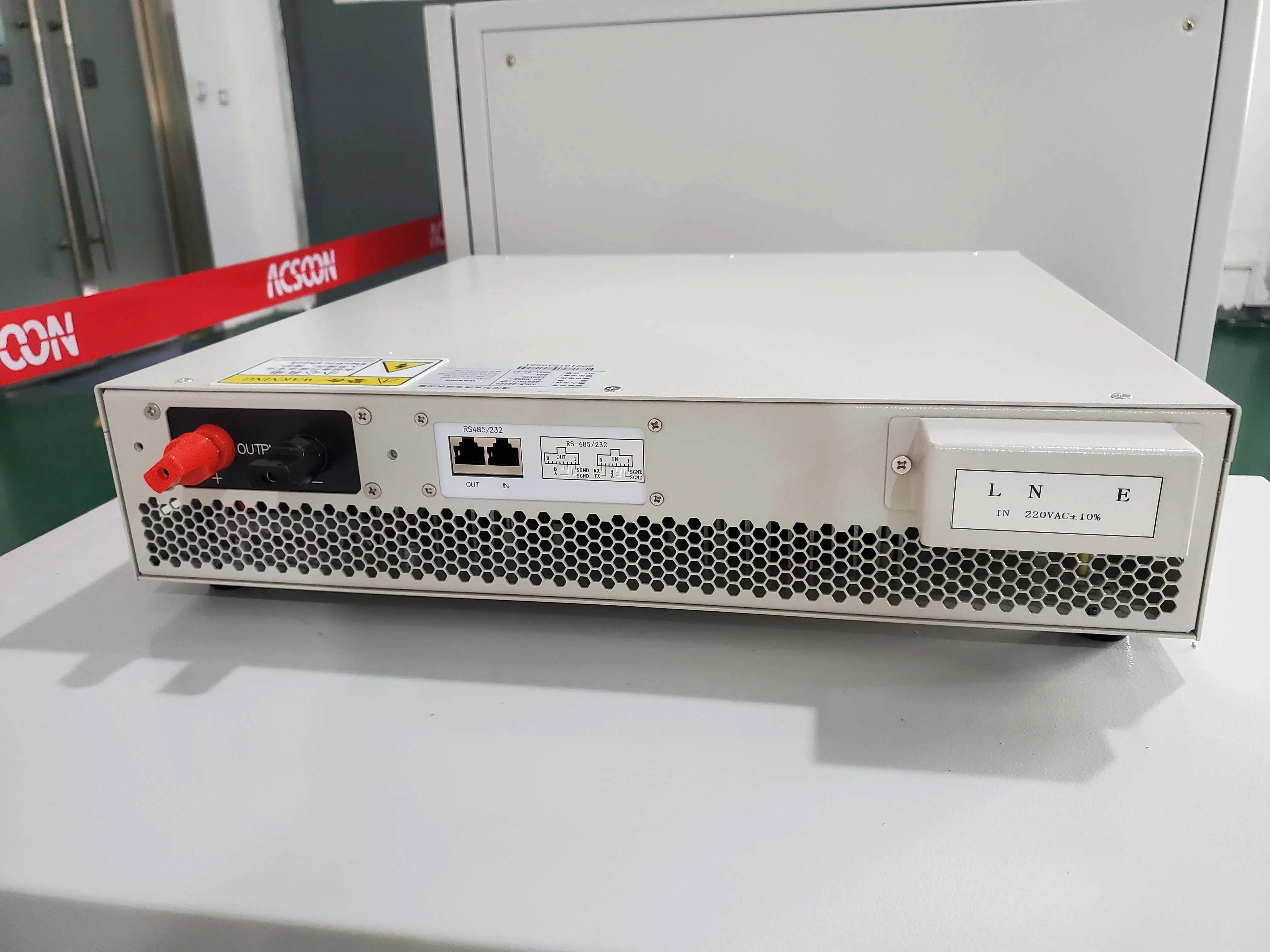

Details display

Quality Assurance

Each programmable DC source undergoes rigorous validation:

Precision calibration verification
72-hour continuous operation testing
Thermal performance validation
Safety standard compliance testing
Final performance certification

Technical Features

Our programmable DC source incorporates:

Advanced DSP control technology
High-resolution programming capability
Isolated remote sensing terminals
Multi-layer protection circuitry
Intelligent cooling system

Packaging and Delivery

We ensure secure delivery:

Anti-static protective packaging
Environmental monitoring during shipping
Calibration certification included
Professional installation support

After-Sales Service

Comprehensive support package includes:

24/7 technical support
Software/firmware updates
Calibration services
Operational training
Maintenance programs

Certifications

CE Certifications

ISO Certification

FAQ
Q1: What is the main advantage of a programmable DC source?
A: Our sources offer high precision, programmable sequences, and remote control capability for automated testing applications.
Q2: Can the system simulate complex test sequences?
A: Yes, with multi-step programming for voltage/current profiles and timing control.
Q3: What communication interfaces are supported?
A: Standard LAN and RS485 interfaces with SCPI protocol support.
Q4: How is measurement accuracy maintained?
A: Through high-precision ADC/DAC systems and regular calibration.
Q5: Do you provide custom programming services?
A: Yes, we offer customized programming and integration services.
