Programmable DC Power Supply for Battery Testing

1.Power Range: 5kW to 60kW, Wide Voltage & Current Ranges
2.Technology: Bi-directional, Four-Quadrant Operation (Source & Sink)
3.Input: 3-Phase, 380V/400V, 50/60Hz
4.Output: Positive & Negative DC Voltage, High Current, with Regenerative Capability
5.Applications: EV Battery Pack Testing, Energy Storage System (ESS) Validation, Battery Cell Cycling, Supercapacitor Testing
6.Core Features: Charge/Discharge Simulation, High Dynamic Response, Precision Measurement, Integrated Data Logging
7.Brand: ACSOON (Custom Test Profile Software Available).

Send Inquiry Download

Product Description

Programmable DC Power Supply for Battery Testing | Bi-Directional Battery Cycler

XI'AN JERRYSTAR INSTRUMENT CO., LTD presents the advanced Programmable DC Power Supply for Battery Testing, a bi-directional power solution engineered for the rigorous demands of modern battery research and validation. This system goes beyond a simple source to act as a high-precision electronic load, capable of simulating complex charge and discharge profiles, making it essential for developing and testing lithium-ion batteries, fuel cells, and energy storage systems with unparalleled accuracy and control.

Datasheet

Parameter	Specification
Model Series	ACSOON BTS Series
Operation Mode	Four-Quadrant (Bi-directional, Source & Sink)
Input	3-Phase 380V/400VAC, 50/60Hz
Output Ranges	Voltage: 0-60V to 0-1000V+ Current: 0-100A to 0-2000A+ Power: 5kW, 10kW, 20kW, 30kW, 60kW
Regulation Accuracy	Voltage: ≤ ±0.05% FS Current: ≤ ±0.1% FS
Dynamic Response	< 1ms for 10%-90% current step
Measurement Resolution	16-bit or higher for V & I
Communication	LAN (Ethernet), USB, CAN, RS232, Isolated Analog I/O
Efficiency (Regen Mode)	> 90% energy recovery to grid

Programmable DC Power Supply for Battery Testing Main Features

Bi-directional Power Flow: Seamlessly transitions between sourcing (charging) and sinking (discharging) current with regenerative energy return to the grid.
Wide Dynamic Range: Covers from millivolts/milliamps up to high voltage and current ranges in a single unit, suitable for cells, modules, and packs.
Advanced Safety Functions: Includes programmable voltage/current limits, over-temperature protection, and integrated safety interlocks for unattended testing.
Comprehensive Data Acquisition: Built-in high-speed logging and standard interfaces (Ethernet, CAN, Analog) for integration with Battery Management System (BMS) testers and data systems.

Why Choose ACSOON Programmable DC Power Supply for Battery Testing?

True Four-Quadrant Operation: Acts as both a precise power source and a regenerative electronic load, recovering energy during discharge tests to save costs and reduce heat.
High-Fidelity Profile Simulation: Accurately replicates real-world charge/discharge cycles, including pulsed and dynamic profiles for realistic battery stress testing.
Superior Measurement Accuracy: High-resolution voltage and current measurement ensures reliable data for calculating State of Charge (SoC), efficiency, and capacity.
Scalable Power: Modular design allows for parallel operation to achieve the high currents and power levels required for large battery packs or multi-channel testing.

Programmable DC Power Supply for Battery Testing Application Areas

Electric Vehicle (EV) Development: Testing battery modules and full packs for performance, lifecycle, and safety under simulated driving conditions.
Energy Storage System (ESS) Manufacturing: Validating grid-scale and residential battery systems for efficiency, cycle life, and compliance with standards.
Battery Cell R&D: Characterizing new cell chemistries (Li-ion, Solid-State) by running precise formation, grading, and cycle life tests.
Quality Assurance & Production: End-of-line testing and batch sampling in battery manufacturing facilities.

Our Services

Quality Control

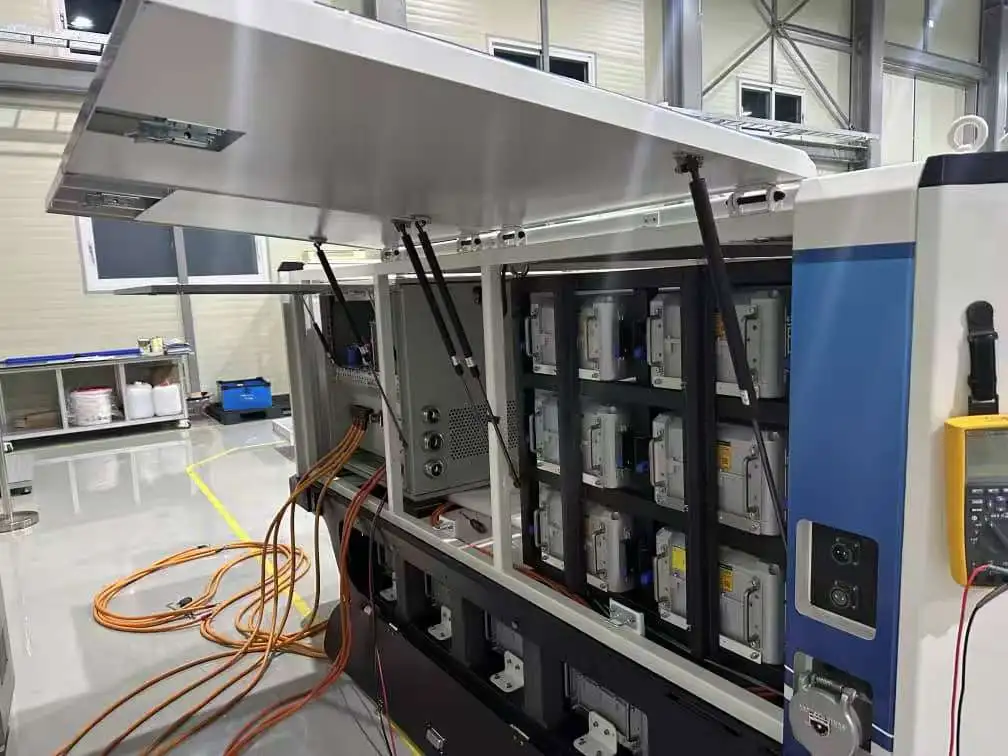

Four-Quadrant Functional Validation: Each unit is rigorously tested to verify seamless and stable operation in all source/sink quadrants.
Calibration with Precision Standards: Voltage and current output/measurement are calibrated using high-accuracy, traceable standards.
Dynamic Response Testing: The unit's response to fast current and voltage transients is measured to ensure it meets specifications for pulsed testing.
Safety & Protection System Stress Test: All hardware and software protection limits are triggered under controlled conditions to verify fail-safe operation.

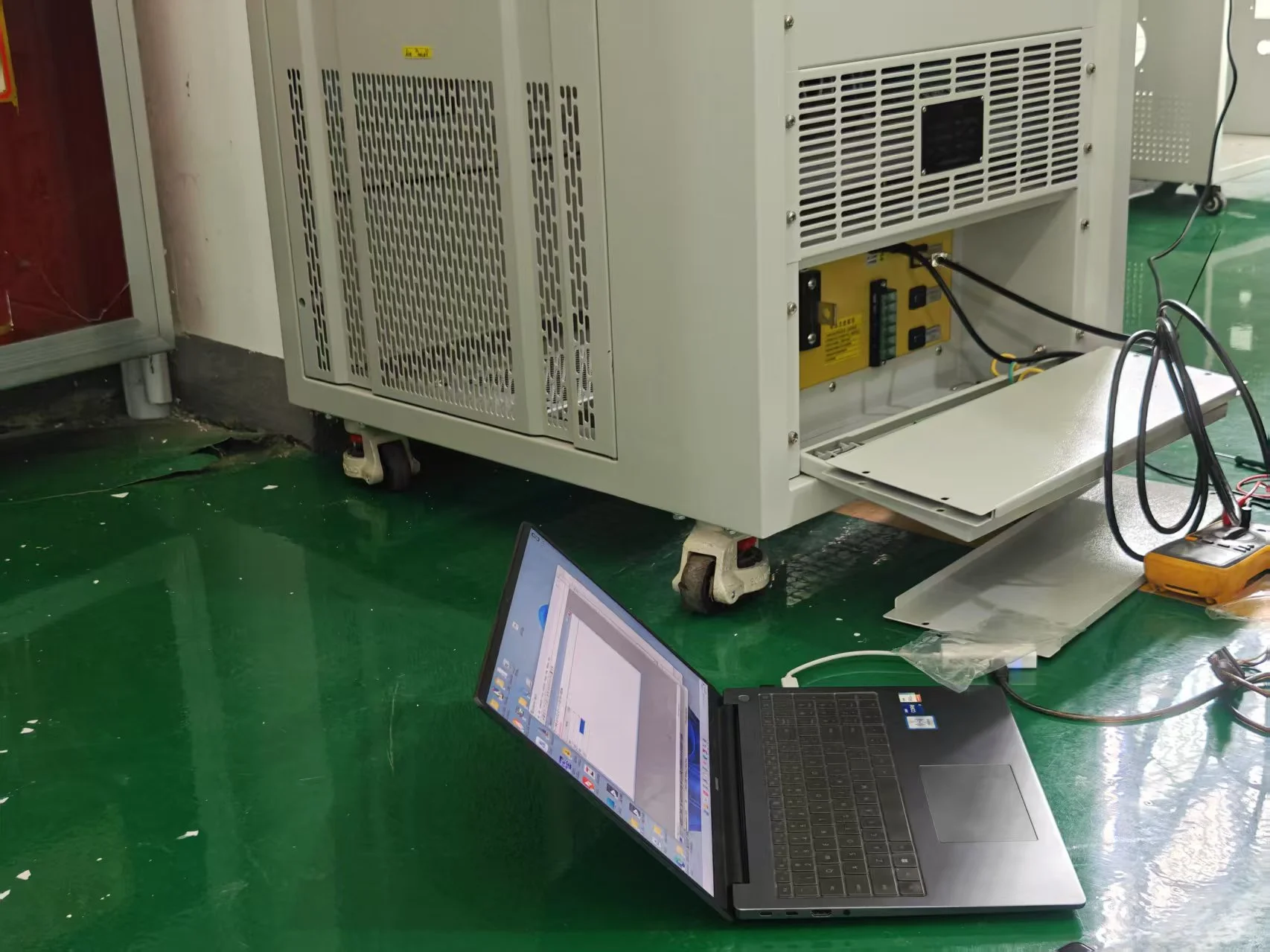

R&D Results

High-Efficiency Regenerative Topology: Developed a proprietary IGBT-based inverter design that maximizes energy returned to the AC line, reducing operating costs.
Ultra-Fast Control Loop: Engineered a digital control system with sub-millisecond response for accurate replication of dynamic battery test profiles.
Multi-Channel Synchronization: Created master/slave control protocols for precise synchronization of multiple units in parallel or series configurations for high-power tests.
Battery-Specific Software Suite: Developed intuitive PC software for creating, managing, executing, and analyzing complex battery test sequences with full data logging.

Packaging and Transportation

Robust Industrial Packaging: The mainframe is secured in a custom wooden crate with foam cushioning, designed for heavy equipment.
Separate Accessory Kits: Cables, communication adapters, and manuals are packed in separate, clearly labeled boxes within the main crate.
Detailed Installation Guide: Includes floor plan drawings, connection diagrams, and utility requirements to facilitate proper site preparation.
Global Technical Logistics: We provide door-to-door shipping coordination, handling customs, and can arrange for technical supervision during unpacking.

After‑Sales Service

We offer a 24-month warranty, comprehensive software updates, application engineering support for test setup, and a global network for calibration and repair services.

Qualification Certification

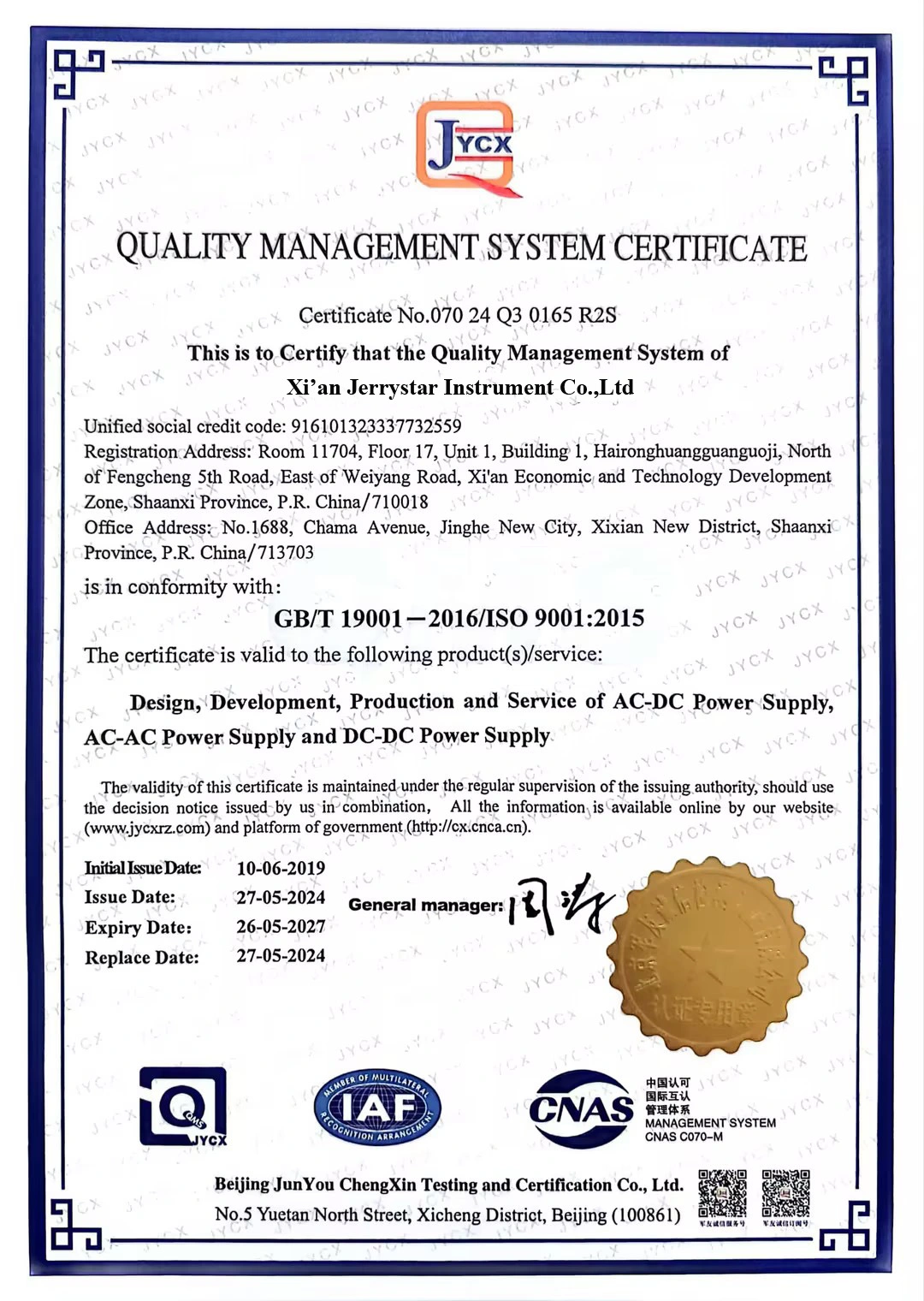

CE Marked: Compliant with EU EMC and Low Voltage Directives;ISO 9001:2015 Certified Manufacturing;Calibration Certificate: Provided with each unit, traceable to national standards;Design Informed by Standards: Suitable for tests aligned with common battery standards (e.g., ISO, SAE, GB/T).

FAQ
Q1: What does 'Four-Quadrant' or 'Bi-directional' operation mean?
A: It means the supply can provide positive voltage/current (source, quadrant I) to charge a battery AND absorb power by providing negative current at a positive voltage (sink, quadrant IV) to discharge it, regenerating energy back to the AC line. This eliminates the need for a separate, wasteful dummy load.
Q2: Can it simulate real-world driving profiles for EV battery testing?
A: Yes. When paired with our test software, it can import or create dynamic power profiles that replicate real driving cycles (e.g., WLTP, UDDS), applying them precisely to the battery under test.
Q3: How is this different from using a standard DC supply and a separate electronic load?
A: This integrated solution is more precise, compact, and efficient. It eliminates synchronization issues between separate devices and recovers energy during discharge, which a standard resistive load wastes as heat.
Q4: Can it test battery packs with a Battery Management System (BMS)?
A: Absolutely. Its CAN and digital I/O interfaces allow it to communicate directly with a BMS for functional testing, to trigger safety events, or to log BMS data synchronized with its own high-precision electrical measurements.
Q5: What is required to parallel multiple units for higher power?
A: It requires units with the parallel option enabled, a proper cabling kit, and configuration via the software. Our technical team can provide full support for system sizing and integration.

Contact Us

For technical specifications or global solutions for the Programmable DC Power Supply for Battery Testing: acpower@acsoonpower.com, or submit your requirements using the form at the bottom of our website.
