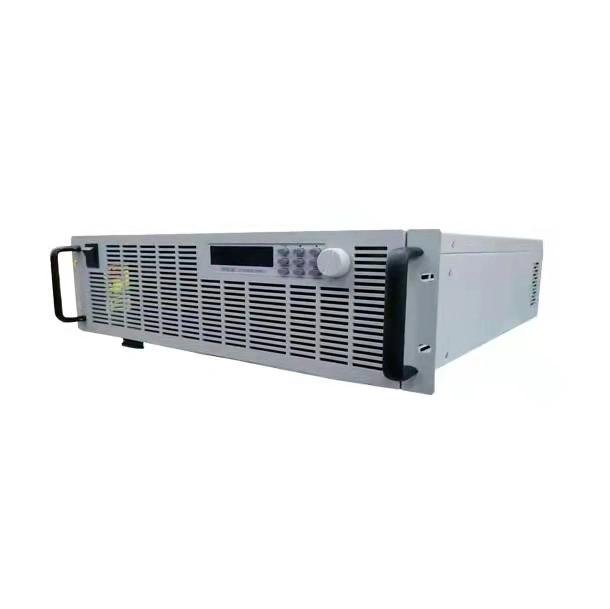

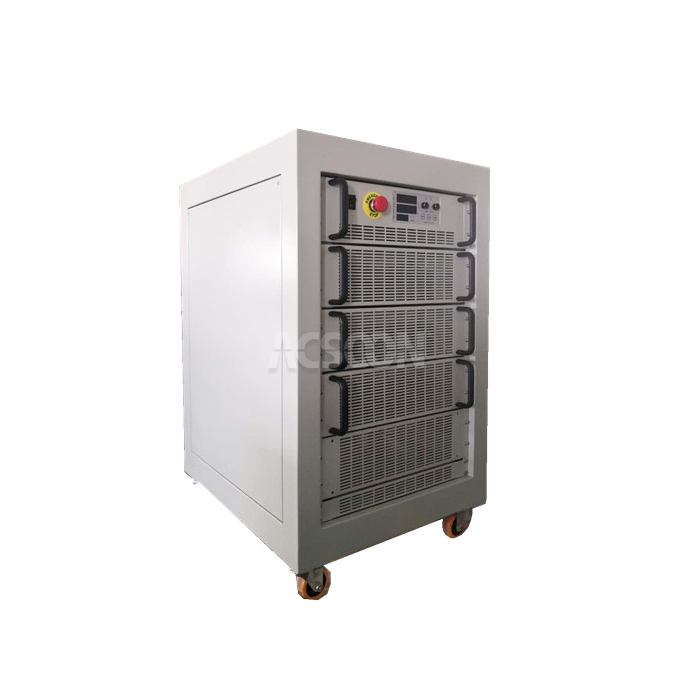

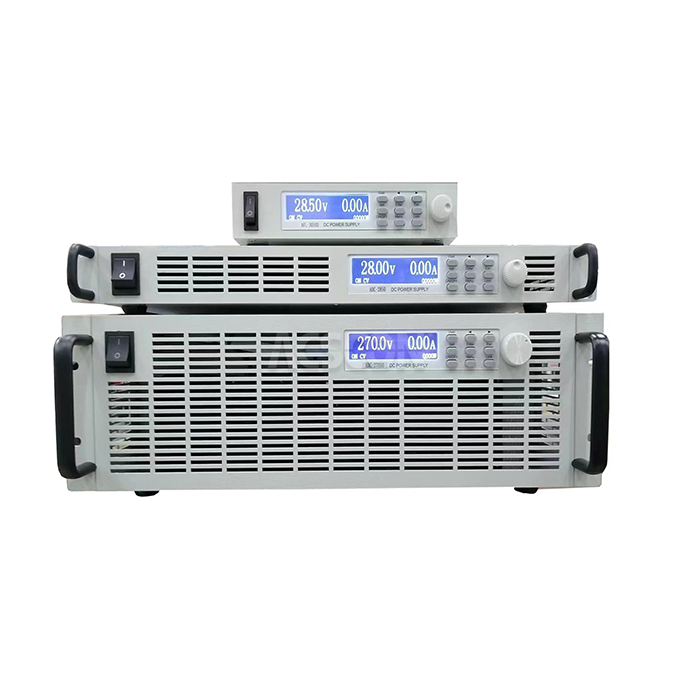

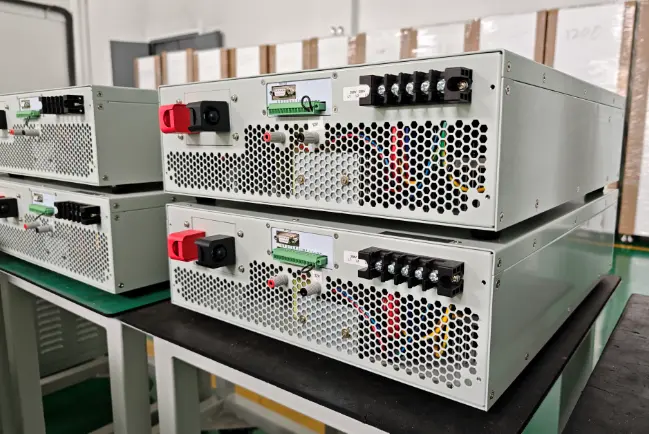

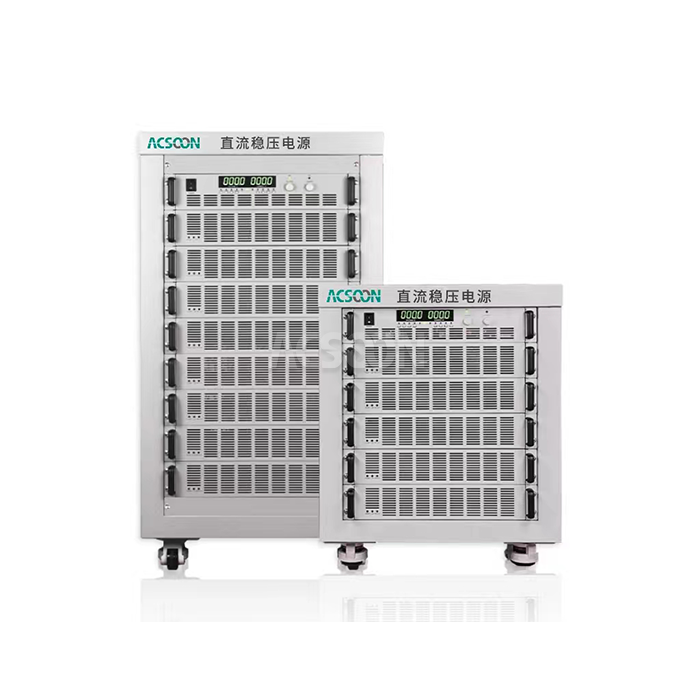

Telecom DC Power Supply System

1.Power Range: 48VDC, 50A to 600A (Modular, Scalable Design

2.Technology: High-Frequency Switching Rectifier Modules in N+1 Redundancy
3.Input: 85-305VAC, 1-Phase or 3-Phase, 45-66Hz (Wide Range)
4.Output: Regulated -48VDC (or +24VDC) for Telecom Equipment
5.Applications: Base Transceiver Stations (BTS), Data Centers, Network Switches, Telecom Infrastructure
6.Core Features: Hot-Swap Rectifiers, Intelligent Battery Management, Remote Monitoring, High Efficiency
7.Brand: ACSOON (Customizable for 19" Racks or Standalone Cabinets).

Send Inquiry Download

Product Description

Telecom DC Power Supply System | -48VDC Rectifier for Communication Networks

XI'AN JERRYSTAR INSTRUMENT CO., LTD presents the reliable Telecom DC Power Supply System, engineered to provide the continuous, clean -48VDC power essential for modern telecommunication networks. This scalable, modular system combines high-efficiency rectifiers, intelligent battery management, and comprehensive monitoring in a single solution, ensuring maximum uptime for critical network equipment like 4G/5G base stations, routers, and optical transmission systems.

Datasheet

Parameter	Specification
Model Series	ACSOON DC Power Supply Series
System Input	85-305VAC, 1-Phase or 3-Phase, 45-66Hz
DC Output	Nominal: -48VDC (or +24VDC) Voltage Adjustable Range: -40 to -60VDC Current: 50A, 100A, 200A, 300A, 400A, 600A systems
Rectifier Module	Hot-swap, 20A/30A/50A modules, N+1 redundancy
Efficiency	≥96% (at full load)
Battery Management	Temperature-compensated charging, boost/equalize/float modes
Communication	SNMP, RS485 (Modbus), Dry Contacts, Local LCD
Operating Temp.	-20°C to 55°C

Telecom DC Power Supply System Main Features

High Efficiency Rectifiers: ≥96% efficiency reduces energy costs and heat generation, suitable for 24/7 operation.
Modular & Scalable Design: Start with the power you need and add rectifier modules as load requirements grow.
Advanced System Controller: LCD display for local monitoring and configuration of voltage, current, alarms, and battery parameters.
Robust Protection Features: Includes input over/under voltage, output over-voltage/current, short circuit, and over-temperature protection.

Why Choose ACSOON Telecom DC Power Supply System?

Maximum System Uptime: N+1 redundant, hot-swappable rectifier design ensures continuous operation even during module failure or maintenance.
Wide Input Voltage Range: Accepts 85-305VAC, ensuring stable operation in areas with poor or fluctuating grid quality.
Intelligent Battery Management: Features programmable charge curves, temperature compensation, and battery health monitoring to extend battery life.
Comprehensive Remote Management: Built-in SNMP, RS485, and dry contacts allow for seamless integration into network monitoring systems.

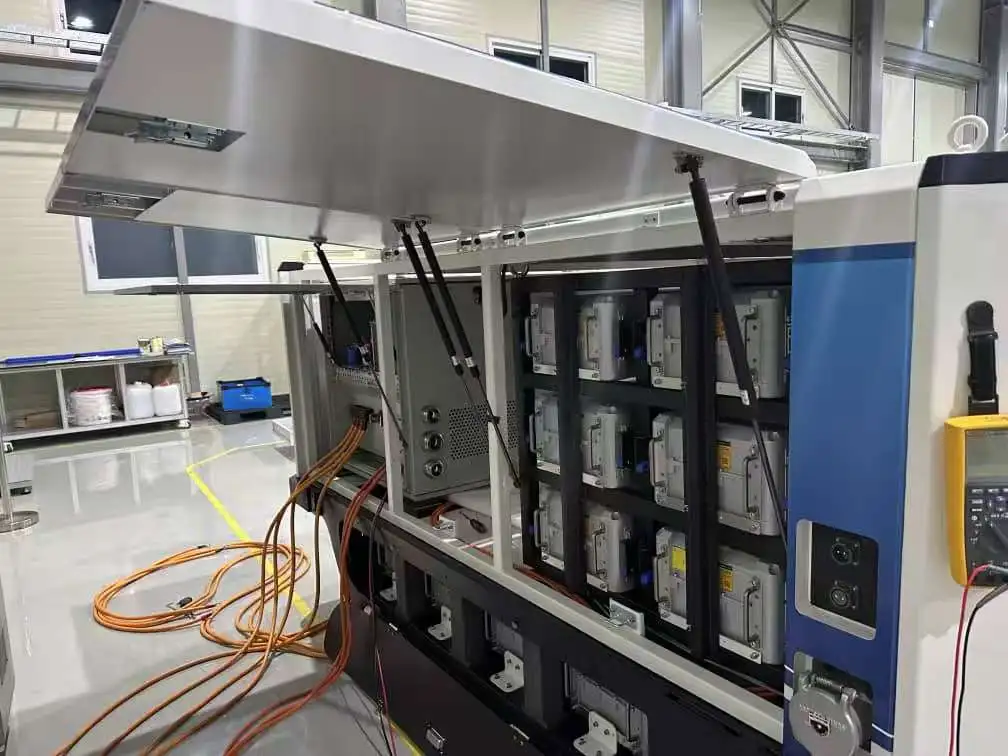

Telecom DC Power Supply System Application Areas

Mobile Network Base Stations: Primary DC power source for 4G LTE and 5G NR radio units and baseband units.
Central Offices & Data Centers: Providing -48VDC backbone power for switches, routers, and transmission equipment.
Fiber Optic Network Nodes: Powering optical line terminals (OLTs) and amplifiers in FTTx deployments.
Enterprise & Industrial Networks: Reliable DC power for PBX systems, industrial Ethernet switches, and security networks.

Our Services

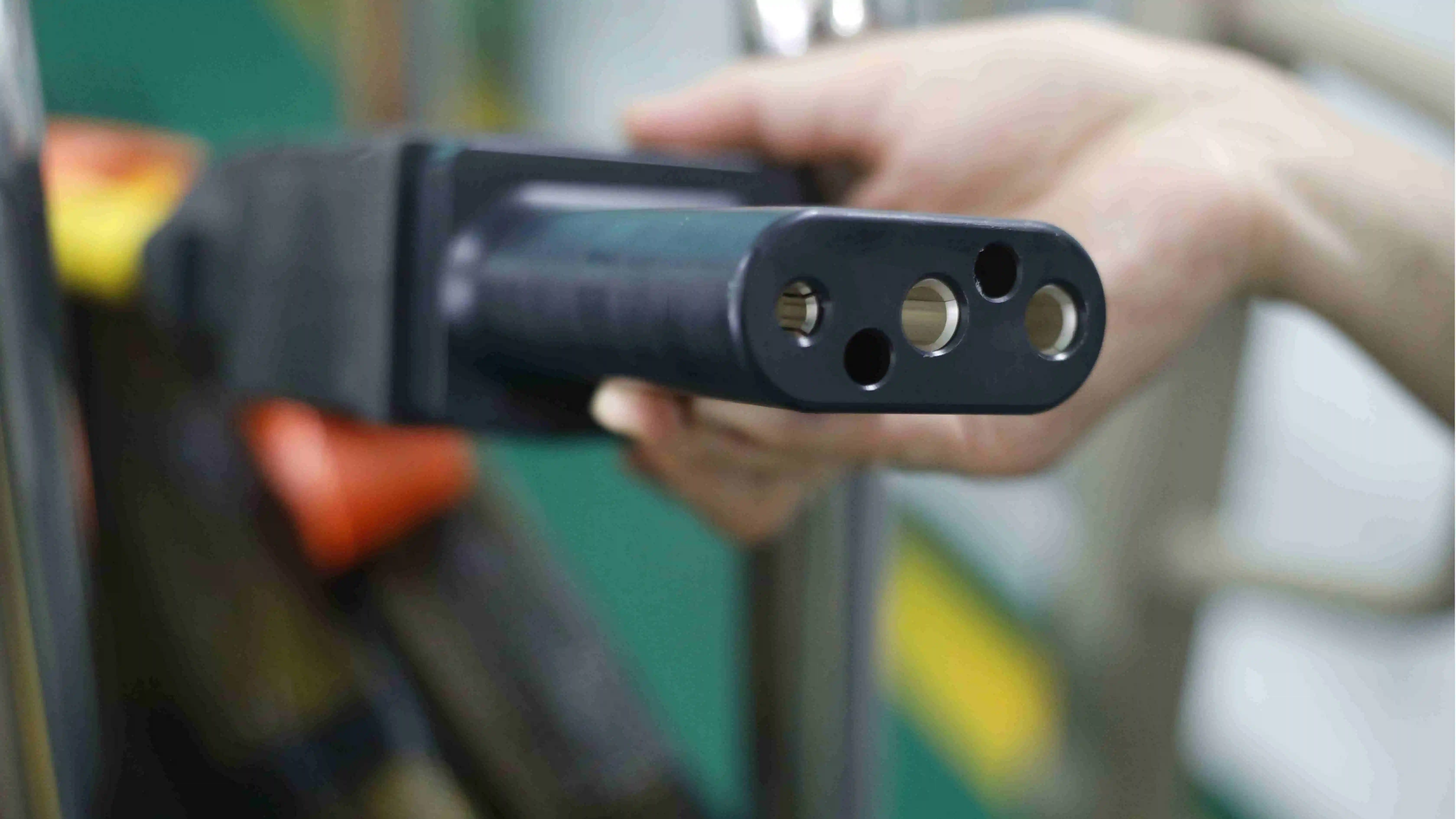

Quality Control

Module-Level Burn-in & Testing: Each rectifier module undergoes a full-load burn-in test at high temperature to eliminate early failures.
System Integration & Redundancy Test: The complete system is assembled and tested to verify proper load sharing, redundancy switching, and controller functionality.
EMI/EMS Compliance Testing: Conducted to ensure the system meets stringent telecom standards for electromagnetic compatibility and immunity.
Final Performance & Safety Audit: Comprehensive electrical safety tests and performance verification against all datasheet parameters are completed before shipment.

R&D Results

High-Density Rectifier Design: Developed compact, high-efficiency rectifier modules with improved thermal performance for higher power density.
Advanced Digital Control Architecture: Implemented a masterless, distributed control system for enhanced reliability and faster module synchronization.
Smart Grid Interaction Features: Added functions like soft-start, power factor correction (PFC), and harmonic current reduction to minimize grid impact.
Cloud Management Platform Interface: Developed APIs and protocols to enable integration with third-party DCIM (Data Center Infrastructure Management) and cloud monitoring platforms.

Packaging and Transportation

Rack-Mount or Cabinet Packaging: Systems are shipped either as 19" rack-mounted kits or as pre-assembled, standalone cabinets, securely palletized.
Component Separation for Safety: Batteries (if included) are packed separately in compliance with international transport regulations.
Complete Installation Kit: Includes all necessary cables, brackets, documentation, and configuration guides for straightforward installation.
Global Telecom Logistics: Experienced in shipping to remote and urban sites worldwide, handling all necessary customs documentation for telecom equipment.

After‑Sales Service

We offer a 24-month warranty on rectifiers and controllers, extended warranties available, 24/7 technical support, and a global network for spare parts and field service to minimize network downtime.

Qualification Certification

Industry Standard Compliance: Designed to meet ETSI, NEBS, and UL standards relevant to telecom power equipment; ISO 9001:2015 Certified manufacturing facility; CE, CB Scheme Certifications for global market access; Safety & EMC Test Reports available upon request.

FAQ
Q1: Why is -48VDC used in telecom?
A: -48VDC has a long history in telecom due to its safety (low voltage), compatibility with battery backup systems, and reduced corrosion compared to positive voltage. It remains the global standard for fixed-line and mobile network equipment power.
Q2: What does "N+1 Redundancy" mean?
A: It means the system has one more rectifier module than required to power the load. If "N" modules are needed, "N+1" are installed. If one module fails, the remaining "N" can still fully power the load without interruption, allowing for repair during operation.
Q3: Can this system support both AC and DC input for backup?
A: The standard system uses AC input. For backup, it is designed to be connected to a bank of DC batteries. In a typical setup, the rectifiers convert AC to DC to power the load and charge the batteries. During an AC failure, the batteries seamlessly take over.
Q4: How is battery runtime determined?
A: Runtime depends on the total load (Amps) and the capacity (Ah) of the connected battery bank. Our systems are compatible with standard telecom batteries, and we can assist in sizing the battery bank to meet your required backup time.
Q5: Can the system be monitored remotely?
A: Yes. With built-in SNMP and Modbus interfaces, the system can be integrated into your existing Network Management System (NMS) or monitored via our optional web-based interface for real-time status, alarms, and historical data.
