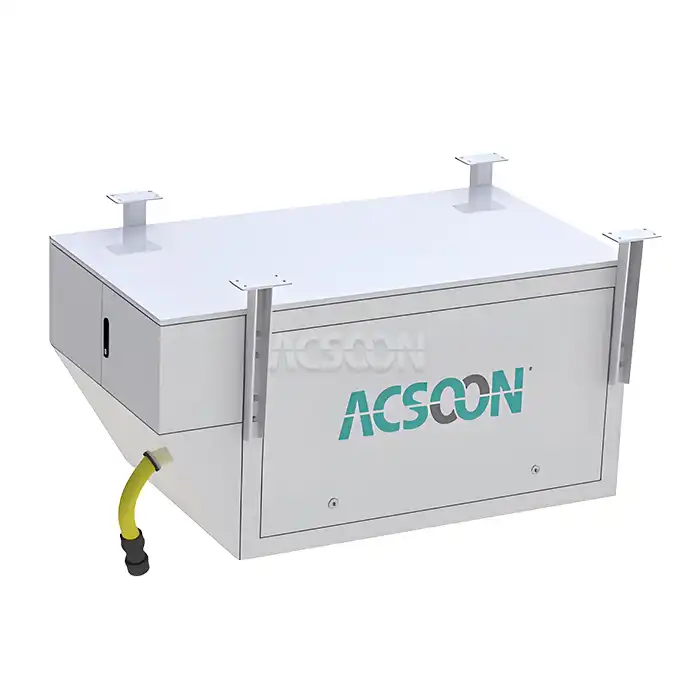

Bridge-Mounted GPU
1.Power Rating: 30kVA to 180kVA (Three Phase 400Hz)
2.Technology: Solid-State Static Frequency Converter with 6-Pulse/12-Pulse Rectifier
3.Input: 3-Phase, 380V/400V/415V/440V/480V, 50/60Hz
4.Output: 115V/200V, 400Hz, MIL-STD-704 Compliant
5.Applications: Passenger Boarding Bridges, Airport Gates, Narrow & Wide-Body Aircraft
6.Core Features: Space-Saving Installation, Automatic Cable Reel, Remote Monitoring, High Efficiency
7.Brand: ACSOON (Customizable for Bridge Integration).
2.Technology: Solid-State Static Frequency Converter with 6-Pulse/12-Pulse Rectifier
3.Input: 3-Phase, 380V/400V/415V/440V/480V, 50/60Hz
4.Output: 115V/200V, 400Hz, MIL-STD-704 Compliant
5.Applications: Passenger Boarding Bridges, Airport Gates, Narrow & Wide-Body Aircraft
6.Core Features: Space-Saving Installation, Automatic Cable Reel, Remote Monitoring, High Efficiency
7.Brand: ACSOON (Customizable for Bridge Integration).
- Product Description

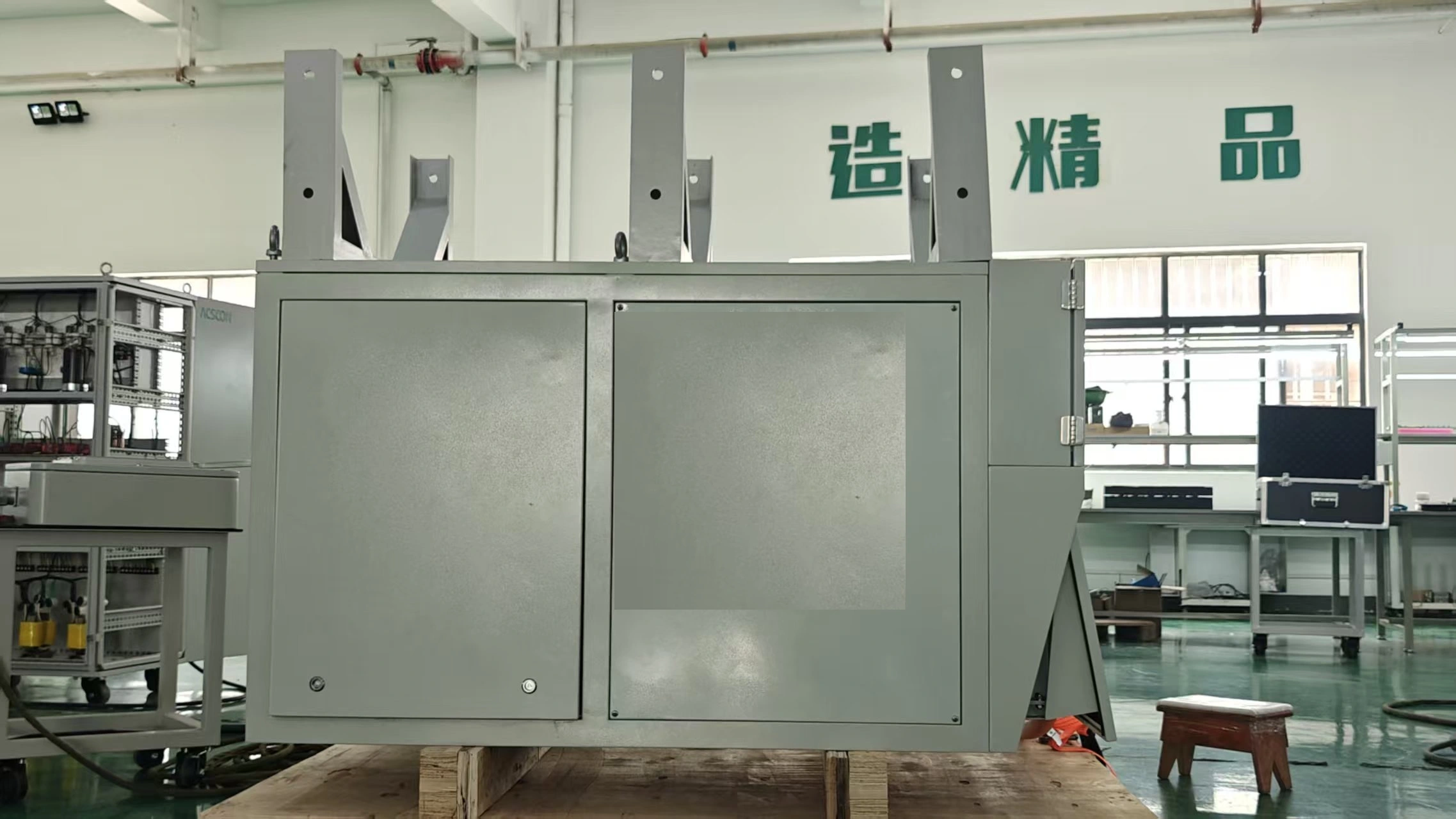

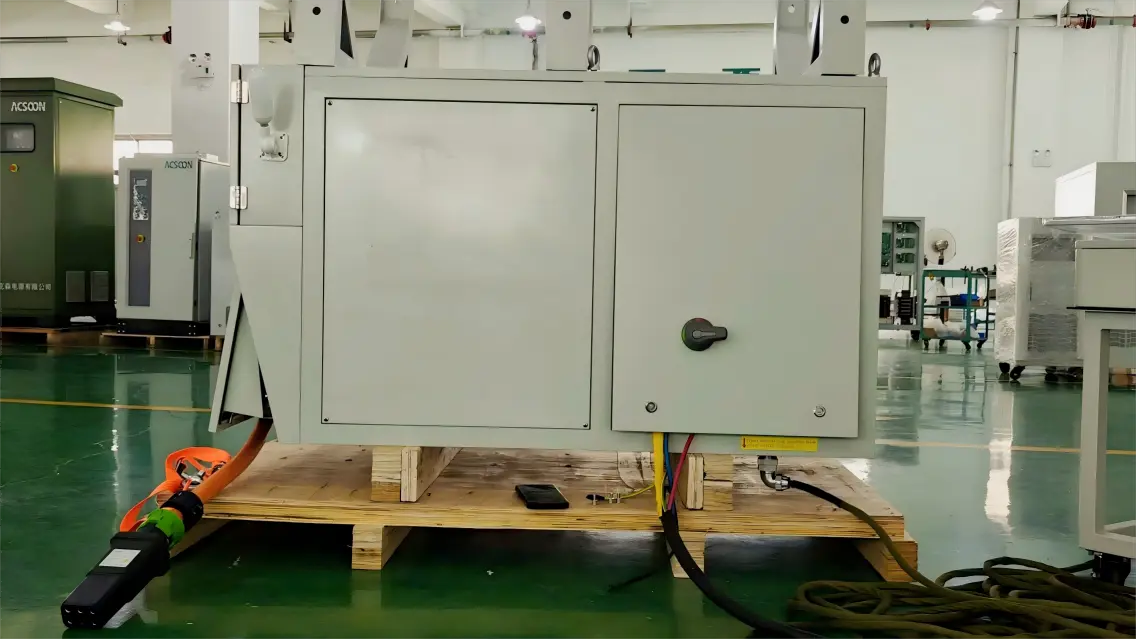

Bridge-Mounted GPU | Overhead 400Hz Ground Power for Passenger Boarding Bridges
XI'AN JERRYSTAR INSTRUMENT CO., LTD presents the innovative Bridge-Mounted GPU, a space-efficient ground power solution designed for installation directly on passenger boarding bridges. This overhead-mounted 400Hz static frequency converter delivers clean, stable aircraft power while eliminating ramp-level equipment, reducing gate congestion, and improving apron safety. Ideal for modern airport gates handling narrow and wide-body aircraft, it combines reliable performance with seamless bridge integration.
Datasheet
| Parameter | Specification |
|---|---|
| Model Series | ACSOON GPU400L Series |
| Model Number | GPU400L-330090 / GPU400L-330180 |
| Input | 3-Phase 380V/400V/415V/440V/480V ±15%, 50/60Hz |
| Output | Voltage: 115V/200V, 400Hz ±0.01% Power: 30kVA, 45kVA, 60kVA, 90kVA, 120kVA, 180kVA THD: <2% @ linear load |
| Compliance | MIL-STD-704F, ISO 6858, GJB572A-2006 |
| Efficiency | ≥93% |
| Voltage Compensation | Auto 0-10V |
| Control | VFD Digital Display, Error Code Diagnostics |
| Cable Reel | Automatic with Speed Control |
| Protections | Over Voltage, Over Current, Short Circuit, Over Temperature |
| Dimensions (Type A - 90kVA) | Length: 750mm, Width: 800mm, Height: 1495mm |
Bridge-Mounted GPU Main Features
- Intelligent Cable Reel System: Automatic speed control with push-button operation at the aircraft connector for easy cable extension and retraction.
- Self-Diagnostic System: Digital display shows error codes and system status for quick troubleshooting.
- Auto Voltage Compensation: Maintains ideal voltage at the aircraft connector, compensating for cable losses.
- Comprehensive Protection: Complete safeguards against over-voltage, over-current, short circuit, and over-temperature.
Why Choose ACSOON Bridge-Mounted GPU?
- Space-Saving Design: Mounts overhead on the passenger bridge, freeing valuable ramp space and reducing gate clutter.
- Improved Apron Safety: Eliminates ground-level cables and equipment, reducing tripping hazards and vehicle interference.
- Seamless Bridge Integration: Designed for easy installation on new or existing passenger boarding bridges.
- Automated Operation: Features intelligent cable reel with automatic extension and retraction for fast, efficient aircraft connection.

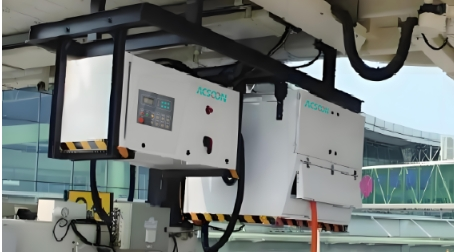

Bridge-Mounted GPU Application Areas
- International Airport Gates: Primary ground power for aircraft parked at passenger boarding bridges.
- Hub Airports with High Traffic: Supporting rapid turnarounds with efficient, space-saving infrastructure.
- New Airport Construction: Ideal for modern gate designs prioritizing ramp space optimization.
- Bridge Retrofit Projects: Upgrade existing bridges with integrated ground power capability.
Our Services
01
Quality Control

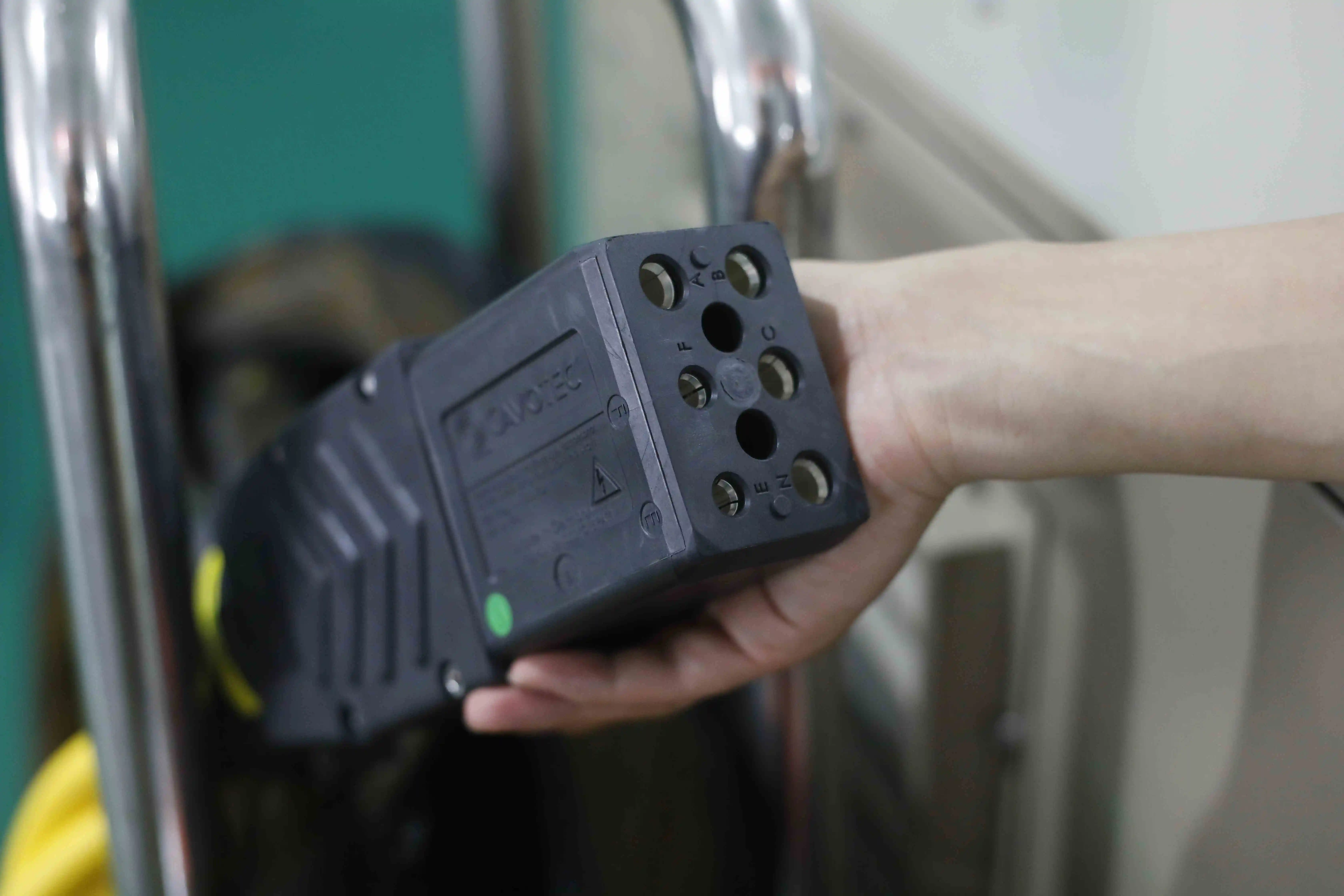

- Full-Power Load Testing: Each unit undergoes extended testing at rated power to verify thermal and electrical performance.
- MIL-STD Waveform Validation: Output waveform purity and voltage accuracy are verified against MIL-STD-704F specifications.
- Cable Reel Function Test: Automatic extension and retraction mechanisms are tested for reliability and speed control.
- Final System Audit: All controls, displays, and protection circuits are thoroughly tested and documented.
02
R&D Results

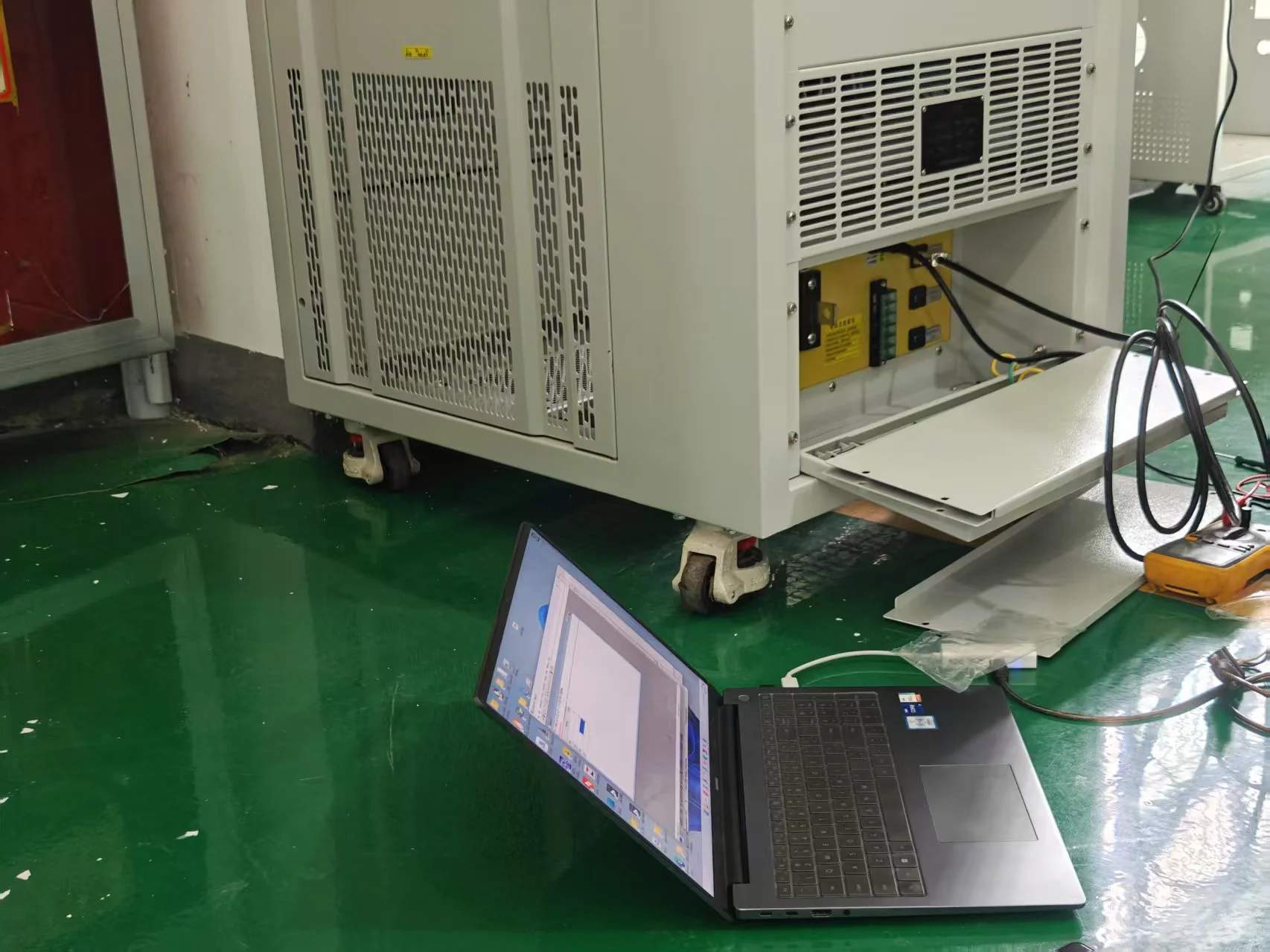

- Bridge Integration Engineering: Developed mounting solutions compatible with major passenger boarding bridge manufacturers.
- Advanced Cable Management: Engineered intelligent reel control with variable speed for smooth operation and reduced cable wear.
- Remote Monitoring Interface: Created optional communication protocols for integration with airport central monitoring systems.
- Compact Power Density: Achieved space-efficient design suitable for overhead bridge installation without structural modification.
03
Packaging and Transportation
- Bridge-Ready Packaging: Unit is securely crated for transport to airport sites with clear handling instructions.
- Installation Hardware Included: Complete mounting kit and installation drawings for bridge integration.
- Comprehensive Documentation: Pack contains installation manual, test certificates, and compliance documentation.
- Global Logistics: Coordinated delivery to airport sites worldwide with customs clearance support.
04
After‑Sales Service
We offer a 24-month warranty, technical support for bridge integration, on-site installation supervision available, and guaranteed spare parts availability.
Qualification Certification

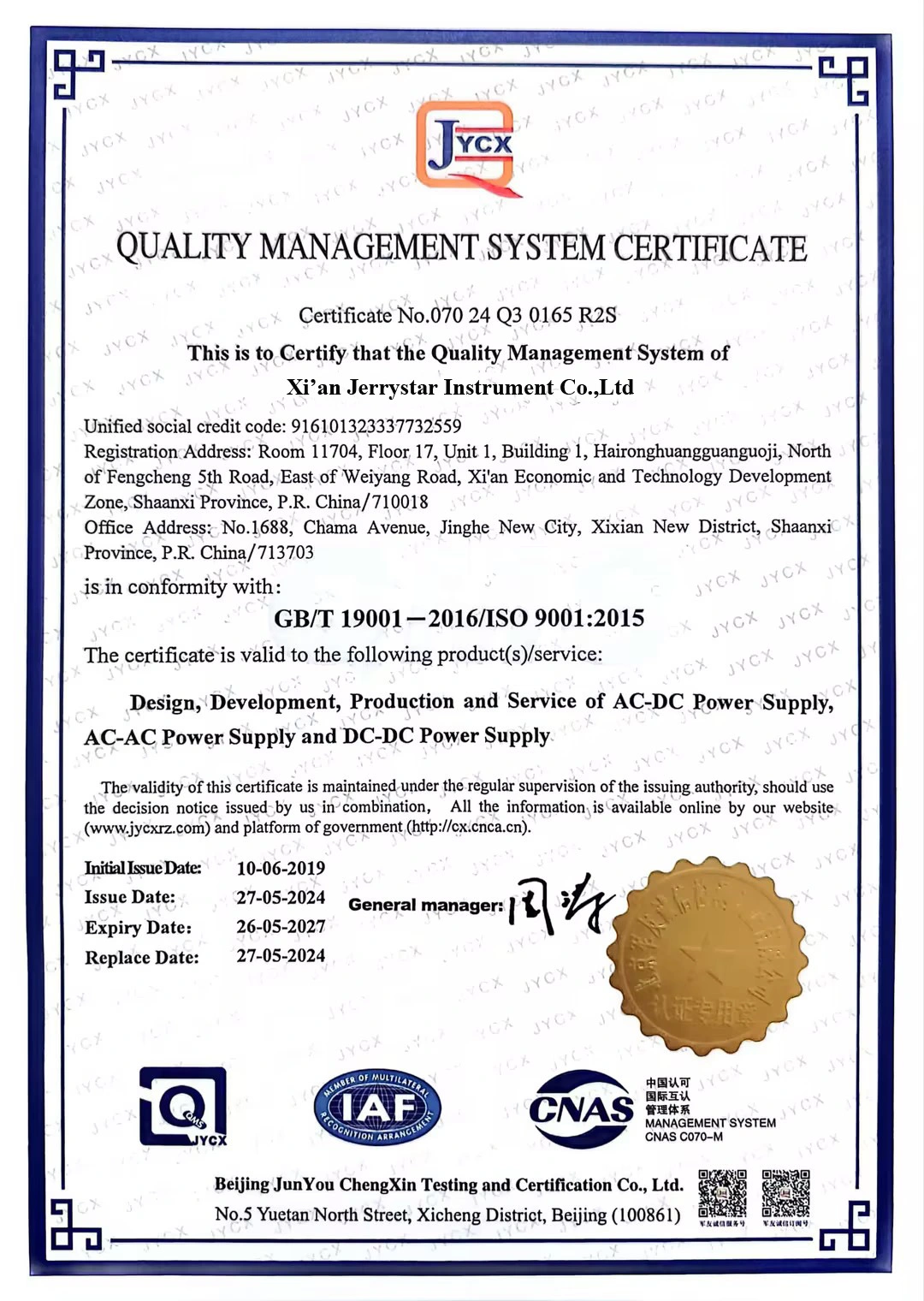

ISO 9001:2015 Certified manufacturing quality system; CE Marked for European market compliance; MIL-STD-704F Certified for aircraft ground power; Factory Acceptance Test Report provided with each unit.
FAQ |
|---|
| Q1: What is the main advantage of a bridge-mounted GPU? |
| A: It saves valuable ramp space by mounting overhead on the passenger bridge, eliminates ground-level cables and equipment, improves apron safety, and reduces gate congestion. |
| Q2: Can it be installed on existing passenger bridges? |
| A: Yes. The unit is designed for retrofit installation on most standard passenger boarding bridges with proper structural assessment and mounting hardware. |
| Q3: How does the cable reel system work? |
| A: The intelligent reel features automatic speed control. The operator can extend or retract the cable using push buttons at the aircraft connector, ensuring smooth operation and reducing cable wear. |
| Q4: What aircraft types can this GPU support? |
| A: With power ratings from 30kVA to 180kVA, it can support a wide range of aircraft from regional jets to wide-body aircraft like the Boeing 777 and Airbus A380. |
| Q5: Is remote monitoring available? |
| A: Yes,we have the RS485 or RS232 interface for the ommunication |
Contact Us
For technical specifications or global solutions for the Bridge-Mounted GPU: acpower@acsoonpower.com, or submit your requirements using the form at the bottom of our website.
