90kVA Aircraft Ground Power Unit 400Hz Frequency Converter for Aircraft Maintenance and MRO Operations
90kVA Aircraft Ground Power Unit 400Hz Frequency Converter for Aircraft Maintenance and MRO Operations
Stable 400Hz Aircraft Power Solution Without Running APU
Aircraft maintenance and ground operations require a reliable external power source to keep avionics systems, cockpit instruments, communication equipment, and cabin systems working safely.

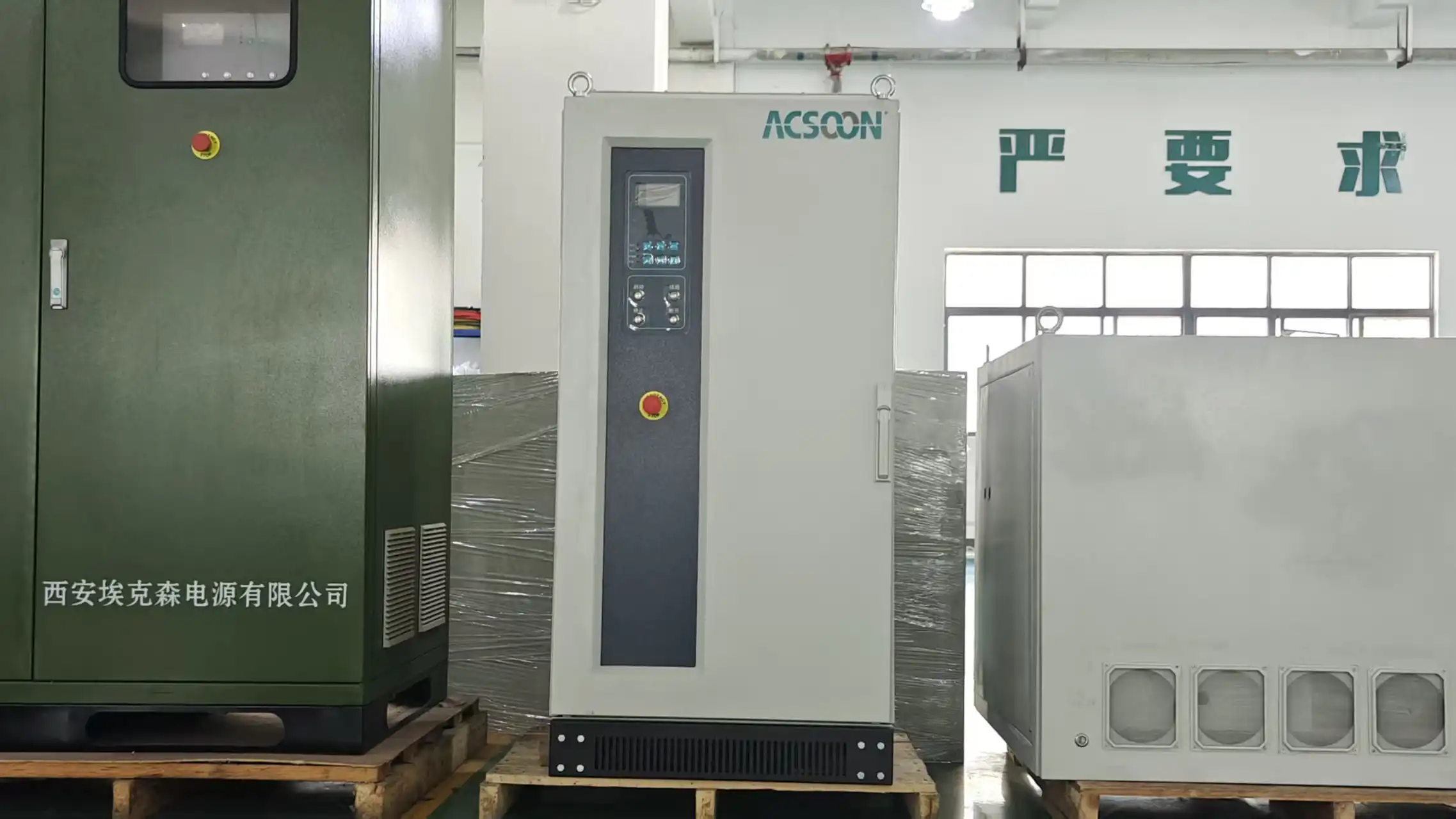

The ACSOON 90kVA Aircraft Ground Power Unit (GPU) is a high-performance 400Hz frequency converter designed to provide stable aircraft-grade power for airport ground support, aircraft maintenance, MRO facilities, and hangar operations.
By converting standard 50Hz/60Hz utility power into clean 115V/200V 400Hz aircraft power, the unit allows technicians to perform inspections, system testing, and pre-flight preparation without relying on the aircraft APU.
Why Aircraft Need 400Hz Ground Power?
Most commercial aircraft electrical systems operate on 400Hz power, which is different from the 50Hz or 60Hz electricity supplied by local grids.
During ground operations, aircraft need external power for:
Avionics system checks
Cockpit instrument testing
Flight control system inspection
Cabin system operation
Communication equipment maintenance
Aircraft turnaround preparation
A standard industrial power supply cannot directly meet aircraft requirements because sensitive aviation electronics require:
Stable voltage output
Accurate frequency control
Low harmonic distortion
Reliable continuous operation
The ACSOON 90kVA static frequency converter provides a clean and stable power source to protect aircraft electrical systems during maintenance activities.
90kVA Aircraft Ground Power Unit Technical Advantages
Designed for professional aviation applications, the ACSOON GPU combines high conversion efficiency, precise control, and reliable protection.
| Parameter | Specification |
|---|---|
| Product Type | Aircraft Ground Power Unit |
| Rated Power | 90kVA |
| Output Voltage | 115V/200V AC |
| Output Frequency | 400Hz |
| Input Frequency | 50Hz / 60Hz |
| Waveform | Pure sine wave |
| Voltage Regulation | ±1% |
| Frequency Stability | ≤0.1% |
| Harmonic Distortion | Low THD output |
| Cooling System | Intelligent forced air cooling |
| Application | Aircraft maintenance and ground support |
Key Benefits for Airport and MRO Operations
1. Reliable Aircraft Power During Maintenance
Aircraft maintenance teams need stable power during long inspection periods.
The 90kVA aircraft ground power supply supports:
Avionics testing
Electrical system checks
Aircraft troubleshooting
Software updates
Ground functional testing
Stable output helps reduce unexpected power interruptions and protects sensitive onboard equipment.
2. Reduce APU Running Time and Operating Cost
Using an aircraft APU during ground maintenance increases fuel consumption, noise, and maintenance hours.
A static frequency converter provides an alternative solution:
Lower fuel consumption
Reduced engine wear
Lower ground noise
Cleaner airport operation
For airports and MRO centers operating multiple aircraft daily, external ground power can significantly improve maintenance efficiency.
3. Suitable for Different Aviation Applications
The ACSOON 90kVA frequency converter can be used in:
Airport Ground Support
Providing aircraft power at:
Airport aprons
Remote stands
Maintenance areas
Aircraft MRO Facilities
Supporting:
Scheduled maintenance
Aircraft inspection
Component testing
Aircraft Manufacturing and Testing
Providing stable power during:
Aircraft electrical testing
System commissioning
Production inspection
Static Frequency Converter vs Traditional Generator
Many airports previously relied on diesel generators for ground power.
Compared with traditional generator solutions, static frequency converters provide advantages:
| Static Frequency Converter | Diesel Generator | |
|---|---|---|
| Output Quality | Stable frequency and voltage | Affected by engine speed |
| Noise | Low noise operation | High noise |
| Maintenance | Lower maintenance requirement | Regular engine service |
| Operation | Instant startup | Requires warm-up |
| Environment | No exhaust emissions during operation | Fuel emissions |
For modern airports and maintenance facilities, static frequency converters provide a cleaner and more reliable aircraft power solution.
How to Choose the Right Aircraft Ground Power Capacity?
Selecting GPU capacity depends on aircraft type, electrical load, and maintenance requirements.
A 90kVA aircraft ground power unit is commonly suitable for:
Regional aircraft
Single-aisle aircraft maintenance
Avionics inspection
Daily line maintenance
Before selecting equipment, buyers should evaluate:
Aircraft electrical load profile
Peak startup current
Maintenance operation requirements
Future fleet expansion plans
ACSOON engineering team can provide customized recommendations based on aircraft models and operating conditions.
Why Choose ACSOON Aircraft Ground Power Solutions?
ACSOON is a professional manufacturer specializing in aircraft ground power units, AC power supplies, DC power supplies, and frequency conversion systems.
Our advantages include:
19+ years manufacturing experience
OEM and customized power solutions
ISO 9001 quality management system
CE certified products
Professional engineering support
Global export experience
From airport ground support to aircraft maintenance facilities, ACSOON provides reliable power conversion solutions designed for demanding aviation environments.
Customized 90kVA Aircraft Ground Power Unit Solutions
Different aircraft and airports may require different configurations.
Customization options include:
Output voltage adjustment
Connector customization
Mobile trolley design
Remote monitoring system
Communication interface
Special environmental protection
Our engineering team works with customers to match power requirements with aircraft operating conditions.
Frequently Asked Questions
Can a 90kVA GPU support aircraft maintenance operations?
Yes. A 90kVA aircraft ground power unit is suitable for many regional aircraft and single-aisle aircraft maintenance applications. Final selection depends on aircraft electrical load requirements.
What is the difference between a frequency converter and a normal power supply?
A frequency converter changes both voltage and frequency, such as converting 50Hz/60Hz grid power into 400Hz aircraft power. A normal power supply usually only regulates voltage.
Why do aircraft use 400Hz power?
Aircraft use 400Hz systems because higher frequency allows lighter electrical components and better power efficiency for aviation applications.
Can ACSOON provide OEM aircraft ground power solutions?
Yes. ACSOON provides customized aircraft ground power units according to customer requirements, including voltage, frequency, capacity, connectors, and communication functions.
Contact ACSOON for 90kVA Aircraft Ground Power Solutions
If you are looking for a reliable 90kVA Aircraft Ground Power Unit manufacturer, ACSOON can provide professional 400Hz frequency converter solutions for airports, MRO organizations, aircraft manufacturers, and aviation service companies.
Contact our engineering team to discuss your aircraft power requirements and receive a customized solution.
