400Hz Ground Power Supply for Aircraft: Reliable External Power for Modern Aviation Operations
Aircraft electrical systems require stable and clean power during maintenance, pre-flight inspection, cabin servicing, and ground operations. When the aircraft engine or auxiliary power unit (APU) is not running, a dedicated 400Hz ground power supply provides the external electrical source required to operate onboard avionics, communication systems, navigation equipment, and other aircraft electrical loads.
ACSOON provides solid-state 400Hz ground power supplies for aircraft maintenance, MRO facilities, airports, and military aviation. GPU400-330075 delivers 75kVA clean 400Hz power with stable voltage control, low harmonic distortion, and reliable operation.
Unlike standard industrial power supplies, aviation ground power units are designed around aircraft-specific requirements, including:
400Hz frequency output
Stable voltage regulation
Low harmonic distortion
High reliability under continuous operation
Protection for sensitive avionics systems
ACSOON GPU400-330075 75kVA aircraft ground power unit is designed for commercial aviation, military aircraft, airport ground support, and MRO maintenance environments where power quality directly affects aircraft safety and operational efficiency.
Why Aircraft Use 400Hz Ground Power Supply Instead of 50Hz/60Hz Power
Commercial power grids normally operate at 50Hz or 60Hz. However, aircraft electrical systems traditionally use 400Hz power because high-frequency electrical systems provide significant advantages in aerospace applications.
A higher frequency allows transformers, motors, and magnetic components to achieve the same power output with smaller and lighter designs.
For aircraft manufacturers and operators, reducing equipment weight is critical because every kilogram affects:
Aircraft fuel consumption
Payload capacity
Equipment installation space
Maintenance efficiency
Compared with 50Hz/60Hz systems, 400Hz electrical equipment can achieve:
Smaller transformer size
Reduced magnetic component weight
Faster motor operation
Improved power density
This makes 400Hz aircraft power supply systems the preferred solution for aviation ground applications.
How a 400Hz Ground Power Supply Protects Sensitive Aircraft Avionics
Modern aircraft contain highly sensitive electronic systems, including:
Flight management computers
Navigation systems
Communication equipment
Radar systems
Autopilot controllers
Aircraft testing equipment
These systems require clean and stable electrical power.
Voltage fluctuations, electrical noise, and harmonic distortion may cause:
Communication interference
Incorrect sensor signals
Equipment malfunction
Unnecessary maintenance warnings
A high-quality solid state ground power unit (GPU) uses advanced power conversion technology to provide:
Pure sine wave output
Low THD waveform
Precise voltage regulation
Stable frequency control
The ACSOON GPU400 series uses digital control technology to maintain output stability even when aircraft loads change during maintenance or testing.
ACSOON GPU400-330075 75kVA 400Hz Ground Power Supply Technical Highlights
For aircraft operators and MRO organizations, selecting the correct aviation ground power supply requires evaluating output capacity, power quality, reliability, and compatibility.
| Parameter | GPU400-330075 Specification |
|---|---|
| Rated Power | 75kVA |
| Output Voltage | 200/115V three-phase |
| Output Frequency | 400Hz |
| Input Voltage | 208-480V AC |
| Input Frequency | 50/60Hz |
| Voltage Regulation | ±1% |
| Frequency Stability | ±0.5Hz |
| Harmonic Distortion | <3% |
| Cooling Method | Forced air cooling |
| Protection Grade | IP54 |
| Display | Digital LCD monitoring |
| Installation Type | Mobile trolley design |
The GPU400-330075 provides reliable external aircraft power for:
Commercial aircraft maintenance
Business jet servicing
Military aircraft ground support
Aircraft production testing
Aviation MRO facilities
Aviation Standards and Power Quality Requirements
Aircraft electrical systems must comply with strict power quality requirements.
The MIL-STD-704F Aircraft Electric Power Characteristics standard defines requirements for:
Voltage tolerance
Frequency stability
Transient response
Harmonic distortion
Abnormal operating conditions
A professional 400Hz aircraft ground power supply manufacturer must ensure that equipment can maintain stable output under changing aircraft loads.
ACSOON ground power solutions are developed with:
Automatic voltage compensation
Overload protection
Short circuit protection
Surge protection
Reverse power protection
These functions reduce the risk of electrical damage during aircraft maintenance and ground operations.
Aircraft Applications of 400Hz Ground Power Units
Aviation customers select ground power equipment according to aircraft type, operational environment, and maintenance requirements.
Commercial Airport Operations
Airports use 400Hz ground power units to reduce APU operating time during aircraft parking.
Benefits include:
Lower fuel consumption
Reduced emissions
Lower ramp noise
Improved maintenance efficiency
Aircraft MRO Maintenance
Maintenance organizations require stable external power for:
Aircraft inspection
Avionics testing
Cabin system maintenance
Electrical troubleshooting
Military Aviation
Military aircraft require reliable ground power equipment for:
Aircraft readiness operations
Hangar maintenance
Field deployment
Mission preparation
Portable vs Fixed 400Hz Ground Power Supply Solutions
Different aviation facilities have different ground power requirements.
| Type | Application | Advantages |
|---|---|---|
| Fixed Gate Ground Power | Commercial airport terminals | Fast connection, permanent installation |
| Mobile Trolley GPU | MRO, military bases, flexible aircraft servicing | Easy movement, multi-aircraft compatibility |
| Truck Mounted GPU | Remote operations and emergency support | Maximum mobility |

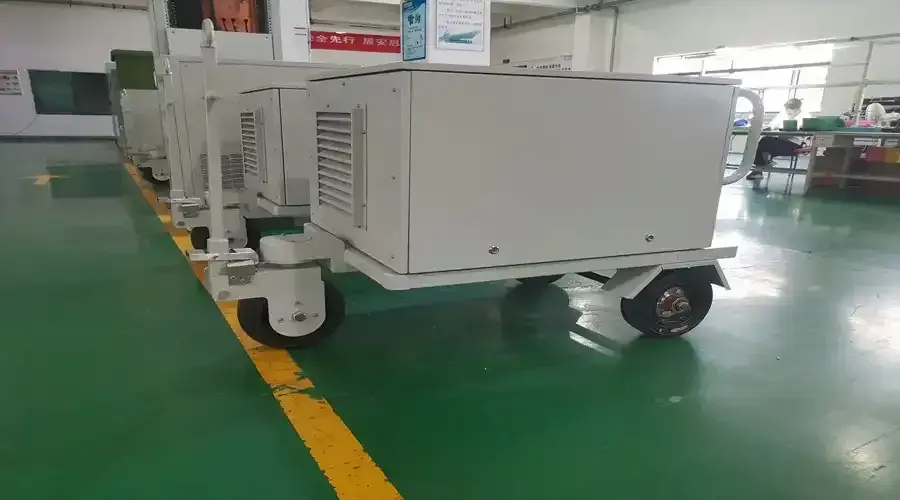

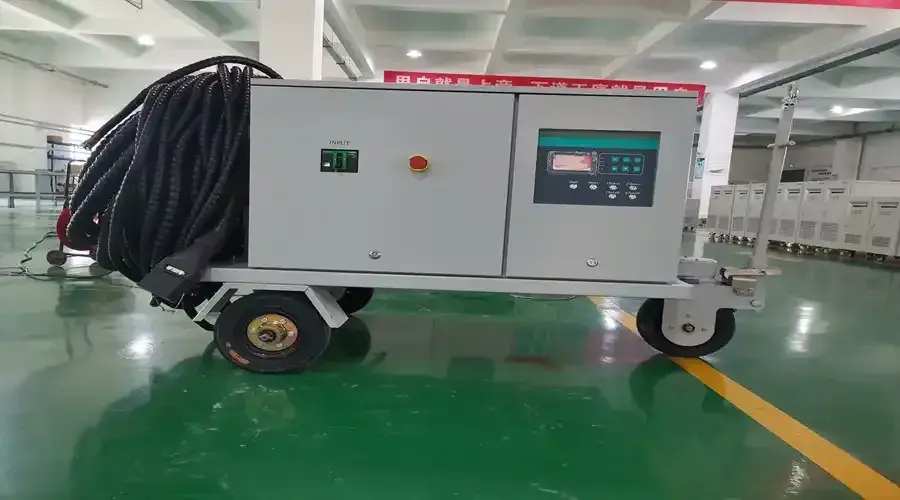

The ACSOON GPU400-330075 adopts a trolley-mounted design, providing flexibility for airports, maintenance facilities, and aircraft service providers.
Why Choose ACSOON as Your 400Hz Ground Power Supply Manufacturer
When purchasing aviation power equipment, customers evaluate more than product specifications. Long-term reliability, technical support, and manufacturing capability are equally important.
19+ Years Aviation Power Conversion Experience
Xi'an Jerrystar Instrument Co., Ltd. develops and manufactures power conversion equipment for:
Aviation
Military
Marine
Industrial applications
Factory Direct Manufacturing
Direct manufacturer advantages include:
Competitive pricing
Custom configuration support
Faster technical communication
OEM/ODM capability
Engineering Support
ACSOON provides technical assistance for:
Aircraft compatibility evaluation
Voltage configuration
Frequency requirements
Installation planning
Customized solutions
Key Factors When Buying a 400Hz Ground Power Supply
Before selecting an aircraft GPU supplier, buyers should evaluate:
1. Power Capacity
Aircraft startup and maintenance loads may create temporary current peaks.
Selecting sufficient capacity ensures:
Stable operation
Longer equipment life
Reduced overload risk
2. Output Power Quality
Important parameters include:
Voltage accuracy
Frequency stability
THD level
Response time
3. Environmental Reliability
Airport environments expose equipment to:
Dust
Rain
Temperature changes
Continuous operation cycles
Features such as IP protection, thermal management, and corrosion-resistant design improve reliability.
Maintenance and Troubleshooting of Solid State Ground Power Units
Regular maintenance helps maintain long-term performance.
Recommended inspection:
Monthly Inspection
Cable condition
Connector wear
Cooling system
External damage
Quarterly Maintenance
Output voltage test
Frequency accuracy check
Protection function verification
Annual Service
Insulation testing
Component inspection
Calibration verification
Solid-state designs reduce maintenance requirements compared with traditional motor-generator systems because they contain fewer mechanical components.
Frequently Asked Questions About 400Hz Ground Power Supply
Why is 400Hz used in aircraft power systems?
Aircraft use 400Hz because high-frequency electrical systems allow smaller and lighter transformers and motors, which is important for aerospace applications where weight and space are limited.
Can a 60Hz power supply replace a 400Hz aircraft GPU?
No. Aircraft electrical equipment is designed for specific frequency requirements. Standard 50Hz/60Hz power cannot provide the same operating characteristics required by aircraft systems.
What power rating do aircraft ground power units require?
The required capacity depends on aircraft size and application. Small aircraft may use 30kVA-40kVA systems, while larger aircraft and military applications may require 75kVA or higher.
What is the advantage of a solid-state 400Hz GPU?
Solid-state technology provides:
Higher reliability
Lower maintenance requirements
Better output control
Improved power quality
Get a Quote from a Professional 400Hz Ground Power Supply Manufacturer
ACSOON provides reliable 400Hz ground power supply solutions for airports, aircraft manufacturers, military organizations, and MRO companies.
The GPU400-330075 75kVA aircraft GPU combines:
Stable 400Hz output
Advanced digital control
Aviation-grade protection
Mobile trolley installation
Long-term operational reliability
For technical specifications, OEM requirements, or aircraft ground power solutions, contact ACSOON engineering team:
