How Does an 115VAC 400Hz 3 Phase Power Supply Work in Aviation Systems?
A voltage fluctuation during avionics testing can lead to inaccurate diagnostics, delayed maintenance schedules, and even costly Aircraft on Ground (AOG) situations. For airports, military bases, MRO facilities, and aircraft manufacturers, a reliable 115VAC 400Hz 3 phase power supply is essential for supplying clean and stable power to modern aviation systems. But how does a 115VAC 400Hz 3 phase power supply work, and why is it the global standard for aviation ground power applications?
Why Do Aircraft Use 115VAC 400Hz Power Instead of Standard Utility Power?
Unlike industrial facilities that typically operate on 50Hz or 60Hz power, aircraft electrical systems are designed around a 400Hz frequency. The higher frequency allows transformers, generators, and motors to be significantly smaller and lighter while delivering the same power output. For aircraft manufacturers, reducing weight directly improves fuel efficiency and payload capacity.
Comparison of Aviation Power and Utility Power
| Parameter | Aviation Power | Standard Utility Power |
|---|---|---|
| Voltage | 115/200VAC | 220V/380V or 120V/208V |
| Frequency | 400Hz | 50Hz / 60Hz |
| Phase Configuration | 3 Phase | Single or 3 Phase |
| Weight of Magnetic Components | Much Lower | Higher |
| Typical Application | Aircraft Systems | Industrial Equipment |
This is why almost every commercial aircraft, military aircraft, and airport ground support system relies on 400Hz electrical power.
What Is an 115VAC 400Hz 3 Phase Power Supply?
A 115VAC 400Hz 3 phase power supply converts standard utility power into aviation-grade electrical power.
The system generates:
- 115VAC phase-to-neutral
- 200VAC phase-to-phase
- 400Hz frequency
- Three balanced output phases
This configuration allows a single power source to support multiple onboard systems simultaneously while maintaining excellent voltage and frequency stability.
Typical Technical Specifications
| Parameter | Specification |
|---|---|
| Output Voltage | 115/200VAC |
| Output Frequency | 400Hz |
| Output Phase | 3 Phase + Neutral |
| Frequency Accuracy | ±0.01% |
| Voltage Regulation | ±1% |
| Waveform Distortion | ≤2% THD |
| Efficiency | Up to 90%+ |
| Cooling Method | Forced Air Cooling |
How Does an 115VAC 400Hz 3 Phase Power Supply Work?
Modern 115VAC 400Hz 3 phase power supplies typically use solid-state frequency conversion technology.
The process includes:
Step 1: AC Input Rectification
Incoming utility power is converted into stable DC power.
Step 2: High-Speed IGBT Inversion
Advanced IGBT modules switch at high frequencies to generate a precise 400Hz waveform.
Step 3: Digital Voltage and Frequency Regulation
DSP controllers continuously monitor output parameters and automatically correct deviations.
Step 4: Aircraft Power Distribution
The generated 115/200VAC 400Hz output is delivered to aircraft systems through aviation-grade connectors and protection circuits.
This architecture ensures stable power for sensitive avionics, navigation equipment, communication systems, and aircraft maintenance operations.
Where Is a 115VAC 400Hz 3 Phase Power Supply Used?

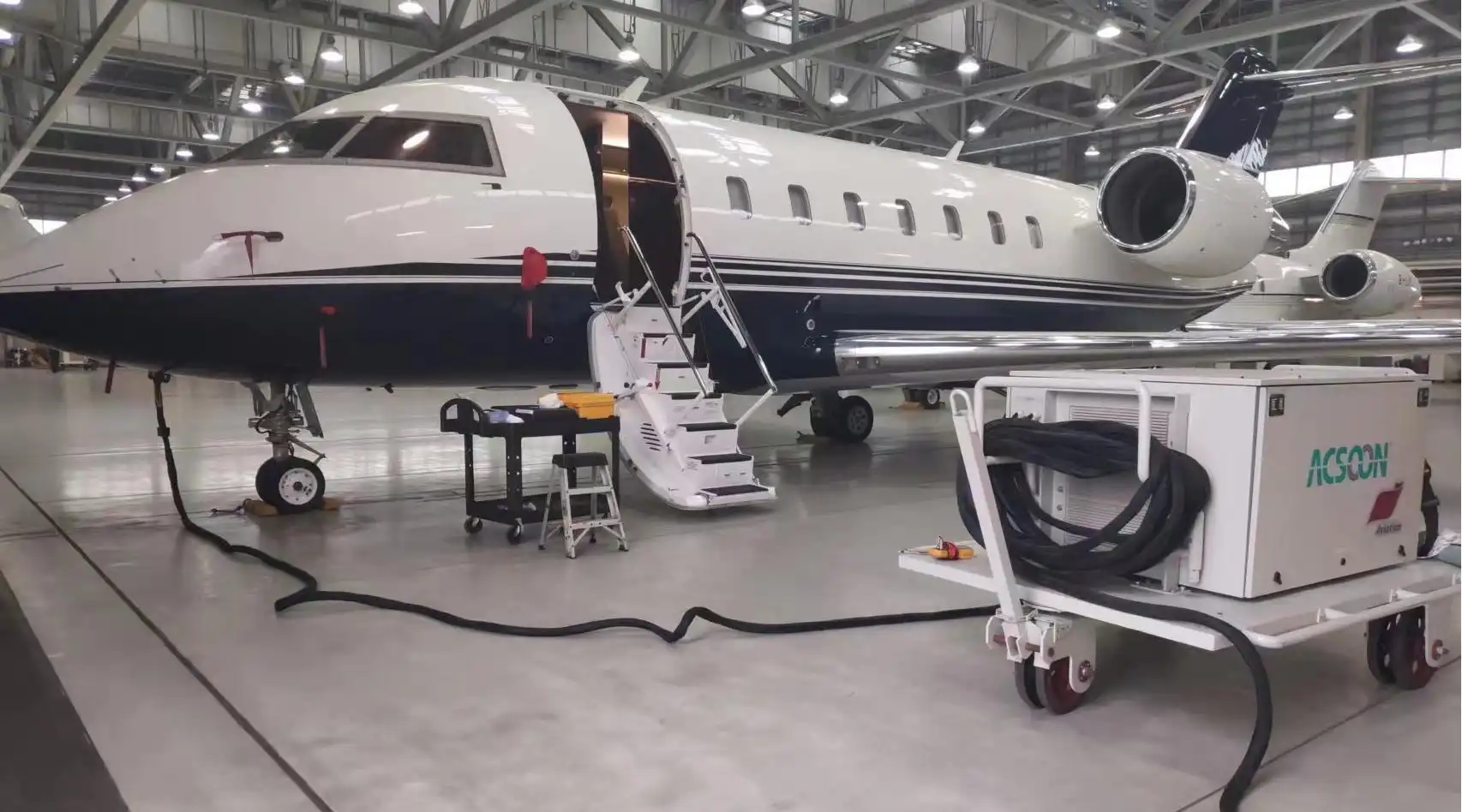

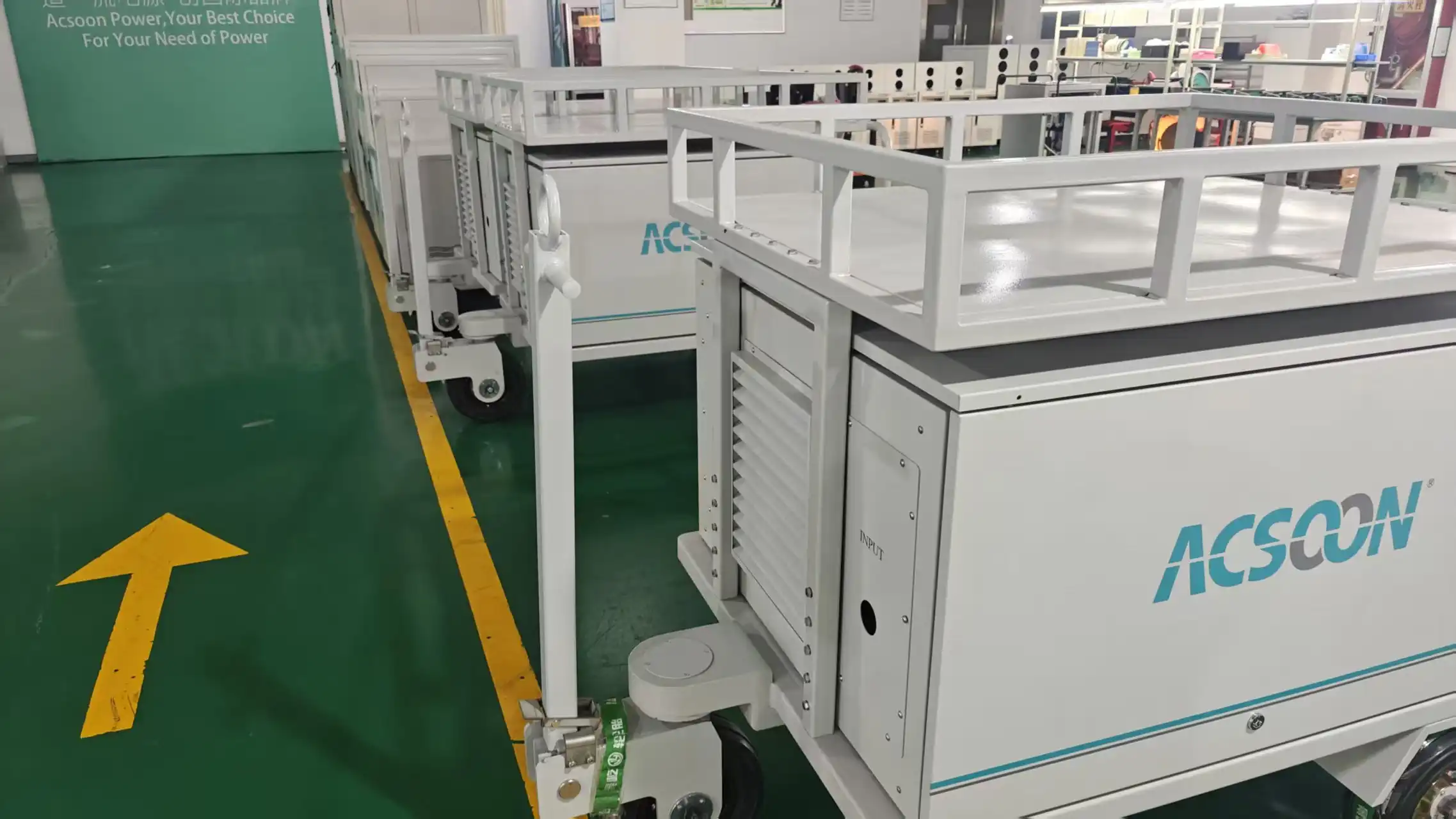

Airport Ground Power Units (GPU)
Ground power units provide electrical power to parked aircraft without operating onboard generators.
Benefits include:
- Reduced fuel consumption
- Lower aircraft engine wear
- Reduced emissions
- Quieter airport operations
Aircraft Manufacturing Facilities
Aircraft manufacturers use 400Hz power during:
- System integration testing
- Flight simulation
- Electrical verification
- Production acceptance testing
MRO Maintenance Centers
Maintenance organizations require stable 400Hz power for troubleshooting and repairing:
- Flight control systems
- Navigation systems
- Communication equipment
- Cabin electronics
Military Aviation Applications
Military aircraft often operate under demanding environmental conditions.
Aviation-grade power supplies help ensure compliance with MIL-STD-704F requirements while supporting mission-critical systems.
How to Choose the Right 115VAC 400Hz 3 Phase Power Supply?
Before purchasing, aviation operators should evaluate several key factors.
Power Capacity
Select a unit capable of handling future expansion and startup surges.
| Aircraft Type | Recommended Capacity |
|---|---|
| Light Aircraft | 15–30kVA |
| Regional Aircraft | 30–60kVA |
| Commercial Airliners | 90–180kVA |
| Military Aircraft | Customized |
Output Quality
Look for:
- Low harmonic distortion
- Fast transient response
- Stable voltage regulation
- Balanced three-phase output
Compliance Certifications
Ensure the equipment complies with:
- MIL-STD-704F
- RTCA DO-160G
- ISO 6858
- ISO 9001 / AS9100
Supplier Support
For customers in Southeast Asia, factors such as lead time, spare parts availability, technical support, and customization capability are often as important as price.
Why More Aviation Operators Are Choosing Solid-State 400Hz Power Supplies
Compared with traditional motor-generator systems, modern solid-state solutions offer:
| Feature | Solid-State System | Rotary Converter |
|---|---|---|
| Efficiency | Higher | Lower |
| Maintenance | Minimal | High |
| Noise Level | Low | High |
| Footprint | Compact | Large |
| Reliability | Excellent | Moderate |
| Remote Monitoring | Available | Limited |
These advantages help airports and maintenance facilities reduce operating costs while improving equipment reliability.
Conclusion
A 115VAC 400Hz 3 phase power supply is the foundation of modern aviation ground power systems. By delivering stable, high-frequency power for aircraft testing, maintenance, and operation, it helps improve reliability, reduce downtime, and support compliance with international aviation standards. For airports, MRO facilities, and aircraft manufacturers, choosing a high-quality 400Hz power solution is a long-term investment in operational efficiency and safety.
