Battery Charge DC Supply

1.Power Range: 1kW to 30kW, Wide Voltage & Current Combinations
2.Technology: High-Frequency Switching Mode with Microprocessor Control
3.Input: 1-Phase 220V or 3-Phase 380V, 50/60Hz
4.Output: 0-60V / 0-120V / 0-300V DC, Adjustable Current Limiting
5.Applications: Industrial Battery Charging, AGV & Forklift Batteries, UPS Battery Banks, Lead-Acid & Lithium Battery Charging
6.Core Features: Multi-Stage Charging Profiles, Temperature Compensation, High Efficiency
7.Brand: ACSOON (Custom Charging Algorithms Available).

Send Inquiry Download

Product Description

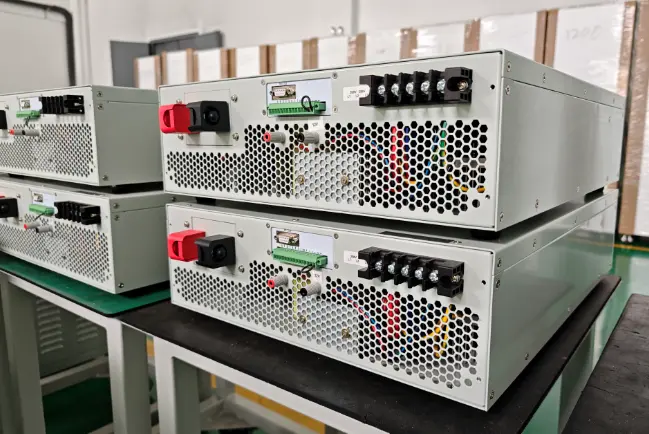

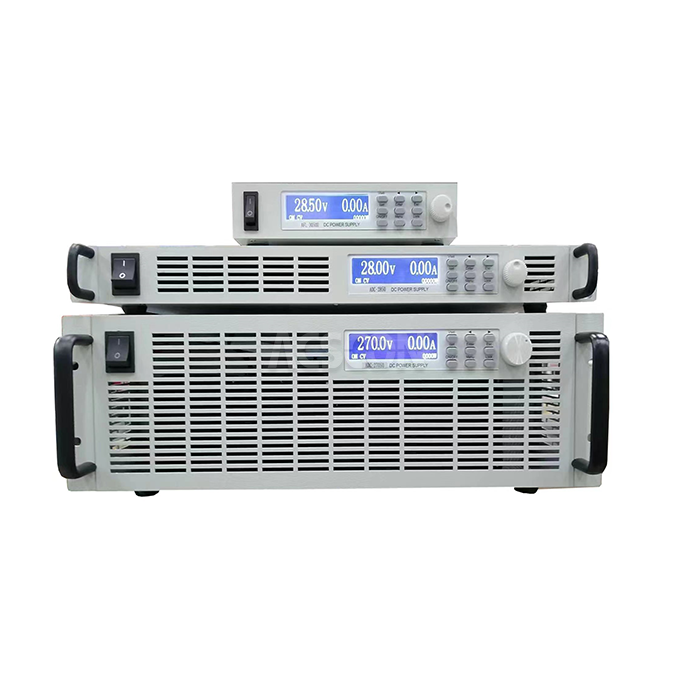

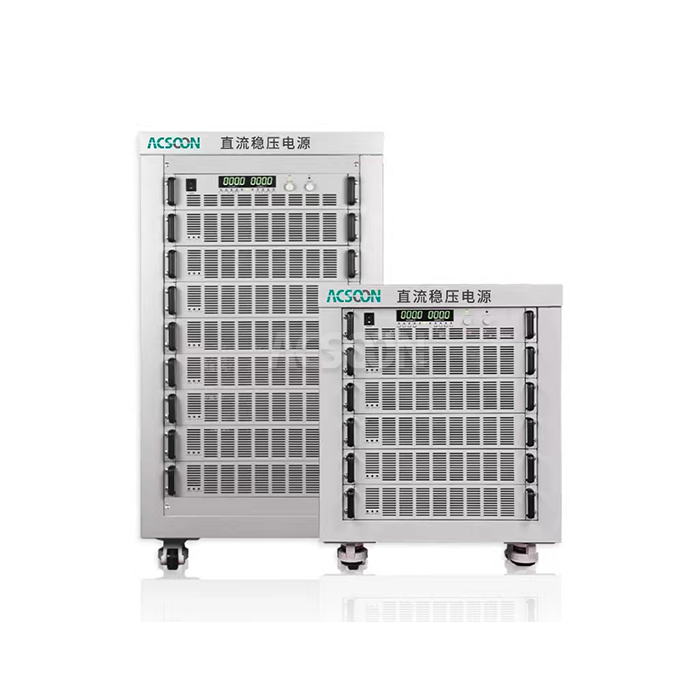

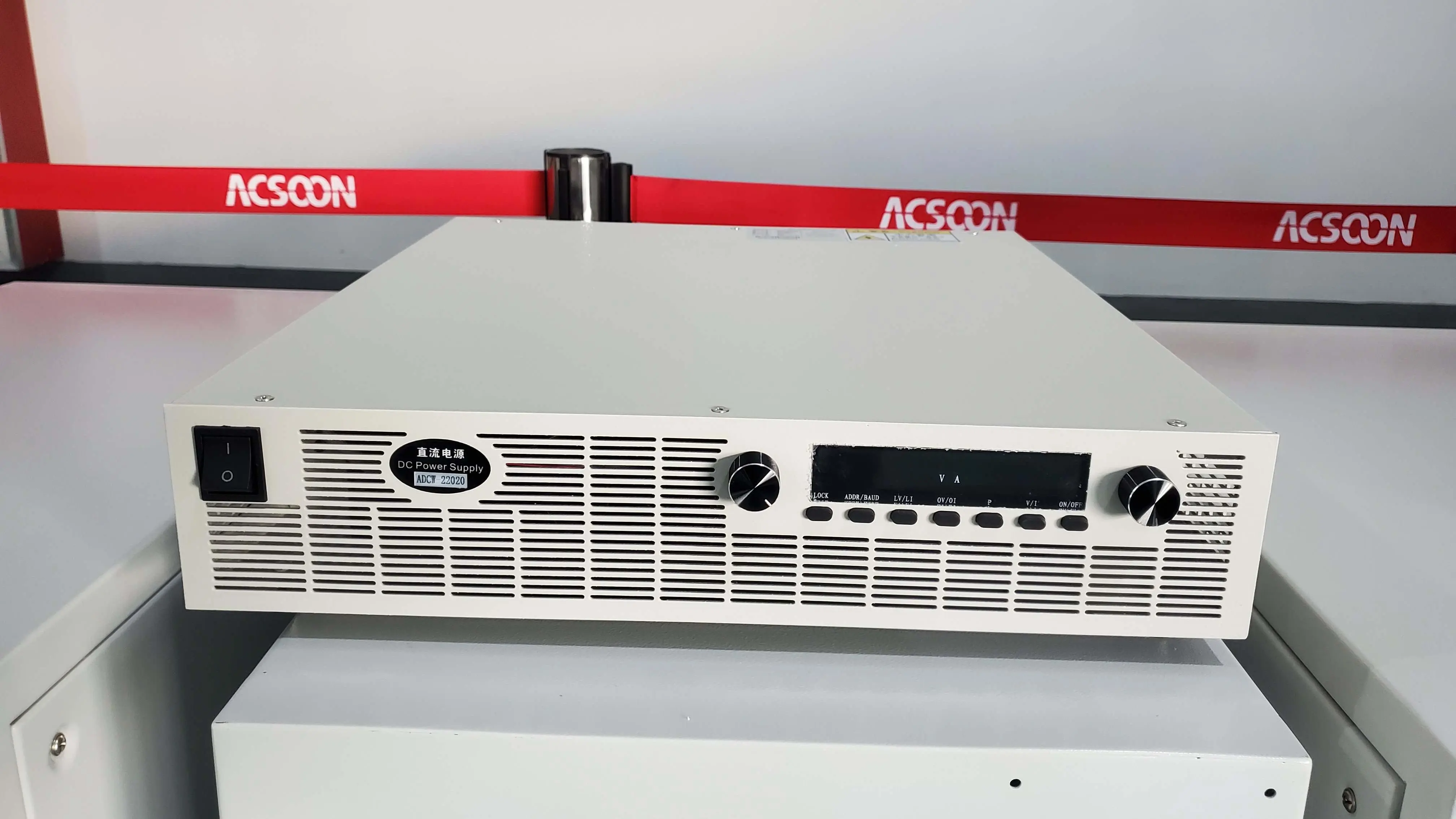

Battery Charge DC Supply | Programmable Battery Charger for Industrial Applications

XI'AN JERRYSTAR INSTRUMENT CO., LTD presents the advanced Battery Charge DC Supply, engineered specifically for the precise and efficient charging of industrial battery systems. This programmable DC power supply delivers controlled, regulated DC power with adjustable current limiting and multi-stage charging profiles, ensuring optimal charging for lead-acid, gel, AGM, and lithium-ion batteries used in material handling, backup power, and renewable energy storage applications.

Products Description

Parameter	Specification
Model Series	ACSOON ADCW Series
Model Number	ADCW-48100
Input	1-Phase 220V or 3-Phase 380V ±15%, 50/60Hz
DC Output	Voltage: 0-60V / 0-120V / 0-300V adjustable Current: Up to 500A (model dependent) Power: 1kW, 2kW, 3kW, 5kW, 10kW, 20kW, 30kW
Charging Modes	Constant Current (CC), Constant Voltage (CV), Multi-Stage
Regulation Accuracy	Voltage: ≤ ±0.5% FS, Current: ≤ ±1% FS
Ripple	≤ 0.5% RMS
Efficiency	≥90%
Display	LCD Digital (Voltage, Current, Power, Status)
Communication	RS485 (Modbus)
Protections	Reverse Polarity, Over Voltage, Over Current, Over Temperature
Cooling	Forced Air

Battery Charge DC Supply Main Features

Multi-Stage Charging: Programmable bulk, absorption, and float charge stages for optimal battery maintenance.
Temperature Compensation: Optional sensor input adjusts charge voltage based on battery temperature.
Digital Control Interface: LCD Quality Controldisplay with real-time voltage, current, and charge status monitoring.
Remote Communication: RS485/Modbus interface for integration with battery management systems (BMS).

Why Choose ACSOON Battery Charge DC Supply?

Optimized Charging Profiles: Supports constant current (CC), constant voltage (CV), and multi-stage charging algorithms tailored to specific battery chemistries.
Precise Current Control: Adjustable current limiting prevents overcharging and extends battery service life.
High Efficiency Operation: ≥90% efficiency reduces energy costs and heat generation during extended charging cycles.
Comprehensive Battery Protection: Built-in protections against reverse polarity, over-voltage, over-current, and over-temperature.

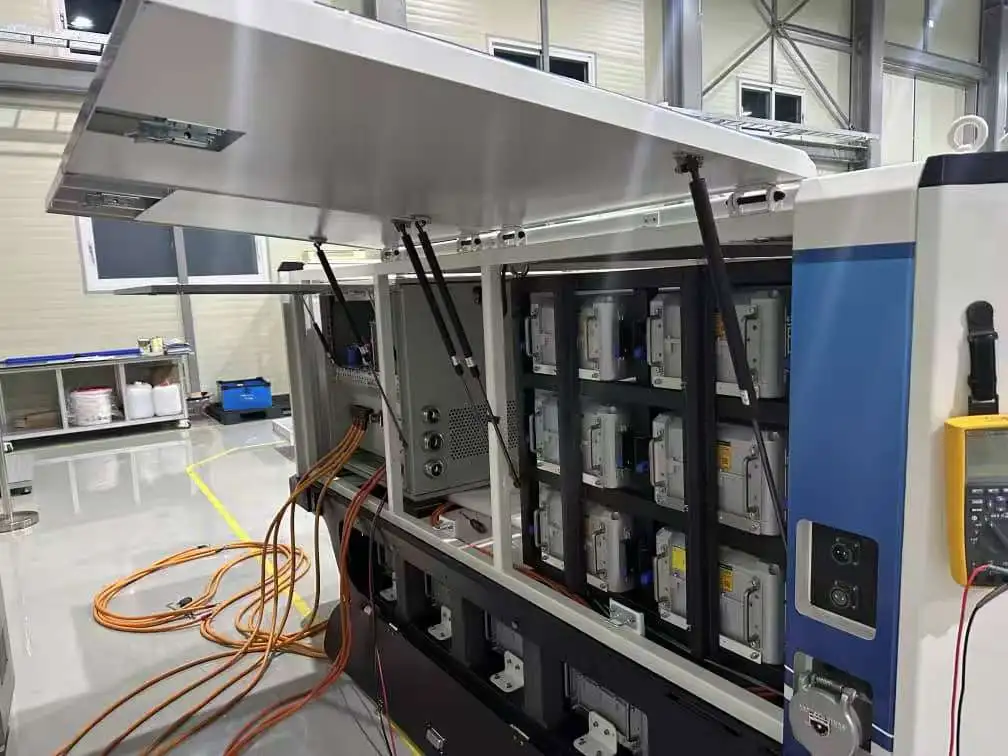

Battery Charge DC Supply Application Areas

Material Handling Equipment: Charging batteries for electric forklifts, pallet jacks, and AGVs in warehouses and distribution centers.
UPS & Backup Power Systems: Maintaining battery banks for data centers, telecom facilities, and emergency power systems.
Renewable Energy Storage: Charging battery banks in solar and wind power storage systems.
Electric Vehicle Charging: Supporting low-speed electric vehicles, golf carts, and industrial EVs.

Our Services

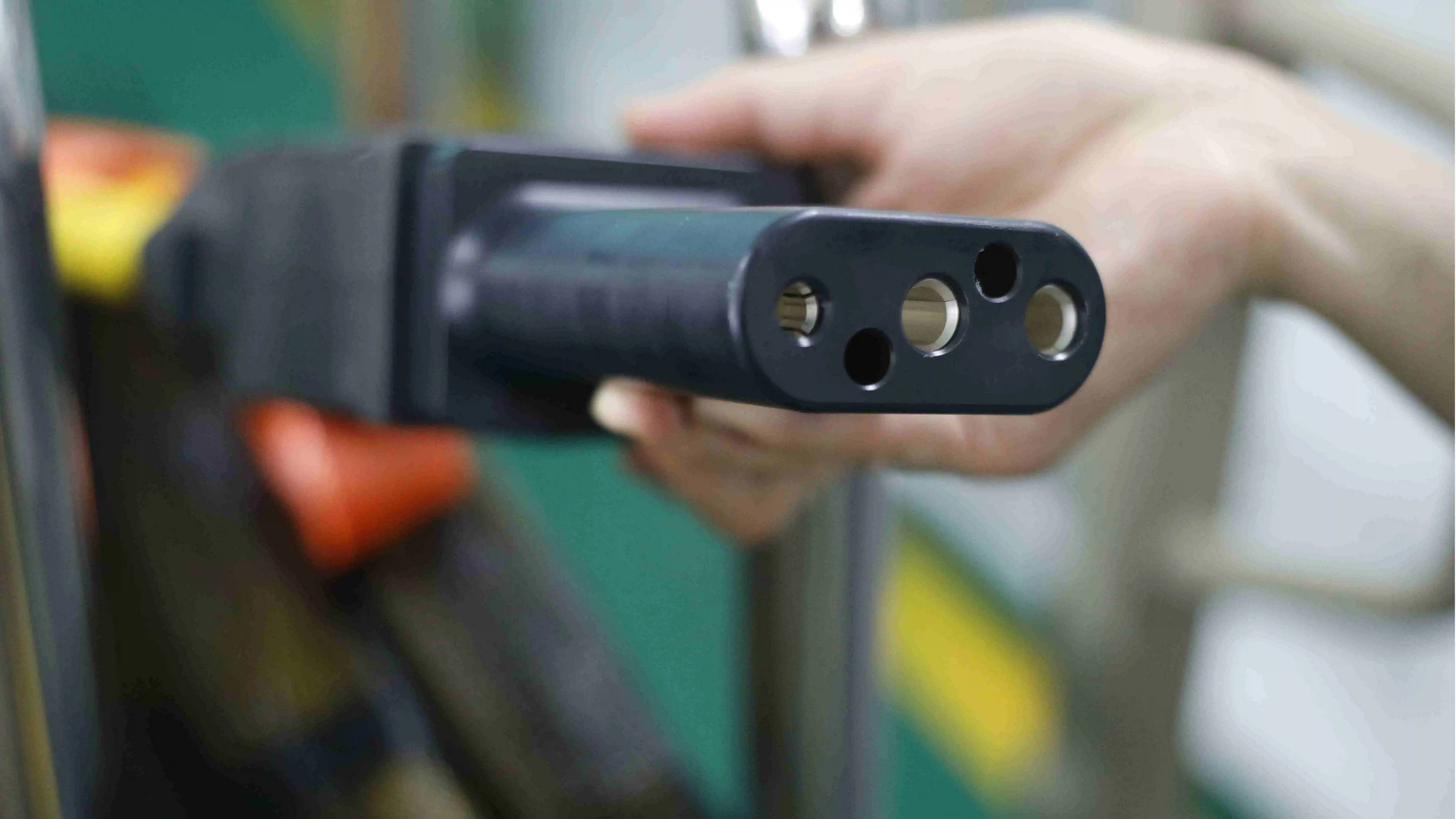

Quality Control

Component Pre-Testing: IGBT modules, transformers, and control boards are individually tested before assembly.
Full-Load Burn-In: Each unit operates at rated output for extended periods to verify thermal stability and reliability.
Charging Profile Validation: Multi-stage algorithms are tested with actual battery loads to ensure proper operation.
Safety Function Verification: All protection features, including reverse polarity, are rigorously tested.

R&D Results

Advanced Charging Algorithms: Developed chemistry-specific charging profiles for lead-acid, gel, AGM, and lithium batteries.

Intelligent Temperature Compensation: Engineered precise temperature sensing and voltage adjustment for optimal charging in varying environments.

High-Efficiency Topology: Implemented soft-switching technology to reduce losses and improve reliability.

BMS Communication Interface: Created standard Modbus protocol for seamless integration with modern battery management systems.

Packaging and Transportation

Industrial Protective Packaging: Unit is secured in foam-cushioned, heavy-duty cardboard box or wooden crate for higher power models.
Complete Accessory Kit: Includes input/output cables, temperature sensor (optional), user manual, and test certificate.
Clear Documentation: Pack contains wiring diagrams, charging profile guides, and warranty information.
Global Shipping: Shipped via reliable carriers with full tracking and insurance.

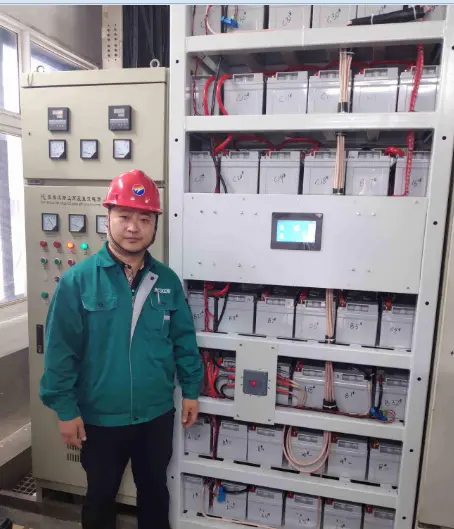

After‑Sales Service

We offer an 18-month warranty, responsive technical support, access to charging profile customization, and availability of common spare parts.

Qualification Certification

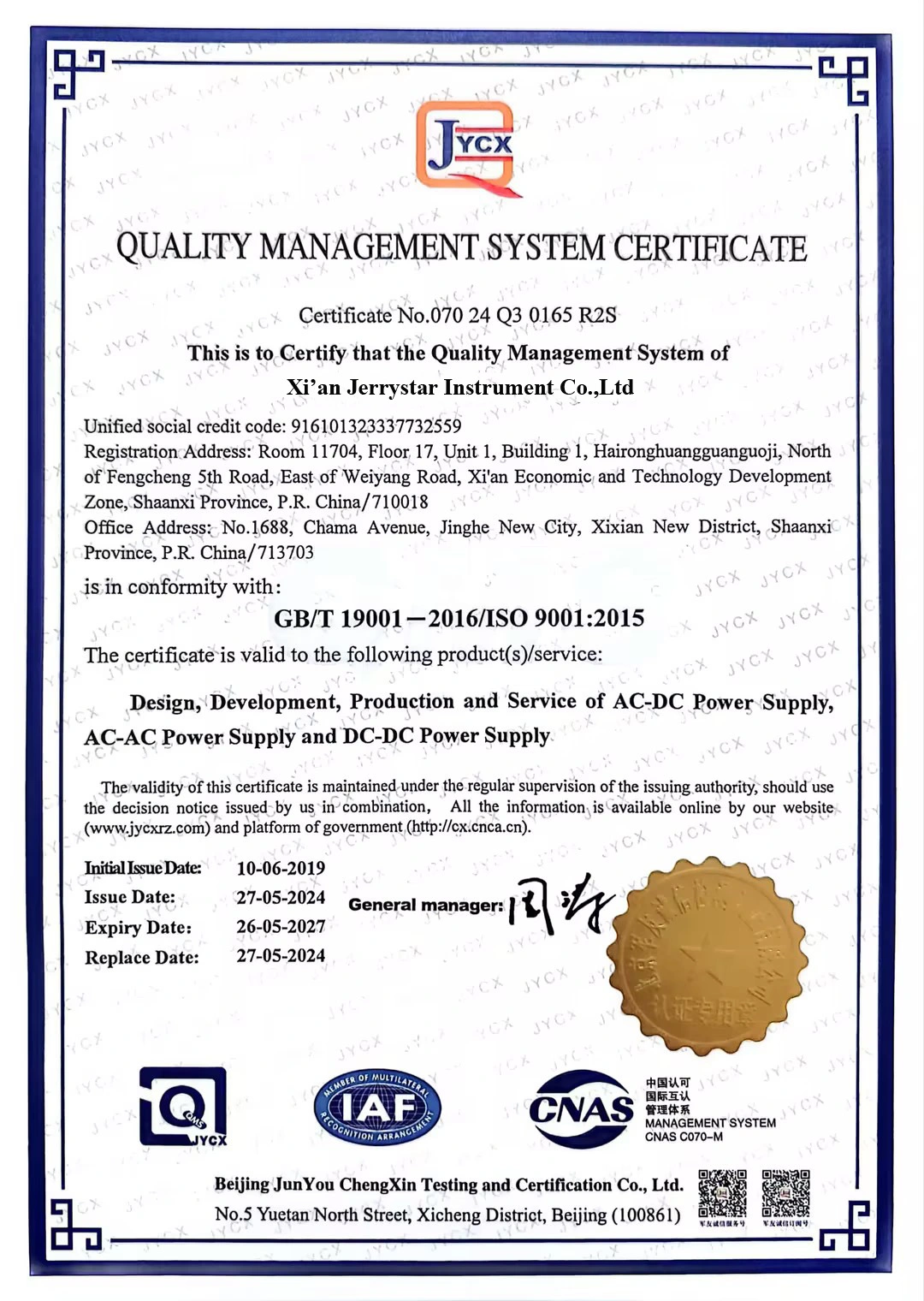

ISO 9001:2015 Certified manufacturing quality system;CE, RoHS Compliant for safety and environmental standards;Calibration Certificate: Provided with each unit documenting performance accuracy.

FAQ
Q1: What battery types can this charger support?
A: It supports a wide range of battery chemistries including flooded lead-acid, gel, AGM, and lithium-ion (LiFePO4, NMC) with appropriate charging profile configuration.
Q2: What is multi-stage charging and why is it important?
A: Multi-stage charging (bulk, absorption, float) optimizes the charging process by applying different current/voltage levels at different states of charge, ensuring faster charging, preventing overcharging, and extending battery life.
Q3: Can I set custom charging profiles for specific batteries?
A: Yes, the unit is fully programmable. Custom voltage, current, and timing parameters can be configured via the front panel or remote interface.
Q4: Does it include reverse polarity protection?
A: Yes, built-in reverse polarity protection prevents damage if the output cables are incorrectly connected to the battery terminals.
Q5: What is the difference between this and a standard DC power supply?
A: A standard DC supply provides constant voltage or current without specialized charging logic. This Battery Charge DC Supply includes dedicated multi-stage charging algorithms, temperature compensation, and protections specifically designed for safe and optimal battery charging.

Contact Us

For technical specifications or global solutions for the Battery Charge DC Supply: acpower@acsoonpower.com, or submit your requirements using the form at the bottom of our website.
