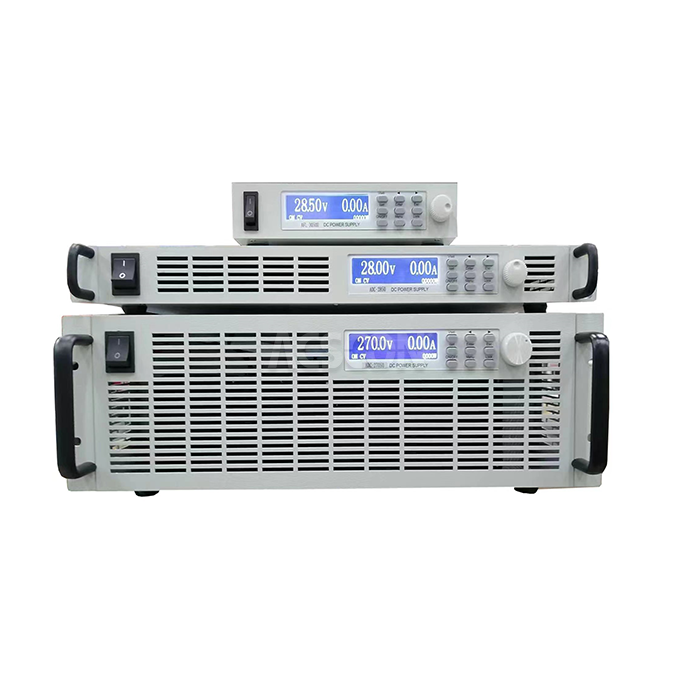

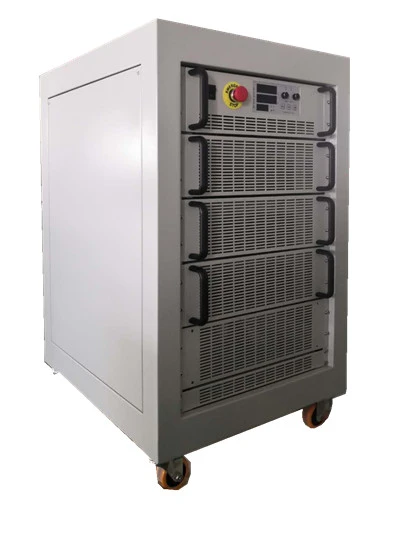

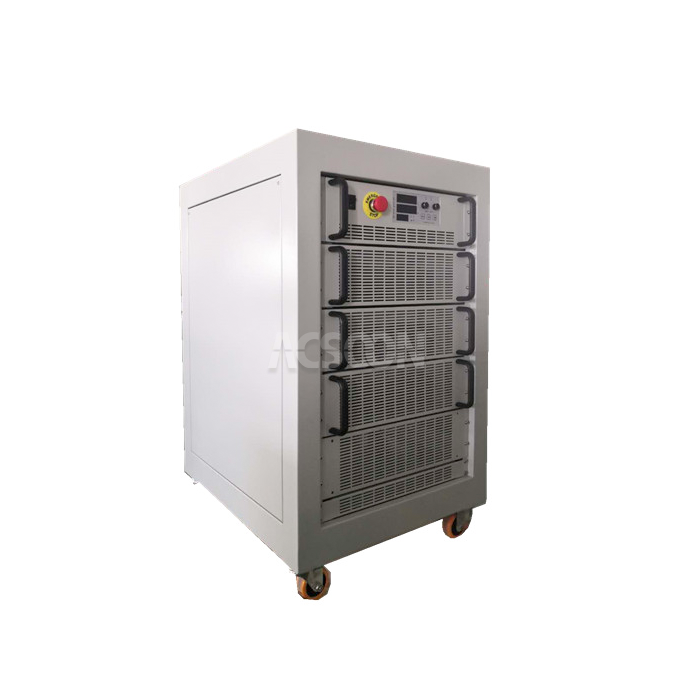

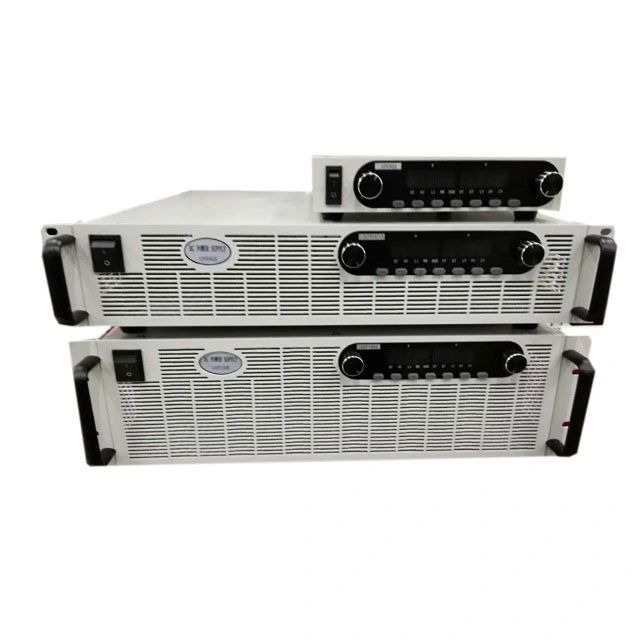

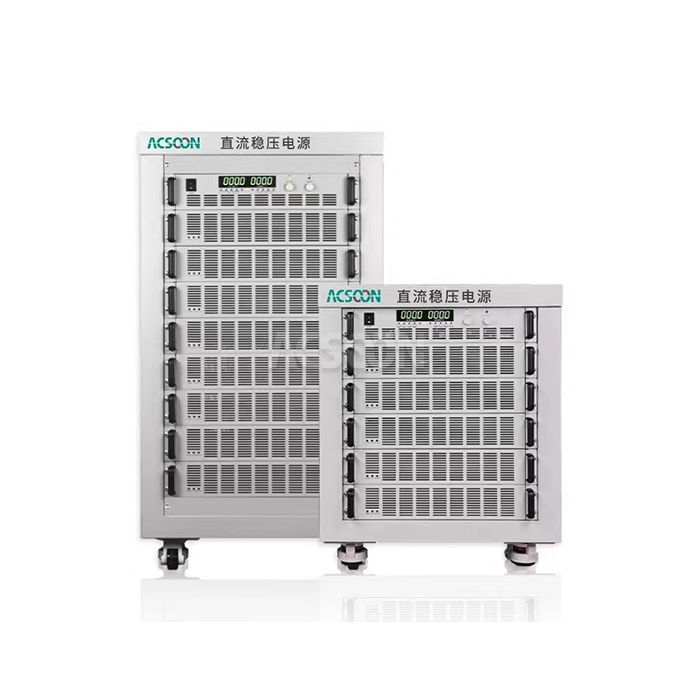

Compact DC Power Supply

1.Power Output: 0-300VDC / 0-200A (space-optimized design)
2.Technology: High-frequency switching with compact layout
3.Input: 3-phase 380VAC ±10%, 50/60Hz
4.Footprint: Reduced size for limited spaces
5.Key Applications: Mobile systems, limited space installations, compact equipment
6.Key Features: Space-saving design; lightweight; easy installation; efficient cooling
7.Brand: ACSOON (compact configurations available).

Send Inquiry Download

Product Description

Compact DC Power Supply | Space-Saving DC Power Solution

XI'AN JERRYSTAR INSTRUMENT CO., LTD manufactures innovative compact DC power supplies for applications where space optimization is critical. Our systems deliver reliable DC power in a space-efficient design, making them ideal for mobile applications, compact installations, and environments where traditional power supplies would be too large or bulky.

Technical Specifications

Feature	Specification
Input	Single Phase or Three Phase + N +PE
	220VAC (L-N)±10%; 380Vac(L-L)±10%, or customized
	Frequency: 50HZ/60HZ
Output Voltage	0- Nominal Voltage adjustable
	DC 12V, 15V, 24V, 30V, 50V, 60V, 100V, 150V, 300V, 600V or customized
Current	0- Nominal Current adjustable, with current limiting control
	1A to 1000A or customized
Voltage Stability	Line regulation ≤ 0.5% Nominal
	Load regulation ≤ 0.5% Nominal
Ripple (rms)	RMS ≤ 0.5% Nominal Value
Power Control	Potentiometer switch knobs, 1-byte resolution adjustment
Interface	Modbus Protocol RS232 (RS485), PC control for voltage/current setting and on/off
Display Accuracy	Voltage: Four and a half VFD, Resolution > 0.1V
	Current: Four and a half VFD, Resolution > 0.1A
Protection	Input phase loss, Output overvoltage, Overload current limiting, Short circuit, Over temperature
Cooling	Air forced fan
IP Rating	IP20 (Customizable)
Color	RAL7035
Working Temp.	-10℃ to 45℃
Standards	EN61000-6-3 & EN60204-1

Compact DC Power Supply Performance feature

Over current protection: Output nominal current overload protection
Short circuit protection: Allowing long-term short-circuit or short-circuit start-up in any state
Short circuit alarm: when the output short circuit, the unit sound and light alarm
Output display:LCD digital display, displaying voltage, current and power meters
Pulse operation: DC pulse power supply with time controller (optional)
Interface: It can be communicated with PC through RS232, RS485,support SCPI protocol

Why Choose ACSOON Compact DC Power Supplies?

ACSOON delivers full performance in minimal space:

Space Efficient: Optimized footprint saves valuable space
Lightweight Design: Easy to transport and install
Full Performance: Complete power capability in compact size
Easy Installation: Simplified mounting and connection
Flexible Placement: Multiple installation options

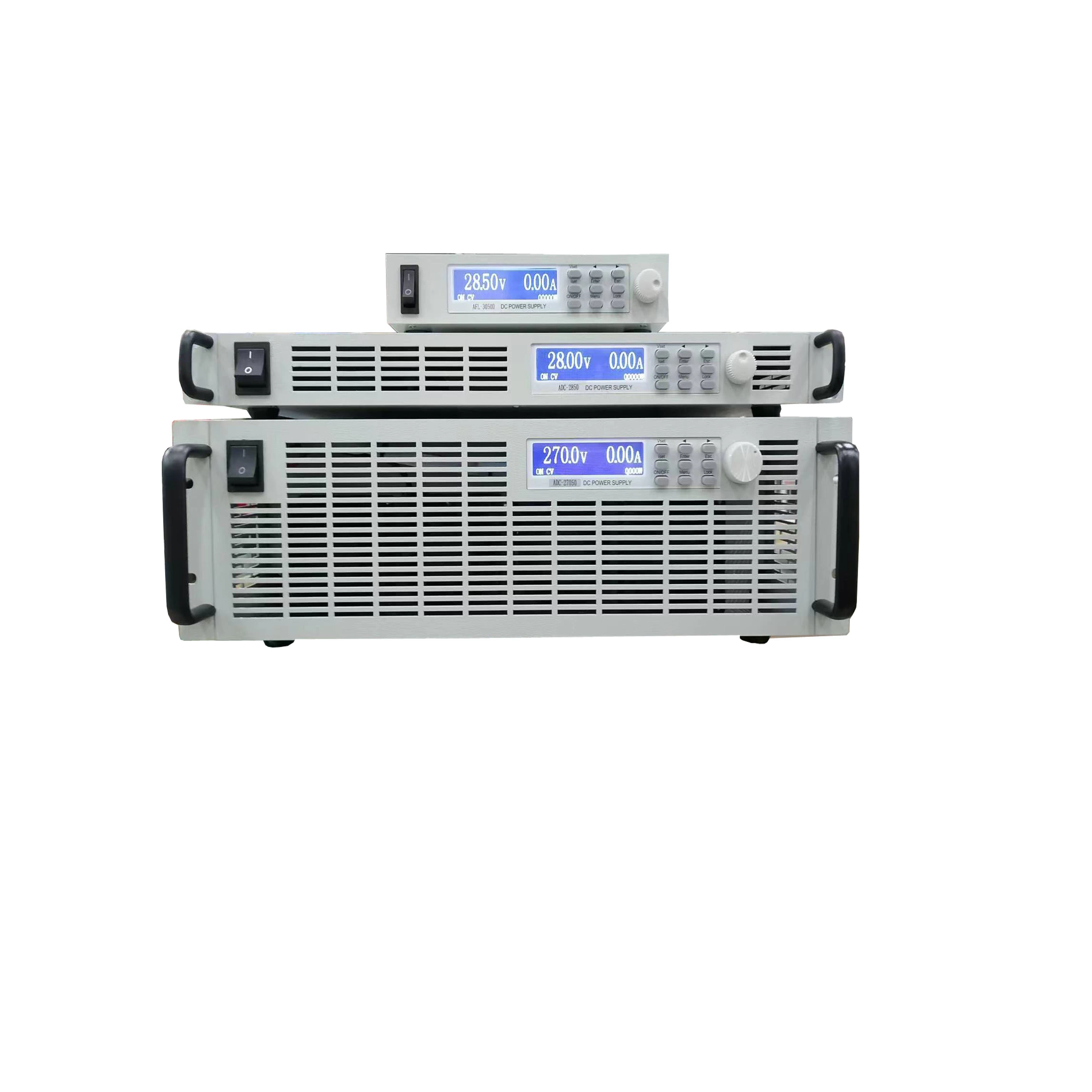

Application Areas

Our compact DC power supplies are essential for:

Mobile Systems: Vehicle and portable applications
Limited Spaces: Compact equipment installations
Control Panels: Integrated control system power
Telecom: Space-constrained communication equipment
Medical Devices: Compact medical equipment
Test Equipment: Portable test system power
Industrial Control: Space-limited control systems
Emergency Systems: Compact backup power applications

Our Services

Quality Assurance

Each compact DC power supply undergoes comprehensive testing:

Space efficiency validation
Thermal performance in compact spaces
Vibration and shock testing
Reliability verification
Performance certification

Technical Features

Our compact DC power supply incorporates:

Space-optimized component layout
Efficient compact cooling system
Lightweight construction
Easy-access design
Integrated protection features

Packaging and Delivery

We ensure compact packaging:

Space-efficient packaging design
Lightweight handling features
Worldwide shipping services
Installation guidance

After-Sales Service

Compact support package includes:

Technical support services
Maintenance guidance
Parts availability
Training programs
Repair services

Certifications

FAQ
Q1: What are the main advantages of compact DC power supplies?
A: Space savings, lightweight design, and flexible installation options.
Q2: How much space is saved compared to standard units?
A: Significantly reduced footprint while maintaining full functionality.
Q3: What about performance in compact design?
A: Full power performance maintained in space-optimized layout.
Q4: How is cooling managed in small spaces?
A: Efficient compact cooling system ensures proper thermal management.
Q5: Are installation options flexible for tight spaces?
A: Yes, multiple mounting and placement options for space-constrained areas.
