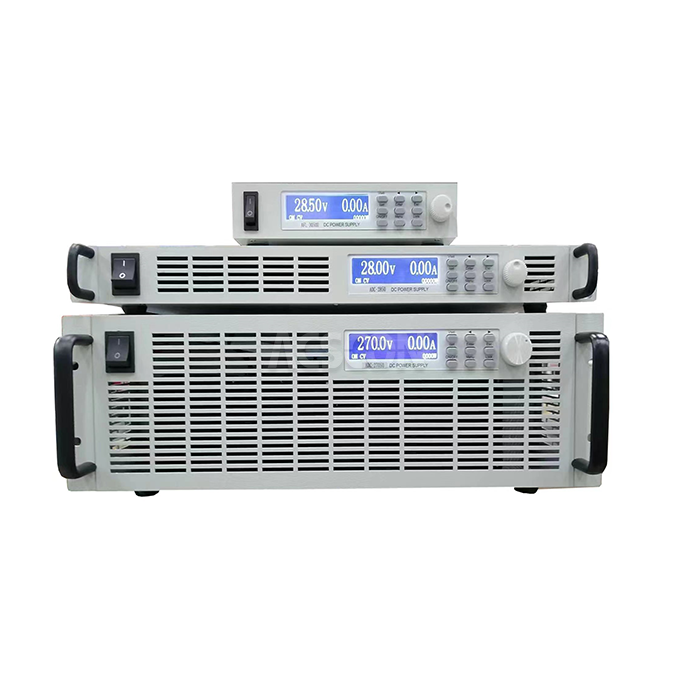

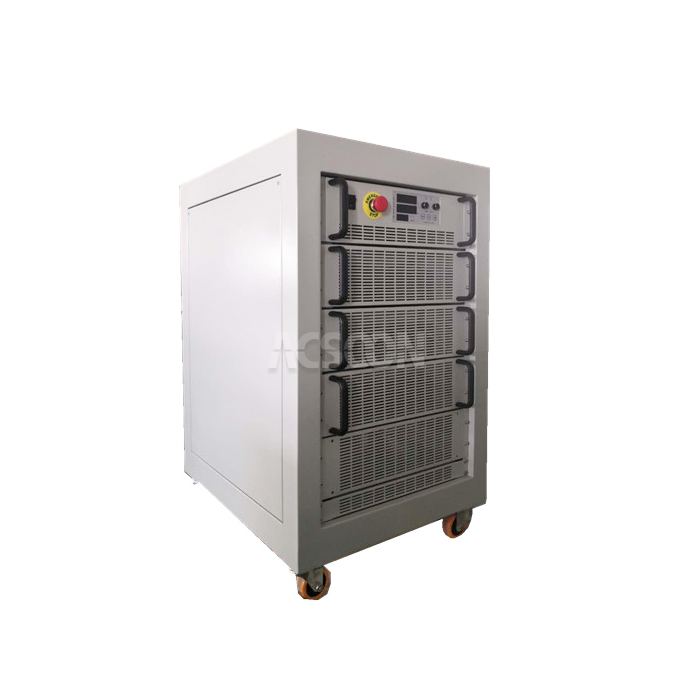

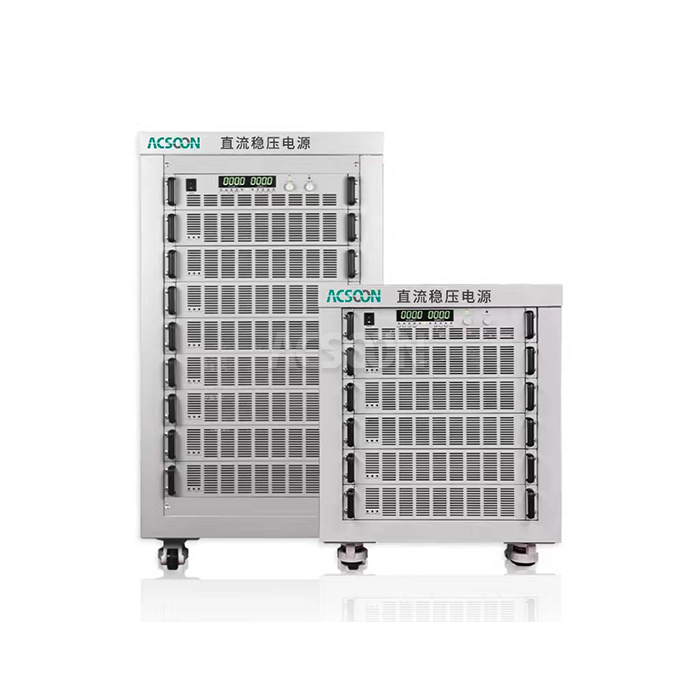

DC Power Supply for LED Testing

1.Power Range: 500W to 6kW, Low Voltage & High Current Configurations
2.Technology: High-Precision Switching Mode with Constant Current (CC) & Constant Voltage (CV) Modes
3.Input: 90-264VAC, 47-63Hz (Universal Input)
4.Output: 0-60VDC / 0-150VDC, Up to 240A (Model Dependent)
5.Applications: LED Driver Burn-in, LED Module & Strip Testing, Luminaire Production, Photometric Testing
6.Core Features: High Current Ripple Precision, Multi-Channel Synchronization, Fast Transient Response
7.Brand: ACSOON (Custom Rack Systems for Production Lines).

Send Inquiry Download

Product Description

DC Power Supply for LED Testing | Precision Current Source for LED Drivers

XI'AN JERRYSTAR INSTRUMENT CO., LTD introduces the specialized DC Power Supply for LED Testing, engineered to meet the stringent requirements of the LED lighting and components industry. This precision power unit provides the stable, low-ripple, and high-current DC power needed to accurately test LED drivers, modules, and complete luminaires for performance, efficiency, and longevity, ensuring product quality and reliability from R&D to mass production.

Datasheet

Parameter	Specification
Model Series	ACSOON DC Power Supply Series
Input	90-264VAC, 47-63Hz (Auto-ranging)
DC Output	Voltage: 0-60V or 0-150V Current: Up to 240A Power: 500W, 1000W, 2000W, 3000W, 6000W
Current Ripple	< 0.5% RMS (of rated current)
Regulation	CV & CC Modes, ≤ ±0.1% FS
Efficiency	≥ 88%
Communication	LAN (LXI), USB, RS232, Isolated Analog (0-5V/10V)
Cooling	Intelligent Temperature-Controlled Fan

DC Power Supply for LED Testing Main Features

Low Output Ripple: Minimizes current fluctuation to prevent light flicker and ensure accurate optical measurements.
Fast Load Transient Response: Maintains stable output even when the LED load switches or dims rapidly.
Multi-Channel & Parallel Operation: Supports synchronization of multiple units or channels for testing complex LED systems.
Comprehensive Protections: Features over-voltage, over-current, over-power, and over-temperature protection to safeguard expensive LED units under test.

Why Choose ACSOON DC Power Supply for LED Testing?

Precision Current Control: Delivers exceptionally stable and accurate constant current, critical for testing LED forward voltage (Vf) and driver performance.
Optimized for LED Loads: Designed to handle the unique characteristics of LED loads, including low voltage and high current demands.
High Efficiency & Density: Saves bench space and reduces energy costs in high-volume testing environments.
Enhanced Test Automation: Standard interfaces (LAN, USB, Analog) enable easy integration into automated test equipment (ATE) for production lines.

DC Power Supply for LED Testing Application Areas

LED Driver Manufacturing: Burn-in, lifecycle testing, and performance validation of constant current (CC) and constant voltage (CV) LED drivers.
LED Module & COB Testing: Providing precise power for testing light output, color consistency, and thermal performance of LED arrays.
Luminaire Assembly & QA: Final functional test and safety check of complete LED lights, street lights, and signage.
Photometric & Color Labs: Serving as a stable power source for integrating spheres and goniophotometers during light measurement.

Our Services

Quality Control

Precision Calibration: Each unit's voltage and current output/measurement are calibrated using high-accuracy meters traceable to national standards.
Ripple & Noise Measurement: Output ripple is meticulously measured under full load to ensure it meets the strict requirements for LED testing.
Dynamic Load Response Test: The unit's ability to maintain stable voltage/current during fast load changes is verified.
Interface & Software Validation: All communication protocols and remote control functions are tested for reliability.

R&D Results

Advanced Constant Current Algorithm: Developed a proprietary digital control loop for ultra-stable current output, essential for accurate LED characterization.
Multi-Channel Master/Slave Control: Created synchronization technology for precise current sharing and sequencing across multiple power supplies.
Thermal Derating Optimization: Engineered cooling and component layout to maintain full specified performance across the entire operating temperature range.
LED-Specific Test Software: Developed application software with pre-set test modes for common LED testing procedures (e.g., burn-in, Vf binning).

Packaging and Transportation

Industrial-Grade Box: The unit is packed in a sturdy cardboard box with custom foam inserts to protect front-panel connectors and displays.
Included Accessories: Package includes power cord, user manual, communication cable, and calibration certificate.
Clear Labeling for Integration: External labels indicate key ports and model numbers for easy setup in test racks.
Global Logistics: Shipped via reliable carriers suitable for electronic test equipment, with full tracking.

After‑Sales Service

We offer an 18-month warranty, free software and firmware updates, responsive technical support, and readily available spare parts for common components.

Qualification Certification

ISO 9001:2015 Certified manufacturing processes；CE, RoHS Compliant；Calibration Certificate: Provided with each unit, documenting performance accuracy.

FAQ
Q1: Why is a specialized DC power supply needed for LED testing?
A: LEDs are current-driven devices. Testing requires a high-precision, stable constant current source with very low ripple to accurately measure their electrical and optical properties. A standard power supply may have current fluctuations that cause inaccurate readings and light output variations.
Q2: Can this supply simulate dimming for LED drivers?
A: Yes. Through its analog control input or digital interfaces, you can program rapid current or voltage changes to simulate PWM or analog dimming signals for testing driver response.
Q3: Is it suitable for high-power LED street light testing?
A: Absolutely. High-power models (e.g., 3kW, 6kW) can provide the necessary high current at low voltage to test drivers and modules for high-bay lights, street lights, and stadium lighting.
Q4: How does it connect to an automated test system?
A: With standard LAN (LXI), USB, and RS232 interfaces, it can be easily controlled by test software (like LabVIEW, Python) to run automated test sequences, log data, and pass/fail units in a production environment.
Q5: What is the difference between Constant Current (CC) and Constant Voltage (CV) mode for LED testing?
A: CC Mode is used to test the LED itself by driving it with a fixed current to measure its forward voltage (Vf). CV Mode is used to test an LED driver's output by applying a fixed voltage to see if it regulates current correctly. A quality LED test supply must excel at both.
