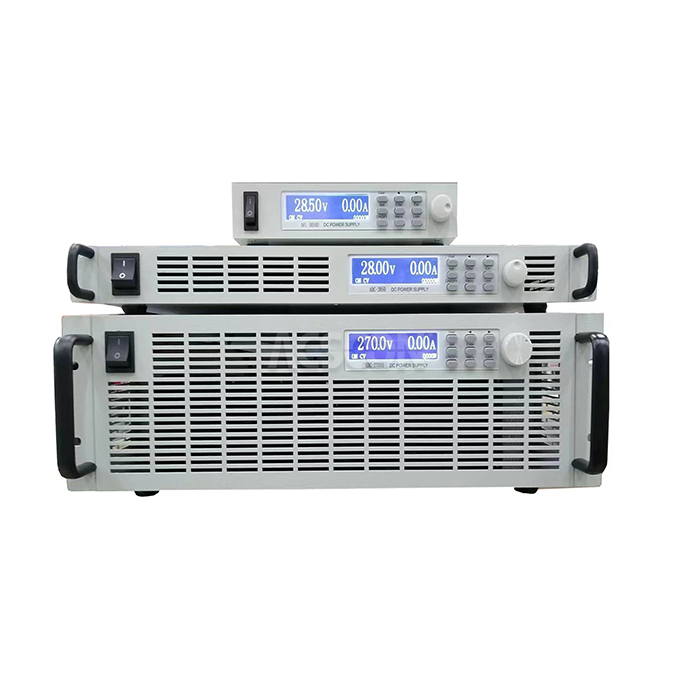

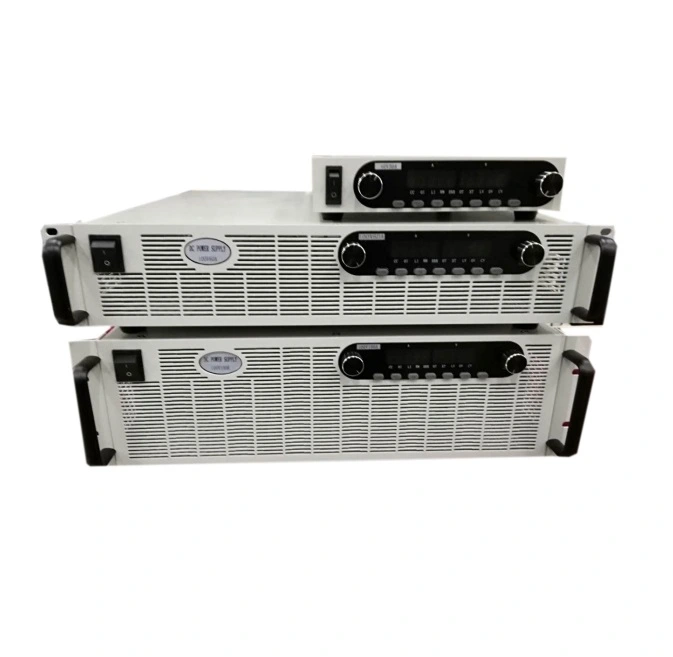

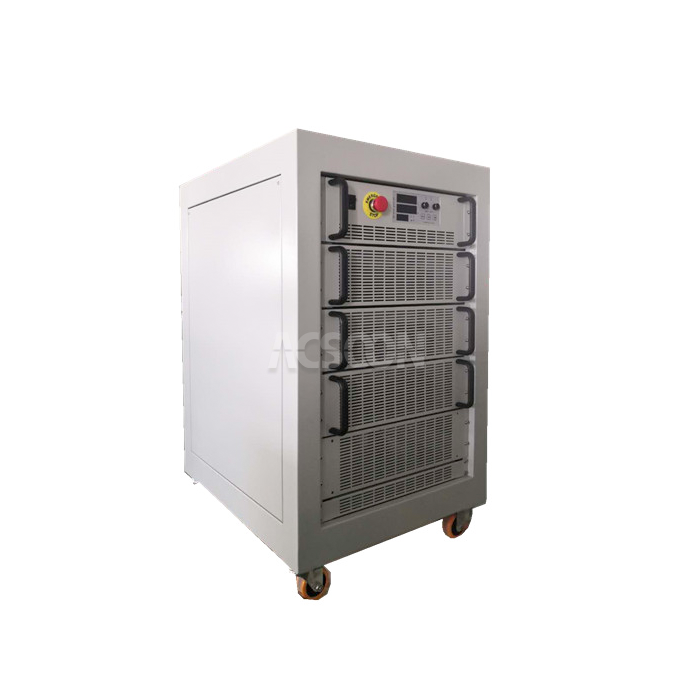

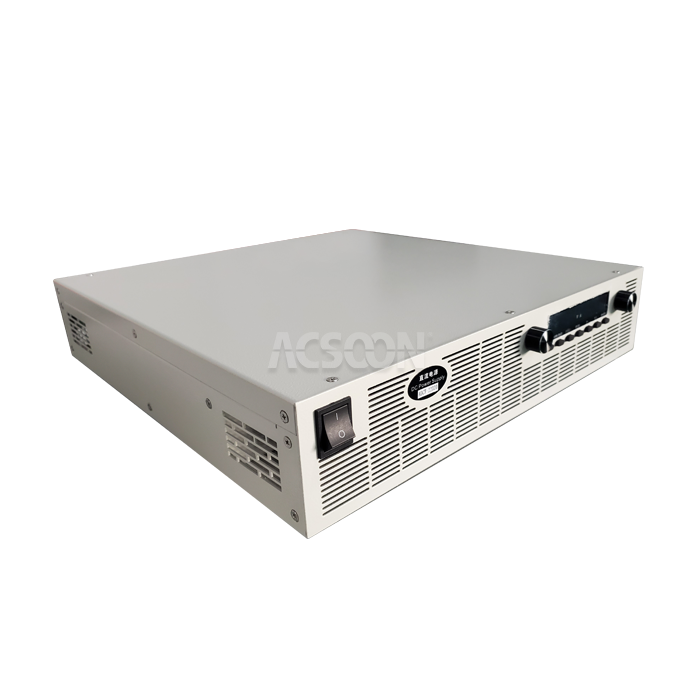

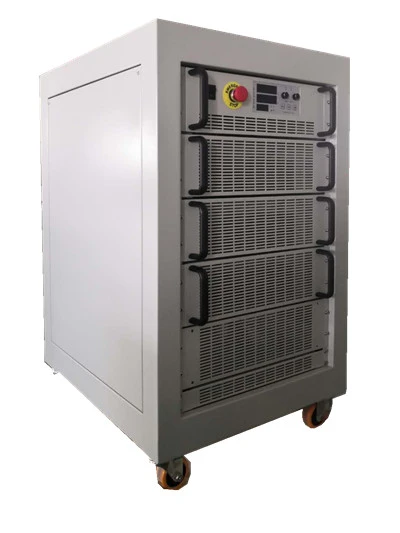

DC Power Supply Laboratory

1.Voltage Range: 0-600VDC, wide range coverage
2.Current Range: 0-2000A, multiple current ratings
3.Power Capacity: 1kW to 120kW, scalable for various lab needs
4.Regulation Accuracy: Voltage stability ±0.5%, Current stability ±0.5%
5.Control Modes: Local panel, remote analog, digital communication
6.Applications: R&D laboratories, university labs, component testing, circuit development
7.Features: Low ripple (<0.5%), programmable settings, multiple protection functions
8.Brand: ACSOON (custom laboratory solutions available).

Send Inquiry Download

Product Description

DC Power Supply Laboratory | Precision DC Power Source for Research & Testing

XI'AN JERRYSTAR INSTRUMENT CO., LTD specializes in manufacturing high-precision DC Power Supply Laboratory equipment designed for research and development applications. Our DC Power Supply Laboratory systems provide stable, clean DC power with exceptional accuracy, making them ideal for sensitive electronic testing, experimental setups, and educational laboratories worldwide.

Technical Specifications

Feature	Specification
Input	Single Phase or Three Phase + N +PE
	220VAC (L-N)±10%; 380Vac(L-L)±10%, or customized
	Frequency: 50HZ/60HZ
Output Voltage	0- Nominal Voltage adjustable
	DC 12V, 15V, 24V, 30V, 50V, 60V, 100V, 150V, 300V, 600V or customized
Current	0- Nominal Current adjustable, with current limiting control
	1A to 1000A or customized
Voltage Stability	Line regulation ≤ 0.5% Nominal
	Load regulation ≤ 0.5% Nominal
Ripple (rms)	RMS ≤ 0.5% Nominal Value
Power Control	Potentiometer switch knobs, 1-byte resolution adjustment
Interface	Modbus Protocol RS232 (RS485), PC control for voltage/current setting and on/off
Display Accuracy	Voltage: Four and a half VFD, Resolution > 0.1V
	Current: Four and a half VFD, Resolution > 0.1A
Protection	Input phase loss, Output overvoltage, Overload current limiting, Short circuit, Over temperature
Cooling	Air forced fan
IP Rating	IP20 (Customizable)
Color	RAL7035
Working Temp.	-10℃ to 45℃
Standards	EN61000-6-3 & EN60204-1

DC Power Supply Laboratory Performance feature

Over current protection: Output nominal current overload protection
Short circuit protection: Allowing long-term short-circuit or short-circuit start-up in any state
Short circuit alarm: when the output short circuit, the unit sound and light alarm
Output display:LCD digital display, displaying voltage, current and power meters
Pulse operation: DC pulse power supply with time controller (optional)
Interface: It can be communicated with PC through RS232, RS485,support SCPI protocol

Why Choose ACSOON DC Power Supply Laboratory?

ACSOON DC Power Supply Laboratory units offer unmatched performance for research and testing environments:

Exceptional Accuracy: High-precision voltage and current regulation with minimal drift
Clean Power Output: Low ripple and noise for sensitive measurements
Flexible Control: Multiple interface options including front panel, analog programming, and digital communication
Comprehensive Protection: Complete safeguards for equipment and personnel safety
User-Friendly Operation: Intuitive controls with clear digital displays and preset functions

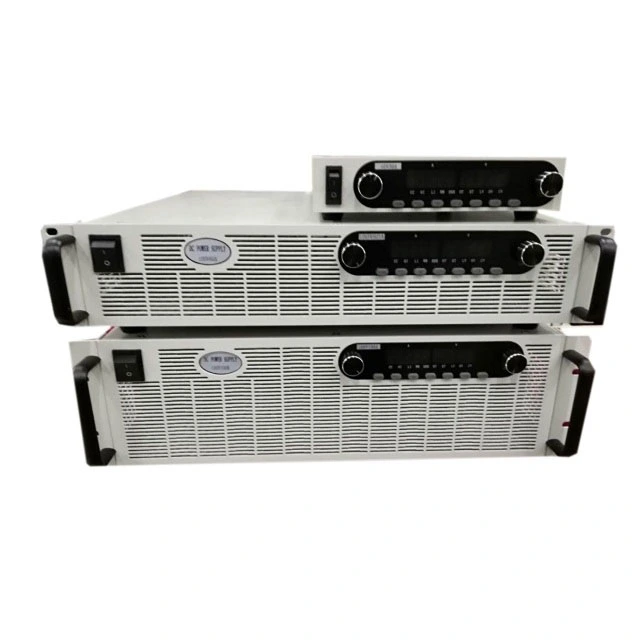

Application Areas

Our DC Power Supply Laboratory serves diverse research and testing requirements:

University Laboratories: Engineering education, student projects, and academic research
R&D Facilities: Electronic circuit development, prototype testing, and validation
Quality Control Labs: Component testing, reliability verification, and production sampling
Calibration Laboratories: Reference power source for instrument calibration
Industrial Research: Material testing, electrochemical research, and sensor development
Telecommunications: Testing communication equipment and network devices

Our Services

Quality Control

Every DC Power Supply Laboratory unit undergoes rigorous quality validation:

Precision calibration against reference standards
Thermal stability testing across operating temperature range
Long-term drift measurement over extended periods
Safety certification testing to international standards
Performance verification under various load conditions

R&D Results

Our continuous innovation in DC Power Supply Laboratory technology has achieved:

Enhanced measurement accuracy through advanced ADC technology
Improved thermal management for stable long-term operation
Smart calibration algorithms maintaining accuracy over time
Reduced electromagnetic interference for cleaner output
Modular design allowing future upgrades and expansions

Packaging and Transportation

We ensure secure delivery of every DC Power Supply Laboratory unit:

Anti-static packaging for sensitive electronic components
Custom foam inserts preventing transit damage
Complete documentation including calibration certificates
Worldwide shipping with professional handling

After-Sales Service

We provide comprehensive support for all DC Power Supply Laboratory installations:

Installation guidance and operational training
Regular calibration services to maintain accuracy
Technical support for application-specific setups
Firmware updates with enhanced functionality
Extended warranty options for research institutions

Qualification Certification

CE Certification

FAQ
Q1: What accuracy can I expect from your DC Power Supply Laboratory units?
A: Our laboratory units typically provide voltage accuracy of ±0.5% and current accuracy of ±0.5% of full scale.
Q2: Can I program output sequences for automated testing?
A: Yes, our units support programmable output sequences via digital interfaces for automated test applications.
Q3: What communication interfaces are available for remote control?
A: Standard interfaces include RS232, RS485, with optional Ethernet and USB interfaces available.
Q4: How stable is the output under varying line conditions?
A: Our laboratory power supplies maintain ±0.5% output stability with ±10% input voltage variation.
Q5: Do you provide calibration certificates with your laboratory power supplies?
A: Yes, we provide calibration certificates traceable to national standards upon request.
