Digital Control DC Power Supply

1.Power Output: 0-1000VDC / 0-200A (digital control)
2. Technology: Digital signal processing with high-frequency switching
3. Input: 3-phase 380VAC ±10%, 50/60Hz
4. Regulation: Voltage stability ≤±0.2%, Current stability ≤±0.2%
5.Key Applications: Precision instruments, research labs, production testing
6. Key Features: Digital control; high accuracy; remote operation; data logging
7. Ingress Protection Grade: IP21/54
8. Brand: ACSOON (custom solutions available).

Send Inquiry Download

Product Description

Digital Control DC Power Supply | Precision Power Source

XI'AN JERRYSTAR INSTRUMENT CO., LTD manufactures advanced digital control DC power supplies for applications requiring precise power management. Our systems combine digital control technology with stable power output, providing accurate and reliable DC power for precision instruments, research laboratories, and production testing environments.

Technical Specifications

Feature	Specification
Input	Single Phase or Three Phase + N +PE
	220VAC (L-N)±10%; 380Vac(L-L)±10%, or customized
	Frequency: 50HZ/60HZ
Output Voltage	0- Nominal Voltage adjustable
	DC 12V, 15V, 24V, 30V, 50V, 60V, 100V, 150V, 300V, 600V or customized
Current	0- Nominal Current adjustable, with current limiting control
	1A to 1000A or customized
Voltage Stability	Line regulation ≤ 0.5% Nominal
	Load regulation ≤ 0.5% Nominal
Ripple (rms)	RMS ≤ 0.5% Nominal Value
Power Control	Potentiometer switch knobs, 1-byte resolution adjustment
Interface	Modbus Protocol RS232 (RS485), PC control for voltage/current setting and on/off
Display Accuracy	Voltage: Four and a half VFD, Resolution > 0.1V
	Current: Four and a half VFD, Resolution > 0.1A
Protection	Input phase loss, Output overvoltage, Overload current limiting, Short circuit, Over temperature
Cooling	Air forced fan
IP Rating	IP20 (Customizable)
Color	RAL7035
Working Temp.	-10℃ to 45℃
Standards	EN61000-6-3 & EN60204-1

ACSOON Digital Control DC Power Supply Performance feature

Output display:LCD digital display, displaying voltage, current and power meters
Pulse operation: DC pulse power supply with time controller (optional)
Interface: It can be communicated with PC through RS232, RS485,support SCPI protocol
Analog inputs/Optional: The user can use 0 ~ 5V, 0 ~ 10V or 4 ~ 20mA signal to control output current and output voltage of the units via analog inputs, the output of the units can be turned on / off remotely via analog inputs (See below image of analog inputs)

Why Choose ACSOON Digital Control DC Power Supplies?

ACSOON delivers precision and reliability through digital technology:

Digital Precision: Accurate voltage and current control
Stable Performance: Excellent regulation characteristics
Remote Operation: Computer interface capability
Data Monitoring: Real-time parameter display
Flexible Control: Programmable output settings

Application Areas

Our digital control DC power supplies are essential for:

Precision Instruments: Scientific equipment power
Research Laboratories: Experimental setups
Production Testing: Quality control systems
Educational Use: Teaching experiments
Calibration Work: Instrument calibration
Development Projects: Prototype testing
Service Applications: Equipment maintenance
Testing Systems: Automated test equipment

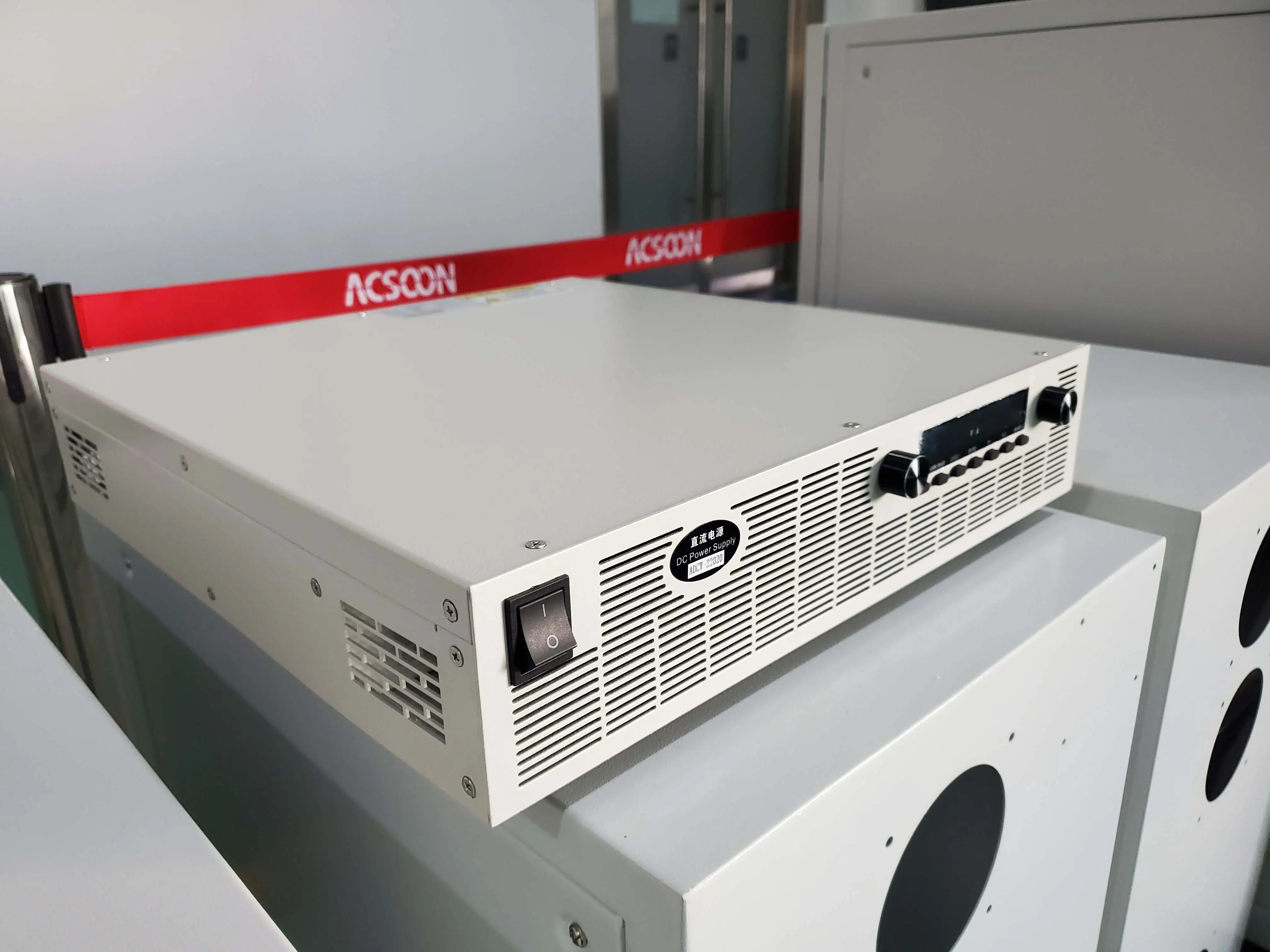

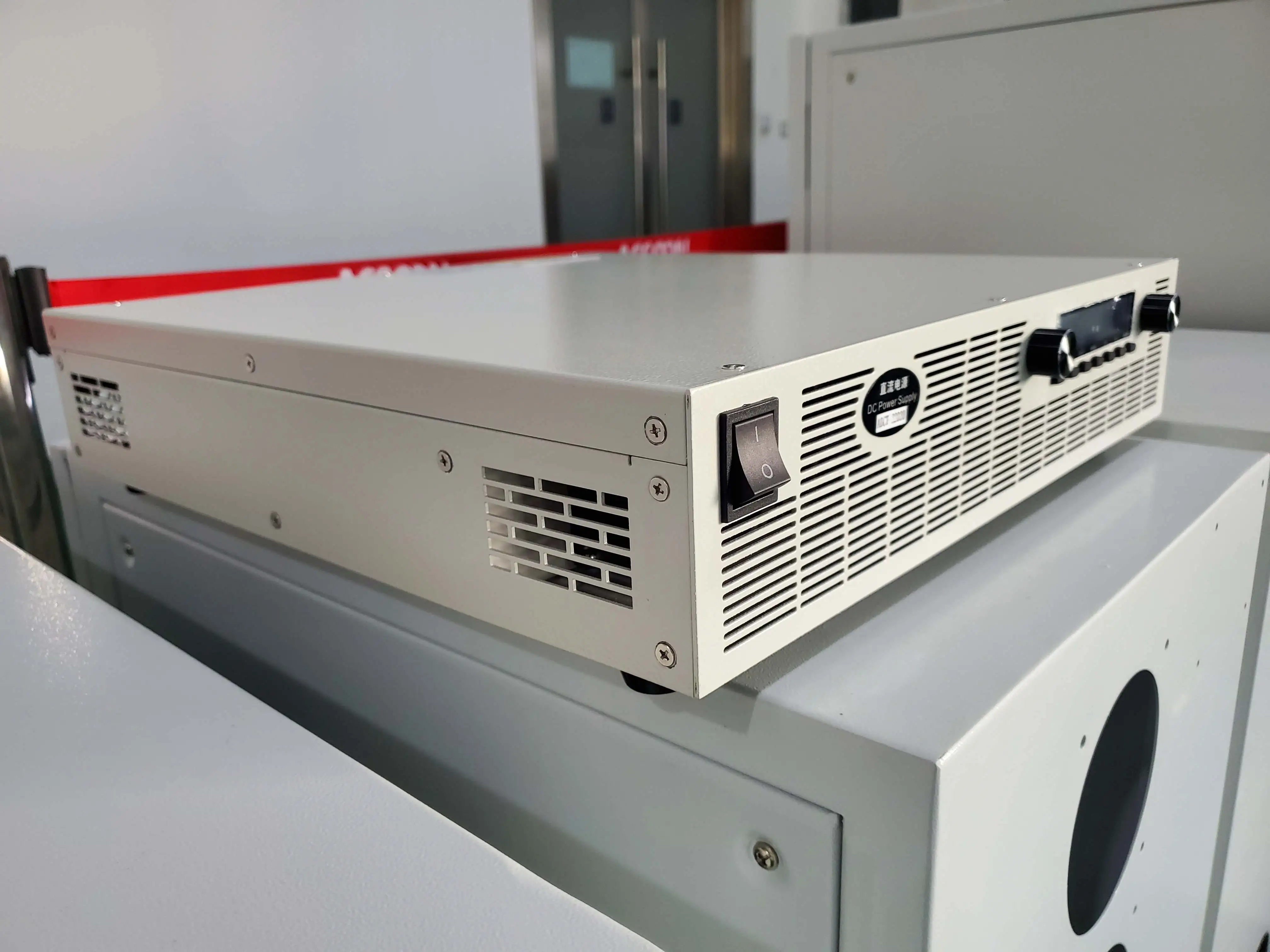

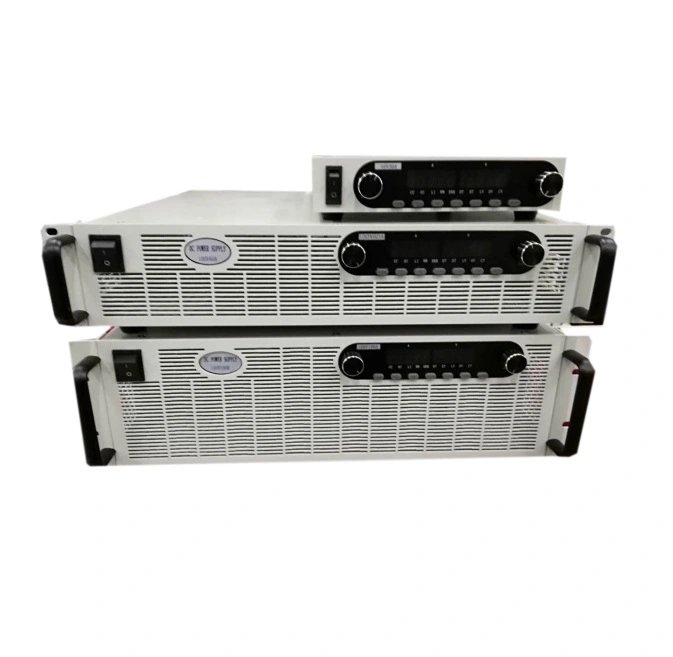

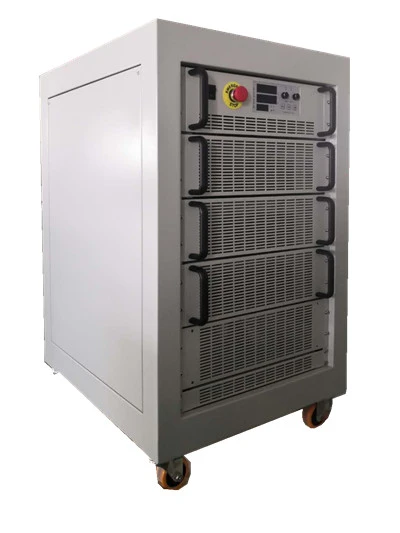

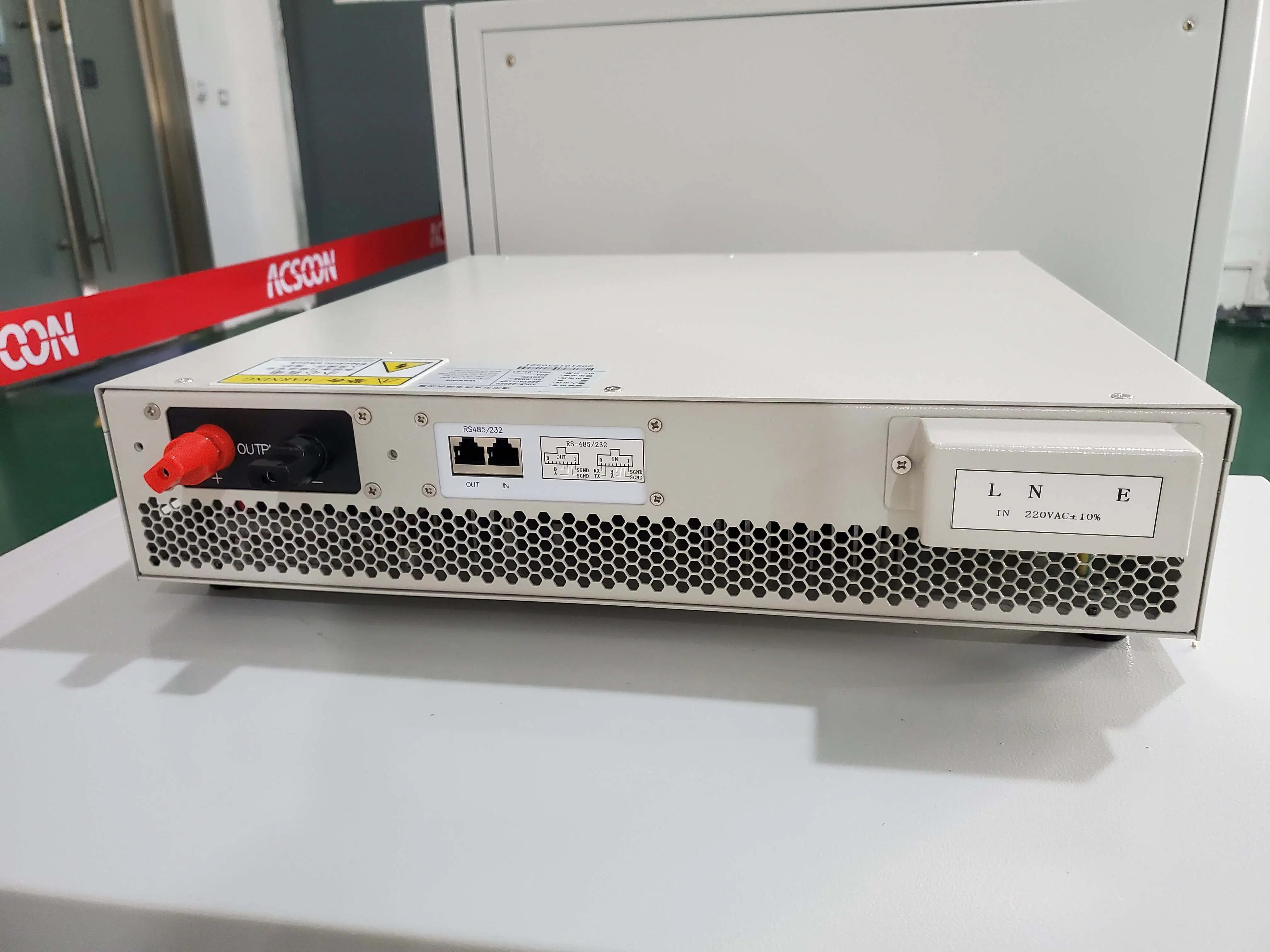

Details display

Quality Assurance

Each digital control DC power supply undergoes rigorous testing:

Accuracy verification tests
Stability performance testing
Interface functionality check
Safety standard compliance
Reliability validation

Technical Features

Our digital control DC power supply incorporates:

Digital signal processing
High-resolution control
Communication interfaces
Protection circuits
Monitoring systems

Packaging and Delivery

We ensure secure packaging:

Protective packaging materials
Careful handling procedures
Reliable shipping methods
Installation guidance

After-Sales Service

Comprehensive support includes:

Technical support
Maintenance services
Software updates
Training programs
Parts supply

Certifications

CE Certification

ISO Certification

FAQ
Q1: What are the benefits of digital control DC power supply?
A: Precise control, stable output, and remote operation capability.
Q2: What interfaces are available?
A: Standard communication interfaces for computer control.
Q3: How accurate is the output?
A: High accuracy with excellent stability.
Q4: Can settings be saved?
A: Yes, programmable settings can be stored.
Q5: What applications is it suitable for?
A: Precision instruments, research labs, and testing systems.
