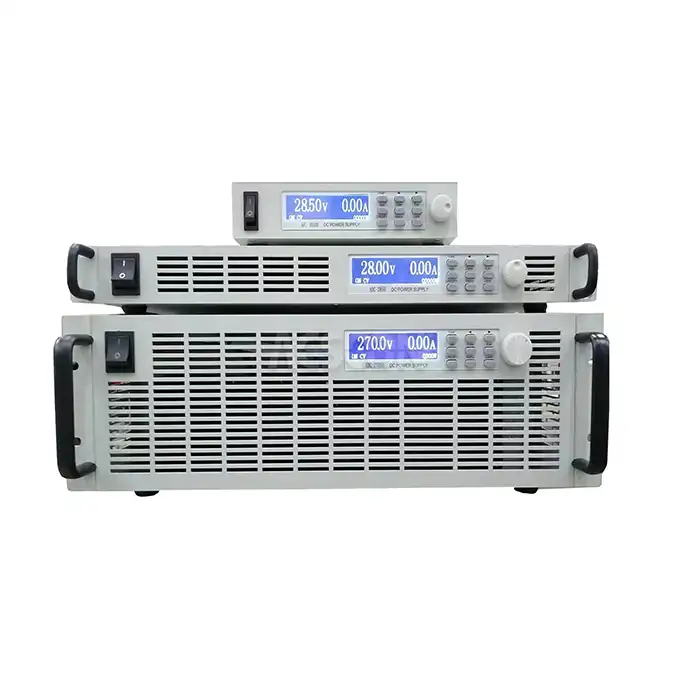

High-Efficiency DC Power System

1.Power Output: 0-600VDC / 0-500A (high-efficiency operation)
2. Technology: High-frequency switching with active PFC
3.Input: 3-phase 380VAC ±10%, 50/60Hz
4. Efficiency: ≥94% at full load operation
5. Key Applications: Telecom equipment, data centers, industrial controls
6.Key Features: High efficiency design; low power consumption; compact size; remote monitoring
7. Ingress Protection Grade: IP21/54
8. Brand: ACSOON (custom configurations available).

Send Inquiry Download

Product Description

High-Efficiency DC Power System | Energy Saving Power Supply

XI'AN JERRYSTAR INSTRUMENT CO., LTD manufactures advanced high-efficiency DC power systems for applications where energy savings and operational economy are critical. Our systems combine excellent performance with outstanding energy efficiency, providing reliable DC power while minimizing operational costs and power consumption for various industrial and commercial applications.

Technical Specifications

Feature	Specification
Input	Single Phase or Three Phase + N + PE
Input Voltage	220VAC (L-N) ±10%; 380VAC (L-L) ±10%, or customized
Input Frequency	50HZ/60HZ
Output Voltage	0 - Nominal Voltage adjustable
DC Output Options	12V, 15V, 24V, 30V, 50V, 60V, 100V, 150V, 300V, 600V, or customized
Current	0 - Nominal Current adjustable, with current limiting control
Current Range	1A to 1000A, or customized
Voltage Stability	≤ 0.5% Nominal (line and load regulation)
Ripple (RMS)	≤ 0.5% Nominal Value
Control Interface	Modbus Protocol RS232 (RS485)
Display Accuracy	Voltage: Four and a half VFD, Resolution > 0.1V Current: Four and a half VFD, Resolution > 0.1A
Protection Features	Input phase loss, Output overvoltage, Overload current limiting, Short circuit, Over temperature
Cooling Method	Air forced fan
IP Rating	IP20 (Customizable)
Working Temperature	-10°C to 45°C
Standards Compliance	EN61000-6-3 & EN60204-1

ACSOON High-Efficiency DC Power System Performance feature

Over current protection: Output nominal current overload protection
Short circuit protection: Allowing long-term short-circuit or short-circuit start-up in any state
Short circuit alarm: when the output short circuit, the unit sound and light alarm
Output display:LCD digital display, displaying voltage, current and power meters
Pulse operation: DC pulse power supply with time controller (optional)
Interface: It can be communicated with PC through RS232, RS485,support SCPI protocol

Why Choose ACSOON High-Efficiency DC Power Systems?

ACSOON delivers superior energy efficiency and performance:

Energy Saving: ≥94% efficiency reduces operating costs

Reliable Operation: Stable performance under varying conditions

Compact Design: Space-saving configuration

Low Heat Generation: Reduced cooling requirements

Cost Effective: Lower electricity consumption

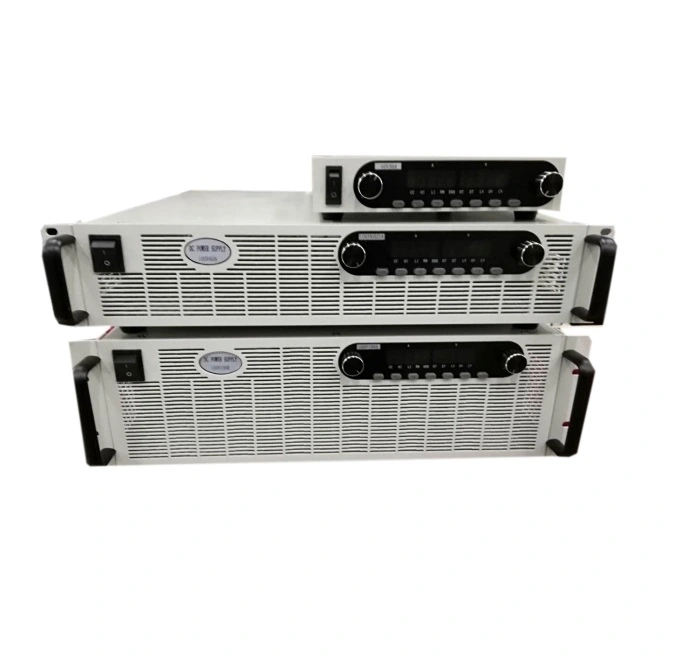

Application Areas

Our high-efficiency DC power systems are essential for:

Telecom Infrastructure: Base station power systems

Data Centers: Server and network equipment

Industrial Control: Automation system power

Commercial Equipment: Business system power

Medical Devices: Medical equipment power

Test Systems: Laboratory equipment power

Security Systems: Surveillance equipment power

Office Equipment: Commercial office applications

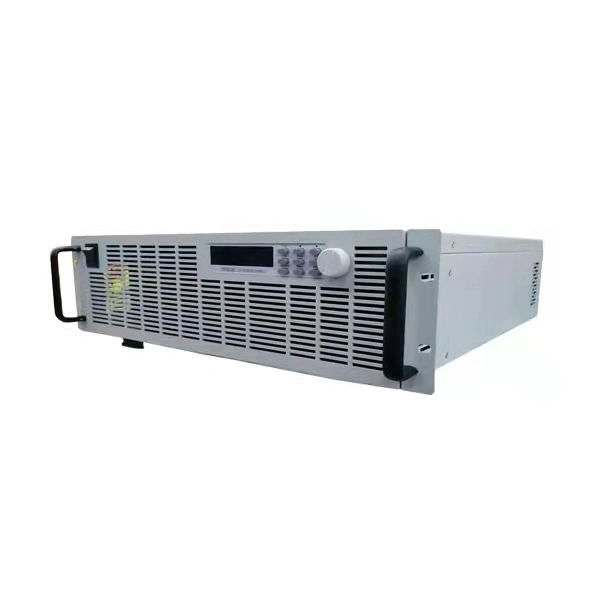

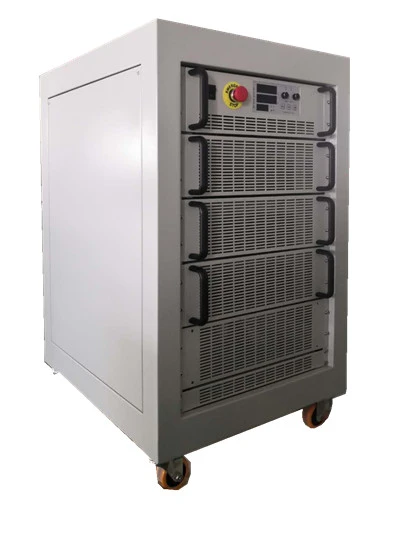

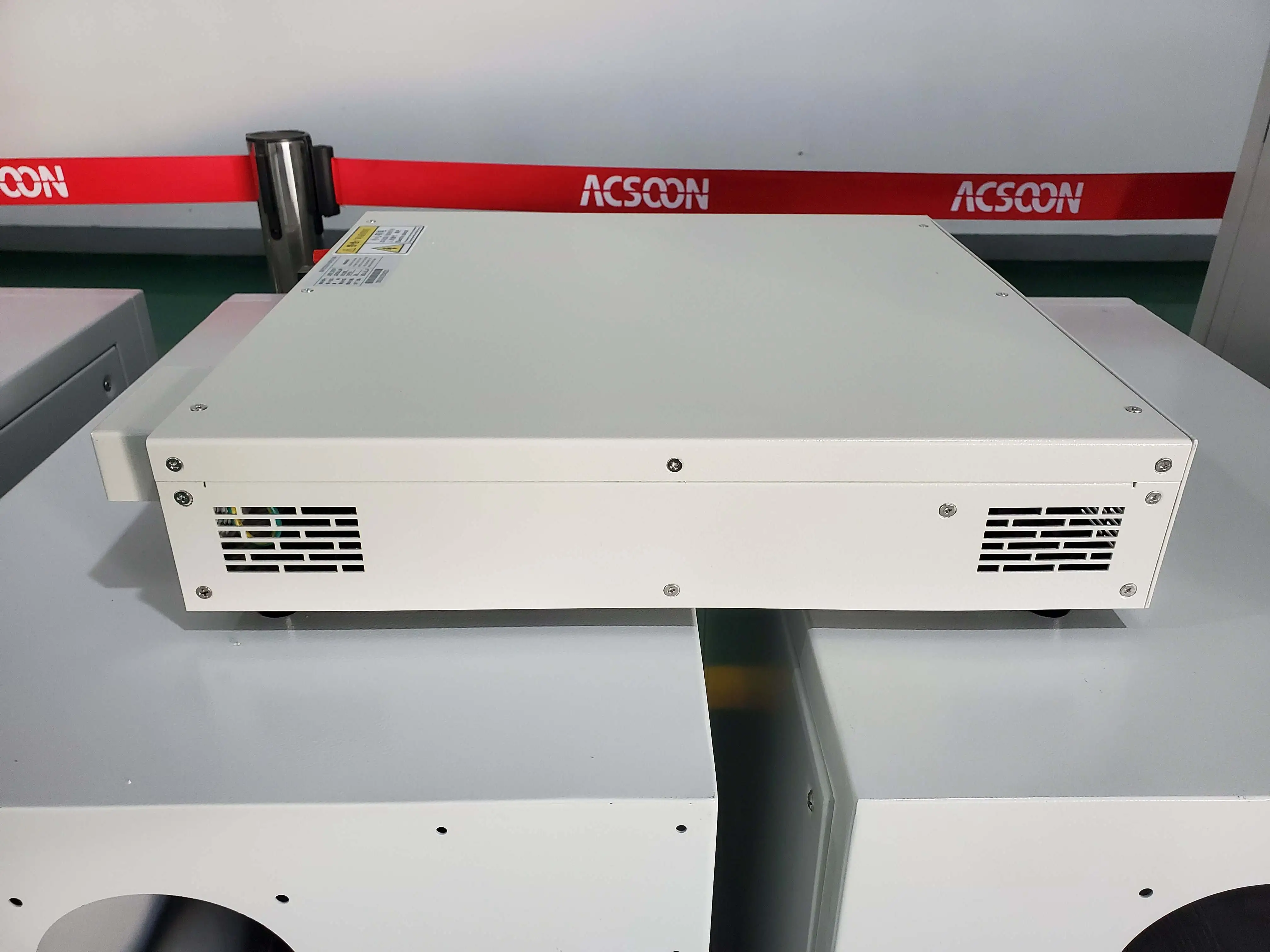

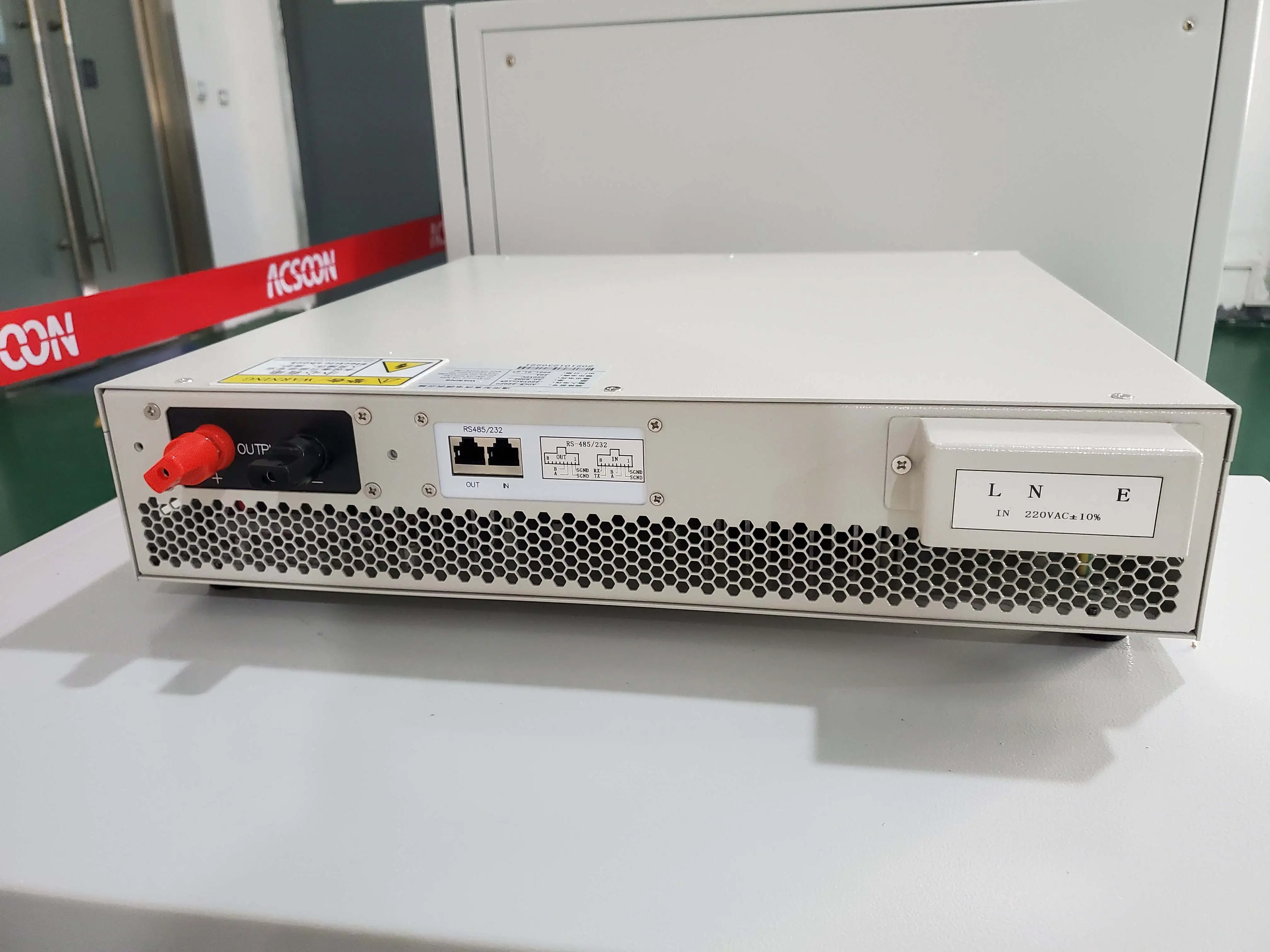

Details display

Quality Assurance

Each high-efficiency DC power system undergoes rigorous testing:

Efficiency performance verification

Thermal performance testing

Load regulation testing

Safety standard compliance

Reliability validation

Technical Features

Our high-efficiency DC power system incorporates:

Advanced switching technology

Active power factor correction

Efficient thermal management

Protection circuitry

Monitoring systems

Packaging and Delivery

We ensure efficient packaging:

Protective packaging materials

Careful handling procedures

Worldwide shipping services

Installation guidance

After-Sales Service

Efficient support package includes:

Technical support services

Maintenance programs

Repair services

Training programs

Parts supply

Certifications

CE Certification

ISO Certification

FAQ
Q1: What are the main benefits of high-efficiency DC power systems?
A: Energy savings, reduced operating costs, and reliable performance.
Q2: How much energy can be saved?
A: ≥94% efficiency significantly reduces power consumption.
Q3: What applications are most suitable?
A: Continuous operation applications where energy costs are important.
Q4: How is high efficiency achieved?
A: Through advanced switching technology and optimized design.
Q5: Are custom efficient solutions available?
A: Yes, we offer customized high-efficiency solutions.
