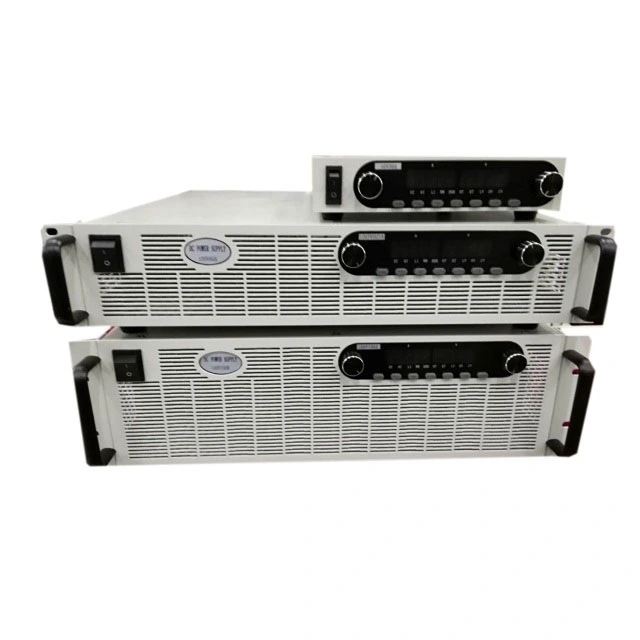

High Power DC Supply System

1.Power Output: 0-600VDC / 0-2000A (heavy-duty applications)
2. Technology: IGBT high-frequency switching with DSP control
3.Input: 3-phase 380VAC ±10%, 50/60Hz
4. Regulation: Voltage stability ≤±0.5% FS, Current stability ≤±0.5% FS
5. Key Applications: Industrial heating, electrolysis, plating, research facilities
6. Key Features: Robust industrial design; high power density; remote control; MODBUS communication
7. Ingress Protection Grade: IP21
8. Brand: ACSOON (OEM/ODM services available).

Send Inquiry Download

Product Description

High Power DC Supply System | Heavy-Duty Industrial Power

XI'AN JERRYSTAR INSTRUMENT CO., LTD manufactures reliable high power DC supply systems for demanding industrial applications. Designed for heavy-duty operation, our systems provide stable high-current DC power for industrial processes, manufacturing operations, and large-scale testing applications requiring robust and reliable power solutions.

Technical Specification

Feature	Specification
Input	Single Phase or Three Phase + N +PE
	220VAC (L-N)±10%; 380Vac(L-L)±10%, or customized
	Frequency: 50HZ/60HZ
Output Voltage	0- Nominal Voltage adjustable
	DC 12V, 15V, 24V, 30V, 50V, 60V, 100V, 150V, 300V, 600V or customized
Current	0- Nominal Current adjustable, with current limiting control
	1A to 1000A or customized
Voltage Stability	Line regulation ≤ 0.5% Nominal
	Load regulation ≤ 0.5% Nominal
Ripple (rms)	RMS ≤ 0.5% Nominal Value
Power Control	Potentiometer switch knobs, 1-byte resolution adjustment
Interface	Modbus Protocol RS232 (RS485), PC control for voltage/current setting and on/off
Display Accuracy	Voltage: Four and a half VFD, Resolution > 0.1V
	Current: Four and a half VFD, Resolution > 0.1A
Protection	Input phase loss, Output overvoltage, Overload current limiting, Short circuit, Over temperature
Cooling	Air forced fan
IP Rating	IP20 (Customizable)
Color	RAL7035
Working Temp.	-10℃ to 45℃
Standards	EN61000-6-3 & EN60204-1

ACSOON High Power DC Supply System Performance feature

Output display:LCD digital display, displaying voltage, current and power meters
Pulse operation: DC pulse power supply with time controller (optional)
Interface: It can be communicated with PC through RS232, RS485,support SCPI protocol
Analog inputs/Optional: The user can use 0~5V,0~ 10V or 4~ 20mA signal to control output current and output voltage of the units via analog inputs, the output of the units can be turned on / off remotely via analog inputs (See below image of analog inputs)

Why Choose ACSOON High Power DC Supply Systems?

ACSOON delivers industrial-grade performance and reliability:

High Power Capacity: Up to 2000A output for demanding applications
Robust Construction: Industrial-grade components for continuous operation
Advanced Control: Digital interface with MODBUS communication
High Efficiency: ≥93% efficiency with active power factor correction
Comprehensive Protection: Multi-layer protection for safe operation

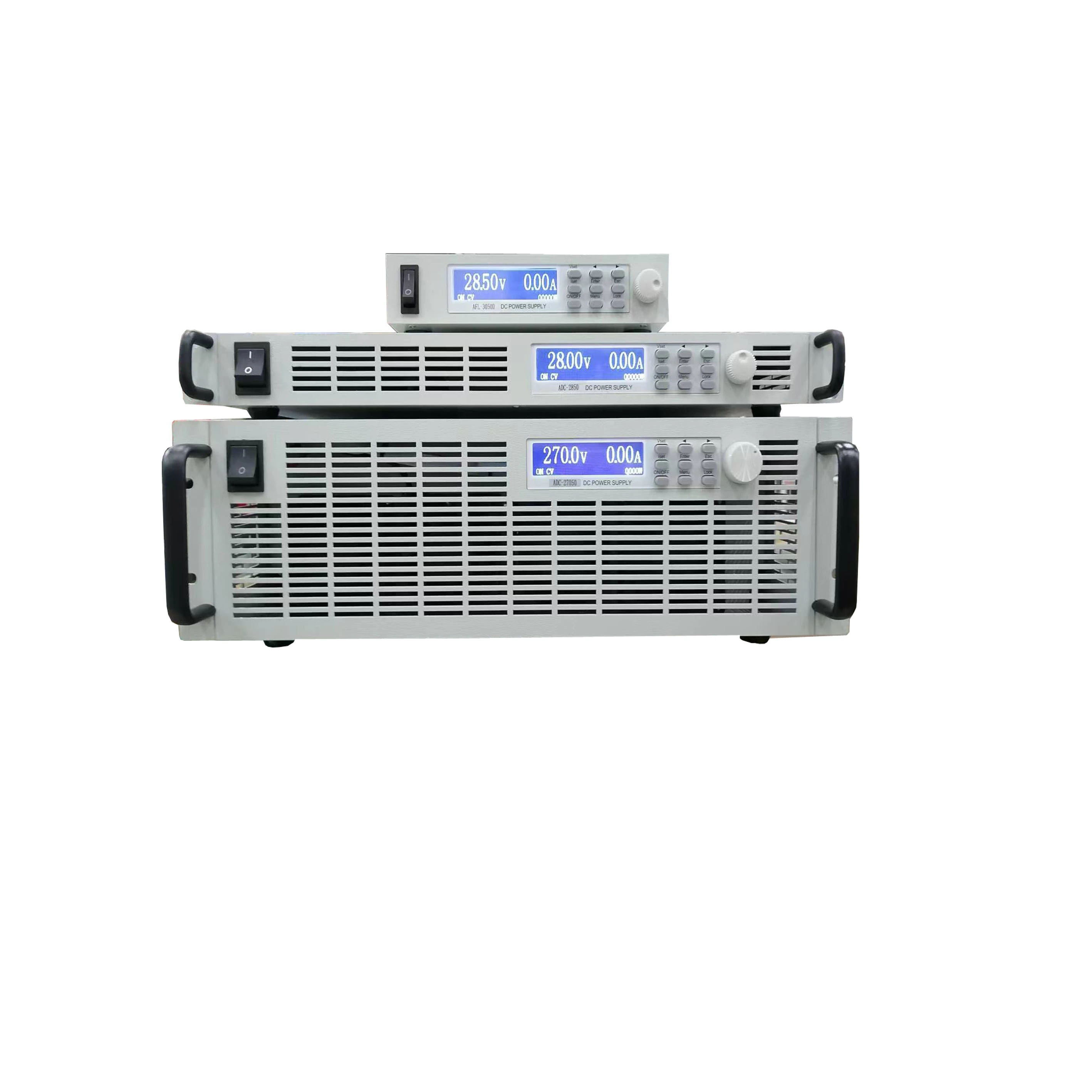

Application Areas

Our high power DC supply systems are essential for:

Industrial Heating: Resistance heating and furnace applications
Electrolysis Processes: Large-scale electrolysis operations
Plating Industry: High-current electroplating processes
Research Facilities: Large-scale experimental setups
Manufacturing: Industrial process power supply
Water Treatment: Electrochemical treatment systems
Energy Storage: Battery formation and testing
Automotive: High-power component testing

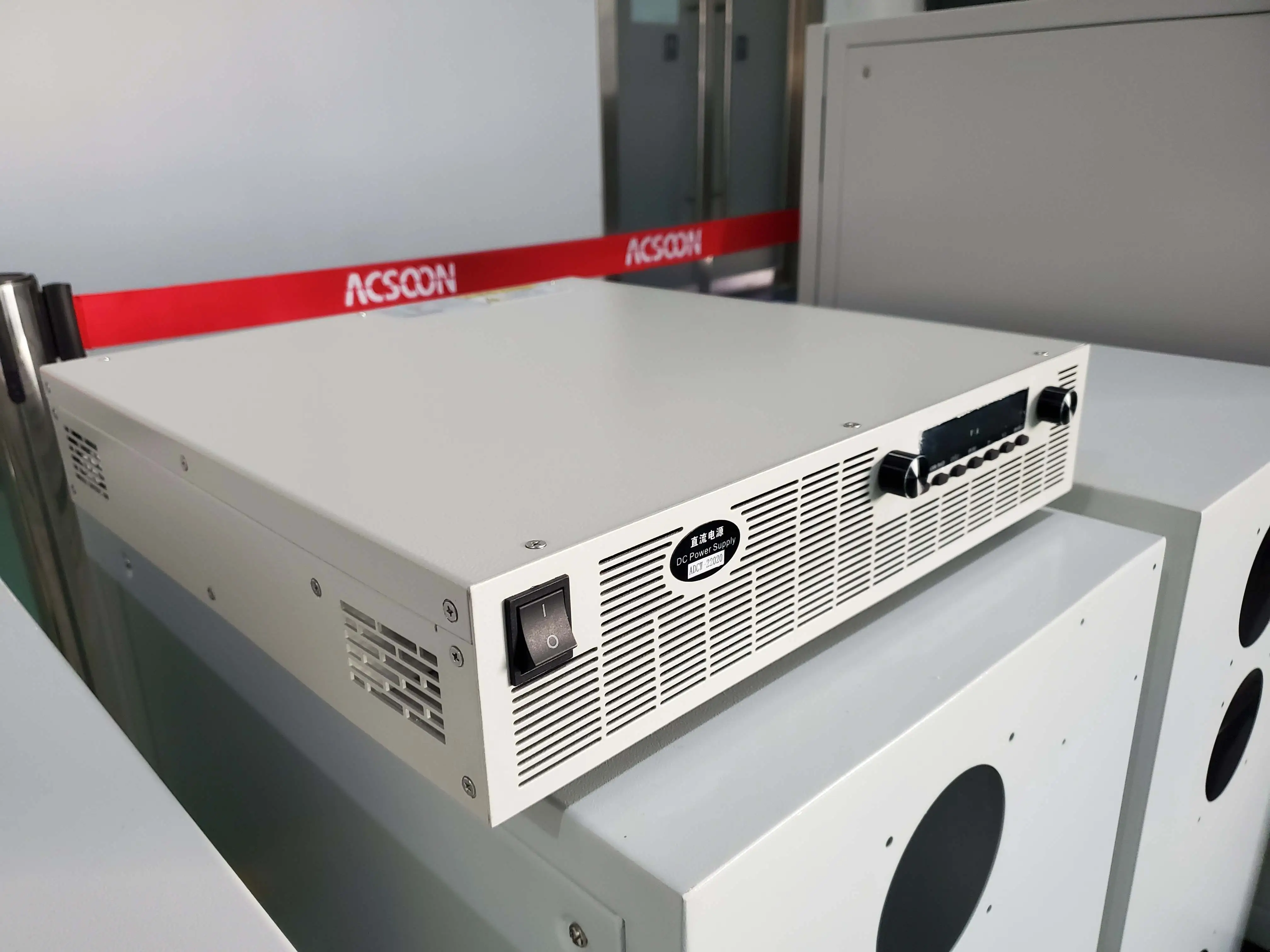

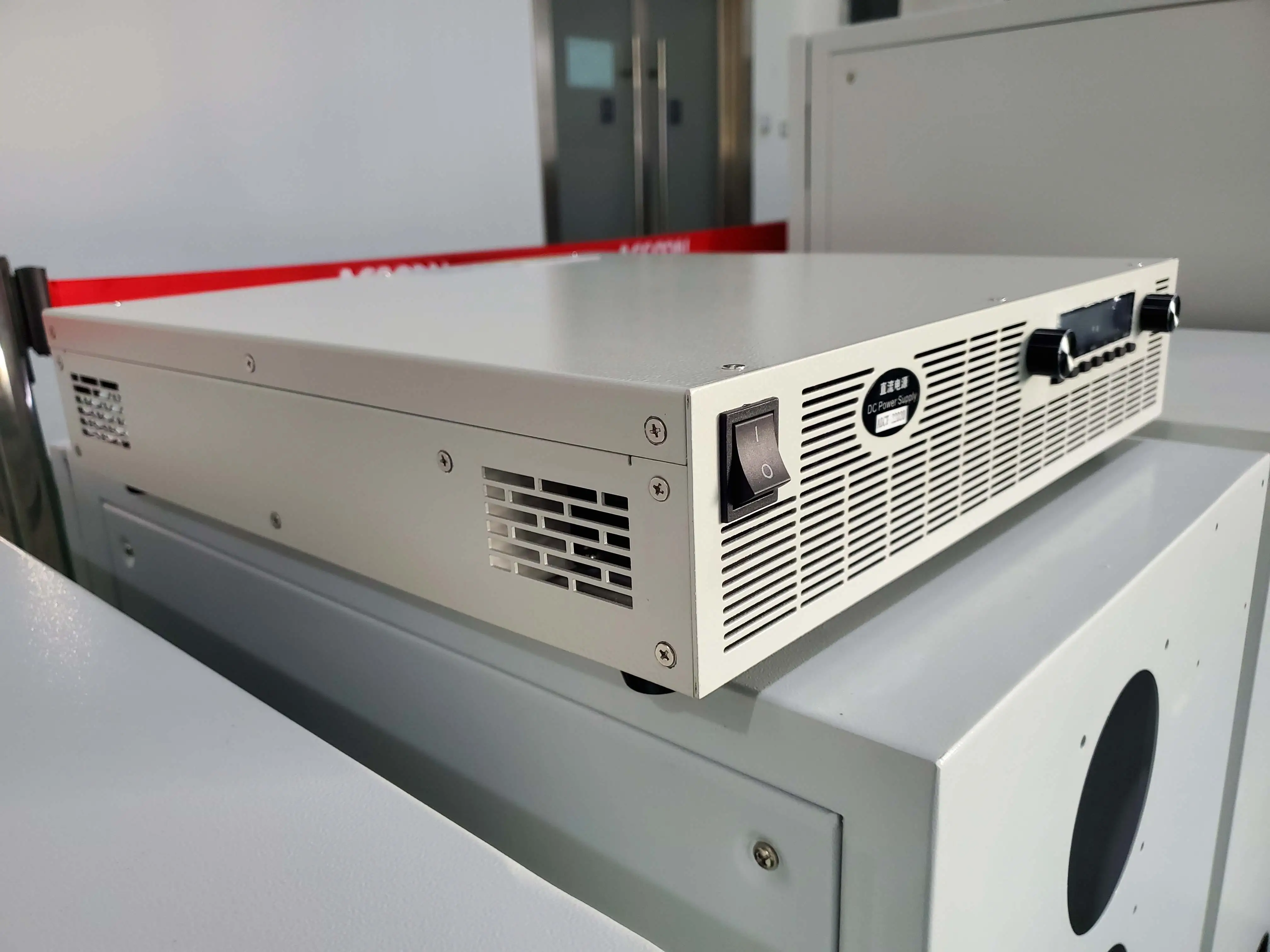

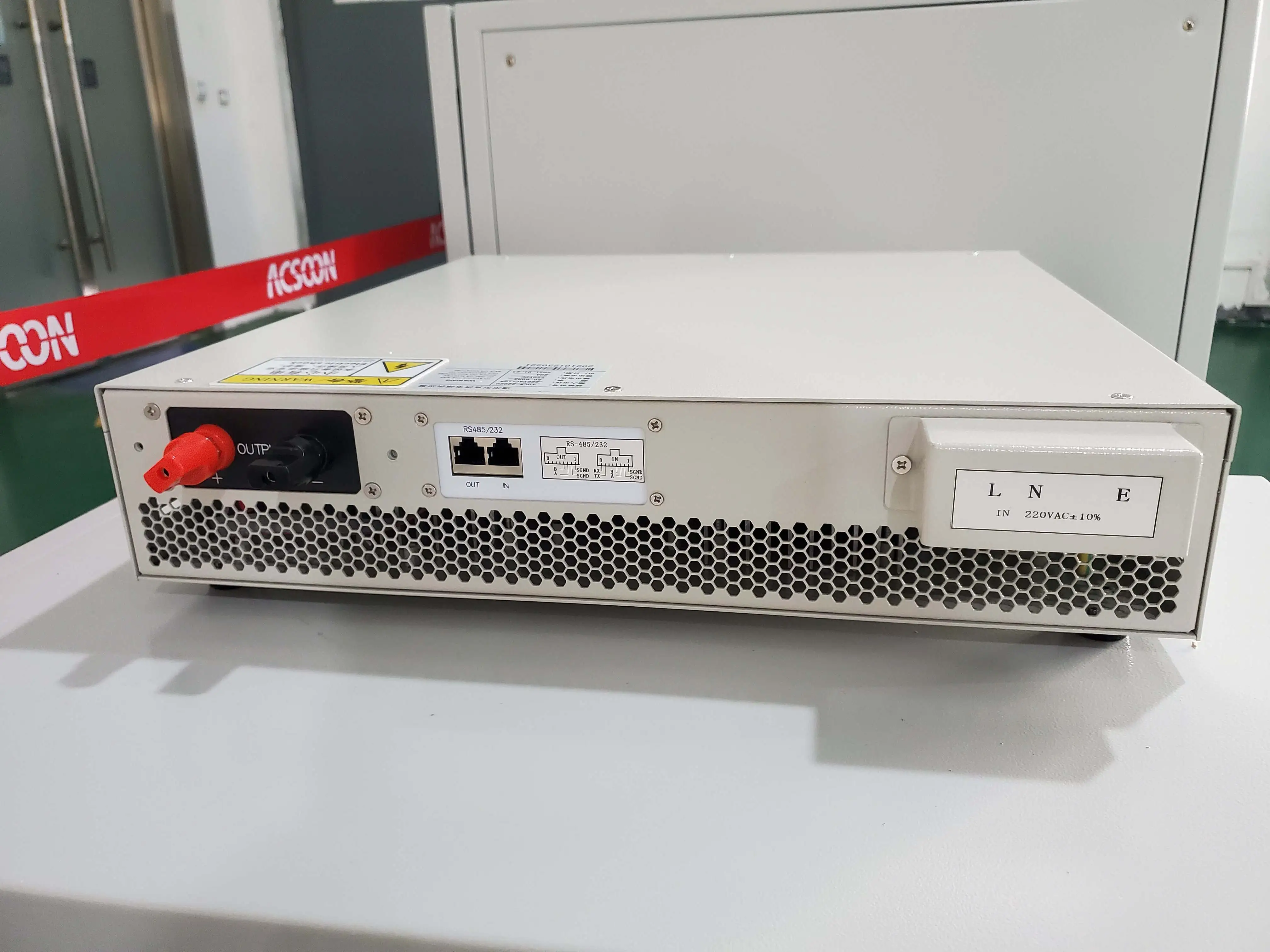

Details display

Quality Assurance

Each high power DC supply system undergoes rigorous validation:

96-hour continuous full-load testing
Thermal performance verification
Environmental stress testing
Safety standard compliance testing
Final calibration and certification

Technical Features

Our high power DC supply system incorporates:

IGBT high-frequency technology
Advanced thermal management
MODBUS communication protocol
Comprehensive protection circuitry
User-friendly control interface

Packaging and Delivery

We ensure secure industrial packaging:

Heavy-duty protective packaging
Professional installation guidance
Worldwide shipping coordination
On-site commissioning support

After-Sales Service

Comprehensive support package includes:

24/7 technical support
Preventive maintenance programs
Emergency repair services
Operator training programs
Global spare parts network

Certifications

CE Certification

ISO Certification

FAQ
Q1: What applications require a high power DC supply system?
A: Industrial processes requiring high current DC power, such as electrolysis, plating, and large-scale heating applications.
Q2: Can the system operate continuously at full capacity?
A: Yes, our systems are designed for continuous full-load operation with proper cooling.
Q3: What communication interfaces are available?
A: Standard MODBUS/RS485 interfaces for industrial automation integration.
Q4: How is heat dissipation managed?
A: Advanced forced air cooling with temperature-controlled fans ensures optimal thermal performance.
Q5: Do you provide custom solutions for specific industrial processes?
A: Yes, we offer customized designs to meet specific application requirements.
