Precision Laboratory DC Power Supply

1.Model: GPU-330080
2. Power Rating: 80kVA
3. Input Voltage & Frequency: 3 Phase 380V, 60HZ
4. Output Voltage & Frequency: 3×200V, 400HZ
5. Type: Solid state GPU, floor mounted
6. Ingress Protection Grade: IP21
7. Applications: aviation R&D and military equipment
8. Brand: ACSOON (support OEM)
9. Features: multiple history events memorized in record.

Send Inquiry Download

Product Description

Precision Laboratory DC Power Supply | Accurate DC Power Source

XI'AN JERRYSTAR INSTRUMENT CO., LTD manufactures high-precision precision laboratory DC power supplies for demanding research and measurement applications. Our systems provide exceptionally accurate and stable DC power for laboratory experiments, calibration procedures, and precision testing requirements where measurement accuracy is paramount.

Technical Specifications

Feature	Specification
Input	Single Phase or Three Phase + N +PE
	220VAC (L-N)±10%; 380Vac(L-L)±10%, or customized
	Frequency: 50HZ/60HZ
Output Voltage	0- Nominal Voltage adjustable
	DC 12V, 15V, 24V, 30V, 50V, 60V, 100V, 150V, 300V, 600V or customized
Current	0- Nominal Current adjustable, with current limiting control
	1A to 1000A or customized
Voltage Stability	Line regulation ≤ 0.5% Nominal
	Load regulation ≤ 0.5% Nominal
Ripple (rms)	RMS ≤ 0.5% Nominal Value
Power Control	Potentiometer switch knobs, 1-byte resolution adjustment
Interface	Modbus Protocol RS232 (RS485), PC control for voltage/current setting and on/off
Display Accuracy	Voltage: Four and a half VFD, Resolution > 0.1V
	Current: Four and a half VFD, Resolution > 0.1A
Protection	Input phase loss, Output overvoltage, Overload current limiting, Short circuit, Over temperature
Cooling	Air forced fan
IP Rating	IP20 (Customizable)
Color	RAL7035
Working Temp.	-10℃ to 45℃
Standards	EN61000-6-3 & EN60204-1

ACSOON Precision Laboratory DC Power Supply Performance feature

Over current protection: Output nominal current overload protection
Short circuit protection: Allowing long-term short-circuit or short-circuit start-up in any state
Short circuit alarm: when the output short circuit, the unit sound and light alarm
Output display:LCD digital display, displaying voltage, current and power meters
Pulse operation: DC pulse power supply with time controller (optional)

Why Choose ACSOON Precision Laboratory DC Power Supplies?

ACSOON delivers exceptional accuracy for laboratory applications:

Measurement Grade: ±0.1% voltage and current accuracy
Low Noise: Clean output for sensitive measurements
Precision Control: Fine adjustment capability
Stable Performance: Excellent line and load regulation
Advanced Interfaces: Multiple control options available

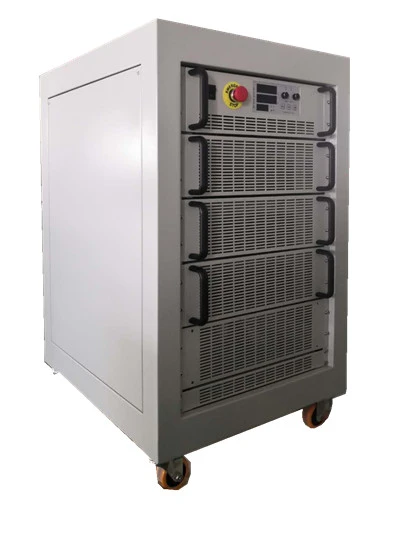

Application Areas

Our precision laboratory DC power supplies are essential for:

Research Laboratories: Scientific experiments
Calibration Labs: Reference standard applications
University Labs: Educational research
Metrology: Precision measurements
Quality Control: High-accuracy testing
Development: Prototype testing
Manufacturing: Precision production testing
Service: Equipment calibration

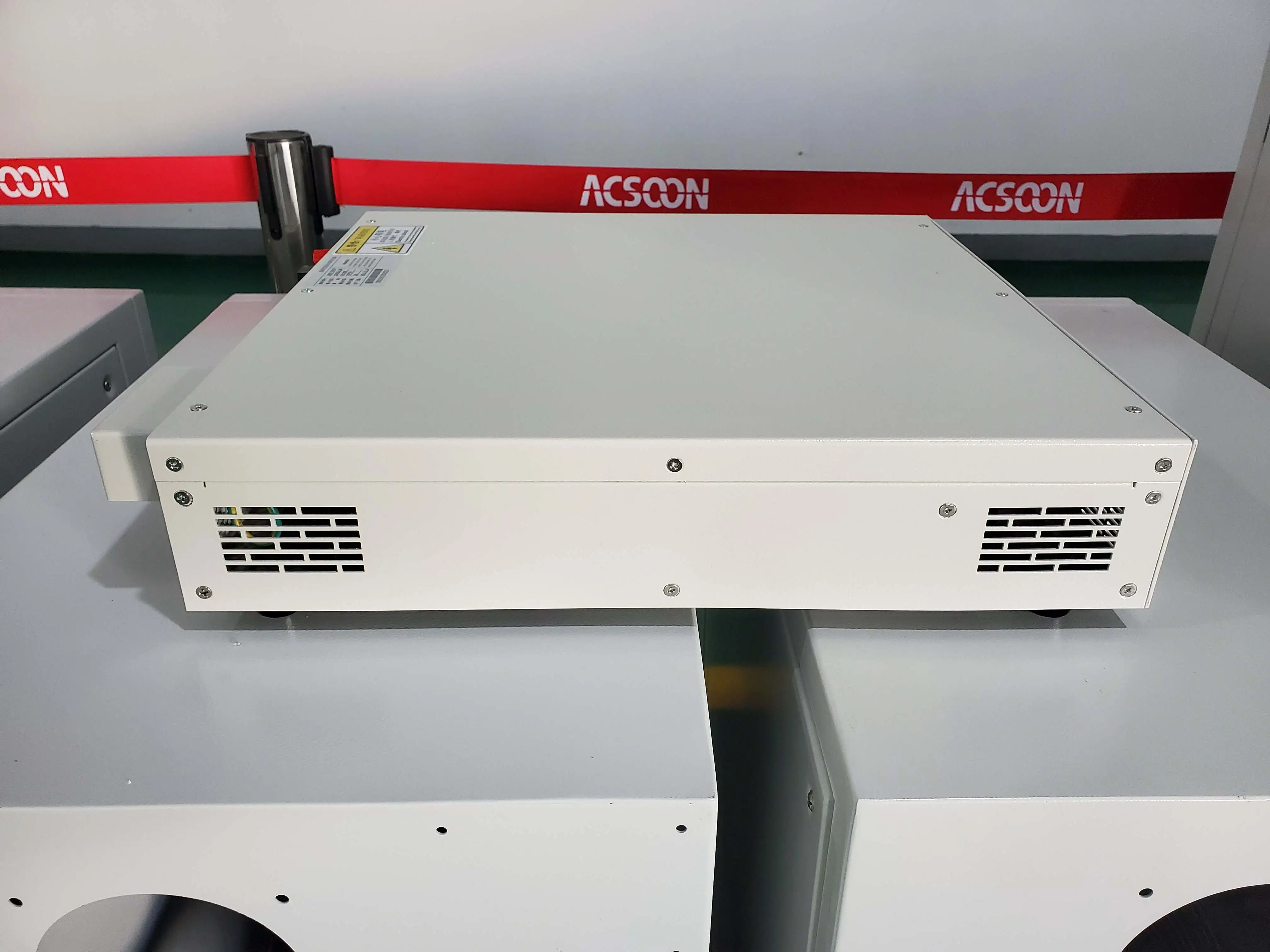

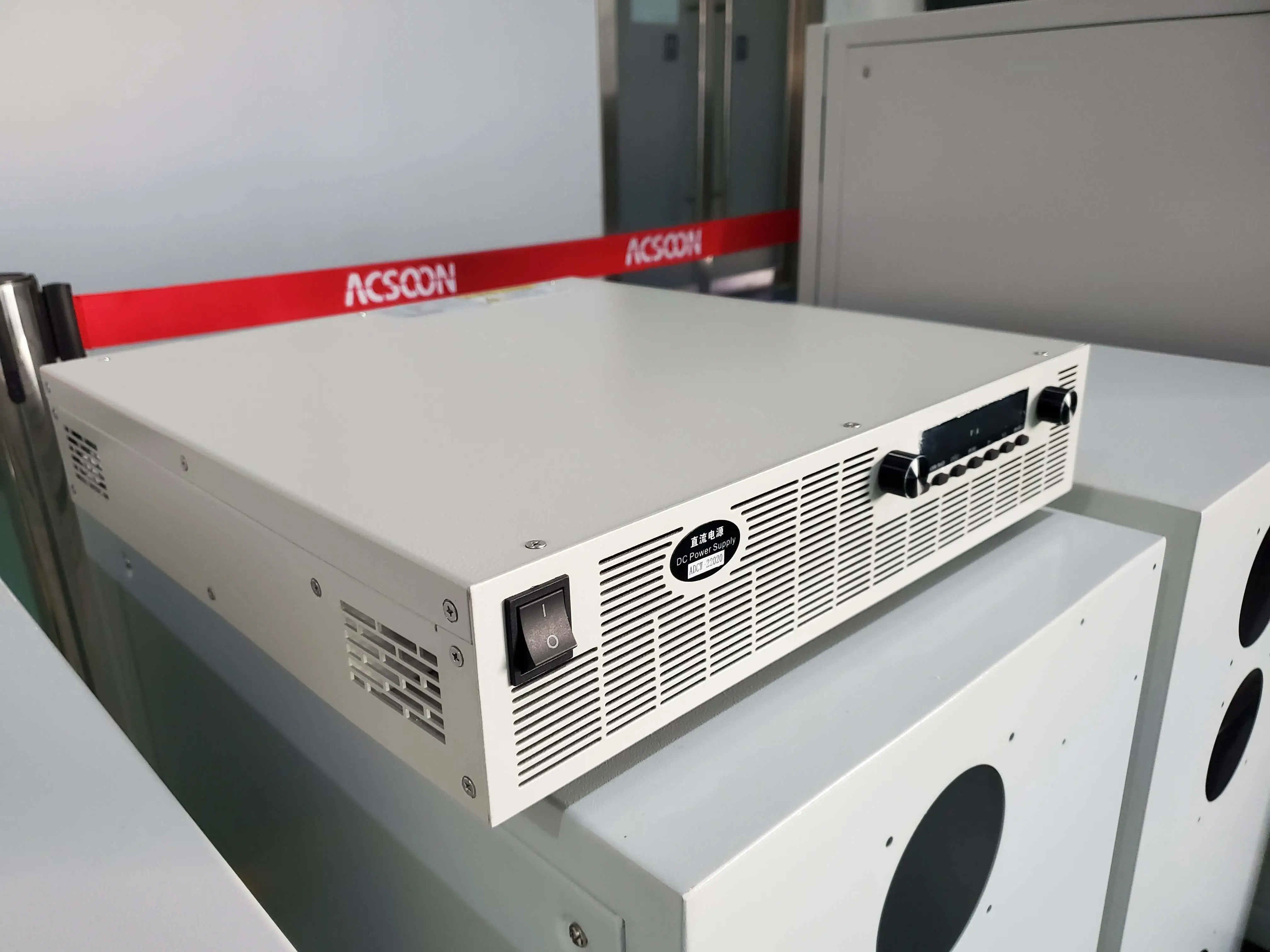

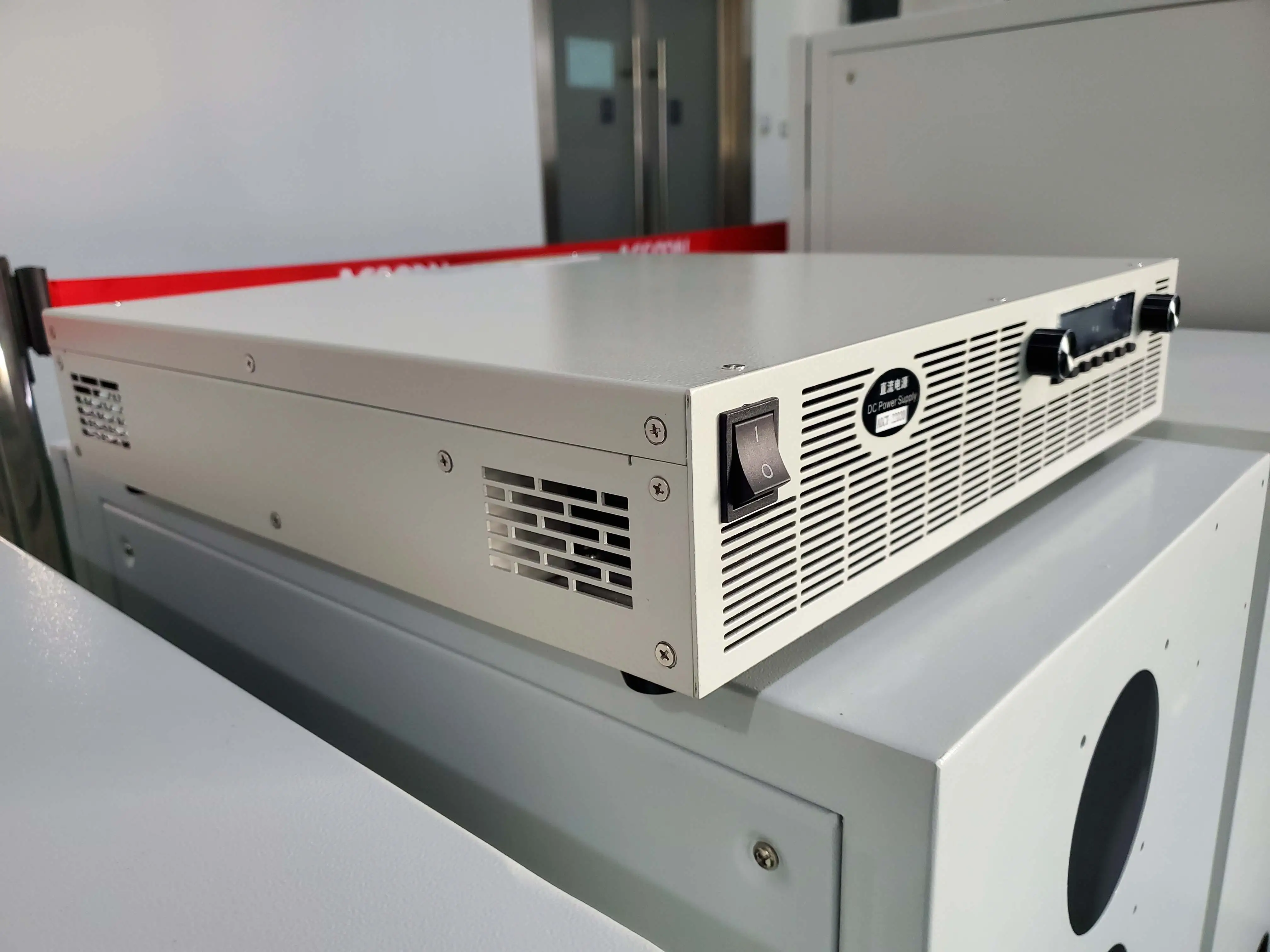

Details display

Quality Assurance

Each precision laboratory DC power supply undergoes stringent testing:

Accuracy verification testing
Stability performance validation
Noise level measurement
Environmental testing
Calibration certification

Technical Features

Our precision laboratory DC power supply incorporates:

Precision reference circuitry
Low noise design
Multi-stage programming
Monitoring capabilities
Protection systems

Packaging and Delivery

We ensure precision packaging:

Protective packaging materials
Careful handling procedures
Calibration certificates included
Installation guidance

After-Sales Service

Precision support package includes:

Calibration services
Technical support
Maintenance services
Training programs
Parts support

Certifications

CE Certification

ISO Certification

FAQ
Q1: What makes precision laboratory DC power supplies different?
A: High accuracy, low noise, and stable performance for precision applications.
Q2: How accurate is the output?
A: ±0.1% accuracy for both voltage and current.
Q3: What interfaces are available?
A: GPIB, RS232, and other laboratory interfaces.
Q4: Can the system be calibrated?
A: Yes, with traceable calibration certificates.
Q5: What applications require this precision?
A: Research, calibration, and precision measurement applications.
