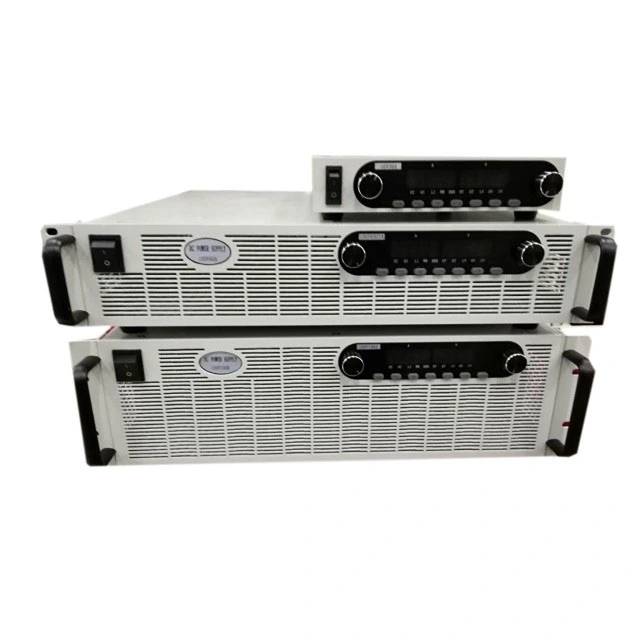

Regulated DC Power System

1.Power Output: 0-600VDC / 0-300A (stable output)
2.Technology: High-frequency PWM with voltage feedback
3.Input: 3-phase 380VAC ±10%, 50/60Hz
4. Regulation: Voltage stability ≤±0.5%, Current stability ≤±0.5%
5. Key Applications: Battery charging, laboratory use, electronic testing
6. Key Features: Stable output; precise regulation; overload protection; digital display
7.Ingress Protection Grade: IP21/54
8. Brand: ACSOON (custom solutions available)

Send Inquiry Download

Product Description

Regulated DC Power System | Stable DC Power Supply

XI'AN JERRYSTAR INSTRUMENT CO., LTD manufactures reliable regulated DC power systems for applications requiring stable and precise DC power. Our systems provide well-regulated DC output for battery charging, laboratory testing, and electronic equipment, ensuring consistent performance and reliable operation for various DC power needs.

Technical Specifications

Feature	Specification
Input	Single Phase or Three Phase + N +PE
	220VAC (L-N)±10%; 380Vac(L-L)±10%, or customized
	Frequency: 50HZ/60HZ
Output Voltage	0- Nominal Voltage adjustable
	DC 12V, 15V, 24V, 30V, 50V, 60V, 100V, 150V, 300V, 600V or customized
Current	0- Nominal Current adjustable, with current limiting control
	1A to 1000A or customized
Voltage Stability	Line regulation ≤ 0.5% Nominal
	Load regulation ≤ 0.5% Nominal
Ripple (rms)	RMS ≤ 0.5% Nominal Value
Power Control	Potentiometer switch knobs, 1-byte resolution adjustment
Interface	Modbus Protocol RS232 (RS485), PC control for voltage/current setting and on/off
Display Accuracy	Voltage: Four and a half VFD, Resolution > 0.1V
	Current: Four and a half VFD, Resolution > 0.1A
Protection	Input phase loss, Output overvoltage, Overload current limiting, Short circuit, Over temperature
Cooling	Air forced fan
IP Rating	IP20 (Customizable)
Color	RAL7035
Working Temp.	-10℃ to 45℃
Standards	EN61000-6-3 & EN60204-1

ACSOON Regulated DC Power System Performance feature

Short circuit alarm: when the output short circuit, the unit sound and light alarm
Output display:LCD digital display, displaying voltage, current and power meters
Pulse operation: DC pulse power supply with time controller (optional)
Interface: It can be communicated with PC through RS232, RS485,support SCPI protocol
Analog inputs/Optional: The user can use 0 ~ 5V, 0 ~ 10V or 4 ~ 20mA signal to control output current and output voltage of the units via analog inputs, the output of the units can be turned on / off remotely via analog inputs (See below image of analog inputs)

Why Choose ACSOON Regulated DC Power Systems?

ACSOON delivers stable and dependable DC power:

Precise Regulation: Excellent voltage and current stability

Reliable Performance: Consistent output under varying conditions

User-Friendly: Clear digital display and simple controls

Safe Operation: Comprehensive protection features

Versatile Application: Suitable for various DC power needs

Application Areas

Our regulated DC power systems are essential for:

Battery Charging: Various battery types and applications

Laboratory Use: Research and experimentation

Electronic Testing: Component and circuit testing

Educational Use: Student experiments and demonstrations

Service Work: Equipment repair and maintenance

Industrial Control: DC motor and control circuits

Communications: Telecom equipment power

Research Projects: Scientific research applications

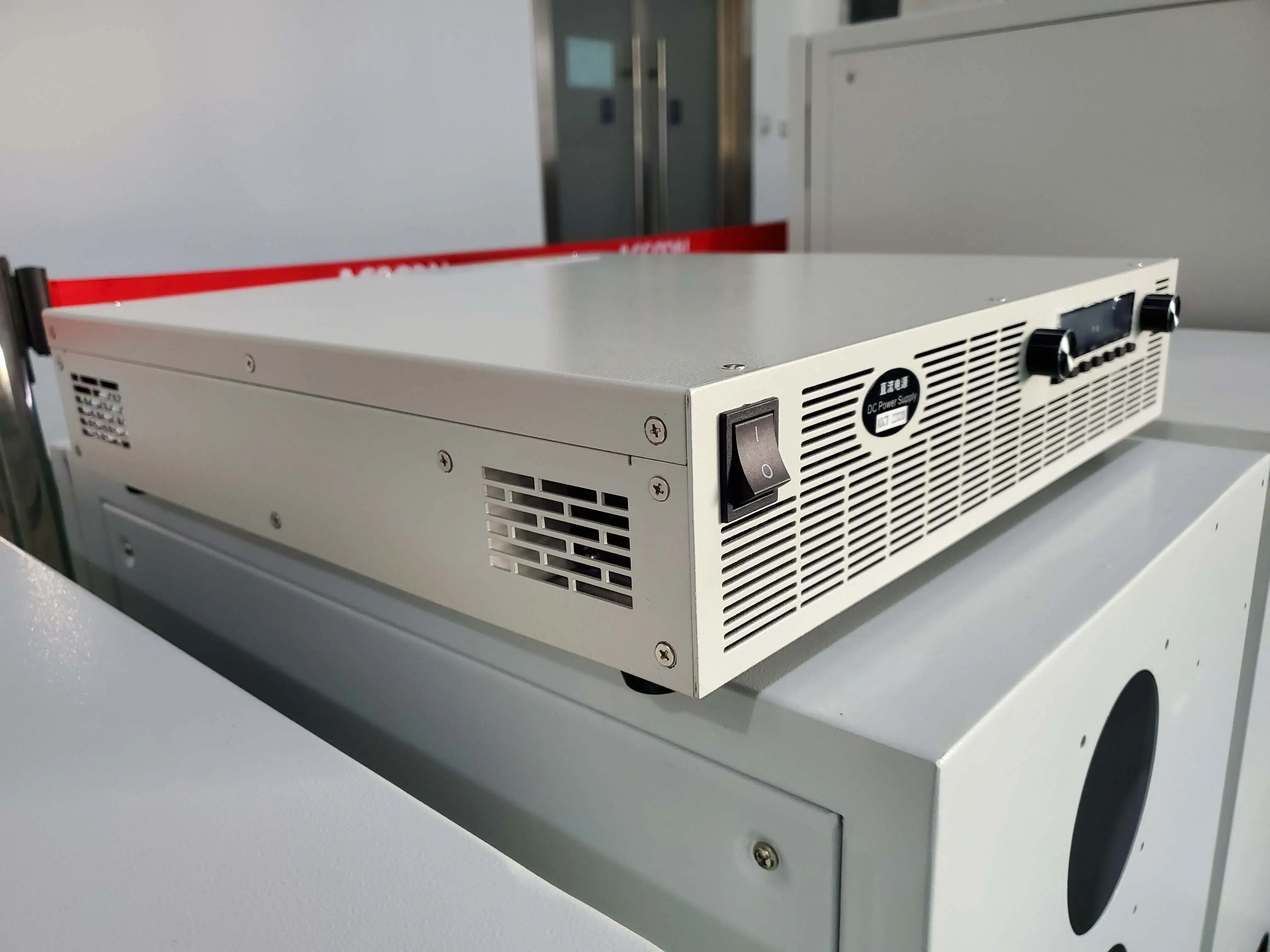

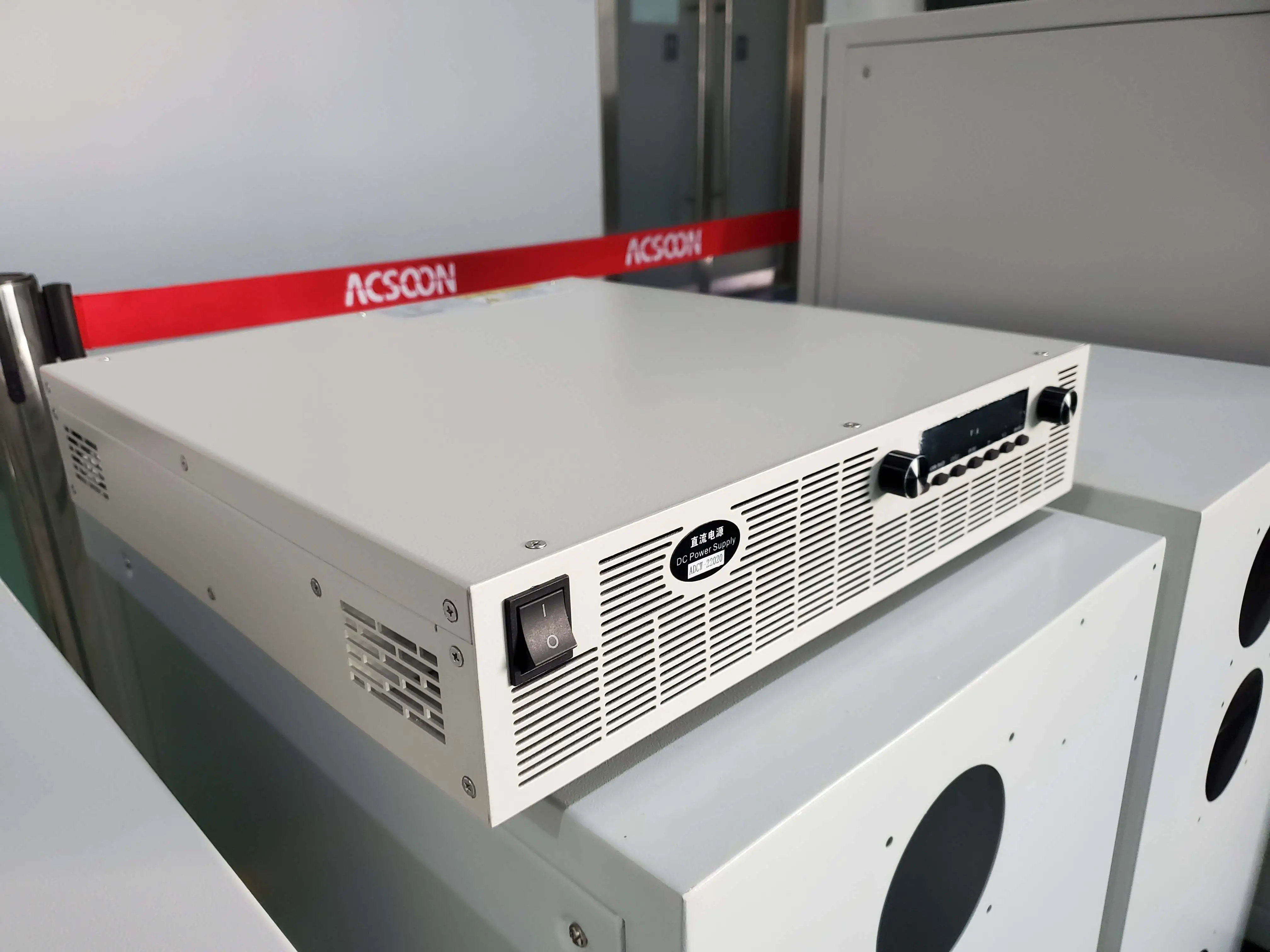

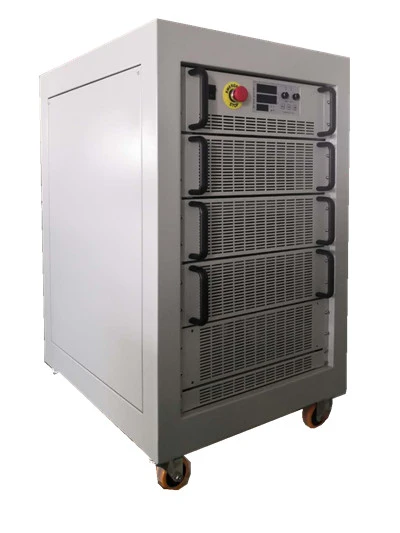

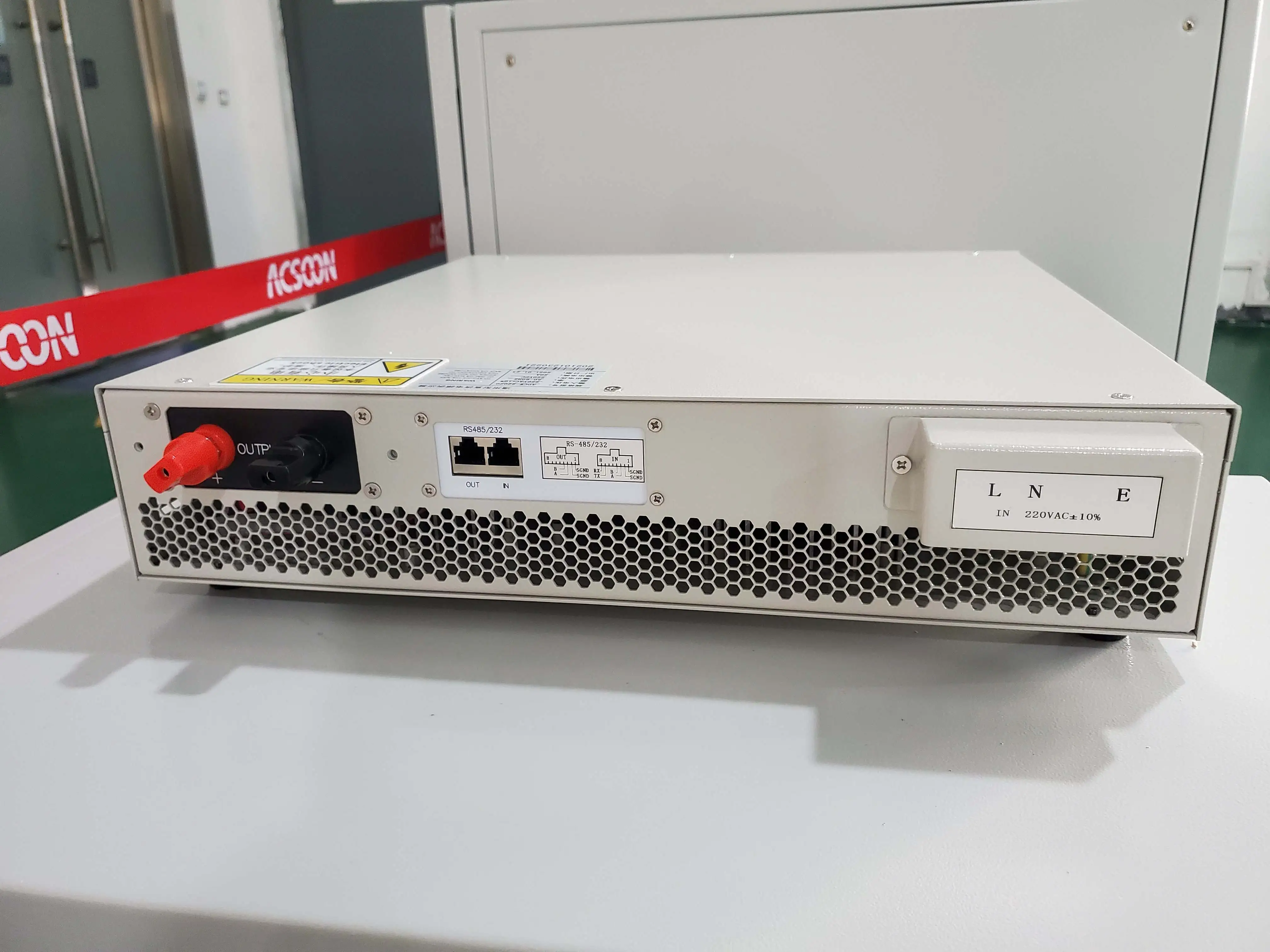

Details display

Quality Assurance

Each regulated DC power system undergoes strict testing:

Output stability verification

Load regulation testing

Temperature performance testing

Safety standard compliance

Reliability validation

Technical Features

Our regulated DC power system incorporates:

Advanced regulation technology

Precision voltage reference

Overload protection circuitry

Thermal management system

User-friendly interface

Packaging And Delivery

Packaging and Delivery

We ensure proper packaging:

Protective packaging materials

Careful handling procedures

Reliable shipping methods

Installation guidance provided

After-Sales Service

Comprehensive support includes:

Technical consultation

Maintenance guidance

Repair services

Operational training

Parts support

After-Sales Service

Certifications

CE Certification

ISO Certification

FAQ
Q1: What are the main benefits of a regulated DC power system?
A: Stable output, precise regulation, and reliable performance for various applications.
Q2: What types of batteries can be charged?
A: Suitable for lead-acid, lithium-ion, and other common battery types.
Q3: How stable is the output voltage?
A: Excellent line and load regulation maintains stable output.
Q4: What protection features are included?
A: Overload, overvoltage, and thermal protection systems.
Q5: Can the system be used for continuous operation?
A: Yes, designed for reliable continuous operation.
