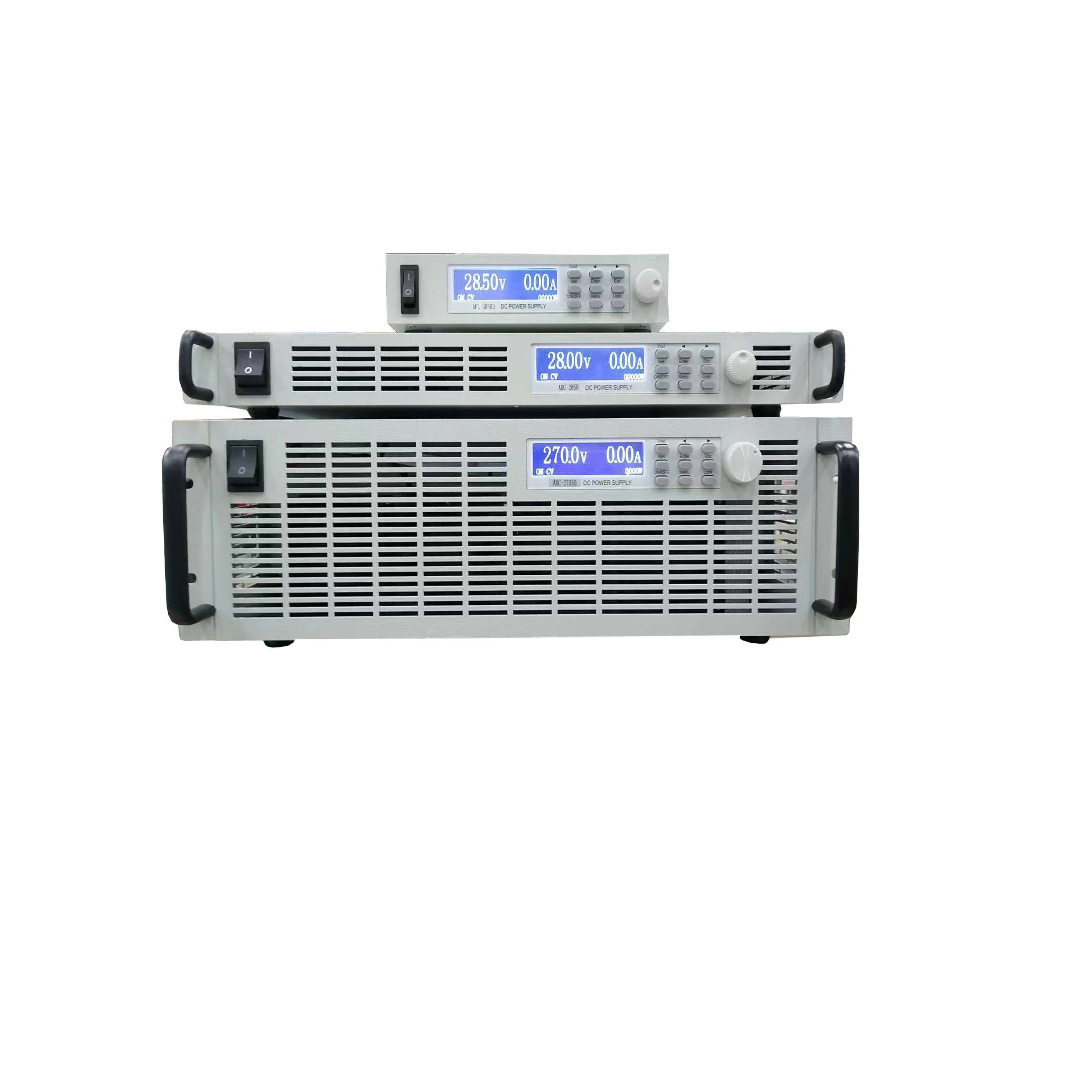

Remote Control DC Power Supply

1.Power Output: 0-600VDC / 0-500A (remote operation capable)
2. Technology: Network-enabled control system
3.Input: 3-phase 380VAC ±10%, 50/60Hz
4.Control: Remote operation via network
interfaces
5.Key Applications: Automated systems, remote locations, unmanned operations
6.Key Features: Remote monitoring; network control; data logging; multiple interfaces
7.Ingress Protection Grade: IP21/54
8.Brand: ACSOON (remote configurations available)

Send Inquiry Download

Product Description

Remote Control DC Power Supply | Network-Enabled DC Power

XI'AN JERRYSTAR INSTRUMENT CO., LTD manufactures advanced remote control DC power supplies for automated and remote operation requirements. Our systems provide comprehensive remote monitoring and control capabilities, enabling efficient power management from distant locations through network interfaces and advanced communication protocols.

Technical Specifications

Feature	Specification
Input	Single Phase or Three Phase + N +PE
	220VAC (L-N)±10%; 380Vac(L-L)±10%, or customized
	Frequency: 50HZ/60HZ
Output Voltage	0- Nominal Voltage adjustable
	DC 12V, 15V, 24V, 30V, 50V, 60V, 100V, 150V, 300V, 600V or customized
Current	0- Nominal Current adjustable, with current limiting control
	1A to 1000A or customized
Voltage Stability	Line regulation ≤ 0.5% Nominal
	Load regulation ≤ 0.5% Nominal
Ripple (rms)	RMS ≤ 0.5% Nominal Value
Power Control	Potentiometer switch knobs, 1-byte resolution adjustment
Interface	Modbus Protocol RS232 (RS485), PC control for voltage/current setting and on/off
Display Accuracy	Voltage: Four and a half VFD, Resolution > 0.1V
	Current: Four and a half VFD, Resolution > 0.1A
Protection	Input phase loss, Output overvoltage, Overload current limiting, Short circuit, Over temperature
Cooling	Air forced fan
IP Rating	IP20 (Customizable)
Color	RAL7035
Working Temp.	-10℃ to 45℃
Standards	EN61000-6-3 & EN60204-1

ACSOON Remote Control DC Power Supply Performance feature

Over current protection: Output nominal current overload protection
Short circuit protection: Allowing long-term short-circuit or short-circuit start-up in any state
Short circuit alarm: when the output short circuit, the unit sound and light alarm
Output display:LCD digital display, displaying voltage, current and power meters
Pulse operation: DC pulse power supply with time controller (optional)
Interface: It can be communicated with PC through RS232, RS485,support SCPI protocol

Why Choose ACSOON Remote Control DC Power Supplies?

ACSOON delivers advanced remote management capabilities:

Remote Operation: Full control via network interfaces

Real-time Monitoring: Continuous parameter monitoring

Data Logging: Operational data recording

Multiple Interfaces: Various communication options

Automated Control: Scheduled operation capability

Application Areas

Our remote control DC power supplies are essential for:

Automated Systems: Unmanned operations

Remote Locations: Distant site management

Test Automation: Automated testing systems

Industrial IoT: Smart factory applications

Research Facilities: Remote experiment control

Monitoring Systems: Continuous monitoring applications

Data Centers: Remote power management

Utility Systems: Distributed power control

Details display

Quality Assurance

Quality Assurance

Each remote control DC power supply undergoes comprehensive testing:

Network functionality testing

Remote operation verification

Data communication testing

Interface compatibility testing

Reliability validation

Technical Features

Our remote control DC power supply incorporates:

Network communication interfaces

Remote monitoring capability

Data recording functions

Multiple protocol support

Automated control features

Packaging And Delivery

Packaging and Delivery

We ensure secure network packaging:

Protected electronic components

Careful handling procedures

Worldwide shipping services

Installation support

After-Sales Service

Remote support package includes:

Remote technical support

Software updates

Network configuration assistance

Training programs

Maintenance services

After-Sales Service

Certifications

CE Certification

ISO Certification

FAQ
Q1: What are the main features of remote control DC power supplies?
A: Remote monitoring, network control, and data logging capabilities.
Q2: What communication interfaces are available?
A: Ethernet, RS485, and other network interfaces.
Q3: How reliable is remote operation?
A: Stable network connectivity with reliable performance.
Q4: Can systems be automated?
A: Yes, with scheduled operation and remote control.
Q5: What remote applications are supported?
A: Automated systems, remote monitoring, and unmanned operations.
