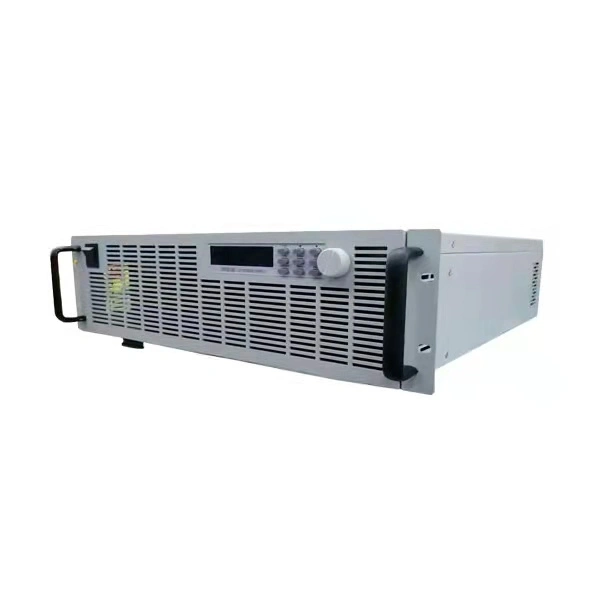

Robust DC Power System

1.Power Output: 0-600VDC / 0-400A (heavy-duty design)
2.Technology: Reinforced high-frequency switching
3.Input: 3-phase 380VAC ±15%, 50/60Hz wide range
4.Regulation: Voltage stability ≤±0.5%, Current stability ≤±0.5%
5.Key Applications: Heavy industry, manufacturing plants, harsh environments
6.Key Features: Robust construction; wide input range; reinforced components; reliable operation
7.Brand: ACSOON (robust configurations available).

Send Inquiry Download

Product Description

Robust DC Power System | Heavy-Duty DC Power Supply

XI'AN JERRYSTAR INSTRUMENT CO., LTD manufactures durable robust DC power systems for demanding industrial environments. Our systems are built with reinforced components and wide operating ranges to provide reliable DC power in challenging conditions, ensuring consistent performance for heavy industrial applications and manufacturing processes.

Technical Specifications

Feature	Specification
Input	Single Phase or Three Phase + N +PE
	220VAC (L-N)±10%; 380Vac(L-L)±10%, or customized
	Frequency: 50HZ/60HZ
Output Voltage	0- Nominal Voltage adjustable
	DC 12V, 15V, 24V, 30V, 50V, 60V, 100V, 150V, 300V, 600V or customized
Current	0- Nominal Current adjustable, with current limiting control
	1A to 1000A or customized
Voltage Stability	Line regulation ≤ 0.5% Nominal
	Load regulation ≤ 0.5% Nominal
Ripple (rms)	RMS ≤ 0.5% Nominal Value
Power Control	Potentiometer switch knobs, 1-byte resolution adjustment
Interface	Modbus Protocol RS232 (RS485), PC control for voltage/current setting and on/off
Display Accuracy	Voltage: Four and a half VFD, Resolution > 0.1V
	Current: Four and a half VFD, Resolution > 0.1A
Protection	Input phase loss, Output overvoltage, Overload current limiting, Short circuit, Over temperature
Cooling	Air forced fan
IP Rating	IP20 (Customizable)
Color	RAL7035
Working Temp.	-10℃ to 45℃
Standards	EN61000-6-3 & EN60204-1

Robust DC Power System Performance feature

Over current protection: Output nominal current overload protection
Short circuit protection: Allowing long-term short-circuit or short-circuit start-up in any state
Short circuit alarm: when the output short circuit, the unit sound and light alarm
Output display:LCD digital display, displaying voltage, current and power meters
Pulse operation: DC pulse power supply with time controller (optional)
Interface: It can be communicated with PC through RS232, RS485,support SCPI protocol

Why Choose ACSOON Robust DC Power Systems?

ACSOON delivers industrial-strength reliability:

Robust Construction: Heavy-duty components for tough environments

Wide Operating Range: Handles input variations up to ±15%

Reliable Performance: Consistent operation under challenging conditions

Durable Design: Long-lasting performance with minimal maintenance

Stable Output: Excellent regulation in demanding applications

Application Areas

Our robust DC power systems are essential for:

Heavy Industry: Steel mills and metal processing

Manufacturing Plants: Production line equipment

Industrial Automation: Heavy machinery power

Process Industries: Industrial process control

Equipment Testing: Heavy equipment validation

Utility Applications: Industrial utility systems

Mining Operations: Mining equipment power

Construction: Heavy equipment applications

Our Services

Quality Assurance

Each robust DC power system undergoes rigorous testing:

Stress testing under extreme conditions
Vibration and shock resistance testing
Thermal performance validation
Reliability certification
Safety standard compliance

Technical Features

Our robust DC power system incorporates:

Reinforced power components
Wide-range input capability
Enhanced cooling system
Protection circuitry
Monitoring systems

Packaging and Delivery

We ensure robust packaging:

Heavy-duty packaging materials
Shock-resistant packaging design
Worldwide shipping services
Professional installation support

After-Sales Service

Robust support package includes:

Technical support services
Maintenance programs
Emergency repair services
Training programs
Parts availability

Certifications

CE Certification

FAQ
Q1: What makes robust DC power systems suitable for heavy industry?
A: Reinforced construction, wide operating ranges, and reliable performance in tough conditions.
Q2: How wide is the input voltage range?
A: Handles ±15% input voltage variation automatically.
Q3: What industrial applications are supported?
A: Heavy manufacturing, process industries, and demanding industrial environments.
Q4: How is durability ensured?
A: Through robust component selection and reinforced construction.
Q5: Can systems handle harsh environments?
A: Yes, designed for reliable operation in challenging industrial conditions.
