Telecom DC Power System

1.Power Output: 28.5VDC / 0-400A (telecom standard)
2.Technology: High-frequency switching with N+1 redundancy
3.Input: 3-phase 380VAC ±10%, 50/60Hz
4.Reliability: 99.9% uptime with redundant design
5.Key Applications: Telecom base stations, data transmission, network equipment
6.Key Features: High reliability; remote monitoring; hot-swap modules; battery backup
7.Ingress Protection Grade: IP21/54
8.Brand: ACSOON (telecom configurations available).

Send Inquiry Download

Product Description

Telecom DC Power System | Reliable Power for Telecom Equipment

XI'AN JERRYSTAR INSTRUMENT CO., LTD manufactures highly reliable telecom DC power systems for critical telecommunications infrastructure. Our systems provide stable 28.5VDC power for telecom base stations, data transmission equipment, and network infrastructure, ensuring uninterrupted operation with advanced redundancy and remote monitoring capabilities.

Technical Specifications

Feature	Specification
Input	Single Phase or Three Phase + N +PE
	220VAC (L-N)±10%; 380Vac(L-L)±10%, or customized
	Frequency: 50HZ/60HZ
Output Voltage	0- Nominal Voltage adjustable
	DC 12V, 15V, 24V, 30V, 50V, 60V, 100V, 150V, 300V, 600V or customized
Current	0- Nominal Current adjustable, with current limiting control
	1A to 1000A or customized
Voltage Stability	Line regulation ≤ 0.5% Nominal
	Load regulation ≤ 0.5% Nominal
Ripple (rms)	RMS ≤ 0.5% Nominal Value
Power Control	Potentiometer switch knobs, 1-byte resolution adjustment
Interface	Modbus Protocol RS232 (RS485), PC control for voltage/current setting and on/off
Display Accuracy	Voltage: Four and a half VFD, Resolution > 0.1V
	Current: Four and a half VFD, Resolution > 0.1A
Protection	Input phase loss, Output overvoltage, Overload current limiting, Short circuit, Over temperature
Cooling	Air forced fan
IP Rating	IP20 (Customizable)
Color	RAL7035
Working Temp.	-10℃ to 45℃
Standards	EN61000-6-3 & EN60204-1

ACSOON Telecom DC Power System Performance feature

Over current protection: Output nominal current overload protection

Short circuit protection: Allowing long-term short-circuit or short-circuit start-up in any state

Short circuit alarm: when the output short circuit, the unit sound and light alarm

Output display:LCD digital display, displaying voltage, current and power meters

Pulse operation: DC pulse power supply with time controller (optional)

Interface: It can be communicated with PC through RS232, RS485,support SCPI protocol

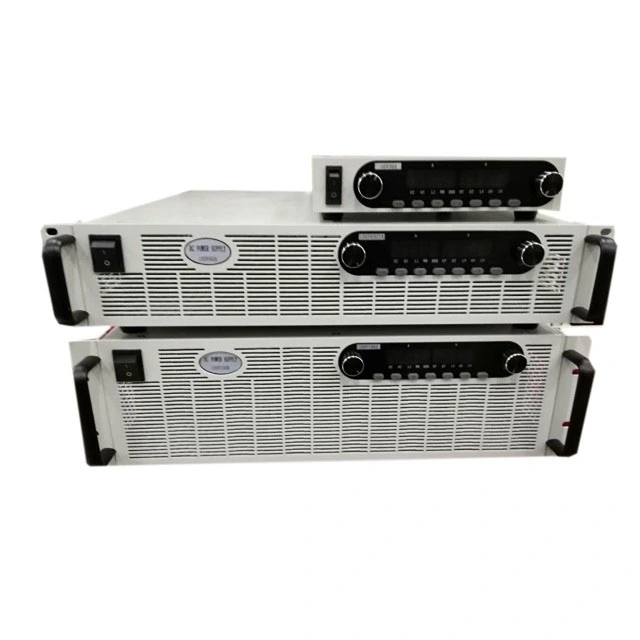

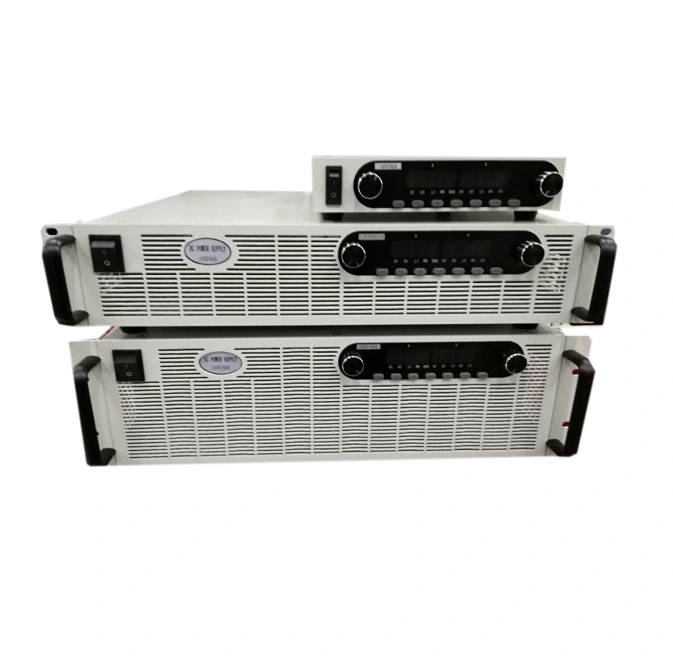

Telecom DC Power System

Why Choose ACSOON Telecom DC Power Systems?

ACSOON delivers mission-critical reliability for telecom applications:

High Reliability: 99.9% uptime with redundant design
Remote Management: Comprehensive monitoring and control
Hot-swap Capable: Module replacement without downtime
Battery Backup: Seamless transition to backup power
Standards Compliant: Meets telecom industry requirements

Application Areas

Our telecom DC power systems are essential for:

Telecom Base Stations: Mobile network infrastructure
Data Transmission: Network transmission equipment
Network Rooms: Communication equipment power
Emergency Systems: Backup power applications
Remote Sites: Unmanned telecom stations
Data Centers: Telecom server power
Broadcasting: Transmission equipment power
Emergency Comms: Critical communication systems

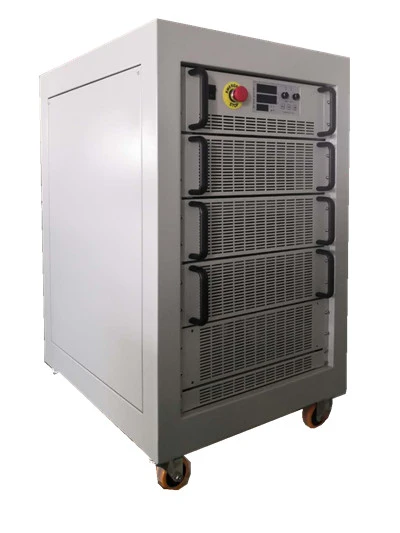

Application Areas

Details display

Quality Assurance

Each telecom DC power system undergoes rigorous testing:

Redundancy failure testing
Battery backup verification
Remote monitoring validation
Environmental testing
Reliability certification

Technical Features

Our telecom DC power system incorporates:

Redundant power architecture
Battery management system
Remote monitoring interfaces
Hot-swap module design
Network communication capability

Packaging and Delivery

We ensure telecom-grade packaging:

Protected component packaging
Careful handling procedures
Worldwide shipping services
Professional installation support

After-Sales Service

Telecom support package includes:

24/7 technical support
Emergency maintenance
Remote diagnostics
Training programs
Parts inventory

After-Sales Service

Certifications

CE Certification

ISO Certification

FAQ
Q1: What makes telecom DC power systems suitable for base stations?
A: High reliability, remote monitoring, and battery backup for uninterrupted operation.
Q2: How is reliability achieved?
A: Through redundant design and quality components.
Q3: What monitoring capabilities are available?
A: Remote monitoring of all critical parameters.
Q4: Can modules be replaced without shutdown?
A: Yes, with hot-swap capable design.
Q5: What backup power options are available?
A: Integrated battery backup with automatic switching.
