Can 90kVA 400Hz Aircraft GPU Replace Traditional Ground Power Units?
In many airport, MRO, and aircraft maintenance environments, a 90kVA 400Hz static GPU can replace traditional diesel ground power units by providing cleaner and more stable aircraft power. The power from these solid-state frequency converters is better, they are quieter, and they need a lot less upkeep than older diesel systems. When ground crews at hangars, military bases, or factories need reliable power from outside to test and service aircraft, static converters are more reliable. IGBT-based equipment for aircraft ground power meets strict flight standards while making operations simpler. This is in contrast to older mechanical units that were prone to fuel system failures and emission issues.
Comparing 90kVA 400Hz Aircraft GPU with Traditional Ground Power Units
Knowing how solid-state converters work differently than regular diesel-powered GPU can help purchasing managers figure out how much something is worth in the long run, besides the original cost.
Energy Efficiency and Environmental Performance
Chemical energy is changed by diesel-powered ground support equipment that burns fuel, achieving an average efficiency of 30 to 35 per cent. A lot of the energy from the fuel is lost as waste heat through the cooling system and exhaust.
Modern solid-state frequency converters typically achieve high conversion efficiency, reducing energy losses compared with diesel-powered systems which means they waste less energy and use less power over time.
Another important benefit is that it reduces noise. Diesel engines running at high RPM at a distance of one metre, which means ground crews need hearing protection and adds to noise complaints at the airport. Solid-state static frequency converter only make a small amount of noise, which comes mostly from cooling fans. As neighbourhood noise laws and night curfews get tighter, this quieter operation becomes increasingly important.
Emission-free work gets rid of air pollution in the area. Diesel generators emit nitrogen oxides, particulate matter, and unburnt hydrocarbons right where the ground crew works. In enclosed hangars or other indoor spaces, diesel equipment is unsafe without expensive pollution capture systems. Electric static converters don't produce any emissions on-site, which makes the air quality in the workplace better and makes building the facility easier.
Although the initial investment of a static GPU may be higher, lower energy consumption, reduced maintenance requirements, and longer service intervals can provide advantages over the equipment lifecycle.
Talk to Engineer
Based on $0.85/litre diesel and $0.12/kWh energy, these numbers are based on 2,000 hours of operation per year. Even though it costs more up front, the static conversion pays for itself in three years. Not having to change the oil, fuel filter, or injectors, as well as having the engine overhauled every 10,000 hours on diesel units, saves money on maintenance.
Reliability differences affect how ready a business is to go. Diesel engines have trouble starting in cold weather, suffer from dirty fuel, and experience wear on quickly spinning parts. Solid-state converters don't use any fluids that need to be replaced and have fewer moving parts that can wear out. Properly designed solid-state GPUs can provide long service life with fewer mechanical wear components compared with diesel-powered systems, while diesel-mechanical systems only last between 8,000 and 12,000 hours.
Fixed Versus Portable Configuration Options
Different types of facilities in aviation have different mobility needs. Fixed systems serve specific parking spots or garage bays where planes are regularly serviced. These systems can be permanently installed and hardwired to the power distribution in the building. The ACSOON GPU400 series comes in several different designs, such as wall-mount models for permanent placement and wheeled cart models that can be moved around to fit different aircraft bays.

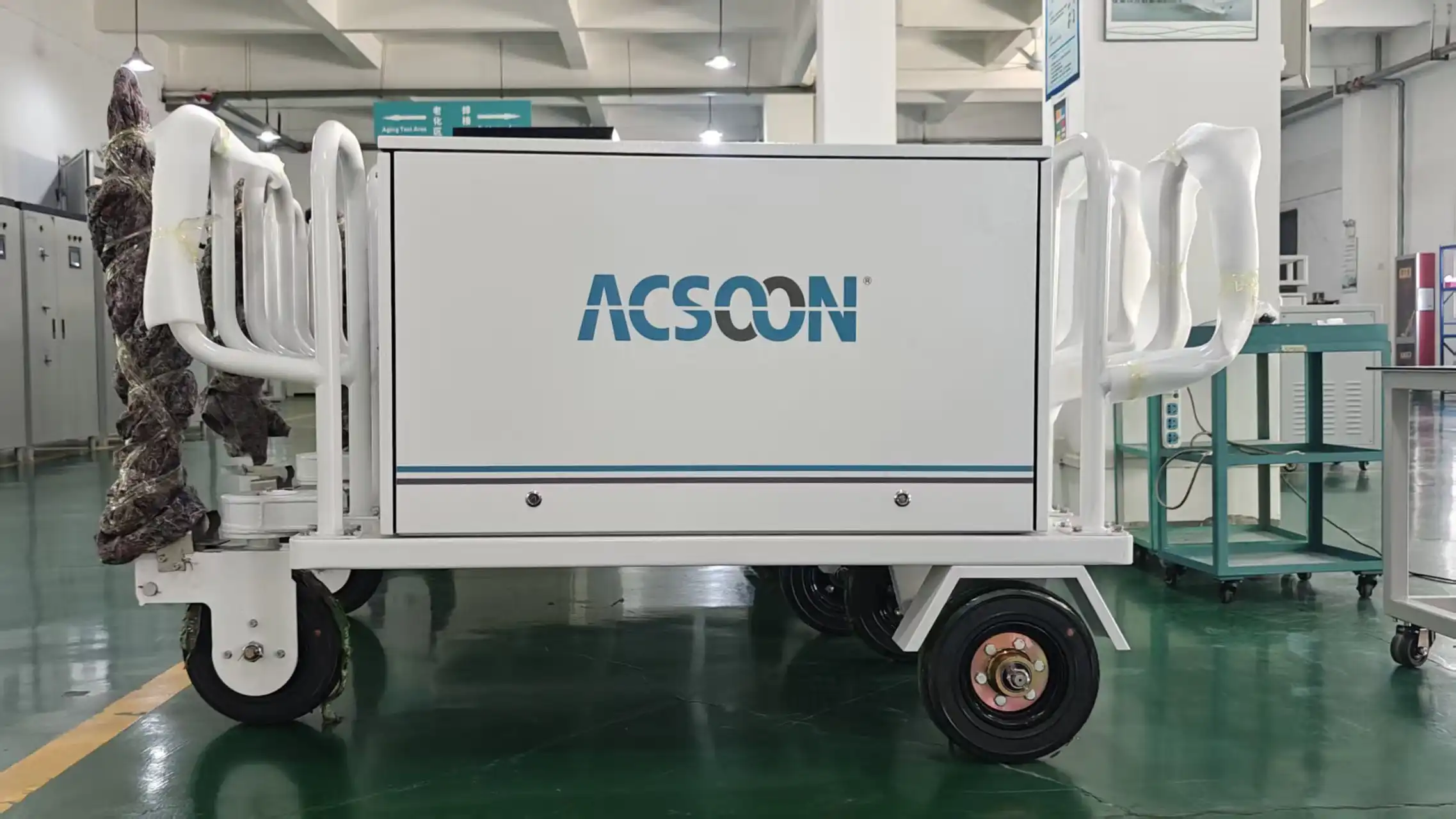

Portable units are used on the flight line, where ground crews have to move gear between parking spots and different types of aeroplanes. Modern static converters come in ruggedised cases with heavy-duty wheels, making them portable while still protecting the environment. The 90kVA 400Hz Aircraft GPU ability is commonly used for narrow-body aircraft, business aviation, military aircraft maintenance, and other aviation ground support applications, meeting most of the needs for aviation ground power.
Practical Applications and Maintenance of 90kVA 400Hz Aircraft GPUs
In the real world, application success rests on knowing how things work and setting up the right maintenance procedures.
Diverse Application Environments
Modern aircraft power units can connect quickly, which is helpful for queue maintenance at commercial airports. When maintenance workers do overnight checks, they need power right away, without waiting for diesel engines to warm up and stabilise. Static converters give rated power within seconds of being turned on. The ACSOON units' event recording feature keeps track of power quality data and problem conditions, creating maintenance records that are useful fors upporting maintenance records and operational monitoring.
For military uses, you need tools that meet defence standards. The GPU400 series is designed to provide aircraft power characteristics compatible with requirements defined in MIL-STD-704F, which means it can be used for military bases and aircraft maintenance facilities, and forward operating bases. The wide temperature range is critical for deployments to places with extreme weather where diesel fuel gelling or burning makes it hard for regular generators to work.
Another important group is manufacturing and research and development (R&D) facilities. Before their first flights, aircraft assembly plants do a lot of testing on the ground, which needs stable power for hundreds of hours. When testing new equipment designs, avionics research labs need to keep the electrical surroundings very tightly controlled. Because solid-state converters have low harmonic distortion and voltage regulation, they don't mess up sensitive test equipment in a way that would change the results of measurements.
Maintenance Protocols for Maximum Uptime
Compared to diesel systems, static frequency converters require less regular maintenance. Checking the cooling fan's operation, the cleaning of the air filter, and the tightness and corrosion of the wire links should all be done every three months. There is no need to service the sealed IGBT units because they either work properly or don't work at all, which makes troubleshooting easier.
As part of yearly maintenance, we test the protection circuits to ensure they work correctly when we mimic fault situations. To ensure that the output voltage and frequency are still meeting specifications, they should be checked under different load conditions. In the DC link stage, capacitor banks have a limited useful life. Depending on the working temperature and duty cycle, they usually need to be replaced every 7 to 10 years.
A good piece of 90kVA 400Hz Aircraft GPU equipment has a diagnostic system that makes it easier to find problems. Indicators with different colours show different types of faults, such as overcurrent, overtemperature, input phase loss, or output short circuit. This real-time input lets the ground team tell the difference between unit failures and electrical problems on the aeroplane side, which accelerates the diagnostic process.
Supplier Support and Service Considerations
Choosing manufacturers with complete after-sales services helps keep operations running smoothly. Xi'an Jerrystar Instrument keeps enough of the most important spare parts on hand so that they can quickly meet urgent replacement needs. This is a big edge over generic industrial converter sellers who don't know how much downtime costs in flight. Because the company has worked on military power systems before, they know what reliable operation requirements needs are.
When technical help is fixing problems, ease is important. Instead of sending questions to multiple levels of support, JERRYSTAR lets you talk to an engineer directly at acpower@acsoonpower.com. Custom changes can be made to fit specific aircraft types or space limitations, and OEM partnership choices are available for businesses that need private-label equipment.
Making an Informed Procurement Decision: Choosing the Right 90kVA 400Hz Aircraft GPU
When choosing ground power equipment, procurement professionals have to look at more than just the technical specs.
How to Choose a Reliable 90kVA GPU Manufacturer
The market for airline ground support is served by a number of well-known companies. Military airlift squadrons and maintenance contractors use portable units made. Ground Support focuses on diesel-electric hybrid systems that try to combine old and new technologies.
The ACSOON brand from Xi'an Jerrystar Instrument stands out from the competition by focusing on solid-state conversion technology and not having to protect any older product lines. This specialisation allows strict performance standards to be set and competitive prices to be offered. The factory in Shaanxi Province is between 5,000 and 10,000 square meters and can handle both standard output and special engineering projects.
OEM Versus Aftermarket Equipment Strategy
Original equipment maker options are guaranteed to work with other systems and usually come with a full warranty. Manufacturers of aircraft sometimes list lists of acceptable ground support equipment. This statement is especially true for new aircraft types that are still under guarantee. These OEM units cost more because they come with support services and are associated with a well-known brand.
Aftermarket options offer the same level of technical ability at a lower price. Aftermarket companies with a good reputation, like JERRYSTAR, make products. The most important thing to think about now is the supplier's ability to provide quick parts delivery, expert help, and field service when needed.
Standardising ground equipment across all aircraft types is good for companies with a lot of different fleets. A good 90kVA 400Hz Aircraft GPU can handle the electrical needs of business jets to narrow-body transports. This saves time and money on training and supplies for spare parts compared to keeping several specialised diesel units.
Procurement Best Practices and Logistics
The table below outlines key evaluation criteria:
| Evaluation Criterion | Weight Factor | Assessment Method |
|---|---|---|
| Compliance Certification | 25% | Check test reports for MIL-STD-704F, MIL-STD-810, and DO-160. |
| Power Quality Specs | 20% | Look over statistics on THD, voltage control, and frequency stability |
| Environmental Rating | 15% | Make sure the IP rating and temperature range are right for the site. |
| Supplier Support | 20% | Check the warranty terms, availability of spare parts, and service response. |
| Delivery Timeframe | 10% | Compare lead times to what the project schedule needs. |
| Total Cost of Ownership | 10% | Figure out the 5-year running costs, which should include upkeep and energy. |
When negotiating a bulk buy, you should talk about volume discounts, staggered shipping plans that work with the phases of building the facility, and choices for longer warranties. Custom paint schemes or connection setups don't cost much more if they are asked for at the time of the original order instead of being added later.
Lead time management is very important for building jobs with set due dates. After an order is confirmed, standard ACSOON units ship within 4 to 6 weeks. Custom configurations, on the other hand, need 8 to 12 weeks for engineering and production. Early on in the project planning process, procurement managers should talk to sellers to find out what parts will take a long time to get and set realistic plans.
Conclusion
Modern 90kVA 400Hz Aircraft GPU are clearly better in terms of technology and cost than older diesel-powered systems. Static frequency converters provide better power quality, work more reliably, and require much less maintenance. They also get rid of noise and emissions in the area. Within three years, the higher initial investment is paid back by lower operating costs.
When looking at ground support tools, people in charge of procurement should put solid-state transfer technology at the top of their list. Compliance with MIL-STD-704F makes sure that the product works with complex aircraft electrical systems, and weather certifications like MIL-STD-810 make sure that it can handle rough working conditions. Standardising on tried-and-true systems that can handle different types of aircraft is good for businesses because it makes logistics and teaching technicians easier.
The flight business is moving toward being more environmentally friendly and running more efficiently, which makes static converter technology more likely to be widely used. Organisations will be successful in the long run if they have practical fleet replacement planning that work with this change.
FAQ
Can static converters completely replace diesel ground power units?
In many applications, yes, but diesel GPUs may still be required where grid power is unavailable. These days, solid-state frequency converters can handle all kinds of ground power needs, from extra power to checking the main electrical system. Diesel units are still better in very remote areas that don't have access to the power grid, but solar-powered battery systems are becoming more and more useful in these situations.
What maintenance costs should we budget for static converter operation?
For good units, yearly maintenance includes replacing the filter, checking the connections, and testing the protection circuit. This is diesel units need for oil changes, fuel system service, and replacement of worn parts. DC link capacitors need to be replaced every 7 to 10 years, which is a major service period.
How quickly can suppliers deliver aircraft ground power equipment?
Standard setups are sent out 4 to 6 weeks after the order is confirmed. Custom-engineered solutions need between 8 and 12 weeks to be made and for the plan to be confirmed. When compared to makers who make to order, JERRYSTAR keeps an inventory of popular setups and important spare parts. This lets them serve faster for urgent needs.
Partner with JERRYSTAR for Your Aircraft Ground Power Needs
Xi'an Jerrystar Instrument Co., Ltd. is an expert in ACSOON brand power conversion systems that are designed to work in industrial, military, and aviation settings. Our GPU400 line static frequency converters provide power that meets MIL-STD-704F standards in a range of designs, from portable units to fixed installations. Our 5,000–10,000-square-metre centre in Shaanxi Province is where we do business. We keep enough stock on hand to guarantee quick delivery (usually 4-6 weeks for normal units), and we also offer custom engineering for special needs. Our expert team provides thorough advice matching equipment specs to your working environment, whether you need a single 90kVA 400Hz Aircraft GPU source or a fleet-scale deployment with an OEM partnership. Email us at acpower@acsoonpower.com to talk about your ground power needs and get a full quote.
