400 Hz GPU vs 400 Hz Test Power Supply: How to Choose the Correct System
Introduction
The phrase “400 Hz power supply” can refer to more than one type of equipment. An airport or MRO team may mean an aircraft ground power unit. A laboratory or aerospace manufacturer may mean a controlled AC source for a component, subsystem or test bench. Both may generate 400 Hz output, but the surrounding system requirements can be different.
Selecting by frequency alone can lead to the wrong connector, enclosure, control method or operating assumptions. The correct starting point is the job the source must perform.
What an aircraft GPU is selected to do
A 400 Hz aircraft ground power unit supplies AC power to an aircraft while it is on the ground. The project discussion normally includes the aircraft voltage system, capacity, connector, aircraft interlock, cable arrangement, service location and duty.

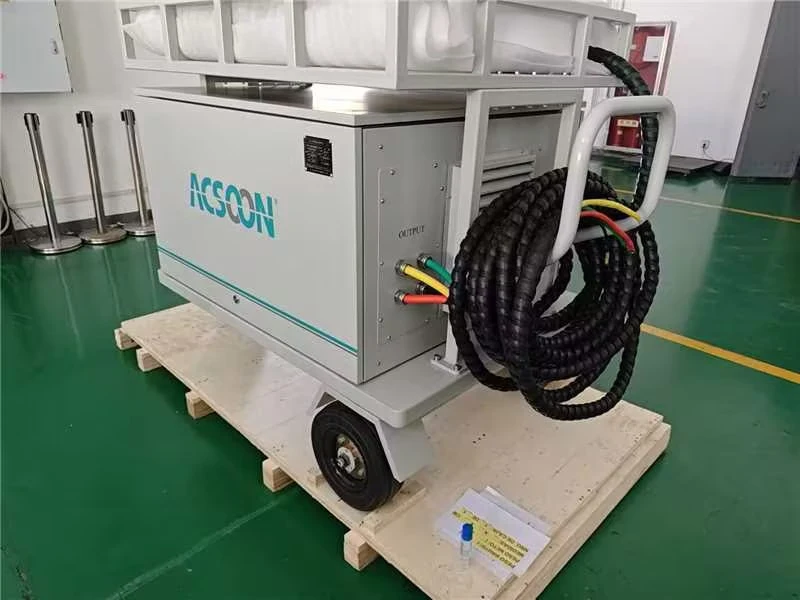

A fixed hangar GPU, a mobile unit and an apron installation may share an electrical platform but differ in enclosure, cable handling, mobility and environmental protection. These details belong to the GPU specification because operators interact with the complete ground-support system.
What a 400 Hz test source is selected to do
A laboratory or production test source powers a device under test under controlled conditions. The requirement may focus on adjustable voltage, one or more frequency points, programmed test steps, dwell time, measurement, protection and computer control.
The load may be an avionics assembly, aircraft electrical component, radar-related device, production fixture or another piece of equipment designed for a 400 Hz supply. Its terminals and control workflow may be different from an aircraft ground connection.
Connection and interface differences

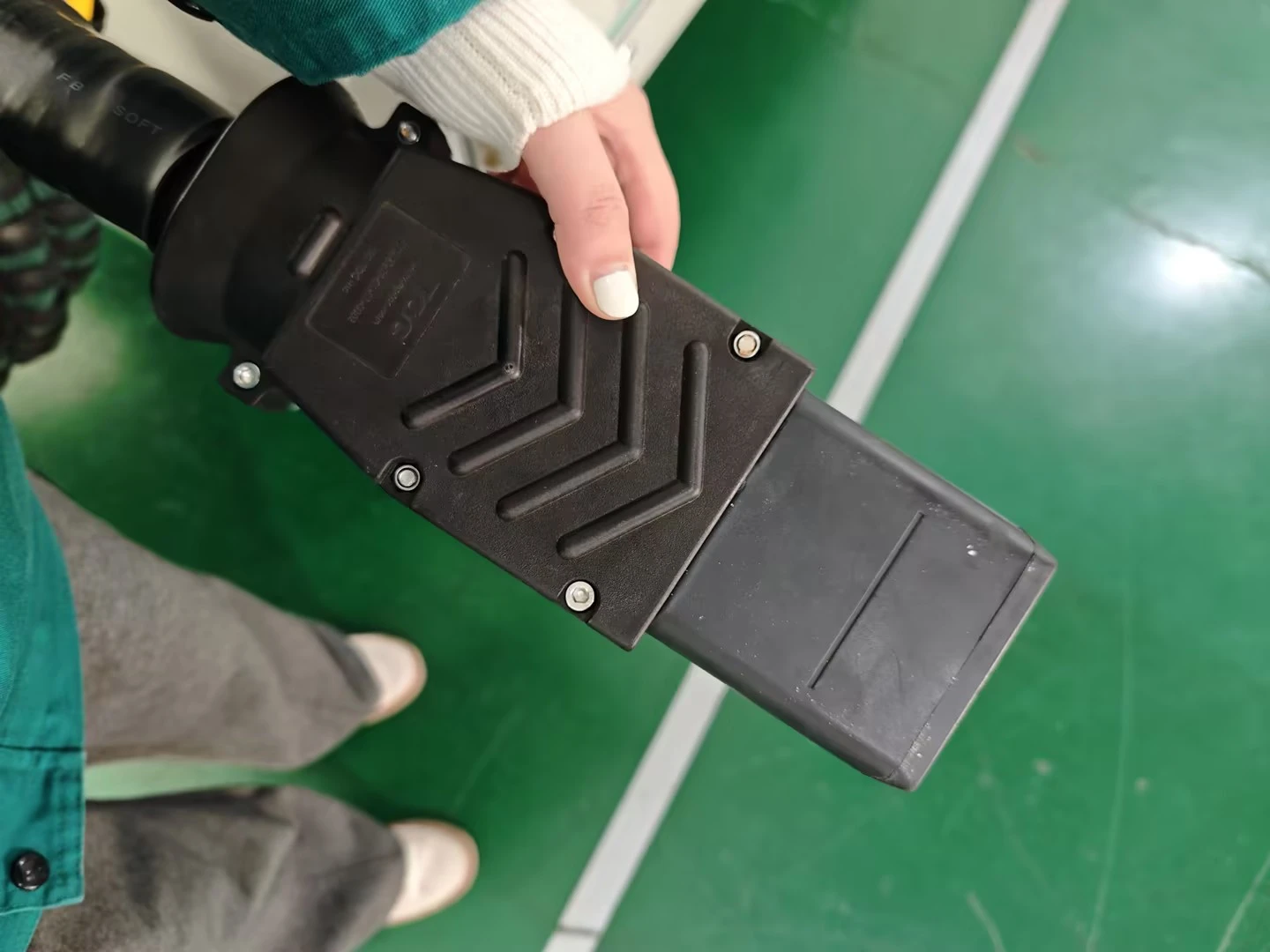

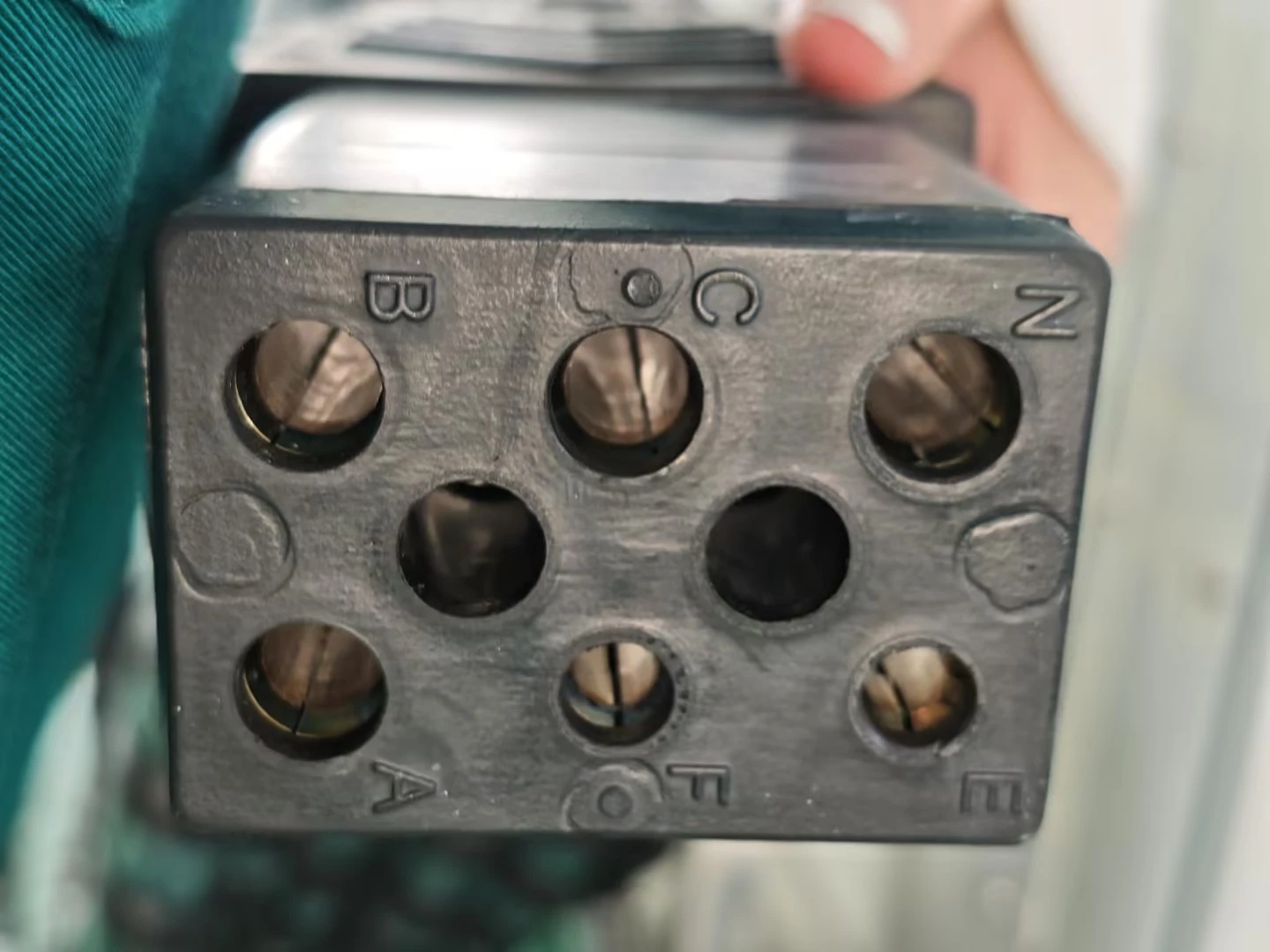

Aircraft ground power projects may require an aviation connector, interlock logic, output cable and reel or other cable-management arrangement. Test systems may use terminal blocks, laboratory connections or fixture-specific interfaces.
The connection method must be stated explicitly. A buyer should not assume that a 400 Hz cabinet includes the required aircraft plug, and should not assume that a GPU offers the programming or automation functions of a laboratory source.
Control and operating workflow
A GPU operating sequence is built around safe ground connection, equipment start, verification of output and controlled energization of the aircraft. ACSOON GPU documentation includes checks for nameplate agreement, protective earth, terminal condition and no-load verification before the load is energized.
A test source may instead be integrated with a repeatable test method. The operator may choose stored settings, adjust voltage and frequency, run a timed sequence or control the source from a computer. The exact functions depend on the selected configuration and must be confirmed in the quotation.
Load and overload questions
An aircraft load and a test-bench load may have different current profiles and power factors. For either system, provide continuous load, starting or inrush behavior, duration and repetition. Do not transfer an overload statement from one product family to another without checking the model-specific data.
The supplier should evaluate the requested current-time profile, not only the nominal kVA. Cable length and connection resistance are especially important where the load must receive a defined voltage at the end of the cable.
Environment and mechanical scope
A GPU may operate in a hangar, on an apron or as part of fixed airport infrastructure. Weather, dust, temperature, towing, cable handling and maintenance access may therefore affect the project.
A test source may operate in a controlled laboratory or production room, but it still needs suitable ventilation, clearances, grounding and protection. If the test source will be used in a nonstandard environment, that information should be included before the enclosure and cooling are selected.
Decision checklist
Choose the GPU path when the main task is to power an aircraft on the ground and the scope includes aircraft connection and ground-operation requirements. Choose the test-power path when the main task is to reproduce controlled electrical conditions for a component, subsystem or production test.
For both paths, provide site input, required output, phase, load, duty, connection method, environment and control needs. If one system must support both aircraft ground operation and laboratory-style testing, state both duties and request a project-specific engineering review.
Conclusion
The number 400 Hz identifies one electrical parameter, not the complete system. A GPU and a 400 Hz test power supply should be compared by application, connection, load, control, environment and operating procedure.
Define the task first. That decision makes the remaining specification clearer and reduces the risk of receiving quotations for different product families.
